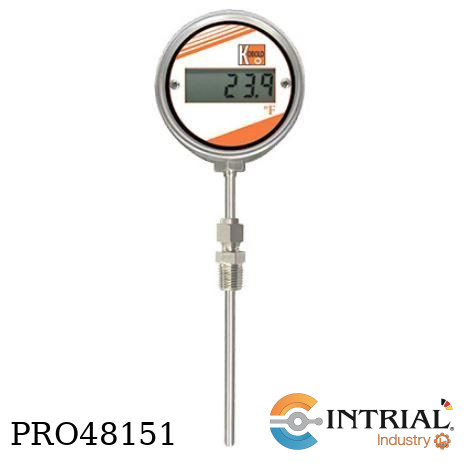

<strong>Digital Thermometer Model DTB<br />
Brand: Kobold Usa<br />
Model: DTB-025C+FT48FH4BZSS  </strong><br />
[DTB-025C]<br />
Technical Details<br />
Sensing Element: RTD, Type Pt1000, Class A<br />
Ranges: = -50 °C to 200 °C with 2.5" Probe Length<br />
Accuracy: ±(0.2 + 0.002 x [ T ] ) °C, factory<br />
Refresh Rate: 3 seconds<br />
Display: 4-digit LCD, 1/2" high<br />
RFI Effect: 1% or less typical<br />
Temp. Effect: <0.01% FS/°C<br />
Ambient Temp. Range: 0...50 °C<br />
Maximum Pressure: 500 PSIG (on probe)<br />
Housing Material: 316 Stainless Steel<br />
Probe Material: 316 Stainless Steel standard<br />
Weight: 12 oz (350 g)<br />
Protection: NEMA 4X, IP 67<br />
Power: (2) 3.6 V batteries<br />
Battery Life: 5 years typical in continuous mode<br />
[FT48FH4BZSS]<br />
1/4" 316SS Bore Through Compression Fitting x 1/2" NPT Male ('C' = 1.75")

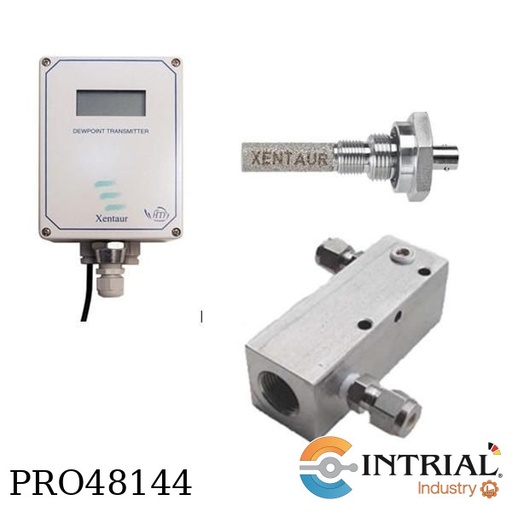

[XR66085]<br />
XDT IN NEMA 4X BOX FOR DIV 2 AREAS<br />
Brand: XENTAUR CORPORATION<br />
Analog Output<br />
6ft. Signal cable<br />
power cable c/w hermetically<br />
sealed relays for use in Div 2 hazardous áreas<br /><br />
[XR19060]<br />
SENSOR ELEMENT XTR-100<br />
Brand: XENTAUR CORPORATION<br />
Range:(-100ºC to 20ºC dp)<br />
Encapsulated in 100-micron sintered SS.<br /><br />
[XR19070]<br />
STANDARD SENSOR FITTING<br />
Brand: XENTAUR CORPORATION<br />
500psi / 34 bar 3/4"-16 &<br />
14mm x 1.25mm Threads<br /><br />
[XR19093]<br />

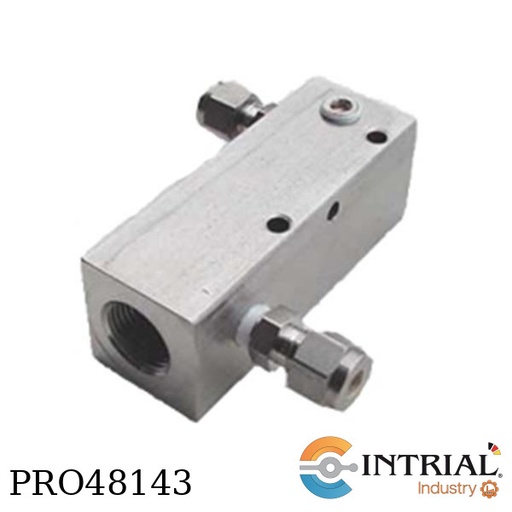

SAMPLE CELL <br />
Brand: XENTAUR CORPORATION<br />
1/4" Tubing

SAMPLE CELL <br />
Brand: XENTAUR CORPORATION<br />
1/4" Tubing<br />

STANDARD SENSOR FITTING<br />
Brand: XENTAUR CORPORATION<br />
500psi / 34 bar 3/4"-16 &<br />
14mm x 1.25mm Threads<br />

SENSOR ELEMENT XTR-100<br />
Brand: XENTAUR CORPORATION<br />
Range:(-100ºC to 20ºC dp)<br />
Encapsulated in 100-micron sintered SS.<br />

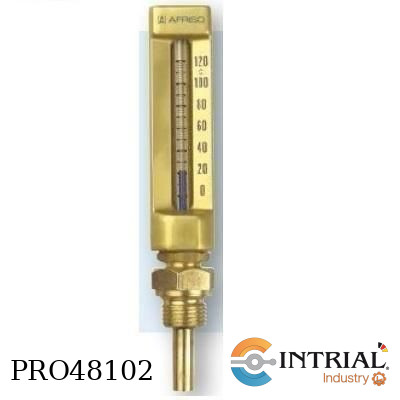

TERMOMETRO INDUSTRIAL<br />
Marca:AFRISO<br />
MODEL: VMTh200(64174)<br />
Tamaño, nominal:200 x 36 DIN:16181<br />
Posición de Montaje:Recta<br />
Carcasa:Aluminio anodizado de color bronce,-<br />
Bulbo:De bronce, 10 mm y largo, 100mm<br />
Conexión:Versión B con el tornillo-en ,el zócalo 1/2''NPT,latón<br />
Precisión:Según la no,rma DIN 16195<br />
Rango:0 A 120 °C

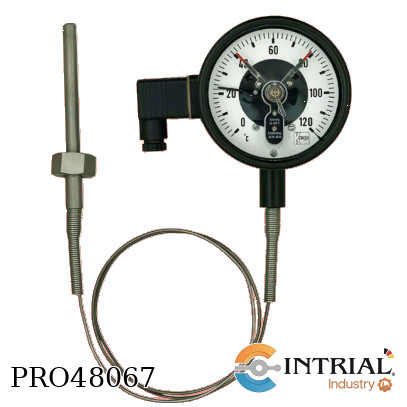

Termometro capilar marca KOBOLD, modelo<br />
TNF-2G-3-12-E-42-M10.<br />
Material de la sonda: acero inoxidable.<br />
Clase: 1.0.<br />
Material de la carcasa: aluminio/acero<br />
Diámetro 160 mm.<br />
Rango de medicion: 0...120 °C.<br />
Tubo capilar en acero inoxidable.<br />
Longitud de sonda: 12 mm / 150 mm<br />
Longitud de capilar: 3000 mm<br />
Conexion rosca G 3/4 girable.<br />
Contacto N/A NORMAL ABIERTO<br />
Demas caracteristicas en catálogo adjunto.<br />
<br />


Screw-in resistance thermometer<br />
1x Pt100 DIN EN 60751 cl.B, 3-wire,<br />
Brand INTRIAL(Made in Germany)<br />
protection tube ø5,5 mm, immersion length<br />
336 mm, tube length from thread 317 mm,<br />
with terminal head form NAA, temperature<br />
range -50 to +400°C<br />
process connection 1/2"NPT(3/4" thread lenght)<br /><br />

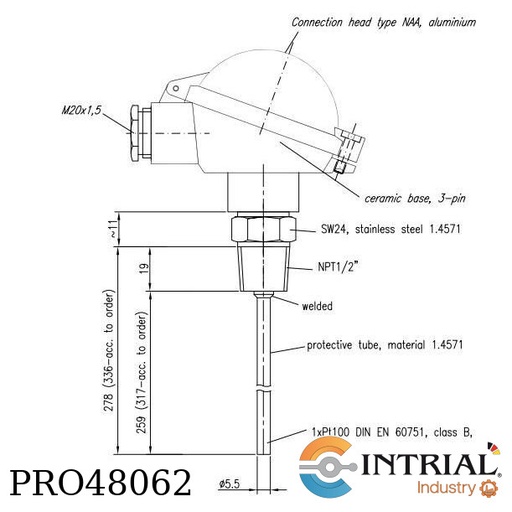

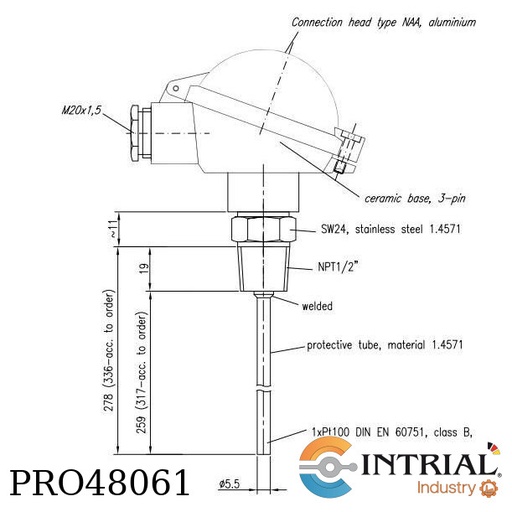

Screw-in resistance thermometer<br />
1x Pt100 DIN EN 60751 cl.B, 3-wire,<br />
Brand INTRIAL(Made in Germany)<br />
protection tube ø5,5 mm, immersion length<br />
278 mm, tube length from thread 259 mm,<br />
with terminal head form NAA, temperature<br />
range -50 to +400°<br />
process connection 1/2"NPT(3/4" thread lenght)

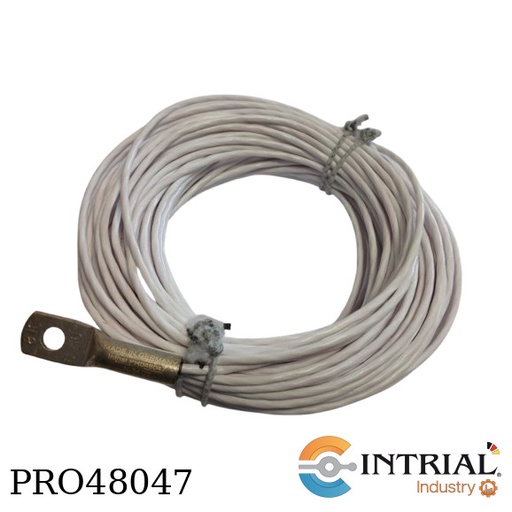

<p class="MsoNormal"><span style="font-size:12pt;font-family:'Times New Roman', serif;">Modelo: </span><span style="font-size:11pt;font-family:Calibri, sans-serif;">PRO48047</span><br />
Cable lug sensor M6<br />
1 x Pt100 Ohm DIN EN 60751 cl. B, 3-wire,<br />
cable lug M6, 20 x 13 x 2,5 mm (LxWxS), with<br />
extension tube 8,5 x 25 mm, bore ø 6,4 mm,<br />
material copper galvanised, with 20.000 mm<br />
connection cable PTFE/PTFE (cable No.<br />
70A) 3 x 0,22 mm², temperature range: -30 to<br />
+350°C, Tmax.: cable +280°C, similar to your<br />
photo</p>

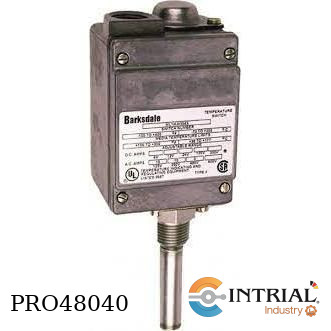

TEMPERATURE SWITCH<br />
Brand: BARKSDALE<br />
Application:Compressors;Mining;<br />
Manufacturing Facilities;Oil and Gas<br />
Electrical Connection:Screw Terminals<br />
Output:Single Switch Point;SPDT<br />
Temperature Range:75~200 deg F<br />
Sensor Length:2.25 in Probe<br />
Display:None<br />
Mounting Style:Local<br />
Process Connections:3/4 in NPT Male Thread<br />
NEMA Rating:NEMA 4<br />
Approvals:UL;CSA;CE<br />
Comments:Stainless Steel Sensor<br />

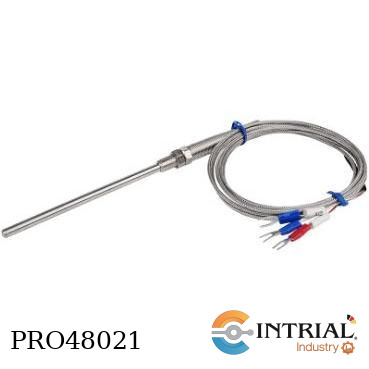

<strong>Screw-in resistance thermometer<br />
Marca: Intrial<br />
Model: RTD-3-1-T400-D5-L100-1M</strong><br />
Specification:<br />
1x Pt100 DIN EN 60751 Kl.B (glass <br />
measuring resistor), protection tube ø5 mm, <br />
installation length 100 mm, connection thread <br />
NPT1/2", with 1000 mm connection cable <br />
PTFE/PTFE (No. 70A) 3 x 0.22 mm², <br />
temperature range: -100 to +400°C,<br />
Tmax.: cable +280°C

NEW Qualitrol 104/TR6000 Capillary Based Oil Thermometer 0-180 deg C<br />
tube is 1/2 inch, the length is 5 inches, the thread is 1/2 male, length of tube is approx 10 feet, not sure of the contacts<br />
Include: connector CON-608-1<br />
Importante.- se entregara estos documentos<br />
Manual del equipo(Instruction sheet) y<br />
Certificado de prueba y calidad(Test and QUALITY Certificate)

<strong>Screw-in temperature sensor<br />
Marca: Intrial<br />
Model: RTD-3-1-T250-D4.35-L150-5M-8M</strong><br />
Specification:<br />
1 x Pt 100 Ohm DIN EN 60751, class B, <br />
3-wire, protection tube ø 4,5 mm, tube length <br />
from thread 150 mm, material 1.4571, with <br />
compression fitting M8, material stainless <br />
steel, clamping ring made of PTFE, with 5000 <br />
mm connection cable PTFE/PTFE (No. 70A) <br />
3 x 0,22 mm², ends insulated with wire end <br />
ferrules, with anti-kink spring, temperature <br />
range: -40 to +250°C, similar to your photo

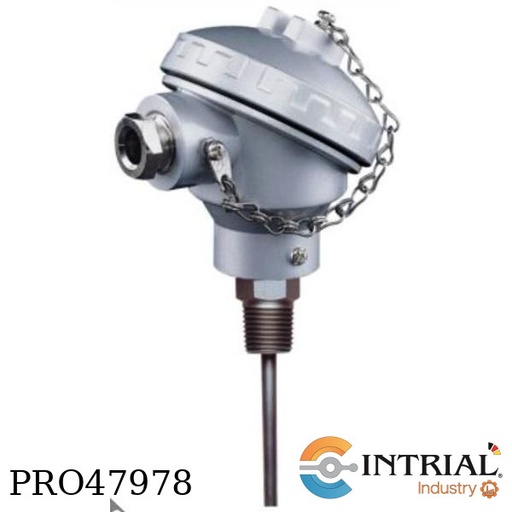

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-G15-C-3-G-A-0+TWL-0000-G-GG4B-0</strong><br />
[MWD-L]<br />
Version Protective tube acc. DIN 43772,<br />
filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[6] Diameter / length thermowell, 6 mm/ 150 mm<br />
[G15] Process connection, G1/2 male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C) <br />
[3] Wiring, 3 Wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[A] Head-mounted transmitter, programable 2 wire<br />
transmitter model 5333D or equivalent<br />
[0] Options, without<br /><br />
Thermowells for Temperature Sensors<br />
Brand: Kobold<br />
Model: TWL-0000-G-GG4B-0<br />
Version, <br />
Thermowell cylindrical drilled<br />
Material neckpipe/sensor/thermowell , st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[G] Connection neckpipe, G1/2 male<br />
[GG4B] Connection thermowell, G 1/2 male, PN 100<br />
[0] w/o lagging extension<br />
[0] Options w/o<br /><br />
L= 150 mm

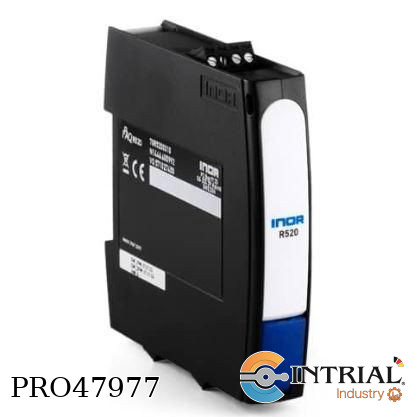

<strong>HART Compatible Universal Dual-input 2-wire Transmitters<br />
Brand: INOR<br />
Model: IPAQ-R520 </strong><br />
Technical Specification<br />
Type Rail-mounted<br />
Input RTD; Thermocouple; Universal<br />
Input RTD Pt10, Pt50, Pt100, Pt200, Pt500, <br />
Pt1000, Ni100, Ni120, Ni1000, Cu10<br />
Input Thermocouple Type B, C, D, E, J, K, N, R, S, T<br />
Type Of Transmitter Digital<br />
Output 4-20 mA; HART®<br />
Isolation Isolated<br />
Measuring channels 2 channels<br />
Sensor connection 2-, 3-, 4-wire connection<br />
Power supply IPAQ R520/R520S: 10 to 36 VDC; <br />
IPAQ R520X/R520XS: 10 to 30 VDC<br />
Approvals ATEX, IECEx, SIL2<br />
Typical accuracy RTD: Max. of ±0.1 °C or ±0,05 % of span; <br />
TC: Typical ±0.05 of span

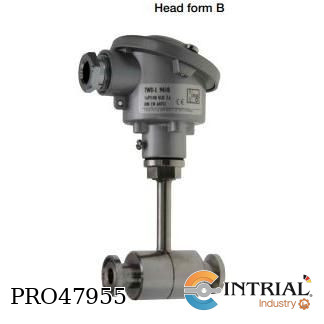

<strong>In-Line Resistance Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TWP-LA8-D25-1-4-G-P</strong><br />
[TWP-LA8]<br />
Material: st.st., 1.4404<br />
Sensor, Pt 100, Class B<br />
Temperature range, -20...200 °C<br />
Connection, Clamp ISO 2852<br />
[D25] Connection, DN 1"<br />
[1] Type of sensor, 1 x Pt 100<br />
[4] Wiring, 3 wires<br />
[G] Head, st. steel housing <br />
[P] Option, electropolished

BASE MODULE<br />
Brand: HONEYWELL<br />
24 VDC / 24 VDC / 85-264 VAC INPUT VOLTAGES<br />
50/60 HZ<br />
18 VDC OUTPUT VOLTAGE<br />
DIN RAIL MOUNT<br />

ANALOG INPUT MODULE<br />
Brand: SCHNEIDER<br />
Gama de producto: Modicon TM3<br />
Tipo de producto o componente: Módulo entrada analógica<br />
Compatibilidad de gama: Modicon M221,Modicon M241<br />
Modicon M251, Modicon M340<br />
Número de entrada analógica: 8<br />
Tipo de entrada analógica: Corriente 4...20 mA, corriente 0...20 mA<br />
tensión 0...10 V, tensión - 10...10 V

COOLING ELEMENT, SCREW CONNECTION<br />
Brand: AFRISO<br />
at both ends G½ female x male<br />
Up to Tmax<br />
medium<br />
200 °C (Ø 27)
