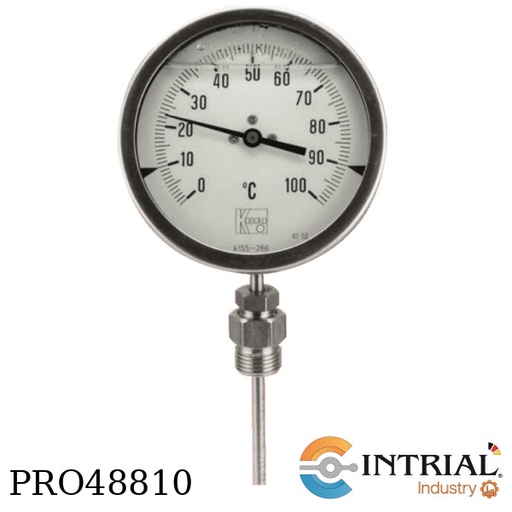

<strong>Bimetallic Thermometers<br />
Brand: Kobold(Alemania)<br />
Model: TBE-2-1-C10-9A-8-C40-R10-C01</strong><br />
[TBE-2]<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: bottom<br />
Probe: st.st.<br />
[1] Diameter: 100 mm<br />
[C10] Measuring Range: 0 ... +100 °C<br />
[9A] Probe type/Process connection: sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length: 8 mm / 100 mm<br />
[C40] Options; Case and ring stainless steel AISI 316<br />
[R10] Glycerine filling (max. 160 °C) IP 67<br />
[C01] Calibration report

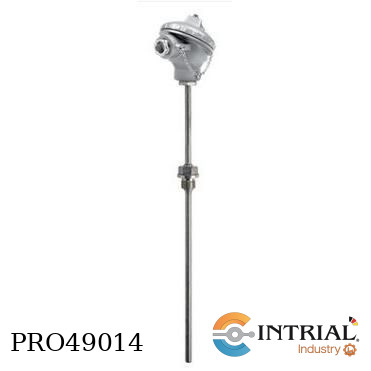

<strong>Screew-in-/Insert- Resistance Thermometers Ex ia<br />
Brand: Kobold Alemania<br />
Model: TWL-A-5-C15-C-3-G-0-0</strong><br />
[TWL-A]<br />
Sensor, PT100<br />
Electr. connection, M20x1.5<br />
Neck pipe HL, no<br />
Version, compact fitting<br />
Max. pressure, 30 bar (at 20°C)<br />
Material, st. st. 1.4404<br />
Protection tube, nach DIN 43772, gefüllt mit Magnesiumoxyd<br />
Temperature,  -80…+250°C<br />
ATEX-approval, II 1 GD Exia IIC T4…T6/Ex iaD 20 IP65 <br />
T85°C -20°C ≤ Ta≤ +60<br />
[5] Immersion tube diameter, Tube Ø5 , Immersión lenght 98mm<br />
[C15] Process Connection, Compression fitting G 1/2 -M<br />
[C] Sensor type/ category, 1xPT100 class A (-70…+250°C)<br />
[3] RTD wiring, 3 - wire<br />
[G] Terminal Head, screw-cap with chain, aluminium<br />
[0] Head transmitter, ceramic terminal<br />
[0] Options, without

Capillary Thermometers diam. 100 acc. DIN EN 13190<br />
Brand: Kobold - Alemania<br />
Model: TNF-2F-A-16-F-1A-Y<br /><br />
[TNF-2F]<br />
Diameter, 100 mm<br />
Probe material, st.st.<br />
Class, 1,0<br />
[A]: Housing material, Aluminum / st.st.<br />
[16]: Range, 0...160 °C<br />
[F]: Capillary tube, flexible st.st. coiled hose (2 mts)<br />
Probe length; 100 mm<br />
[1A]: Probe; 1/2 NPT sl. nut + 2 nipple<br />
[Y]: Dual scale °C/°F for measuring range

ALARMA VISUAL O BALIZA<br />
Brand: THERMO SCIENTIFIC<br />
Rotating Signal Light (230 VAC)<br />

ALARMA SONORA O SIRENA<br />
Brand: THERMO SCIENTIFIC<br />
Alarm Horn (230 VAC)<br />

CONTROLADOR PARA SENSOR<br />
Brand: THERMO SCIENTIFIC<br />
Model: 21-35-NM-F-4X<br />
TILT SWITCH<br />
PN: 092203<br />
Descripción: CSA Tilt Sensor Control<br />
in field (F) mount NEMA-4X SST box<br />

SONDA TIPO TILT<br />
(atoro de chute) – Libre de Mercurio<br />
Marca: Thermo scientific<br />
Modelo: 21-59-NM-15M<br />
Probe, 1" Cast Iron,<br />
15 metros de Cable<br />
Parte: 508526

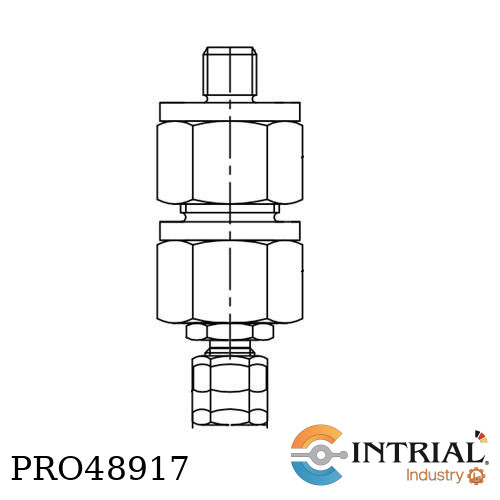

<p class="MsoNormal">COMPRESSION FITTING FOR Ø 5 MM<br />
Brand:  INTRIAL (Made in Germany)<br />
with PTFE clamping ring<br />
connection thread M8x1<br />
width across flats SW14/SW14<br />
material 1.4571</p>

<p class="MsoNormal"></p>

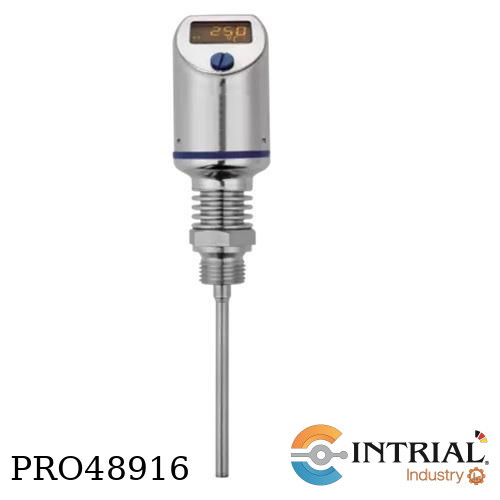

ELECTRONIC TEMPERATURE SWITCH<br />
Brand: JUMO<br />
JUMO DELOS T<br />
with display and analog output<br />
without extension tube<br />
parts in contact<br />
with the medium (partly)<br />
Ra<0,8 μm<br />
Version Standard with default settings<br />
Operating temp. -50..150°C<br />
Measuring insert 1x Pt1000 in 4-wire circuit<br />
Tolerance class Class A<br />
Output 1x PNP switching output <br />
and 1 analogoutput 4 to 20 Ma<br />
user configurable<br />
Diameter prot. tube 6,00mm<br />
Insertion length 80,00mm

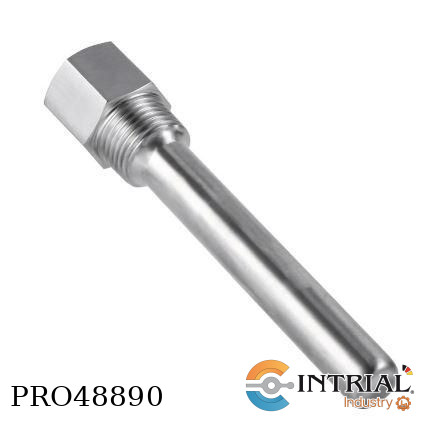

Termpozo para Sensor de temperatura<br />
Marca: Baumer<br />
Origen: Dinamarca<br />
Modelo: ZPT4-51565.0100<br />
Longitud de insercion: 100mm<br />
Diametro externo del tubo de inserccion: 9 mm<br />
Diametro Interno del tubo de inserccion: 7 mm<br />
Material: Acero Inoxidable AISI 316<br />
Rosca: G1/2"

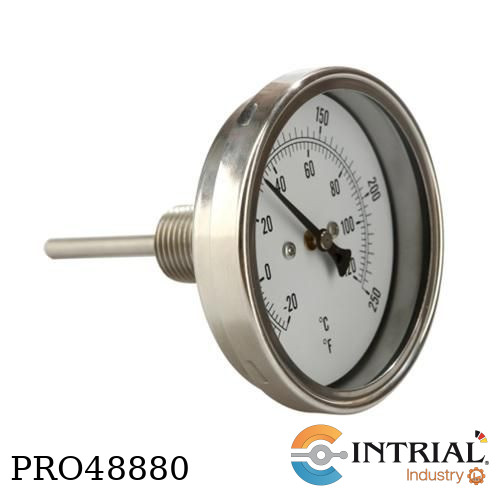

BIMETAL THERMOMETERS FOR CHEMICAL APPLICATIONS<br />
Brand: AFRISO<br />
Housing diameter: 100 mm<br />
Housing: Stainless steel 304 with bayonet bezel<br />
Degree of protection: IP 65 acc. to EN 60529<br />
Stem: Plain stem, back, Stainless steel 316 Ti, without pocket<br />
Connection: Rotatable male thread G3/4A , back connection<br />
Stem length: 77 mm<br />
Stem diameter: 8 mm<br />
Range: 0/80 °C<br />
Window: Instrument glass<br />
Accuracy: Class 1 acc. to EN 13190
<div>
<div class="gtx-trans-icon"></div>
</div>

<div>
<div class="gtx-trans-icon"></div>
</div>

<strong>SENSOR DE TEMPERATURA (RTD) PT-100Ω DE 03 HILOS CON CABEZAL <br />
Model: PT-100-03-100MM<br />
Marca: Intrial</strong><br />
SENSOR: De Tres Hilos – Platino 100 Ohmios – con aislamiento interno MgO <br />
Oxido de magnesio > 20Mohm @ 25°C (500Vdc)<br />
COEFICIENTE DE TEMPERATURA DEL SENSOR: 0.00385 (Ohms/ Ohms/ °C)<br />
GRADO DE PRECISIÓN: CLASE B - NORMA IEC 751<br />
TOLERANCIA: DIN EN 60751 - F 0,3 (CLASE B).<br />
TEMPERATURA DE SERVICIO: -70° C @ 300° C.<br />
TEMPERATURA DE USO: NO INDICADO<br />
BULBO: De Acero Inoxidable AISI 316 – Ø 6mm x 100mm. de longitud.<br />
CONEXIÓN A PROCESO: De Acero Inoxidable con rosca de 1/2" NPT-M<br />
CABEZAL: De Aluminio Inyectado Tamaño Standard, con Tapa Rosca y cadena<br />
de sujeción y Prensaestopa con Conexión Eléctrica de 1/2” NPT. Grado de <br />
protección IP67<br />
MARCA DEL ELEMENTO: HERAEUS – MADE IN GERMANY

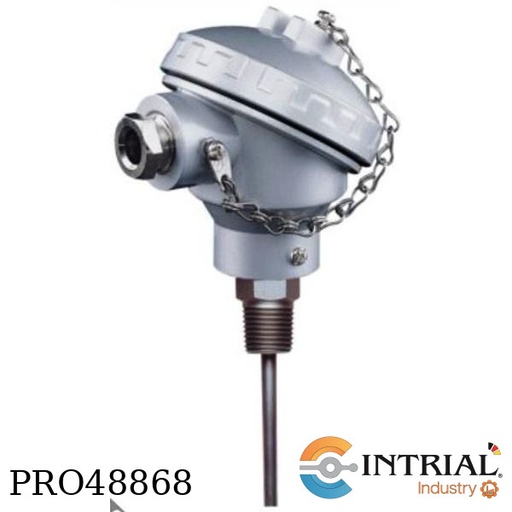

<strong>SENSOR DE TEMPERATURA (RTD) PT-100Ω DE 02 HILOS CON CABEZAL<br />
Model: PT-100-02-60MM <br />
Marca: Intrial</strong><br />
SENSOR: De Dos Hilos – Platino 100 Ohmios – con aislamiento interno MgO <br />
Oxido de magnesio > 20Mohm @ 25°C (500Vdc)<br />
COEFICIENTE DE TEMPERATURA DEL SENSOR: 0.00385 (Ohms/ Ohms/ °C)<br />
GRADO DE PRECISIÓN: CLASE B - NORMA IEC 751<br />
TOLERANCIA: DIN EN 60751 - F 0,3 (CLASE B).<br />
TEMPERATURA DE SERVICIO: -70° C @ 300° C.<br />
TEMPERATURA DE USO: NO INDICADO<br />
BULBO: De Acero Inoxidable AISI 316 – Ø 6mm x 60mm. de longitud.<br />
CONEXIÓN A PROCESO: De Acero Inoxidable con rosca de 1/2" NPT-M<br />
CABEZAL: De Aluminio Inyectado Tamaño Standard, con Tapa Rosca y cadena<br />
de sujeción y Prensaestopa con Conexión Eléctrica de 1/2” NPT. Grado de <br />
protección IP67<br />
MARCA DEL ELEMENTO: HERAEUS – MADE IN GERMANY

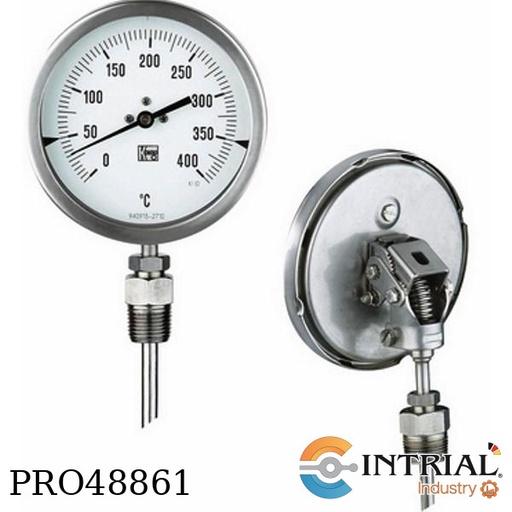

<strong>Bimetallic Thermometers<br />
Brand: Kobold - Alemania<br />
Model: TBE-2-3-C20-9A-8-C40-R10-C01</strong><br />
[TBE-2]<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[3] Diameter, 150 mm<br />
[C20] Measuring Range, Scale °C, ranges 0-200°C<br />
bulb length (165 mm),<br />
[9A] Probe type/Process connection,<br />
sliding male and swivel nut 1/2 NPT<br />
[8] Bulb diameter/-length, 8 mm<br />
[C40] Case and ring stainless steel AISI 316<br />
[R10] Options, Glycerine filling (max. 160 °C) IP 67<br />
[C01] Options, Calibration report

<strong>Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-3-1-C06-9A-6-C40</strong><br />
[TBE-3]<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to, bottom<br />
Probe st.st.<br />
[1] Diameter, 100 mm<br />
[C06] Measuring Range, 0-60°C<br />
[9A] Probe type/Process connection, <br />
sliding male and swivel nut 1/2 NPT<br />
[6] Bulb diameter/-length, 6 mm / 125 mm<br />
[C40] Options, Case and ring stainless steel AISI 316

DURÓMETRO NO DESTRUCTIVO PARA ARÁNDANOS/UVA
Marca: BAXLO
Sku: 001542
Fuerza Máxima:113 g
Medidas del penetrador: esférico Ø2,38mm

<strong>Ambient Resistance Thermometers Ex ia<br />
Brand: Kobold Alemania<br />
Model: TWL-T-H-000-C-3-A-0-0</strong><br />
[TWL-T]<br />
Housing, Aluminium<br />
Sensor, PT100<br />
Max. Pressure, atmospheric pressure<br />
Protection tube, according to DIN 43763<br />
Temperature, -70…+250°C<br />
ATEX-approval, II 1 GD Exia IIC T4…T6/Ex iaD 20 IP65<br />
T85°C -20°C ≤ Ta≤ +60<br />
[H] Immersion tube diameter, Ø6 with holes<br />
[000] Process Connection, without<br />
[C] Sensor type/ category, 1xPT100 class A (-70…+250°C)<br />
[3] RTD wiring, 3 - wire<br />
[A] Terminal Head, Aluminium<br />
[0] Head transmitter, ceramic terminal <br />
[0] Options, without

<strong>Electronic temperature sensor with 3 digit LED Display<br />
Brand: Kobold (Alemania)<br />
Model: TDA-15H2-R4-1-L-3M+ZUB-KAB-12-D500</strong><br />
[TDA-15H2]<br />
Housing (mm), st. st.<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -20...+120 °C<br />
Version, compact<br />
[R4] Connection, G 1/2 male<br />
[1] Sensor length, 100mm<br />
[L] Output, 0(4)-20 mA<br />
[3M] Electrical connection, M12x1 plug connector<br /><br />
Accessories Round Plug<br />
Brand: Kobold<br />
Model: ZUB-KAB-12-D500<br />
[D500]: M12x1 box with terminal , 5-pin

Electronic temperature sensor with 3 digit LED Display<br />
Brand: Kobold (Alemania)<br />
Model: TDA-15H2-R4-1-L-3M<br />
[TDA-15H2]<br />
Housing (mm), st. st.<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -20...+120 °C<br />
Version, compact<br />
[R4] Connection, G 1/2 male<br />
[1] Sensor length, 100mm<br />
[L] Output, 0(4)-20 mA<br />
[3M] Electrical connection, M12x1 plug connector

<strong>Thermowells for Temperature Sensors<br />
Brand: Kobold (Alemania)<br />
Model: TWL-0000-N-GN4B-0-200mm</strong><br />
[TWL-0000]<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
[0]: Lagging extension (T), w/o lagging extension<br />
