<strong>Thermowells for Stem and Capillary Thermometers<br />
Model: TSH-3-C32-XX<br />
Brand: Kobold (Alemania)</strong><br />
[TSH-3]:<br />
Material, st.st. 1.4571<br />
Protection sleeve for, screw-in<br />
max. pressure, 25 bar<br />
Thermometer connection, G 1/2 IG<br />
Suitable for thermometers with male thread G 1/2<br />
[C32]: Process connection, G 1/2 male 10 mm-probe<br />
[XX]: Length of sleeve, 70 mm

<strong>Capillary Thermometers diam. 100 acc. DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNF-0F-2-10-E-41-Y</strong><br />
[TNF-0F]<br />
Diameter: 100 mm<br />
Probe material: st.st.<br />
Class: 1,0<br />
[2] Housing material: st. st<br />
[10] Range: 0...100 °C<br />
[E] Capillary tube: st. st.<br />
[41] Probe: G 1/2 turnable nipple<br />
[Y] Probe diameter  10 mm<br />
* 2 mts. (Capillary tube)<br />
* Probe length: 70mm

<strong>Capillary Thermometers diam. 100 acc. DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNF-0F-2-10-E-41-Y</strong><br />
[TNF-0F]<br />
Diameter: 100 mm<br />
Probe material: st.st.<br />
Class: 1,0<br />
[2] Housing material: st. st<br />
[10] Range: 0...100 °C<br />
[E] Capillary tube: st. st.<br />
Probe length: 140mm<br />
[41] Probe: G 1/2 turnable nipple<br />
[Y] Probe diameter  10 mm<br />
* 2 mts. (Capillary tube)

PANEL-MOUNT SOLAR POWERED THERMOMETER<br />
Model: AO-90150-04<br />
Brand: Cole-Parmer<br />
Meter Measurement Type: Digital Indicator<br />
Number Of Probe Channels: 1<br />
Min Temperature (° F) -40<br />
Max Temperature (° F) 158Min<br />
Temperature (° C)-40<br />
Max Temperature (° C)70<br />
Accuracy±1% full-scale<br />
housing: plastic

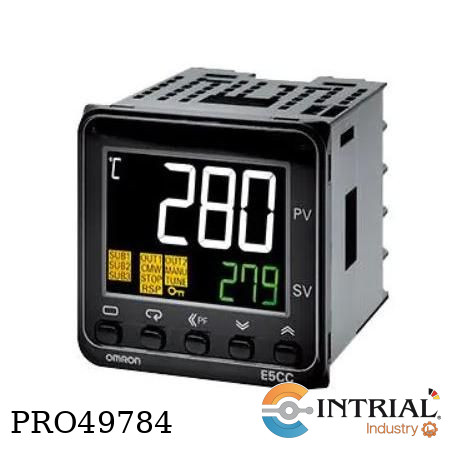

DIGITAL TEMPERATURE CONTROLLER<br />
Brand: OMRON<br />
[E5CC]: Screw Terminal Blocks, 48 × 48 mm<br />
[RX]: Control output 1, Relay output<br />
Control output 2, None<br />
[3]: 3 (one common)<br />
[A]: 100 to 240 VAC<br />
[5]: Screw terminal blocks (with cover)<br />
[M]: Universal input<br />
[003]: HB alarm and HS alarm, 2 (for 3-phase heaters)<br />
Communications, RS-485

Electronic temperature sensor with 3 digit LED Display<br />
Brand: Kobold (Alemania)<br />
Model: TDA-15H2-N4-1-N-3M+ZUB-KAB-12K002<br />
[TDA-15H2]<br />
Housing (mm), st. st.<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -20...+120 °C<br />
Version, compact<br />
[N4] Connection: 1/2 NPT male<br />
[1] Sensor length: 100 mm<br />
[N] Output: 0(4)-20 mA, NPN switch output<br />
[3M] Electrical connection: M12x1 plug connector<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold<br />
Model: ZUB-KAB-12K002<br />
M12x1 box 2 m cable, 4-pin<br />

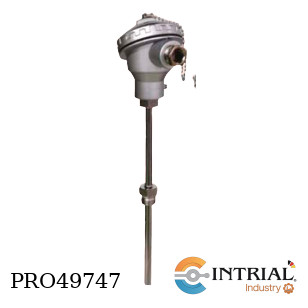

Industrial Resistance Thermometers acc. DIN <br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-4-N15-C-3-G-0-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[4]: Diameter / length thermowell, 4 mm / 76.2 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C) <br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

SENSOR DE TEMPERATURA RTD<br />
MARCA: SOR <br />
MODELO: 1440<br />
Tipo de cabezal: Aluminio, NEMA4X<br />
Material elemento: Platino 100Ohm 3 hilos<br />
Máxima temperatura: 260°C<br />
Diámetro del sensor: 1/4"<br />
Longitud de inserción: 2.36” (Aprox. 6cm)<br />
Material del sensor: Acero inoxidable<br />
Conexión al proceso: 1/2” NPTlos

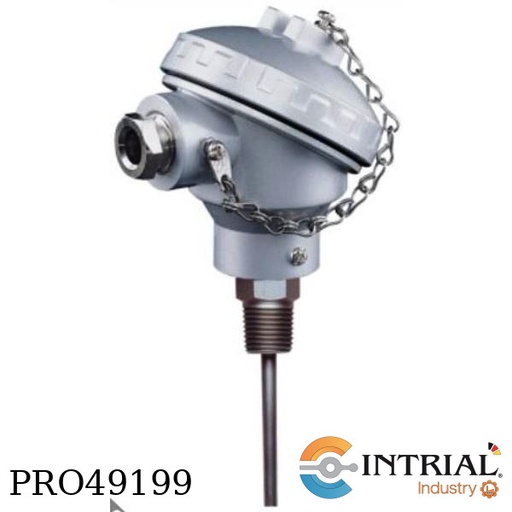

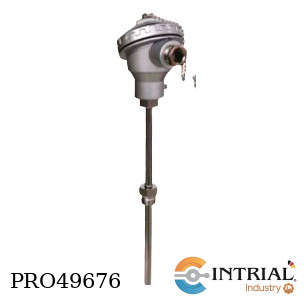

Industrial Resistance Thermometers acc. DIN<br />
Model: MWD-A-6-C15-C-3-M-0-0(103mm)<br />
Brand: Kobold (Alemania)<br />
[MWD-A]<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection Compression fitting<br />
Neck pipe without<br />
[6] Diameter / length thermowell, 6 mm / 103 mm<br />
[C15] Process connection, Compression fitting 1/2 NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[M] Terminal head, Mini screw cap with chain, aluminium<br />
[0] Head-mounted transmitter, without transmitter<br />
[0] Options, without

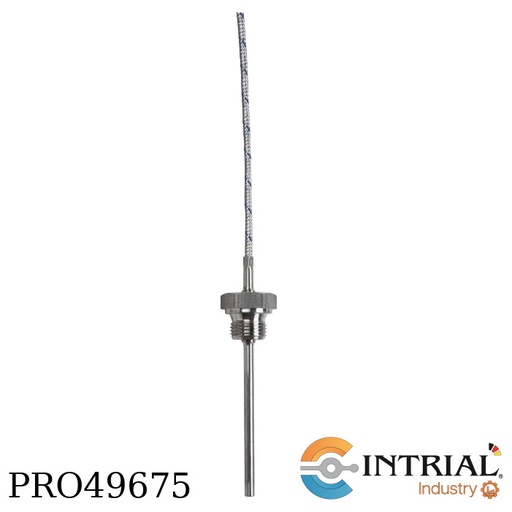

Screw-In Resistance Thermometers with cable<br />
Model: MWE-1-6-N15-C-3-S-0(45 mm)<br />
Brand: Kobold (Alemania)<br />
[MWE-1]:<br />
Version: Immersion tube without filling, not removable<br />
Material immersion tube: St. steel 1.4404 / 316 L<br />
Max. pressure (@ 20°C): 30 bar<br />
Temperature range: -70…+250 °C (depending on cable material)<br />
Connection: fixed<br />
Connection cable: Cable acc. customer specification with bend protection spring<br />
[6]: Diameter / length immersion tube, 6mm, 18 mm<br />
[N15]: Process connection, 1/2 NPT male<br />
[C]: Sensor type, 1x Pt100, cat. A (-70..+250 °C) )<br />
[3]: Wiring, 3 wires<br />
[S]: Cable material, Silicone (max. 200°C); Cable length, 3 m<br />
[0]: Options, without

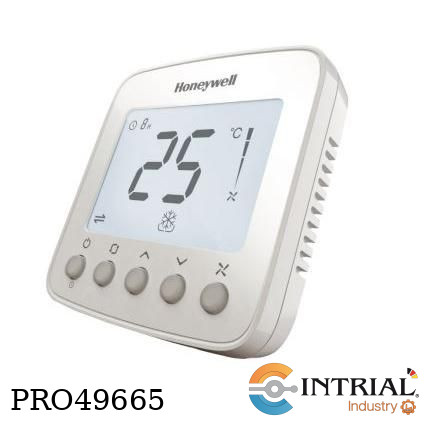

COMMUNICATING FAN COIL THERMOSTAT<br />
Brand: HONEYWELL<br />
Rated Power & Frequency 220/230VAC, 50/60Hz<br />
Power consumption <2W<br />
Control PI, On/off output<br />
Accuracy ±1°C at 21°C<br />
Auto Cycle times 100,000 times<br />
Manual Cycle times 10,000 times<br />
Protection class IP20<br />
Set point range: 10 ~ 32°C<br />
Display range: 0 ~ 37°C<br />
Ambient operating limits: 0~ +49°C<br />
Ambient storage limits: -30 ~ +60°C<br />
Humidity limits: 5~90% RH, non-condensing<br />
Action Type: 1<br />
Pollution Degree 2<br />
Protection against electric shock class Class II<br />
Electronic control software class Class A<br />
Rated Impulse Voltage: 2500V<br />
Maximum Temperature: 155°C

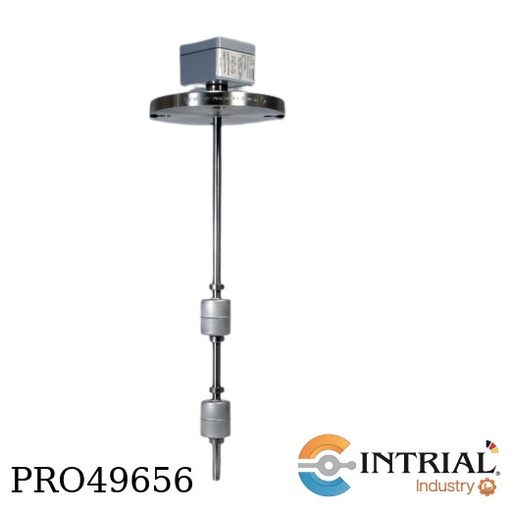

<div>LEVEL SWITCH</div>

<div>Brand: BARKSDALE</div>

<div>Model: UNS2000-VA/T2-KX4-VA52-LI-EEXI </div>

<div>Type: UNS2000</div>

<div>[VA]= stainless steel 1.4571 (316 Ti)</div>

<div>[T2]= G2" Tank screw (not with VA80 float)</div>

<div>[KX4]= PVC-Cable sealed, specify length at order, IP65</div>

<div>[VA52]= Min.Density Medium: 0,78 g/cm3 </div>

<div>Material: SS 1.4571 (316 Ti) </div>

<div>Form: Ball </div>

<div>52mm Ø</div>

<div>Max Temperature:150 °C </div>

<div>Max Pressure:40 bar</div>

<div>[L1]=  1 Switchpoint</div>

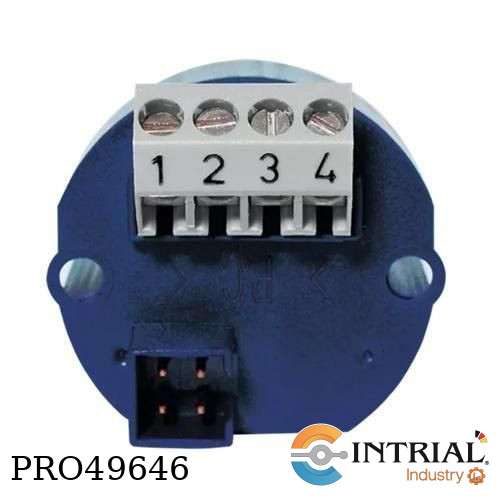

TRANSMITTER ANALOGUE<br />
Brand: JUMO<br />
JUMO dTRANS T03<br />
Basic type JUMO dTRANS T03 J factory-set, analog<br />
2-wire transmitter for installation in<br />
terminal head Form J<br />
Basic type extension configurable (with power supply,<br />
indicator, precision resistance decade,<br />
USB/SPI interface and setup program)<br />
input Pt100 (2-wire)<br />
Output 4..20 mA<br />
range  0..100<br />
unit range 1 °C

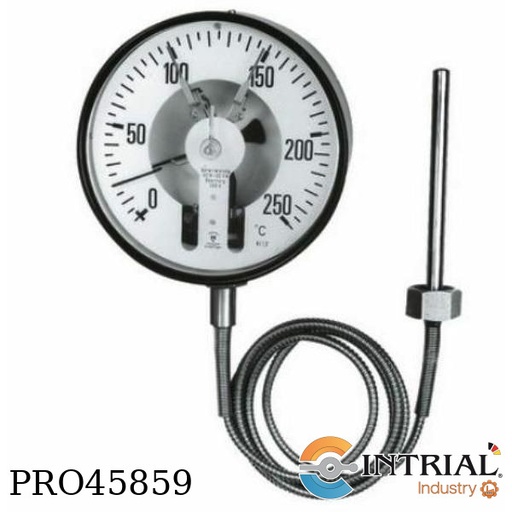

Capillary Thermometers diam. 160 acc. DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNF-1G-2-08-F-82-M11-Y<br />
[TNF-1F]<br />
Diameter 160 mm<br />
Probe material st.st.<br />
Class 1,0<br />
[2] Housing material, st.st.<br />
[08] Range, 0...80 °C<br />
[F] Capillary tube, flexible st.st. coiled hose<br />
Capillary tube Length, 1500 mm<br />
Probe Length 1400 mm<br />
[82] Probe, G 3/4<br />
[M11] Magn. spring contact; 2x N/O<br />
[Y] Probe diameter 8 mm<br />

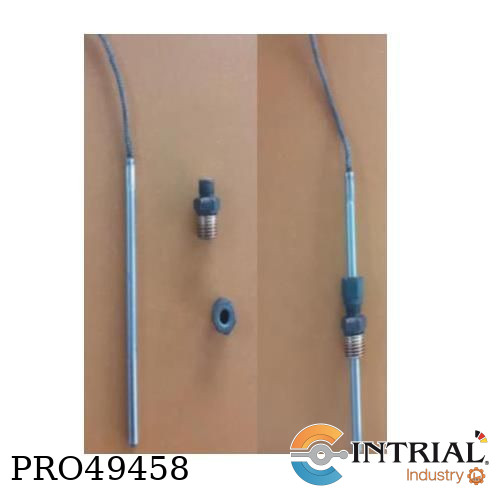

SLEEVE TEMPERATURE SENSOR<br />
Brand: Intrial(Made in germany)<br />
1 x Pt 100 Ohm DIN EN 60751<br />
Class B<br />
3-wire<br />
Stainless steel sleeve ø 6 mm<br />
Length 150±10 mm<br />
With 10.000 mm connection<br />
Cable glass silk/wire braid (cable no. 120A)<br />
With compression fitting G1/4"<br />
With free ends<br />
Temperature range: -40 to +350°C<br />
Similar to your photo<br />

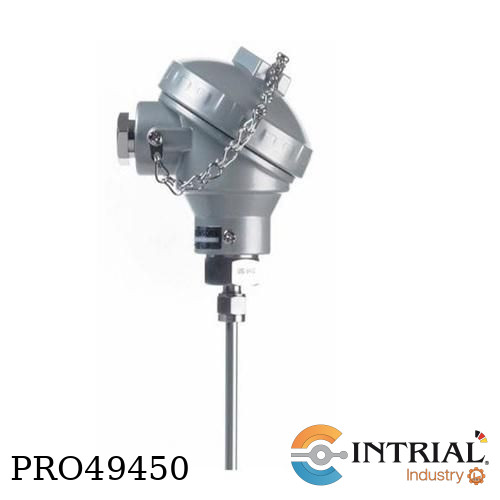

<p class="MsoNormal">SCREW-IN RESISTANCE THERMOMETER<br />
Brand: Intrial (made in germany)<br />
1x Pt 100 DIN EN 60751<br />
Class 1/3DIN/0°C<br />
3-wire, protection tube ø8 mm<br />
Immersion length 87 mm<br />
With union nut SW17<br />
Thread G1/4" (female thread)<br />
With screw connection<br />
NPT1/2 for head connection<br />
With connection head KNE<br />
with adapter for cable connection<br />
from NPT1/2 to NPT3/4<br />
Nominal length ~118 mm<br />
Temperature range: -50 to +250°C<br />
similar to your drawing</p>

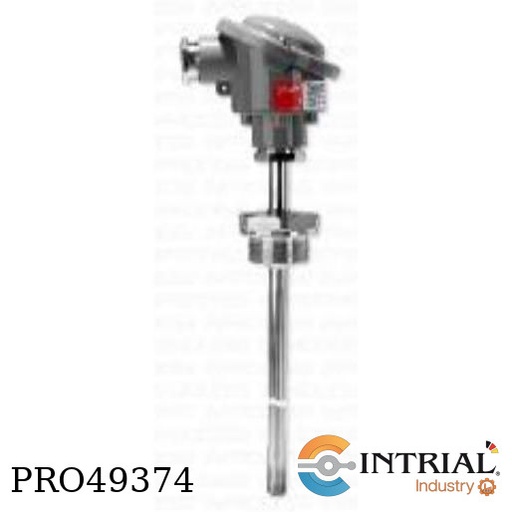

SENSOR DE TEMPERATURA PT100<br />
MARCA: DANFOSS<br />
MODELO: MBT 5252 (084Z6167)<br />
** Sin transmisor<br />
- Clase : B<br />
- Rango : -50 A 200ºC,<br />
- Material: Acero Inoxidable AISI 316<br />
- Diametro : 10 mm<br />
- Longitud : 100 mm<br />
- Conexión: 1/2" NPT<br />
- Cabezal de Aluminio : Fundido<br />
- Grado de protecciòn : IP65<br /><br />

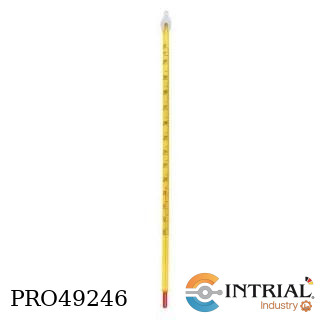

<strong>TERMOMETRO DE VIDRIO PARA INMERSION </strong><br />
RANGO : -20 A 110º<br />
Model: TERMOMETRO-INM-150<br />
Marca: Alla France

<strong>Industrial Resistance Thermometers acc. DIN<br />
Model: MWD-L-8-N15-C-3-M-A-0<br />
Brand: Kobold (Alemania)</strong><br />
[MWD-L]<br />
Version: Protective tube acc. DIN 43772, filled with MgO, <br />
insert not removable<br />
Protective tube material: stainless steel 1.4404<br />
Max. pressure (@ 20°C) : 30 bar<br />
Connection : Fixed connection<br />
Neckpipe: Without<br />
[8] Diameter/ length thermowell: 8mm/ 100mm<br />
[N15] Process connection: 1/2"" NPT male<br />
[C] Sensor: 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring: 3 wires<br />
[M] Terminal head: Mini screw cap with chain, aluminium<br />
[A] Head-mounted transmitter, programable 2 wire <br />
transmitter model 5333D or equivalent<br />
[0] Options: Without

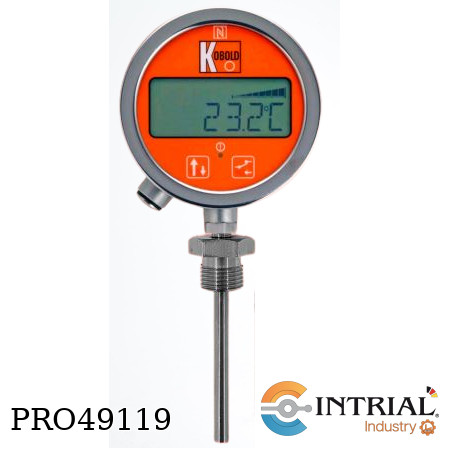

<strong>Digital Thermometers Battery Powered<br />
Model: DTE-A0000-0+DTB-K2N15+MWD-A6000A3200<br />
Brand: Kobold (Alemania)</strong><br />
[DTE-A0000]<br />
Version Sensor bottom, fix mounted<br />
Housing diameter/ -material, 100 mm/ st. steel 1.4301<br />
Display: 6-digit LCD, 15,8 mm high<br />
Measuring input: Pt100, Ni100, Ni120, Cu53,<br />
Cu100 (3-wire) and thermo couples<br />
Functions: Min./Max.-value, 2 relay, data logger, <br />
USB-connection, NFC-Interface<br />
Accuracy: ± 0,1% of measuring value ±0,2°C (for Pt100)<br />
Power supply: 3,6 V lithium battery<br />
Max. Ambient Temperature: -30…+70 °C<br />
Protection: IP 65<br />
[0] Options, Options<br /><br />
Incluye:<br />
Accessory<br />
[DTB-K2N15] Compression fitting , <br />
1/2 NPT male, material 1.4404<br /><br />
Include:<br />
Accessory<br />
Model: MWD-A6000A3200<br />
[MWD-A] Model code<br />
[6] Immersion tube diameter and immersion length<br />
Tube Ø6 (Immersion length 250 mm)<br />
[000] Process Connection, none<br />
[A] Sensor Type/ Category ; 1x PT100 class B (-70…+250ºC)<br />
[3] RTD Wiring, 3-wire<br />
Cable, not available<br />
[2] Connection Head, M16x1.5<br />
male thread with 150 mm flying leads<br />
[0] Head transmitter, without<br />
[0] Special options, without<br />
