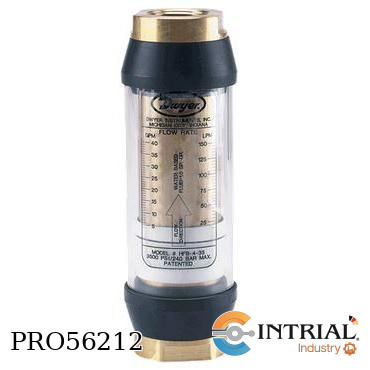

IN-LINE FLOW MONITOR<br />
Brand: DWYER<br />
Model: HFB-5-007<br />
Material, Brass<br />
Connection, 1-1/2" NPT female<br />
Range, 30 to 470 SCFM<br />
Service, Compatible gases or liquids.<br />
Wetted Materials, HFA: Aluminum casing, Buna-N seals, PTFE coated Alnico magnet, SS disk<br />
Maximum Viscosity, 500 SSU.<br />
Temperature Limits, 240°F (116°C).<br />
Pressure Limits, HFA, HFB, HFL and HFH models: 600 psig (41 bar) for air and gas, 3500 psig (241 bar) for liquids;<br />
HFS model: 1000 psig (70 bar) for air and gas, 6000 psig (413 bar) for liquids.<br />
Accuracy, ±2% FS.<br />
Repeatability, ±1% of FS.<br />
Shipping Weight, 1/4˝ to 1/2˝ female NPT models; 2 lb (0.9 kg); 3/4 to 1˝ female<br />
NPT models: 3.5 lb (1.59 kg); 1-1/2˝ female NPT models: 11 lb (5 kg); 2˝ female NPT models: 13.5 lb (6.12 kg).

IN-LINE FLOW MONITOR<br />
Brand: DWYER<br />
Model: HFA-5-007<br />
Material, Aluminum<br />
Connection, 1-1/2" NPT female<br />
Range, 30 to 470 SCFM<br />
Service, Compatible gases or liquids.<br />
Wetted Materials, HFA: Aluminum casing, Buna-N seals, PTFE coated Alnico magnet, SS disk<br />
Maximum Viscosity, 500 SSU.<br />
Temperature Limits, 240°F (116°C).<br />
Pressure Limits, HFA, HFB, HFL and HFH models: 600 psig (41 bar) for air and gas, 3500 psig (241 bar) for liquids;<br />
HFS model: 1000 psig (70 bar) for air and gas, 6000 psig (413 bar) for liquids.<br />
Accuracy, ±2% FS.<br />
Repeatability, ±1% of FS.<br />
Shipping Weight, 1/4˝ to 1/2˝ female NPT models; 2 lb (0.9 kg); 3/4 to 1˝ female<br />
NPT models: 3.5 lb (1.59 kg); 1-1/2˝ female NPT models: 11 lb (5 kg); 2˝ female NPT models: 13.5 lb (6.12 kg).<br />
<br />


SONDA DE HILO CALIENTE
Marca: TESTO
Modelo: 06351026
Ø 7,5 mm
Rango de medición,
0 … 20 m/s
-20 … +70 °C
700 … 1100 hPa
Exactitud,
±(0,03 m/s + 5 % del v.m.) (0 … 20 m/s)
±0,5 °C
±3 hPa
Resolución,
0,01 m/s
0,1 °C
0,1 hPa

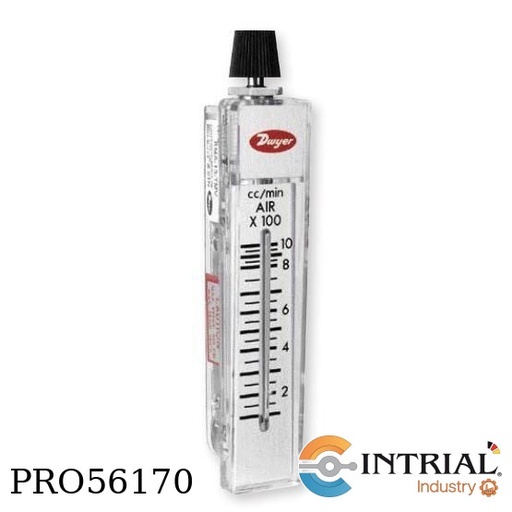

RATE-MASTER® POLYCARBONATE FLOWMETERS<br />
Brand: DWYER<br />
Model: RMA-13<br />
[13]: Range, 100 to 1000 CC/Min. Air<br />
Service: Compatible gases and liquids.<br />
Wetted Materials:<br />
Body: Polycarbonate;<br />
O-ring: Neoprene and Buna-N;<br />
Metal parts: SS (except for optional brass valve);<br />
Float: SS, black glass, aluminum, K monel, tungsten carbide depending on range.<br />
Temperature Limit: 130°F (54°C).<br />
Pressure Limit: 100 psi (6.9 bar).<br />
Accuracy: RMA: 4%<br />
Process Connection: RMA: 1/8˝<br />
Weight: RMA: 4 oz (113.4 g);<br />
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)

Side-Mount Bracket
Brand: FLOWLINE
Model: LM50-1001
2” NPT Bracket, PP

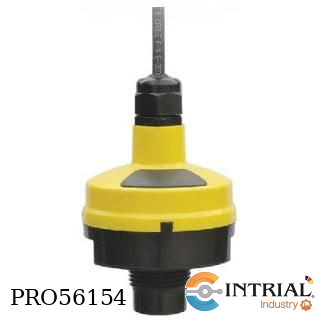

Multi-Function Ultrasonic Liquid Level Transmitter
Brand: FLOWLINE
Model: DL24-00
Measurement Range, 8.2 ft
Mounting Type, NPT 1 in
Output, 4 x SPST
Sensing Mode, Ultrasonic
Supply Voltage, 24 VDC
Termination, Cable

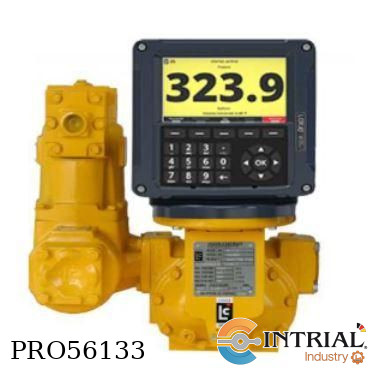

MEDIDOR VOLUMÉTRICO ELECTRÓNICO<br />
Marca: LIQUID CONTROLS<br />
Modelo: M10K1-LCR.iQ<br />
Clasificación, 150 GPM<br />
Brida, 2″<br />
Construcción del medidor, Aluminio<br />
Sellos, Buna<br />
<br />
Incluye:<br />
* Medidor con registro electronico<br />
* Eliminador de aire y Strainer<br />
* Flanges (bridas) 2" NPT<br />
* Valvula preset

MEDIDOR VOLUMÉTRICO ELECTRÓNICO<br />
Marca: LIQUID CONTROLS<br />
Modelo: M10C1-LCR.iQ<br />
Clasificación, 150 GPM<br />
Brida, 2″<br />
Construcción del medidor, Aluminio<br />
Sellos, Buna<br />
<br />
Incluye:<br />
* Medidor con registro electronico<br />
* Eliminador de aire y Strainer<br />
* Flanges (bridas) 2" NPT<br />
<br />

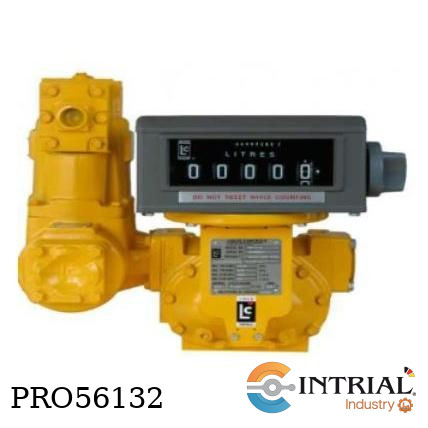

MEDIDOR VOLUMÉTRICO ELECTRÓNICO<br />
Marca: LIQUID CONTROLS<br />
Modelo: M10C1-MECH<br />
Clasificación, 150 GPM<br />
Brida, 2″<br />
Construcción del medidor, Aluminio<br />
Sellos, Buna<br />
<br />
Incluye:<br />
* Medidor con registro mecánico<br />
* Eliminador de aire y Strainer<br />
* Flanges (bridas) 2" NPT

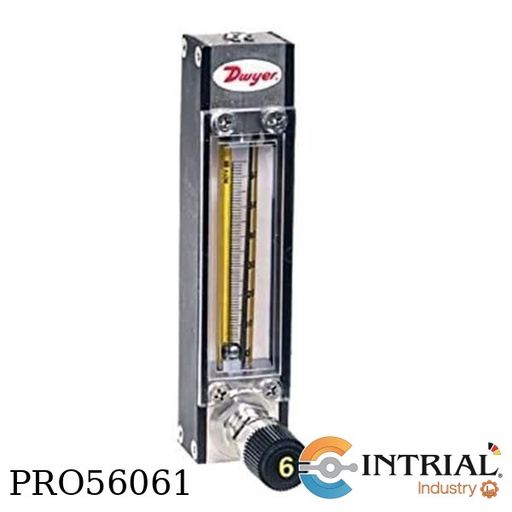

VARIABLE AREA GLASS FLOWMETER<br />
Brand: DWYER<br />
Model: VA1046<br />
Material, Aluminum<br />
Float, SS<br />
Max. flow rate, 0.633 Air SCFH (299 ml/min)<br />
Max. flow rate, 0.122 Water GPH (7.7 ml/min)<br />
Service, Compatible gases or liquids.<br />
Wetted Materials,<br />
 Flowtube, Borosilicate glass<br />
 Floats: Glass or SS (sapphire, Carboloy and tantalum are optional);<br />
 Float stops: PTFE<br />
 End fittings: Anodized aluminum, 316 SS, brass or PTFE<br />
 Packings: Fluoroelastomer<br />
 O-rings: Buna-N on aluminum models and brass models, fluoroelastomer on SS models,<br />
Temperature Limits, 250°F (121°C); VAX5XX: -15 to 150°F (-26 to 65°C).<br />
Pressure Limits, 200 psig (13.8 bar)<br />
Accuracy, ±2% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute); VA1043,<br />
VA1243, VA1343, VA25425, VA25025: ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 @ absolute).<br />
Repeatability, ±0.25% FS.<br />
Leak Rate, 1 x 10-7 sccs of helium.<br />
Scales, Universal 65 mm or 150 mm with correlation charts.<br />
Turn-Down Ratio, 10:1.<br />
Connections, Two 1/8˝ female NPT.<br />
Mounting, Vertical.<br />
Valve, 6-turn needle (standard), optional 16-turn high precision valve.<br />
Valve Orifice, Acetal on aluminum models and brass models, PCTFE on stainless steel models

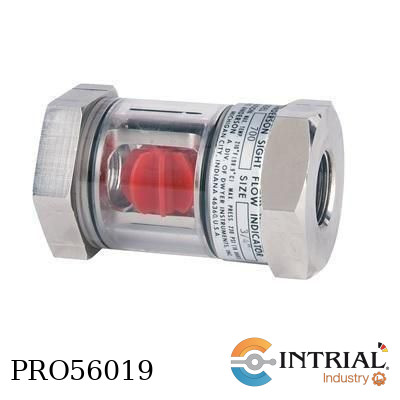

MODEL: SFI-700SS-3/4”-BSPP<br />
MIDWEST SIGHT FLOW INDICATORS<br />
Brand: DWYER<br />
Service: Compatible gases and liquids.<br />
Temperature Limit: 212°F (100°C).<br />
Pressure Limit: 230 psig (15.86 bar).<br />
Connections: Threaded (Rosca)<br />
3/4 inch female BSPP connection size<br />
316SS body
<div>
<div class="gtx-trans-icon"></div>
</div>

RATE-MASTER POLYCARBONATE FLOWMETER<br />
Brand: DWYER<br />
Model: RMC-108<br />
[RMC]: 10" scale<br />
[108]: Range, 200 to 1800 SFCH Air<br />
Service, Compatible gases and liquids.<br />
Wetted Materials, Body: Polycarbonate; O-ring: Neoprene and Buna-N; Metal parts: SS (except for optional brass valve);<br />
Float: SS, black glass, aluminum, K monel, tungsten carbide depending on range.<br />
Temperature Limit, 130°F (54°C).<br />
Pressure Limit, 100 psi (6.9 bar).<br />
Accuracy, RMA: 4%; RMB: 3%; RMC: 2% of FS.<br />
Process Connection, RMA: 1/8˝; RMB: 1/4˝; RMC: 1/2˝ female NPT.<br />
Weight, RMA: 4 oz (113.4 g); RMB: 13 oz (368.5 g); RMC: 39 oz (1105.6 g).<br />
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).

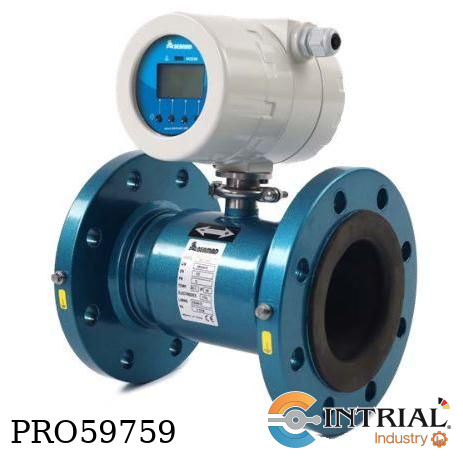

FLUJÓMETRO ELECTROMAGNÉTICO BRIDADO<br />
Marca: EUROMAG/BERMAD<br />
Modelo: MUT2300EL<br />
Sensor<br />
Precisión, 0.2%<br />
Material del Tubo de Flujo, AISI304<br />
Material de las bridas, Acero al Carbono<br />
Material de Electrodos, Hastelloy C<br />
Revestimiento Interno y Temperatura del Líquido, Ebonita (-40° C / +80° C)<br />
Diámetro, 6” (DN-150)<br />
Bridas, ANSI-150<br />
Grado de Protección, IP68 1,5m en inmersión continua (EN 60529)<br />
Tipo de Montaje, COMPACTO (Convertidor MC608A unido al sensor bridado MUT2300)<br />
Conexiones Eléctricas, Prensa estopa M20<br />
<br />
Incluye<br />
Convertidor<br />
Marca: EUROMAG/BERMAD<br />
Modelo: MC608A-LV<br />
Carcasa, Aluminio IP68<br />
Alimentación, 12 - 24 Vac/dc 10 W<br />
Salida Análoga, 4-20mA<br />
Salida de Pulsos, PNP-NPN<br />
Salida Digital, Programable<br />
Salida Digital de Frecuencia Activa, 0-10KHZ<br />
Comunicación Serial, Interfase IrCOM, Modbus RTU RS-485<br />
Display, LCD 128X64 Pixeles, 50X25mm de área visual<br />
Luz de Retroiluminación color blanca<br />
Programación,<br />
 Vía botones en el teclado del convertidor<br />
 Vía Interfase Infrarroja<br />
 Vía Modbus RS-485 RTU<br />
Datalogger de proceso, 4MB de Memoria Flash, Capacidad de 200,000 datos<br />
Estándares, Aprobado tipo OIML R49-1: 2013 - Class 2<br />
 Temperatura, Ambiente (-20° C _ +60° C)<br />
 Medio (-25° C_+80° C)<br />
 Almacenamiento (-40° C_+70° C)<br />
Unidades de Flujo, ml, cl, dl, l, dal, hl, m3, in3, ft3, gal, USgal, bbl, oz, + Custom Value<br />
Totalizadores, 5 (2 Positivos, 2 Negativos y 1 Neto)<br />
Estado y Alarmas, Iconos de estado y Datalogger mostrados en pantalla<br />
Autodiagnóstico, Alarmas Disponibles por<br />
 Falla de Excitación  <br />
 Tubería Vacía<br />
 Alta Temperatura,<br />
 Falla Emisión Pulso<br />
 Error de Medición<br />
Software para Programación y Comunicación,<br />
 Puesta en servicio (igual a ajuste de medidores)<br />
 Impresión de datos para documentación<br />
 Exportar Datos (archivo CSV)<br />
 Actualización de firmware<br />
 Leer velocidad de flujo instantánea<br />
 Leer y escribir todos los parámetros no volátiles<br />
 Descargue el registro de datos interno

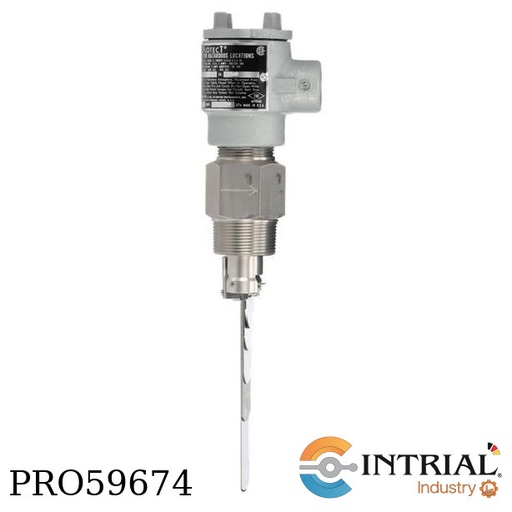

FLOTECT® VANE OPERATED FLOW SWITCH<br />
Brand: DWYER<br />
Model: V4-SS-U-316-EPOXY-TBC-V<br />
[V4]: Serie, Vane operated flow switch w/ universal vane<br />
[SS]: Body, 316 SS Body (430SS magnet keeper)<br />
[U]: Vane, Universal vane<br />
[3]: Magnet keeper and vane block material, 316 SST<br />
[1]: Vane material, 316 SST (standard)<br />
[6]: Body material, 316 SST<br />
[EPOXY]: Epoxy coated housing<br />
[TBC]: Terminal block connection<br />
[V]: Vertical up flow
<div>
<div class="gtx-trans-icon"></div>
</div>

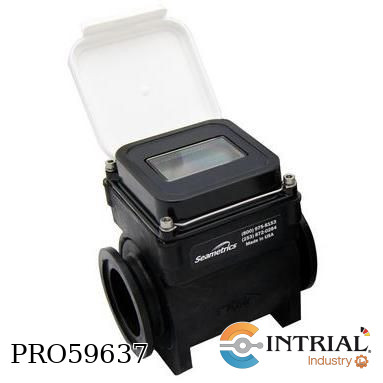

PLASTIC-BODIED MAGMETER<br />
Brand: SEAMETRICS<br />
Model:  WMP-104-200-133<br />
Size, 2"<br />
Pressure, 150 psi or 10.3 bar working pressure @ 70˚ F<br />
Operating Temperature Range, 10˚ to 130˚ F<br />
Flow Range, 6 to 300 GPM<br />
Materials,<br />
 Body, Glass-filled polypropylene<br />
 Electrodes, 316 stainless steel<br />
 Electronics Housing, Diecast aluminum, powder-coated<br />
 Display Cover, Polyethylene<br />
Power, WMP104-6-2-C 3.6V lithium batteries<br />

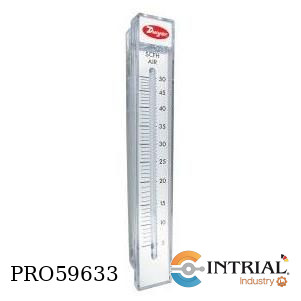

RATE-MASTER POLYCARBONATE FLOWMETER<br />
Brand: DWYER<br />
Model: RMA-34<br />
Range, 20 to 300 CC/Min. Water<br />
Service, Compatible gases and liquids.<br />
Wetted Materials,<br />
 Body, Polycarbonate;<br />
 O-ring, Neoprene and Buna-N;<br />
 Metal parts, SS (except for optional brass valve)<br />
 Float, SS, black glass, aluminum, K monel, tungsten carbide depending on range.<br />
Temperature Limit, 130°F (54°C).<br />
Pressure Limit, 100 psi (6.9 bar).<br />
Accuracy, RMA: 4%<br />
Process Connection: RMA, 1/8˝<br />
Weight, RMA: 4 oz (113.4 g)

DRILL GUIDE<br />
Brand: CDI METERS<br />
Model: 5000-DG<br />
For all 5200 & 5400 meters

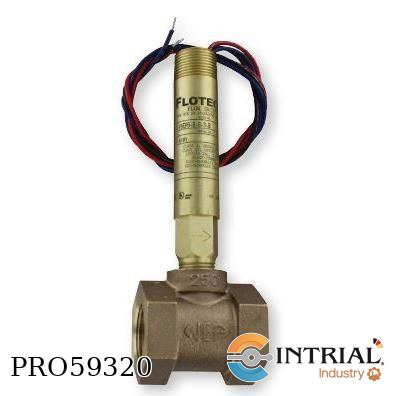

FLOWFLOTECT® MINI-SIZE FLOW SWITCHES<br />
Brand: DWYER<br />
Model: V6EPB-B-D-4-B-AT<br />
[V6]: Series, Flow switch<br />
[EP]: Construction, Explosion proof<br />
[B-B]: Body, Brass<br />
[D]: Circuit (Switch), DPDT<br />
[4]: Tee Connection Size, 1-1/4" (31.75 mm)<br />
Process Connection, NPT<br />
[B]: Tee Material, Brass<br />
[AT]: Options, ATEX compliant construction with junction box

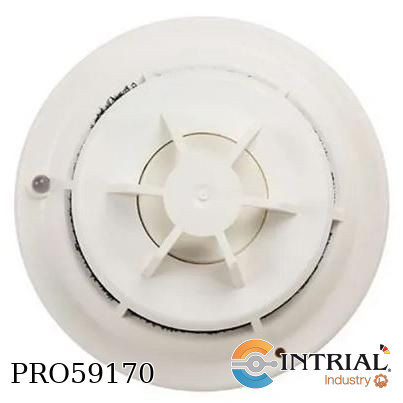

FIREFINDER DETECTOR<br />
Brand: SIEMENS<br />
Model: HFP-11<br />
Operating Temperature, +32°F (0°C) to 100°F (38°C)<br />
Humidity, 0-93% Relative Humidity<br />
Maximum spacing, 30 foot centers (900 sq. ft.)

Juego de transductores ultrasónicos clamp-on 0.5MHz<br />
Marca: FLEXIM<br />
Modelo: TRF-FSK-NF2TS-050/TP<br />
Technical type, CDK1N52<br />
Longitud del cable: 5m<br />
Temperatura de la superficie del tubo -40…130°C<br />
Protección antideflagrante: FM clase I Div 2<br />
Incluye:<br />
 -Pasta de acoplamiento Flexim -30...+200°C, tubo 10g.<br />
 -Láminas de acoplamiento (-10...+200°C, 2 piezas)<br />
 -Caja de paso para el cable de extensión del transductor de flujo,<br />
 tipo JB04 sistema de conexión TS, FM Class I Div. 2 acero inox. SS316, IP 66,<br />
 -Prensaestopas M20<br />
 -50m cable de extensión, tipo 2615 ligbre de haógeno, piro-retardante<br />
 -Acople acústico sólido libre de mantenimiento<br />
 -Compensación de temperatura según ANSI/ASME MFC- 5.1M-2011<br />
 -Certificado de calibración y SENSPROM
