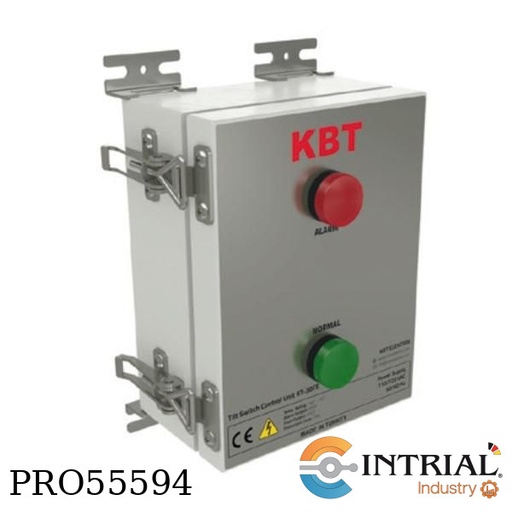

FIELD MOUNT<br />
Brand: KBT<br />
Model: KT-30F<br />
Gauge metal body<br />
Input: 110 VAC/220 VAC<br />
Alarm contact: 2 x SDPT<br />
Fault contact: 1 x NO<br />
Delay: 1, 2, 4, 6 seconds, selectable<br />
Protection: IP66

SENSOR ULTRASONICO<br />
Marca: PEPPERL & FUCHS<br />
Modelo: UB500-18GM75-E23-V15<br />
Rango de detección, 30 ... 500 mm<br />
Rango de ajuste, 50 ... 500 mm<br />
Zona ciega, 0 ... 30 mm<br />
Estándar, 100 mm x 100 mm<br />
Frecuencia del transductor aprox., 380 kHz<br />
Retardo de respuesta aprox., 50 ms<br />
Tensión de trabajo, 10 ... 30 V CC<br />
Corriente en vacío, ≤ 50 mA

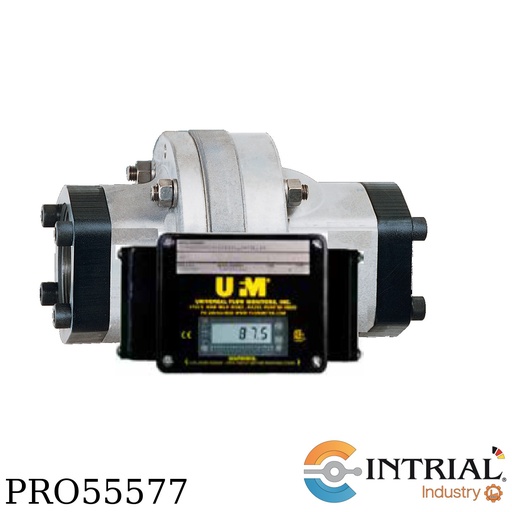

FLOWMETER<br />
Marca: UFM<br />
Modelo: LN-DIB300GLM-24W-500V.87-TX0WR<br />
[LN]: Serie by pressure rating, Normal pressure (300 PSI)<br />
[D]: Housing material, Aluminum<br />
[I]: Internal moving parts, Stainless steel (316 series)<br />
[B]: Seal material, Buna N<br />
[300GLM]: Max flow rate liquids, Dual gallons and liters per minute, 300<br />
[24W]: Port connection, 3 inches (76.2 mm)<br />
[500V.87]: 500 SSU with a specific gravity of .87<br />
[TX0]: Pointer, scale and 4-20 mA, No switches<br />
[W]: Service, Weatherproof (Type 4) Available on all boxes<br />
[R]: Flow direction, Left to right

FLOWMETER<br />
Brand: AW LAKE<br />
Model: JVM-60TCT-NS<br />
MeterType, Positive Displacement<br />
Flow Range, 0.1-20 GPM<br />
Body Material, 303 SS<br />
Ports, 3/4" Female NPT<br />
Pressure Rating, 6000 PSI Max<br />
O-Ring, PTFE<br />
Filtration Recommended, 175 Micron<br />
<br />

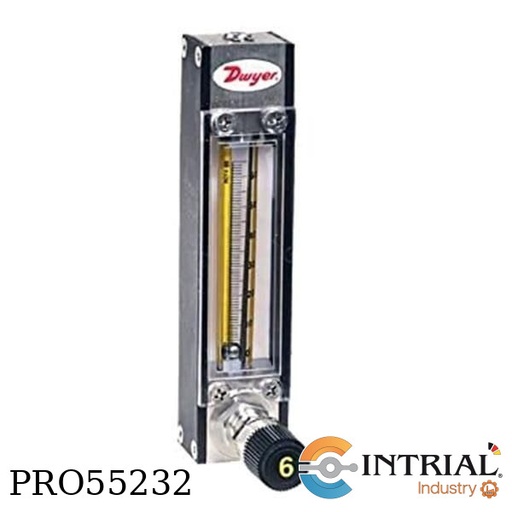

VARIABLE AREA GLASS FLOWMETER<br />
Brand: DWYER<br />
Model: VA1246<br />
Material, SS<br />
Float, SS<br />
Max. flow rate, 0.633 Air SCFH (299 ml/min)<br />
Max. flow rate, 0.122 Water GPH (7.7 ml/min)<br />
Service, Compatible gases or liquids.<br />
Wetted Materials,<br />
 Flowtube, Borosilicate glass<br />
 Floats: Glass or SS (sapphire, Carboloy and tantalum are optional);<br />
 Float stops: PTFE<br />
 End fittings: Anodized aluminum, 316 SS, brass or PTFE<br />
 Packings: Fluoroelastomer<br />
 O-rings: Buna-N on aluminum models and brass models, fluoroelastomer on SS models,<br />
Temperature Limits, 250°F (121°C); VAX5XX: -15 to 150°F (-26 to 65°C).<br />
Pressure Limits, 200 psig (13.8 bar)<br />
Accuracy, ±2% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute); VA1043,<br />
VA1243, VA1343, VA25425, VA25025: ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 @ absolute).<br />
Repeatability, ±0.25% FS.<br />
Leak Rate, 1 x 10-7 sccs of helium.<br />
Scales, Universal 65 mm or 150 mm with correlation charts.<br />
Turn-Down Ratio, 10:1.<br />
Connections, Two 1/8˝ female NPT.<br />
Mounting, Vertical.<br />
Valve, 6-turn needle (standard), optional 16-turn high precision valve.<br />
Valve Orifice, Acetal on aluminum models and brass models, PCTFE on stainless<br />
steel models

VARIABLE AREA FLOWMETER<br />
Brand: ALIA<br />
Model: AVF250-080-S4ABT-A-NN-N<br />
[080]: Size, 80 mm<br />
[S4]: Material, Stainless Steel 304<br />
[A]: Process connection, ANSI 150 #<br />
[BT]: Flow Direction, Bottom - Top<br />
[A]: Function, Local Indication<br />
[NN]: Protection Class, IP65<br />
[N]: Option, None

FLOW SWITCH<br />
Brand: JOHNSON CONTROLS<br />
Model: F261MAHV01C<br />
Controllable flow range, 4-760 GPM<br />
Enclousure, Type 4 (NEMA)<br />
Housing electrical connection, 1/2 NPT<br />
Pipe size, 1-6 in<br />
Max. pressure, 290 PSI<br />
Max. temperature, 250 °F<br />
Velocity range, 2000 FPM

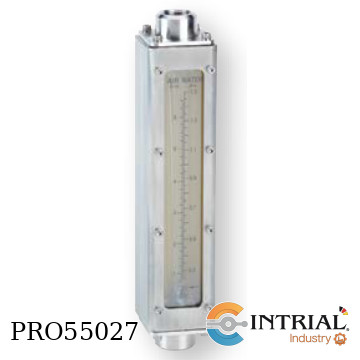

INDUSTRIAL DIRECT READING FLOWMETERS<br />
Brand: DWYER<br />
Model: IF2707<br />
Maximum flow rate water, 5 GPM (18 LPM)<br />
Maximum flow rate air, 21.5 SCFM (650 LPM)<br />
Tube size, 3<br />
Press. drop, 14 in H2O<br />
Service, Liquids or gases.<br />
Wetted Materials, Flowtube: Borosilicate glass; float, guide rods, float<br />
stops, end; Fittings: 316 SS; O-rings: Fluoroelastomer.<br />
Temperature Limit, 200°F (93°C).<br />
Pressure Limit, 200 psi (13.8 bar)<br />
Accuracy, ±3% of FS.<br />
Repeatability, ±0.5% of FS.<br />
Turn-Down Ratio, 10:1.<br />
Scale, Dual scale GPM and SCFM.<br />
Process Connection, See table.<br />
Mounting, Vertical.<br />
Front Shield, Polycarbonate.<br />
Side Panels, 304 SS.<br />
<br />

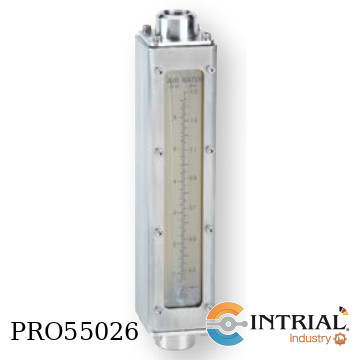

INDUSTRIAL DIRECT READING FLOWMETERS<br />
Brand: DWYER<br />
Model: IF2718<br />
Maximum flow rate water, 60 GPM (227 LPM)<br />
Maximum flow rate air, 245 SCFM (6938 LPM)<br />
Tube size, 6<br />
Press. drop, 16 in H2O<br />
Service, Liquids or gases.<br />
Wetted Materials, Flowtube: Borosilicate glass; float, guide rods, float<br />
stops, end; Fittings: 316 SS; O-rings: Fluoroelastomer.<br />
Temperature Limit, 200°F (93°C).<br />
Pressure Limit, 125 psi for tube size 5 and 6<br />
Accuracy, ±3% of FS.<br />
Repeatability, ±0.5% of FS.<br />
Turn-Down Ratio, 10:1.<br />
Scale, Dual scale GPM and SCFM.<br />
Process Connection, See table.<br />
Mounting, Vertical.<br />
Front Shield, Polycarbonate.<br />
Side Panels, 304 SS.<br />
<br />

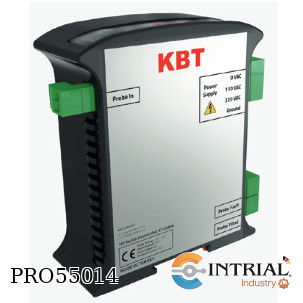

TILT SWITCH CONTROL UNITS<br />
Brand: KBT<br />
Model: KT-35DIN<br />
Type, DIN mount<br />
Enclousure, Thermoplastic<br />
Alarm contact, 1 NO<br />
Fault contact, 1 NO, short circuit indicator.<br />
Only when use with electronic output models.<br />
Temperature rating, -40°C, +80°C<br />
Input, 110/220 VAC, 50/60 Hz<br />
Alarm Contact, 1 NO - 110/220 VAC 2 A - 24 VDC 3 A<br />
Fault Contact, 1 NO - 110/220 VAC 2 A - 24 VDC 2 A<br />
Delay, 1, 2, 4 or 6 seconds.<br />
Protection Class, IP20<br />
Certifications, CE

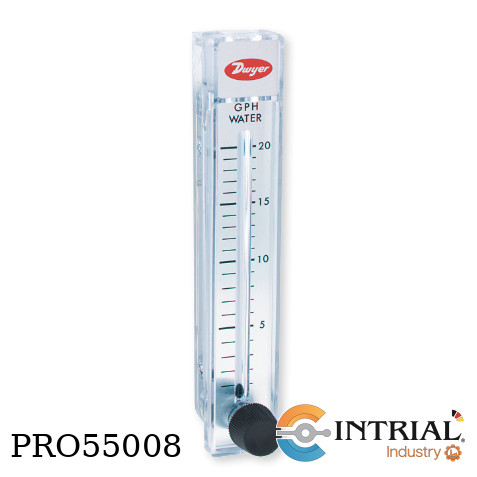

RATE-MASTER POLYCARBONATE FLOWMETERS<br />
Brand: DWYER<br />
Model: RMB-83-SSV<br />
[RMB]: 5" Scale<br />
[83]: Range; 1 to 20 GPH Water<br />
[SSV]: Options; Stainless Steel Valve<br />
Service, Compatible gases and liquids.<br />
Wetted Materials, Body: Polycarbonate; O-ring: Neoprene and Buna-N; Metal<br />
parts: SS (except for optional brass valve); Float: SS, black glass, aluminum, K<br />
monel, tungsten carbide depending on range.<br />
Temperature Limit, 130°F (54°C).<br />
Pressure Limit, 100 psi (6.9 bar).<br />
Accuracy, RMB: 3%<br />
Process Connection, RMB: 1/4˝<br />
Weight, RMB: 13 oz (368.5 g)<br />
Agency Approvals, Meets the technical requirements of EU Directive 2011/65/EU<br />
(RoHS II)
<div>
<div class="gtx-trans-icon"></div>
</div>

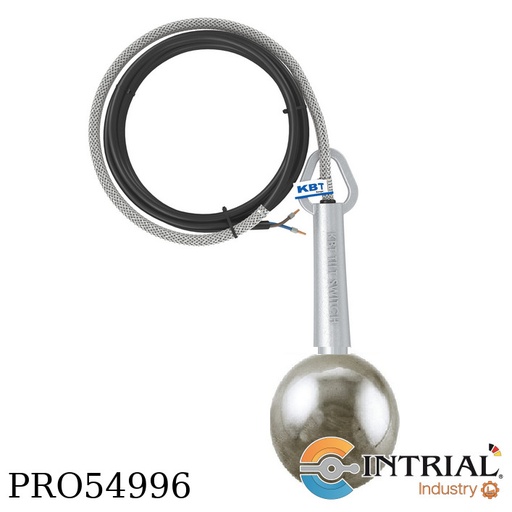

TILT SWITCH<br />
Brand: KBT<br />
Model: CB-39-BF4<br />
[CB-39]:<br />
Enclosure, CB-39 Series: Nickel plated ductile iron casting<br />
Mounting, Hanger and two S-hooks (included with probe)<br />
Temperature Rating, -40°C, +80°C<br />
Protection Class, IP67<br />
[BF4]: Probe Extension Options,<br />
Ball Float. 4" by standard, custom dimensions are available.<br />
Useful with low-density material

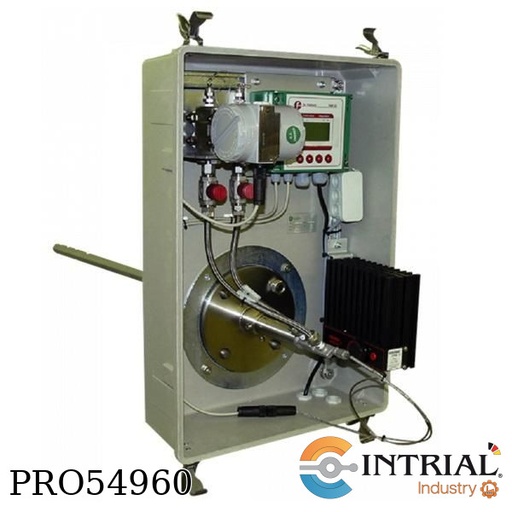

FLOW MEASURING DEVICE<br />
Brand: DR. FODISCH<br />
Model: FMD09<br />
for the measurement of the gas velocity/flow, temperature<br />
approved according to DIN EN 15267-3<br />
for gas velocities > 3 m/s<br />
consisting of:<br />
Dynamic pressure probe with an integrated PT 100<br />
Probe material, 1.4571<br />
Channel insertion length, 530 mm<br />
Passive length, 300mm<br />
With differential pressure transmitter, mounting flange, ball valves,<br />
Analogue outputs, 3x 4...20 mA, potential isolated for gas velocity/flow,<br />
differential pressure, temperature or optional absolute pressure<br />
Digital signals, Failure, limit value 1 and limit value 2<br />
Power supply, 230 V AC 50/60 Hz<br />
Velocity, 3 - 60 m/s (operational status)<br />
Exhaust gas temperature, max. 850°C<br />
Ambient temperature, 0 ... +50°C<br />
Assembly port with special flange (adapter for 4" -150# RF flange contained within client scope)<br />
Incl. lacquered circuit boards and desiccant bags for tropical environments<br />
Incl. absolute pressure measurement measuring range: 800-1200 mbar

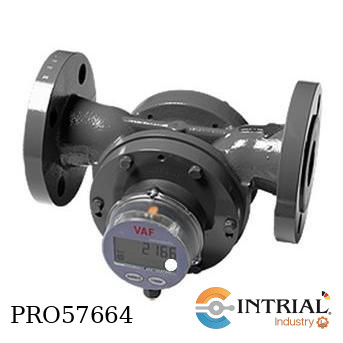

FLUJOMETRO<br />
Marca: VAF<br />
Modelo: J5040E<br />
Conexiones bridas, DIN DN40; PN16<br />
Dirección de flujo, Izquierda a derecha<br />
Temperatura de trabajo, -10 a 120°C<br />
Lectura más pequeña, 1 litro<br />
Contador electrónico<br />
Pulso único 1 p/l

VISI-FLOAT ACRYLIC FLOWMETERS<br />
Brand: DWYER<br />
Model: VFA-7-BV<br />
[7]: Range, 5 to 50 SCFH Air<br />
[BV]: Brass valve<br />
Service, Compatible gases and liquids.<br />
Wetted Materials,<br />
 Body, Acrylic plastic;<br />
 O-ring, Buna-N (fluoroelastomer available);<br />
 Metal parts, Nickel plated brass standard, SS optional;<br />
 Float, SS, black glass, aluminum, K monel depending on range.<br />
Temperature and Pressure Limits, With valve: 100 psig (6.9 bar) @ 120°F (48°C).<br />
Accuracy, VFA = 5%<br />
Process Connection, 1/8˝ female NPT<br />
Scale Length, VFA 2˝ typical length<br />
Mounting Orientation, Mount in vertical position.<br />
Weight, VFA: 4.0 to 4.8 oz (.11 to .14 kg)

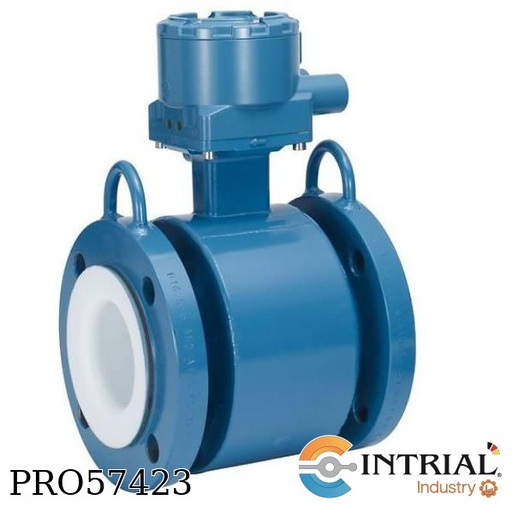

Sensor del caudalímetro magnético<br />
Marca: ROSEMOUNT<br />
Modelo: 8705TSE040C1W0N0B3<br />
[T]: Material del revestimiento, PTFE<br />
[S]: Material de electrodo, Acero inoxidable 1.4404 (316L)<br />
[E]: Tipo de electrodo, 3er electrodo de conexión a tierra<br />
[040]: Tamaño de tubería, 100 mm (4 in.)<br />
[C]: Tipo de brida y su material, Acero al carbono, cara resaltada, deslizante<br />
[1]: Tipo y categoría de la brida, ASME B16.5 ANSI clase 150 (30 y 36 pulg. AWWA C207 clase D, cara plana)<br />
[W0]: Configuración de la carcasa del electrodo, Carcasa soldada sellada<br />
[N0]: Aprobaciones para áreas peligrosas, Clase 1 div 2 para fluidos no inflamables según; clase 1 div 2 según CSA<br />
[B3]: Otras opciones, Montaje integrado con el 8732

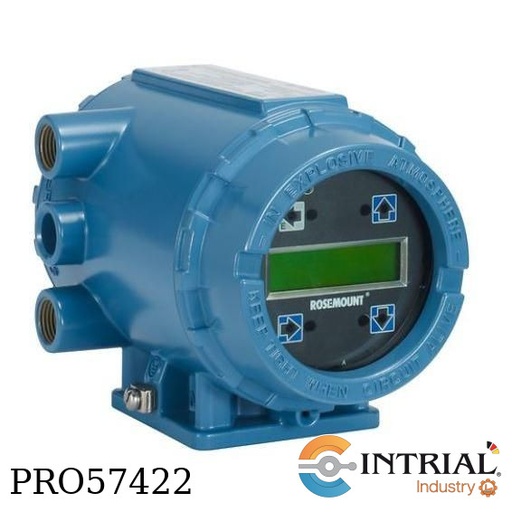

Transmisor de caudalímetro magnético<br />
Marca: ROSEMOUNT<br />
Modelo: 8732EST1A1N0M4<br />
[S]: Tipo de transmisor, Estándar<br />
[T]: Montaje del transmisor, Montaje integrado<br />
[1]: Fuente de alimentación del transmisor, Fuente de alimentación de CA (90 a 250 V CA, 50–60 Hz)<br />
[A]: Salidas, Electrónica digital de 4–20 mA (protocolo HART)<br />
[1]: Entrada de cables, 1/2 – 14 NPT<br />
[N0]: Aprobaciones de seguridad, FM clase 1 div 2 para fluidos no inflamables: CSA clase 1 div 2<br />
[M4]: Otras opciones, Interfaz local del operador (sólo con HART y Profibus-PA)

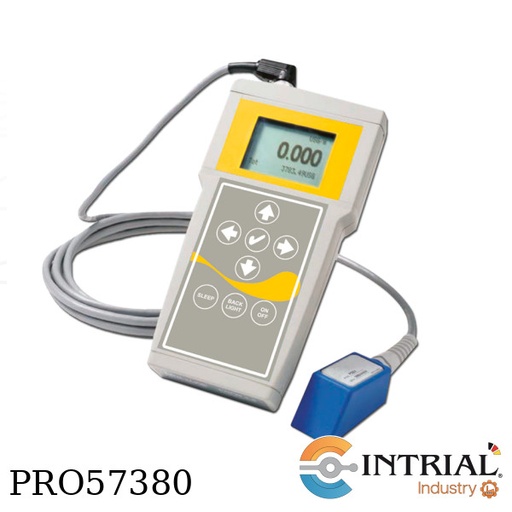

FLUJÓMETRO DOPPLER MICRONICS PORTÁTIL PARA LÍQUIDOS SUCIOS MICRONICS PF-D550<br />
MARCA: MICRONICS<br />
MODELO:  PF-D550<br />
VERSIÓN PORTABLE IP67 <br />
CON MALETA TRANSPORTE<br />
BATERÍAS HASTA 18HRS CON DISPLAY LCD<br />
SENSOR IP68 PARA TUBERÍAS DIÁMETRO EXTERNO ½” A 32” (15-800MM)<br />
CABLE SENSOR 3.5M<br />
SALIDA 1X4-20MA<br />
USB<br />
DATALOGGER 300,000 PUNTOS Y GEL ACOPLAN

Flow Switch<br />
Brand: CARRIER<br />
Model: 00PPG000003100A

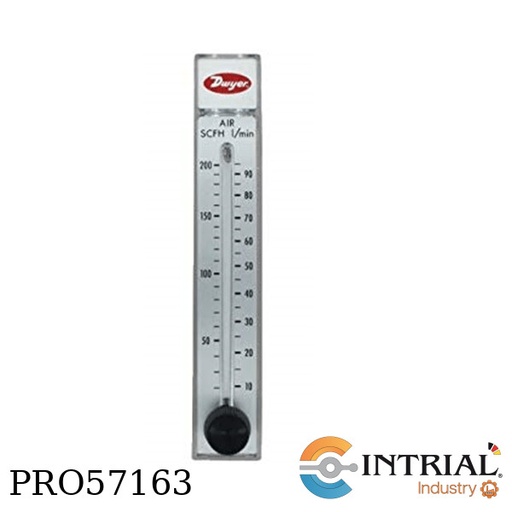

RATE-MASTER POLYCARBONATE FLOWMETERS<br />
Brand: DWYER<br />
Model: RMB-54-SSV<br />
[54]: Range, 20 to 200 SCFH Air<br />
[SSV]: With stainless steel valve<br />
Service, Compatible gases and liquids.<br />
Wetted Materials,<br />
 Body: Polycarbonate;<br />
 O-ring: Neoprene and Buna-N;<br />
 Metal parts: SS (except for optional brass valve);<br />
 Float: SS, black glass, aluminum, K monel, tungsten carbide depending on range.<br />
Temperature Limit, 130°F (54°C).<br />
Pressure Limit, 100 psi (6.9 bar).<br />
Accuracy, RMB: 3%<br />
Process Connection, RMB: 1/4˝<br />
Weight, RMB: 13 oz (368.5 g)<br />
Agency Approvals, Meets the technical requirements of EU Directive 2011/65/EU(RoHS II)
