RATE-MASTER POLYCARBONATE FLOWMETERS<br />
Brand: DWYER<br />
Model: RMB-54<br />
[54]: Range, 20 to 200 SCFH Air<br />
Service, Compatible gases and liquids.<br />
Wetted Materials,<br />
 Body: Polycarbonate;<br />
 O-ring: Neoprene and Buna-N;<br />
 Metal parts: SS (except for optional brass valve);<br />
 Float: SS, black glass, aluminum, K monel, tungsten carbide depending on range.<br />
Temperature Limit, 130°F (54°C).<br />
Pressure Limit, 100 psi (6.9 bar).<br />
Accuracy, RMB: 3%<br />
Process Connection, RMB: 1/4˝<br />
Weight, RMB: 13 oz (368.5 g)<br />
Agency Approvals, Meets the technical requirements of EU Directive 2011/65/EU(RoHS II)

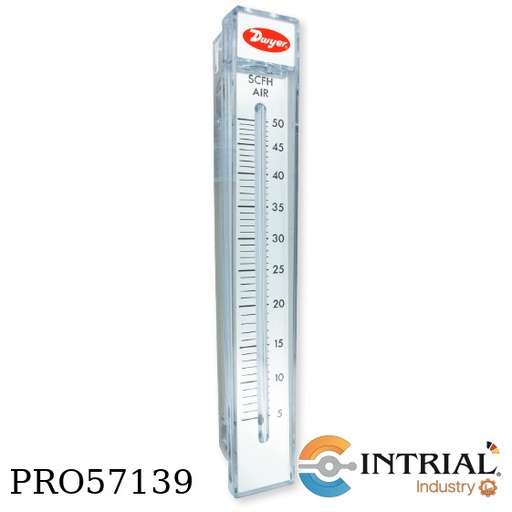

RATE-MASTER POLYCARBONATE FLOWMETERS<br />
Brand: DWYER<br />
Model: RMB-53<br />
[53]: Range, 10 to 100 SCFH Air<br />
Service, Compatible gases and liquids.<br />
Wetted Materials,<br />
 Body: Polycarbonate;<br />
 O-ring: Neoprene and Buna-N;<br />
 Metal parts: SS (except for optional brass valve);<br />
 Float: SS, black glass, aluminum, K monel, tungsten carbide depending on range.<br />
Temperature Limit, 130°F (54°C).<br />
Pressure Limit, 100 psi (6.9 bar).<br />
Accuracy, RMB: 3%<br />
Process Connection, RMB: 1/4˝<br />
Weight, RMB: 13 oz (368.5 g)<br />
Agency Approvals, Meets the technical requirements of EU Directive 2011/65/EU(RoHS II)

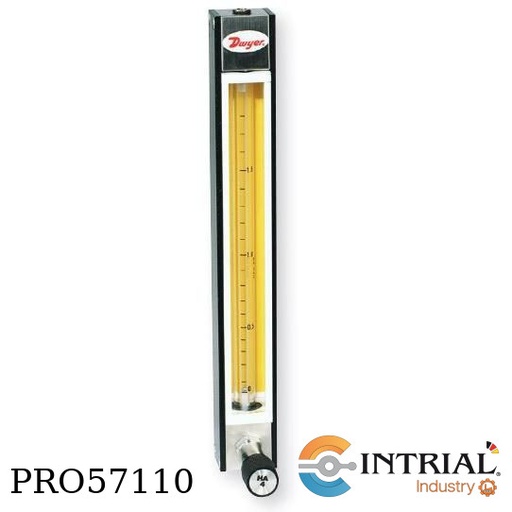

DIRECT READING GLASS FLOWMETER<br />
Brand: DWYER<br />
Model: DR224182<br />
150 MM Scale<br />
Model with valve<br />
Material, SS<br />
Max. flow rate, 3.8 Air SCFH, 1.8 L/min<br />
Service, Compatible gases or liquids.<br />
Wetting Materials,<br />
 Flowtube: Borosilicate glass; Float: 316 SS (black glass as indicated);<br />
 Float stops: PTFE; End fittings: Anodized aluminum or 316 SS;<br />
 O-rings: Buna-N on aluminum models and fluoroelastomer on SS models.<br />
Temperature Limit, 250°F (121°C).<br />
Pressure Limit, 250 psig (17 bar).<br />
Accuracy, ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).<br />
Repeatability, ±0.25% of scale reading.<br />
Scales, Direct reading 65 mm or 150 mm scales for air or water.<br />
Turn-Down Ratio, 10:1.<br />
Connection, 1/8˝ female NPT.<br />
Mounting, Vertical.<br />
Valve, 6-turn needle (standard on models with valve).

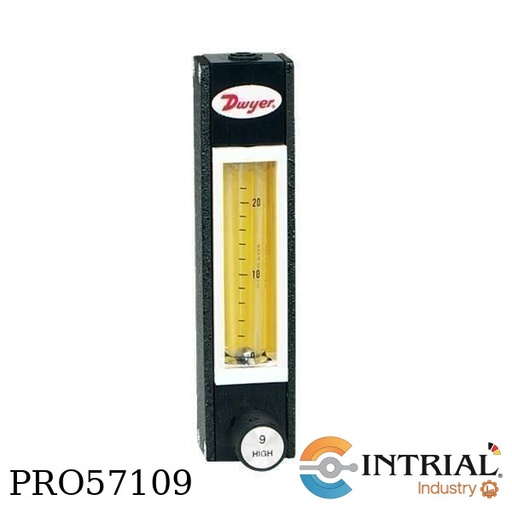

DIRECT READING GLASS FLOWMETER<br />
Brand: DWYER<br />
Model: DR12462<br />
65 MM Scale<br />
Model with valve<br />
Material, SS<br />
Max. flow rate, 5.6 Air SCFH, 2.1 L/min<br />
Service, Compatible gases or liquids.<br />
Wetting Materials,<br />
 Flowtube: Borosilicate glass; Float: 316 SS (black glass as indicated);<br />
 Float stops: PTFE; End fittings: Anodized aluminum or 316 SS;<br />
 O-rings: Buna-N on aluminum models and fluoroelastomer on SS models.<br />
Temperature Limit, 250°F (121°C).<br />
Pressure Limit, 250 psig (17 bar).<br />
Accuracy, ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).<br />
Repeatability, ±0.25% of scale reading.<br />
Scales, Direct reading 65 mm or 150 mm scales for air or water.<br />
Turn-Down Ratio, 10:1.<br />
Connection, 1/8˝ female NPT.<br />
Mounting, Vertical.<br />
Valve, 6-turn needle (standard on models with valve).

RATE-MASTER POLYCARBONATE FLOWMETERS<br />
Brand: DWYER<br />
Model: RMA-14-SSV<br />
[14]: Range, 200 to 2500 CC/Min. Air<br />
[SSV]: RMA with stainless steel valve<br />
Service, Compatible gases and liquids.<br />
Wetted Materials,<br />
 Body: Polycarbonate.<br />
 O-ring: Neoprene and Buna-N.<br />
 Metal parts: SS (except for optional brass valve)<br />
 Float: SS, black glass, aluminum, K monel, tungsten carbide depending on range.<br />
Temperature Limit, 130°F (54°C).<br />
Pressure Limit, 100 psi (6.9 bar).<br />
Accuracy, RMA: 4%<br />
Process Connection, RMA: 1/8˝;<br />
Weight, RMA: 4 oz (113.4 g)<br />
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)

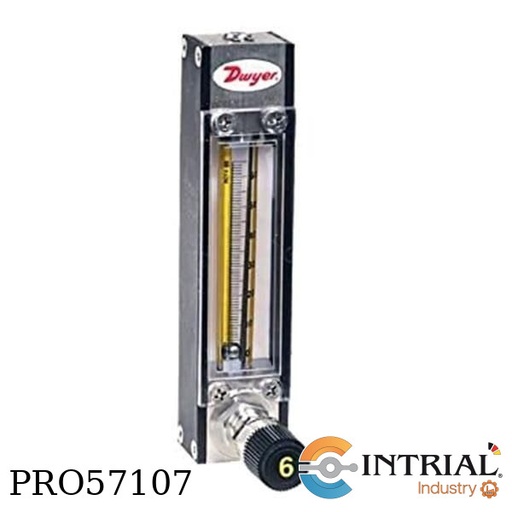

VARIABLE AREA GLASS FLOWMETERS<br />
Brand: DWYER<br />
Model: VA12424<br />
[VA12424]:<br />
Material, SS<br />
METAL 65 MM SCALE<br />
Float, SS<br />
Max. Flow Rate, 4.51 Air SCFH (2129 ml/min), 0.930 Water GPH (58.7 ml/min)<br />
Service, Compatible gases or liquids.<br />
Wetted Materials,<br />
 Flowtube: Borosilicate glass; Floats: Glass or SS (sapphire, Carboloy and tantalum are optional)<br />
 Float stops: PTFE; End fittings: Anodized aluminum, 316 SS, brass or PTFE<br />
 Packings: Fluoroelastomer, none on VAX5XX models<br />
 O-rings: Fluoroelastomer on SS models,<br />
Temperature Limits, 250°F (121°C)<br />
Pressure Limits, 200 psig (13.8 bar)<br />
Accuracy, ±2% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute)<br />
Repeatability, ±0.25% FS.<br />
Leak Rate, 1 x 10-7 sccs of helium.<br />
Scales, Universal 65 mm or 150 mm with correlation charts.<br />
Turn-Down Ratio, 10:1.<br />
Connections, Two 1/8˝ female NPT.<br />
Mounting, Vertical.<br />
Valve, 6-turn needle (standard), optional 16-turn high precision valve.<br />
Valve Orifice, Acetal on aluminum models and brass models, PCTFE on stainless steel models

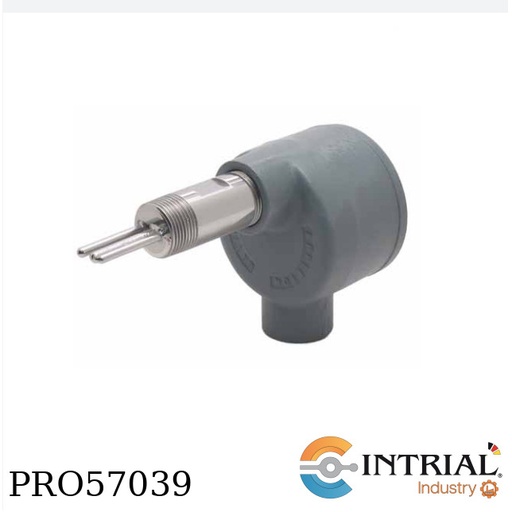

FX SERIES FLOW SWITCH<br />
BRAND: AMERITROL<br />
MODEL: FX-1000-LT<br />
PROCESS CONNECTION THREADED: 1” MNPT<br />
INSERTION LENGTH: 1.8” STANDARD<br />
POWER INPUT: 117 VAC (90-132VAC)<br />
PROCESS TEMPERATURE: -50F TO +350F<br />
RELAY OUTPUTS: SPDT 10 AMP RESISTIVE<br />
DUAL SWITCH POINTS: SPDT 10 AMP RESISTIVE<br />
SENSOR HEAD MATERIAL: 316L STAINLESS STEEL

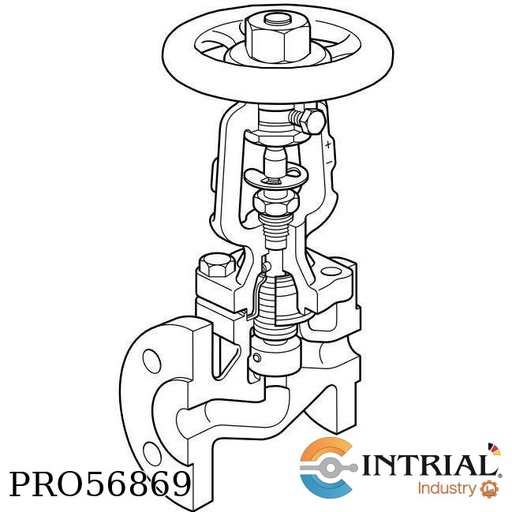

VALVULA DE GLOBO CON FUELLE<br />
Marca: SPIRAX SARCO<br />
Modelo: BSA3T-DN100<br />
Material, acero fundido<br />
Max. presión diferencial, 1.5 Bar<br />
Conexión: 4"

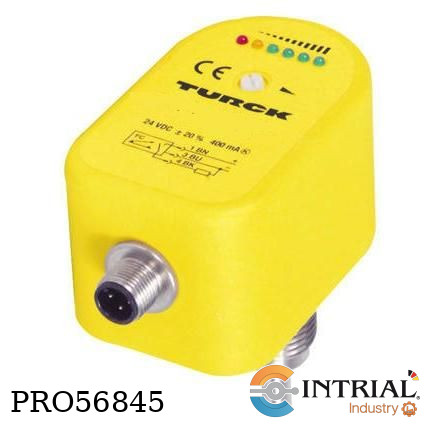

CONTROL DE FLUJO-SENSOR DE INSERCIÓN CON PROCESADOR INTEGRADO<br />
Marca: TURCK<br />
Modelo: FCS-G1/2A4P-VRX/24VDC<br />
Rango de detección de agua, 1…150 cm/s<br />
Rango de detección de aceite, 3…300 cm/s<br />
Tensión de servicio, 19.2…28.8 VCC<br />
Consumo de corriente, ≤ 80 mA<br />
Corriente nominal de servicio, 4 A<br />
Resistencia a la presión, 100 bar<br />
Conexión de procesos, G 1/2''<br />
Grado de protección, IP68

FLOWMETER<br />
Brand: DWYER<br />
Model: MN-AIB50GM-16-320CS0.90-TXL0WR<br />
[MN]: Normal pressure (300 PSI)<br />
[A]: Housing material, Aluminum with nylon flow chamber<br />
[I]: Internal moving parts, Stainless steel (316 series)<br />
[B]: Seal material, Buna N<br />
[50GM]: Maximum flow rate, 50 GPM<br />
[16]: Pipe size, 2" NPT<br />
[320CS0.90]:Fluid characteristics, 320 centistokes with specific gravity of .90<br />
[TXL0]: Control box & readout, "T" box No switches<br />
[W]: Service, Weatherproof (Type 4) Available on all boxes<br />
[R]: Flow direction, Left to right

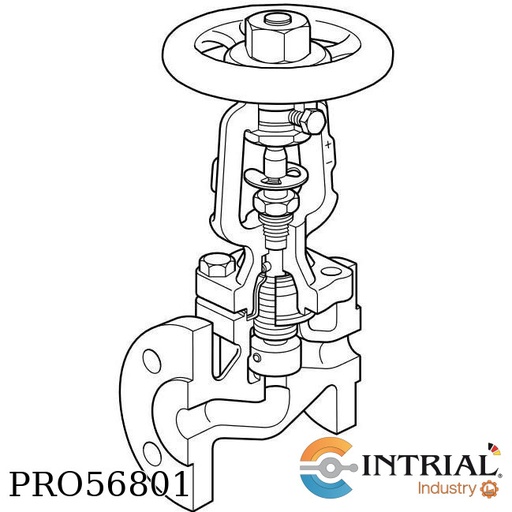

VALVULA DE GLOBO<br />
Marca: SPIRAX SARCO<br />
Modelo: BSA3T-DN40<br />
Material, acero fundido<br />
Max. presión diferencial, 2,0 bar<br />
<br />

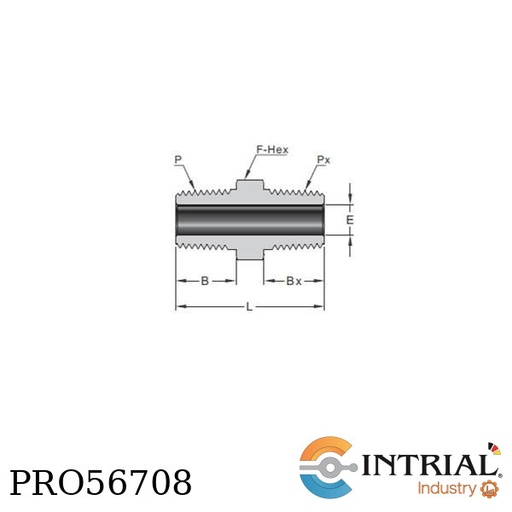

Hex nipple 1/4'' NPT MALE, SS316<br />
Brand: HIKELOK<br />
<br />

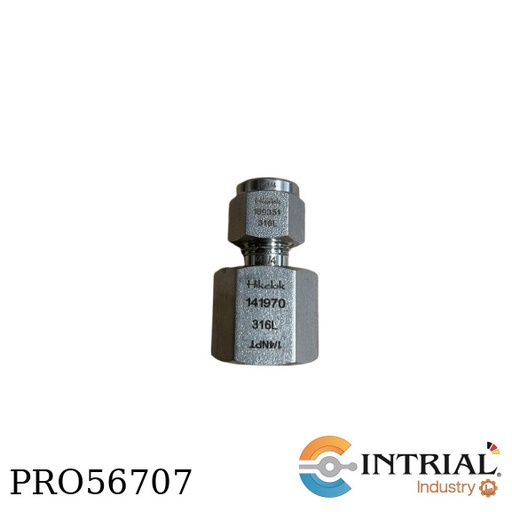

Female connector SS316<br />
Brand: HIKELOK<br />
1/4'' ODX 1/4'' NPT FEMALE<br />
<br />
<br />
<br />


BODY of quick connects (BASE)<br />
* Brand: HIKELOK<br />
* Type: BODY (BASE)<br />
* End connection: 1/4 female NPT<br />
* Body Material: SS316<br />
* Maximum working pressure up to 6000 psig (413 bar)<br />
* Working temperature from (-23°C to 204°C)<br />
<br />
<br />


STEM Quick connects (ESPIGA)<br />
* Brand: HIKELOK<br />
* Type: STEM (ESPIGA)<br />
* End connection: 1/4 OD<br />
* Body Material: SS316<br />
* Maximum working pressure up to 6000 psig (413 bar)<br />
* Working temperature from (-23°C to 204°C)<br />
<br />

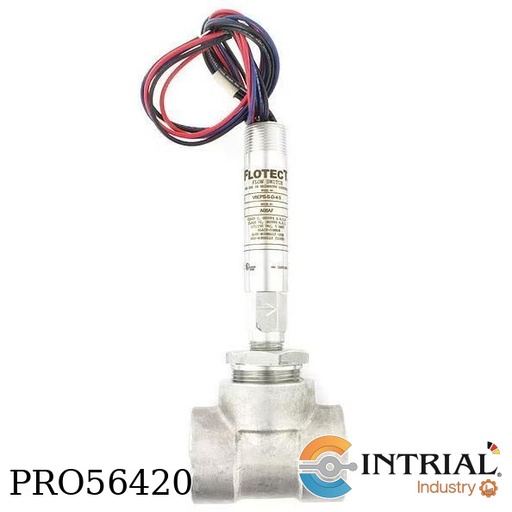

FLOTECT MINI-SIZE FLOW SWITCHES<br />
Brand: DWYER<br />
Model: V6EPS-S-D-1-S<br />
[V6EPS]: Upper housing material, stainless steel<br />
[S]: Lower housing material, stainless steel<br />
[D]: Switch type, DPDT<br />
[1]: Line connection size, 1/2" NPT<br />
[S]: Tee/Bushing material, stainless steel

Módulo MODBUS RTU<br />
Marca: SIEMENS<br />
Modelo: 085U0234<br />
<br />

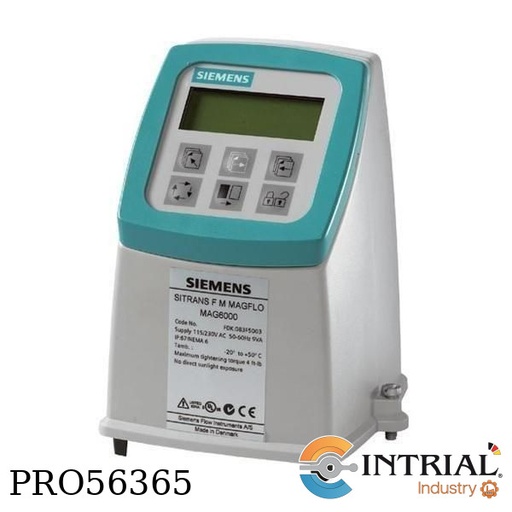

TRANSMISOR<br />
Marca: SIEMENS<br />
Modelo:  7ME6920-1AA30-1AA0<br />
Error máximo de medición ±0,2 % + 1 mm/s (MAG 6000)<br />
Display configurable por el usuario<br />
Autodiagnóstico y registro de errores<br />
Protocolo de comunicación HART (opcional)<br />
Control del PC con software SIMATIC PDM<br />
Detección de tuberías vacías (cable específico necesario)<br />
Carcasa IP67/NEMA<br />
Display retroiluminado<br />
Protección por contraseña
<div>
<div class="gtx-trans-icon"></div>
</div>

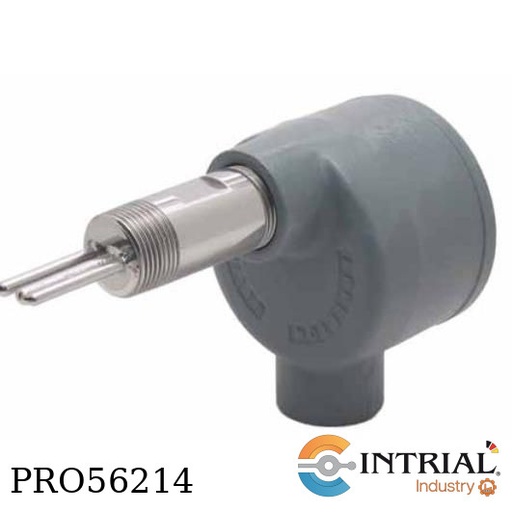

FLOW SWITCH<br />
Brand: AMERITROL<br />
Model: FX-1000-DJ<br />
1” MNPT process connection<br />
1.8” probe length<br />
24 VDC or VAC power input<br />
SPDT relay output with 10 amp contact rating<br />
Process temperatures to 350F<br />
Electronics mounted in a UL/CSA Approved NEMA 4X<br />
Explosion-proof enclosure rated for Class I<br />
316L stainless steel for all wetted surface

IN-LINE FLOW MONITOR<br />
Brand: DWYER<br />
Model: HFS-5-007<br />
Material, Stainless steel<br />
Connection, 1-1/2" NPT female<br />
Range, 30 to 470 SCFM<br />
Service, Compatible gases or liquids.<br />
Wetted Materials, HFA: Aluminum casing, Buna-N seals, PTFE coated Alnico magnet, SS disk<br />
Maximum Viscosity, 500 SSU.<br />
Temperature Limits, 240°F (116°C).<br />
Pressure Limits, HFA, HFB, HFL and HFH models: 600 psig (41 bar) for air and gas, 3500 psig (241 bar) for liquids;<br />
HFS model: 1000 psig (70 bar) for air and gas, 6000 psig (413 bar) for liquids.<br />
Accuracy, ±2% FS.<br />
Repeatability, ±1% of FS.<br />
Shipping Weight, 1/4˝ to 1/2˝ female NPT models; 2 lb (0.9 kg); 3/4 to 1˝ female<br />
NPT models: 3.5 lb (1.59 kg); 1-1/2˝ female NPT models: 11 lb (5 kg); 2˝ female NPT models: 13.5 lb (6.12 kg).
