DUCTUS STATIONARY TIME OF FLIGHT FLOW METER FOR PRESSURIZED PIPES<br />
Brand: GWF<br />
Model: 2Q30-CO-L-2-PATH<br />
Bi-directional flow measurement in 1 to 10<br />
acoustic paths Measurement of low velocities<br />
down to 1.5 mm/s Uncertainty in flow<br />
measurement down to± 0.15 % of reading<br />
depending on sensor type and number of<br />
installed paths<br />
Transmitter: Wall-mounted, aluminium<br />
with internal microSD card (16 GB) LC Display,<br />
20 characters, 4 lines IP66 (NEMA 4)<br />
Power Supply: 100 - 240 V AC<br />
Communication<br />
Standard (4-wire RS-485]<br />
Ethernet (10/100 Mbps)+ WiFi + Modbus<br />
RTU/TCP + RS-485<br />
+ 4 x 4-20 mA IN+ 2 x digital IN+ 4 x 4-20 mA<br />
OUT<br />
+ 4 x relay OUT+ 2 x digital OUT<br />
Sensor Type<br />
Clamp-on for pipe diameters 0.4-15 m [200 kHz]<br />
Geometry: Crossed paths<br />
Number of planes, crossed paths: One<br />
Clamp-on sensor CO-L 4x<br />
Sensor cable<br />
None, connection box at sensor<br />
Documentation: None<br />
Language documentation: English<br />
<br />
Include<br />
*1xTRANSDUCER CABLE TCI(Model:2141.00059)<br />
*80xClamp-on installation set L with 7 m pre-streched steel cable (Model: 2141.00051)<br />
*1xCoupling Gel(Model:2141.00031)

DUCTUS STATIONARY TIME OF FLIGHT FLOW METER FOR PRESSURIZED PIPES<br />
Brand: GWF<br />
Model: 2Q30-AC-CO-S-2<br />
Bi-directional flow measurement in 1 to 10 acoustic paths<br />
Measurement of low velocities down to 1.5 mm/s<br />
Uncertainty in flow measurement down to ± 0.15 % of reading<br />
depending on sensor type and number ofinstalled paths<br />
Transmitter<br />
Wall-mounted, aluminium with internal microSD card (16 GB)<br />
LC Display, 20 characters, 4 lines<br />
IP66 (NEMA 4)<br />
Power Supply, 100 - 240 V AC<br />
Communication, Standard (4-wire RS-485)<br />
Ethernet (10/100 Mbps) + WiFi + Modbus RTU/TCP + RS-485<br />
+ 4 x 4-20 mA IN + 2 x digital IN + 4 x 4-20 mA OUT<br />
+ 4 x relay OUT + 2 x digital OUT<br />
Sensor Type Clamp-on for pipes DN25-DN1000 (1 MHz)<br />
Geometry Crossed paths<br />
Number of planes, crossed paths<br />
Indicate if 070 = B<br />
One Clamp-on sensor CO-S<br />
4 x Sensor cable<br />
Attached directly to sensor<br />
Area of application<br />
Cable not submersible (indoors or protective conduit)<br />
Sensor cable length CO-S clamp-on sensors<br />
Only for sensors type CO-S (030 = F)<br />
15 m<br />
Documentation, None<br />
Language documentation, English<br />
<br />
Include<br />
 *1xCLAMP-ON INSTALLATION SET-S (Model: 2141.00030)<br />
 *1xFOR MOUNTING OF TWO TRANSDUCERS TYPE CO-S TO A PIPE GWF (Model:2141.00049)<br />
 *1xClamp-on installation set L with 7 m pre-streched steel cable (Model: 2141.00051)

DUCTUS STATIONARY TIME OF FLIGHT FLOW METER FOR PRESSURIZED PIPES<br />
Brand: GWF<br />
Model: 2Q30-CO-L-2-PATH<br />
Bi-directional flow measurement in 1 to 10<br />
acoustic paths Measurement of low velocities<br />
down to 1.5 mm/s Uncertainty in flow<br />
measurement down to± 0.15 % of reading<br />
depending on sensor type and number of<br />
installed paths<br />
Transmitter: Wall-mounted, aluminium<br />
with internal microSD card (16 GB) LC Display,<br />
20 characters, 4 lines IP66 (NEMA 4)<br />
Power Supply: 100 - 240 V AC<br />
Communication<br />
Standard (4-wire RS-485]<br />
Ethernet (10/100 Mbps)+ WiFi + Modbus<br />
RTU/TCP + RS-485<br />
+ 4 x 4-20 mA IN+ 2 x digital IN+ 4 x 4-20 mA<br />
OUT<br />
+ 4 x relay OUT+ 2 x digital OUT<br />
Sensor Type<br />
Clamp-on for pipe diameters 0.4-15 m [200 kHz]<br />
Geometry: Crossed paths<br />
Number of planes, crossed paths: One<br />
Clamp-on sensor CO-L 4x<br />
Sensor cable<br />
None, connection box at sensor<br />
Documentation: None<br />
Language documentation: English

DUCTUS STATIONARY TIME OF FLIGHT FLOW METER FOR PRESSURIZED PIPES<br />
Brand: GWF<br />
Model: 2Q30-AC-CO-S-2<br />
Bi-directional flow measurement in 1 to 10 acoustic paths<br />
Measurement of low velocities down to 1.5 mm/s<br />
Uncertainty in flow measurement down to ± 0.15 % of reading<br />
depending on sensor type and number ofinstalled paths<br />
Transmitter<br />
Wall-mounted, aluminium with internal microSD card (16 GB)<br />
LC Display, 20 characters, 4 lines<br />
IP66 (NEMA 4)<br />
Power Supply, 100 - 240 V AC<br />
Communication, Standard (4-wire RS-485)<br />
Ethernet (10/100 Mbps) + WiFi + Modbus RTU/TCP + RS-485<br />
+ 4 x 4-20 mA IN + 2 x digital IN + 4 x 4-20 mA OUT<br />
+ 4 x relay OUT + 2 x digital OUT<br />
Sensor Type Clamp-on for pipes DN25-DN1000 (1 MHz)<br />
Geometry Crossed paths<br />
Number of planes, crossed paths<br />
Indicate if 070 = B<br />
One Clamp-on sensor CO-S<br />
4 x Sensor cable<br />
Attached directly to sensor<br />
Area of application<br />
Cable not submersible (indoors or protective conduit)<br />
Sensor cable length CO-S clamp-on sensors<br />
Only for sensors type CO-S (030 = F)<br />
15 m<br />
Documentation, None<br />
Language documentation, English

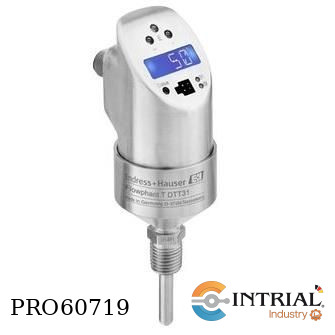

FLOW SWITCH FLOWPHANT<br />
Brand: ENDRESS+HAUSER<br />
Model: DTT31-A1B111DE2AAB<br />
[A]: Homologación,  Zona no clasificada<br />
[1]: Conexión eléctrica,  Conector M12<br />
[B]: Alimentación, 18-30VDC<br />
Señal de Salida, 2 salidas Contactos PNP<br />
[1]: Display, Digital<br />
[1]: Aplicación, Liquid -20...85oC<br />
rango medida, 0.03-3m/s<br />
[1]: Ajuste,  En campo<br />
[DE]: Conexión Proceso, NPT1/2 rosca macho ANSI<br />
Material, 316L<br />
[2A]: Longitud Inserción, 30 mm<br />
Diámetro, 6 mm<br />
[A]: Opción Adicional, Versión Básica<br />
[B]:  Versión, Estándar

RATE-MASTER POLYCARBONATE FLOWMETER<br />
Brand: DWYER<br />
Model: RMA-25<br />
Range, 10 to 100 LPM<br />
Service, Compatible gases and liquids.<br />
Wetted Materials,<br />
 Body, Polycarbonate;<br />
 O-ring, Neoprene and Buna-N;<br />
 Metal parts, SS (except for optional brass valve)<br />
 Float, SS, black glass, aluminum, K monel, tungsten carbide depending on range.<br />
Temperature Limit, 130°F (54°C).<br />
Pressure Limit, 100 psi (6.9 bar).<br />
Accuracy, RMA: 4%<br />
Process Connection: RMA, 1/8˝<br />
Weight, RMA: 4 oz (113.4 g)

BULKHEAD tube Fitting (BODY)<br />
* Brand: HIKELOK<br />
* Type: BODY<br />
* End connection: 1/8 OD Bulkhead tube fitting<br />
* Body with VALVE<br />
* Body Material: SS316<br />
* Maximum working pressure up to 4000 psig (275 bar)<br />
* Working temperature from (-45°C to 260°C) <br />
<br />
<br />


STEM Quick connects (ESPIGA)<br />
* Brand: HIKELOK<br />
* Type: STEM (ESPIGA)<br />
* End connection: 1/8 OD<br />
* STEM with valve shuts off when uncoupled<br />
* Body Material: SS316<br />
* Maximum working pressure up to 4000 psig (275 bar)<br />
* Working temperature from (-45°C to 260°C)<br />
<br />

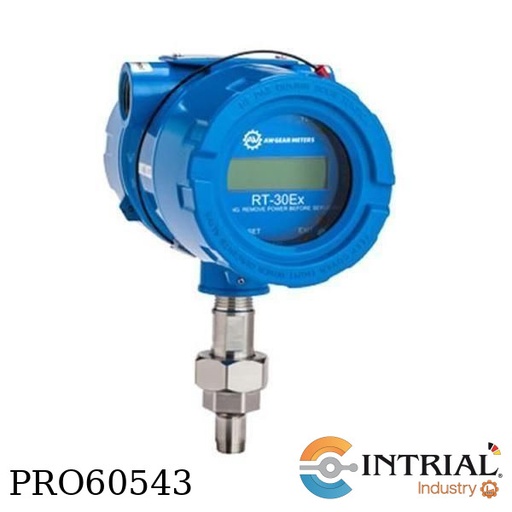

Hazardous area rated flow transmitter<br />
Brand: AW LAKE<br />
Model: RT-30EX-D01H<br />
DUAL ACC. ENCL. HUB-40,HART CSA<br />
Hazardous area rated flow transmitter<br />
Meter mounted<br />
LCD display with backlight<br />
Dual access aluminum housing<br />
3/4" NPT cable entry<br />
Stainless steel swivel fitting<br />
Spring loaded pick-up<br />
Offers flow rate, total and grand total<br />
4 - 20mA and frequency output<br />
2 limit outputs<br />
30-point linearizer<br />
HART communication<br />
Requires 10 to 24vdc supply voltage cCSAus:<br />
Class I, Div. 1, Groups C, D<br />
Class II, Div. 1, Groups E, F, G<br />
Class III, T6, Type 4X<br />
Temperature Rating: -20 to 60°C (-4 to 140°F)

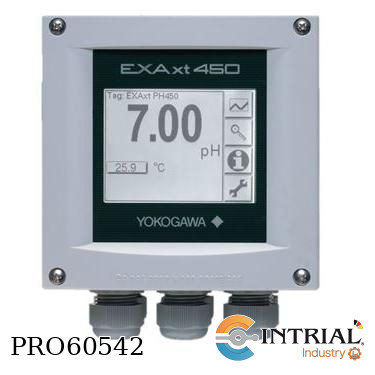

PH/ORP CONVERTER<br />
Brand: YOKOGAWA<br />
Model: PH450G-A-A<br />
Input ranges pH, -2 to 16 pH<br />
Input ranges ORP, -1500 to 1500 mV<br />
Input ranges rH, 0 to 100 rH.<br />
Supply, 100-240 VAC - 50/60 Hz<br />
Output, 4-20 mA<br />
Amb. temp., -20 to 55 °C

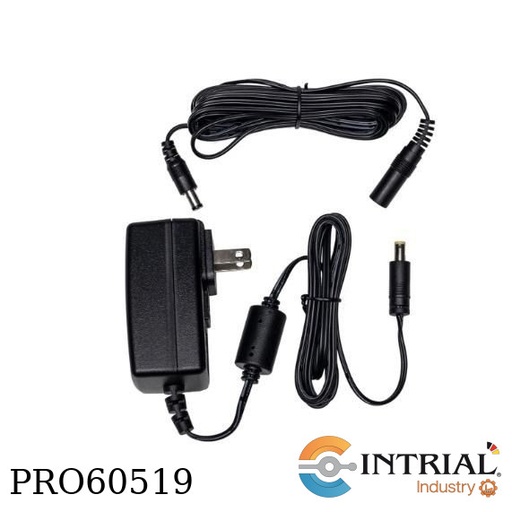

POWER SUPPLY<br />
Brand: CDI METERS<br />
Model: 5200-PS

DAMPER ACTUATOR<br />
Brand: JOHNSON CONTROLS<br />
Model: M9106-GGA-2<br />
Control type,<br />
 DC 0(2) . . . 10 V<br />
 DC 0(4) . . . 20 mA<br />
 Proportional<br />
Torque, 53 lb-in (6 nm)<br />
Timing, 60 sec timing at 60 hz<br />
Voltage, AC 24 v 50/60 Hz<br />
<br />

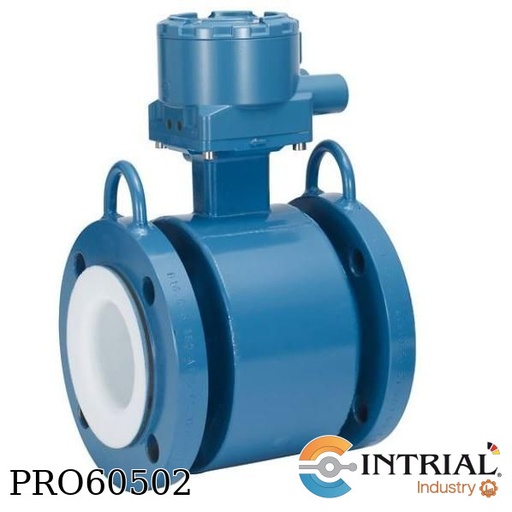

MAGNETIC FLANGED FLOWMETER SENSOR<br />
Brand: ROSEMOUNT<br />
Model: 8705PHA010C1M0B3Q4<br />
[P]: Lining material, Polyurethane<br />
[H]: Electrode material, Nickel Alloy 276 (UNS N10276)<br />
[A]: Electrode type, 2 Measurement Electrodes - Standard<br />
[010]: Line size, 1-in. (25 mm)<br />
[C]: Flange type and material, Slip-On, Raised-Face, Carbon Steel<br />
[1]: Flange rating, ASME B16.5, Class 150 (½ thru 24-in.); AWWA Class D (30 and 36-in.)<br />
[B3]: Option, Integral Mount with 8732EM Transmitter<br />
[Q4]: Quality certificate, Calibration Certificate per ISO 10474 3.1B/EN 10204 3.1<br />
<br />
Include<br />

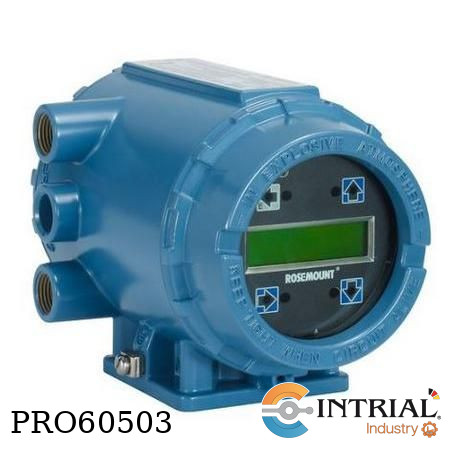

TRANSMITTER<br />
Brand: ROSEMOUNT<br />
Model: 8732EMT2A1DA1M4Q4YS<br />
[T]: Mounting style, Integral Field Mount<br />
[2]: Power supply, DC Power Supply (12 - 42VDC)<br />
[A]: Outputs, 4-20mA Output with Digital HART Protocol & Scalable Pulse Output<br />
[1]: Conduit entry, ½–14 NPT<br />
[DA1]: Advanced diagnostics, Process Diagnostics, High Process Noise Detection,<br />
Ground/Wiring Fault Detection and Electrode Coating<br />
[M4]: Display, Local Operator Interface<br />
[Q4]: Quality certificate, Calibration Certificate per ISO 10474 3.1B/EN 10204 3.1<br />
[YS]: Quick Start Guide language, Spanish

TRANSMITTER<br />
Brand: ROSEMOUNT<br />
Model: 8732EMT2A1DA1M4Q4YS<br />
[T]: Mounting style, Integral Field Mount<br />
[2]: Power supply, DC Power Supply (12 - 42VDC)<br />
[A]: Outputs, 4-20mA Output with Digital HART Protocol & Scalable Pulse Output<br />
[1]: Conduit entry, ½–14 NPT<br />
[DA1]: Advanced diagnostics, Process Diagnostics, High Process Noise Detection,<br />
Ground/Wiring Fault Detection and Electrode Coating<br />
[M4]: Display, Local Operator Interface<br />
[Q4]: Quality certificate, Calibration Certificate per ISO 10474 3.1B/EN 10204 3.1<br />
[YS]: Quick Start Guide language, Spanish

MAGNETIC FLANGED FLOWMETER SENSOR<br />
Brand: ROSEMOUNT<br />
Model: 8705PHA010C1M0B3Q4<br />
[P]: Lining material, Polyurethane<br />
[H]: Electrode material, Nickel Alloy 276 (UNS N10276)<br />
[A]: Electrode type, 2 Measurement Electrodes - Standard<br />
[010]: Line size, 1-in. (25 mm)<br />
[C]: Flange type and material, Slip-On, Raised-Face, Carbon Steel<br />
[1]: Flange rating, ASME B16.5, Class 150 (½ thru 24-in.); AWWA Class D (30 and 36-in.)<br />
[B3]: Option, Integral Mount with 8732EM Transmitter<br />
[Q4]: Quality certificate, Calibration Certificate per ISO 10474 3.1B/EN 10204 3.1

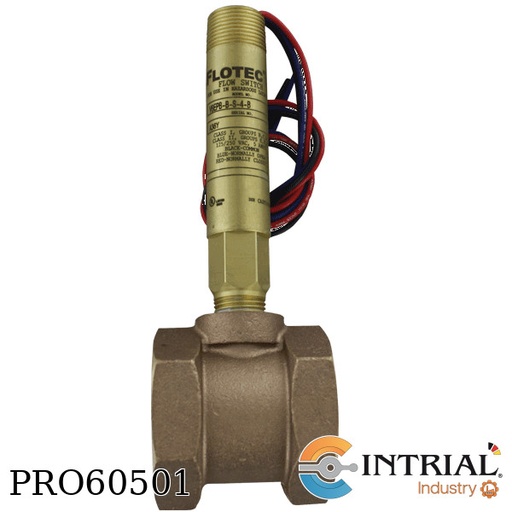

FLOTECT MINI-SIZE FLOW SWITCHES<br />
Brand: DWYER<br />
Model: V6EPB-B-S-2-B<br />
[V6] SERIES:  Flotect mini-size Àow switches<br />
[EP] CONSTRUCTION: : Explosion proof<br />
[B-B] BODY: Brass <br />
[-S] CIRCUIT (SWITCH): SPDT<br />
[-2] TEE or PROCESS CONNECTION SIZE: 3/4 NPT<br />
[-B] TEE MATERIAL:  Brass
<div>
<div class="gtx-trans-icon"></div>
</div>

<div>
<div class="gtx-trans-icon"></div>
</div>

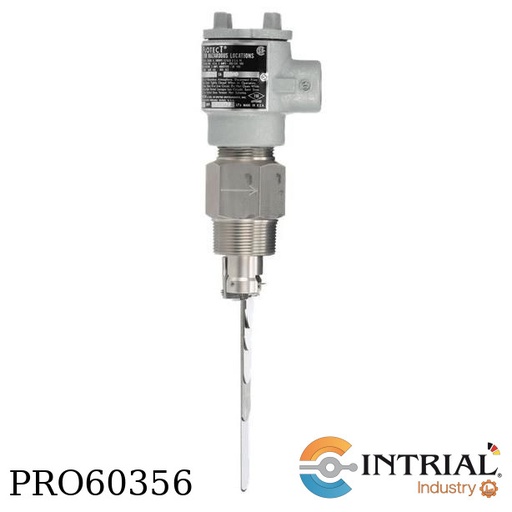

FLOTECT® VANE OPERATED FLOW SWITCH<br />
Brand: DWYER<br />
Model: V4-SS-U-316-EPOXY-TBC-V-1-6<br />
[V4]: Serie, Vane operated flow switch w/ universal vane<br />
[SS]: Body, 316 SS Body (430SS magnet keeper)<br />
[U]: Vane, Universal vane<br />
[316]: Magnet keeper and vane block material, 316 SST<br />
[EPOXY]: Epoxy coated housing<br />
[TBC]: Terminal block connection<br />
[V]: Vertical up flow<br />
[1]: Vane material, 316 SST (standard)<br />
[6]: Body material, 316 SST
<div>
<div class="gtx-trans-icon"></div>
</div>

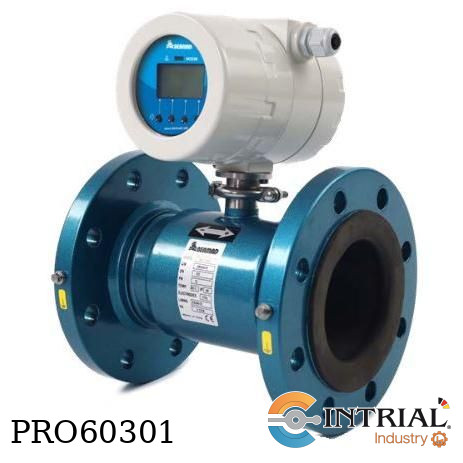

FLUJÓMETRO ELECTROMAGNÉTICO BRIDADO<br />
Marca: EUROMAG/BERMAD<br />
Modelo: MUT2300EL+MC608A-HV(3in)<br />
Sensor<br />
Precisión, 0.2%<br />
Rangos de Flujo, Ver ficha tecnica<br />
Material del Tubo de Flujo, AISI304<br />
Material de las bridas, Acero al Carbono<br />
Material de Electrodos, Hastelloy C<br />
Revestimiento Interno y Temperatura del Líquido, Ebonita (-40° C / +80° C)<br />
Diámetro, 3” (DN-80)<br />
Bridas, ANSI-150<br />
Grado de Protección, IP68 1,5m en inmersión continua (EN 60529)<br />
Tipo de Montaje, COMPACTO (Convertidor MC608A, unido sensor bridado)<br />
Conexiones Eléctricas, Prensa estopa M20<br />
Convertidor<br />
Carcasa, Aluminio IP68<br />
Alimentación, 100 – 240 Vac 10W<br />
Salida Análoga, 4-20mA<br />
Salida de Pulsos, PNP-NPN<br />
Salida Digital, Programable<br />
Salida Digital de Frecuencia Activa, 0-10KHZ<br />
Comunicación Serial, Interfase IrCOM, Modbus RTU RS-485<br />
Display, LCD 128X64 Pixeles, 50X25mm de área visual, Luz de Retroiluminación color blanca.<br />
Programación, Vía botones en el teclado delconvertidor,<br />
Vía Interfase Infrarroja o Vía Modbus RS-485 RTU<br />
Datalogger de proceso, 4MB de Memoria Flash, Capacidad de 200,000 datos<br />
Estándares, Aprobado tipo OIML R49-1: 2013 - Class 2<br />
Temperatura, Ambiente (-20° C _ +60° C), Medio (-25° C_+80° C), Almacenamiento (-40° C_+70° C)<br />
Unidades de Flujo, ml, cl, dl, l, dal, hl, m3, in3, ft3, gal, USgal, bbl, oz, + Custom Value<br />
Totalizadores, 5 (2 Positivos, 2 Negativos y 1 Neto)<br />
Estado y Alarmas, Iconos de estado y Datalogger mostrados en pantalla<br />
Autodiagnóstico, Alarmas Disponibles (Falla de Excitación, Tubería Vacía, Alta Temperatura, Falla Emisión Pulso, Error de Medición).<br />
Software para Programación y Comunicación, Puesta en servicio (igual a ajuste de medidores)<br />
- Impresión de datos para documentación<br />
- Exportar Datos (archivo CSV)<br />
- Actualización de firmware<br />
- Leer velocidad de flujo instantánea<br />
- Leer y escribir todos los parámetros no volátiles<br />
- Descargue el registro de datos interno<br />
- Vea el evento del instrumento registrador

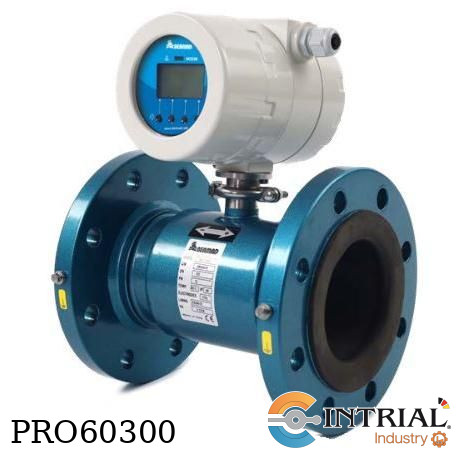

FLUJÓMETRO ELECTROMAGNÉTICO BRIDADO<br />
Marca: EUROMAG/BERMAD<br />
Modelo: MUT2300EL+MC608A-HV(2in)<br />
Sensor<br />
Precisión, 0.2%<br />
Rangos de Flujo, Ver ficha tecnica<br />
Material del Tubo de Flujo, AISI304<br />
Material de las bridas, Acero al Carbono<br />
Material de Electrodos, Hastelloy C<br />
Revestimiento Interno y Temperatura del Líquido, Ebonita (-40° C / +80° C)<br />
Diámetro, 2” (DN-50)<br />
Bridas, ANSI-150<br />
Grado de Protección, IP68 1,5m en inmersión continua (EN 60529)<br />
Tipo de Montaje, COMPACTO (Convertidor MC608A, unido sensor bridado)<br />
Conexiones Eléctricas, Prensa estopa M20<br />
Convertidor<br />
Carcasa, Aluminio IP68<br />
Alimentación, 100 – 240 Vac 10W<br />
Salida Análoga, 4-20mA<br />
Salida de Pulsos, PNP-NPN<br />
Salida Digital, Programable<br />
Salida Digital de Frecuencia Activa, 0-10KHZ<br />
Comunicación Serial, Interfase IrCOM, Modbus RTU RS-485<br />
Display, LCD 128X64 Pixeles, 50X25mm de área visual, Luz de Retroiluminación color blanca.<br />
Programación, Vía botones en el teclado delconvertidor,<br />
Vía Interfase Infrarroja o Vía Modbus RS-485 RTU<br />
Datalogger de proceso, 4MB de Memoria Flash, Capacidad de 200,000 datos<br />
Estándares, Aprobado tipo OIML R49-1: 2013 - Class 2<br />
Temperatura, Ambiente (-20° C _ +60° C), Medio (-25° C_+80° C), Almacenamiento (-40° C_+70° C)<br />
Unidades de Flujo, ml, cl, dl, l, dal, hl, m3, in3, ft3, gal, USgal, bbl, oz, + Custom Value<br />
Totalizadores, 5 (2 Positivos, 2 Negativos y 1 Neto)<br />
Estado y Alarmas, Iconos de estado y Datalogger mostrados en pantalla<br />
Autodiagnóstico, Alarmas Disponibles (Falla de Excitación, Tubería Vacía, Alta Temperatura, Falla Emisión Pulso, Error de Medición).<br />
Software para Programación y Comunicación, Puesta en servicio (igual a ajuste de medidores)<br />
- Impresión de datos para documentación<br />
- Exportar Datos (archivo CSV)<br />
- Actualización de firmware<br />
- Leer velocidad de flujo instantánea<br />
- Leer y escribir todos los parámetros no volátiles<br />
- Descargue el registro de datos interno<br />
- Vea el evento del instrumento registrador

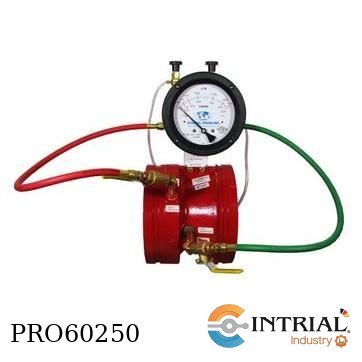

FIRE PUMP TEST METER<br />
Brand: GVI<br />
Model: 8-2000-G<br />
Line size, 8"<br />
Pump, 2000 GPM<br />
Meter range, 1000-4000 GPM<br />
Meter range, 3782-15142 LPM<br />
Construction, aluminum body<br />
Temperature, 180 °F / 80°C<br />
Pressure, 500 PSIG - 3450 KPA<br />
<br />
Include<br />
 Glycerin filled dial<br />
 GVI Flow meter flush kit<br />
 Protective gauge cover
