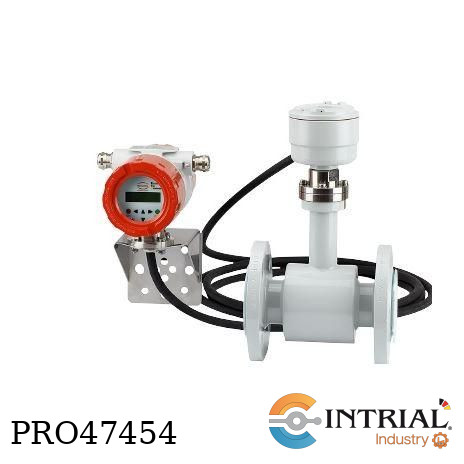

<div><strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-H-210R-1-H-H-2-0+UMF2-C-1-1-G-0BK-2</strong><br />
[EPS-H]: Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Ground electrodes, <br />
Process-Temperature 0°C...95°C<br />
[210R]:Process connection, ANSI flanges 4" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 274 m³/h, Installation length, 250 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[2]: Transmitter mounting, Remote Transmitter, <br />
IP 67 terminal conn.box via M 20 x 1,5<br />
[0]:Certificates, w/o<br /><br />
UMF2-C-1-1-G-0BK-2<br />
[UMF2]: Model Transmitter<br />
[C]: Mounting, Remote transmitter, <br />
Connection to sensor, ncl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread - electrical connection  ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold<br />
[2]: Longer cable, 10m breakout cable</div>

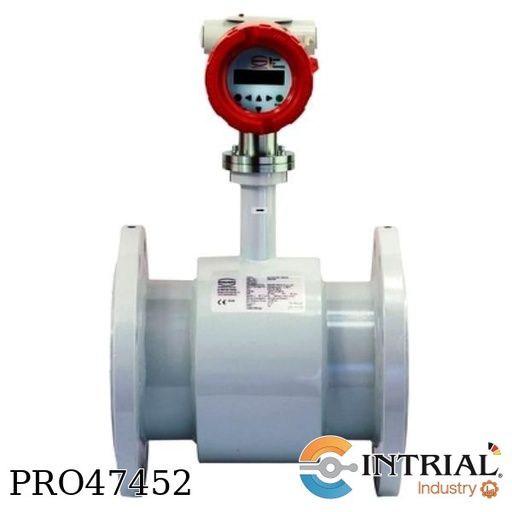

<div><strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-H-210R-1-H-H-1-0+UMF2-A-1-1-G-0BK</strong><br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[210R]:Process connection, 4" Class 150 RF ASME B16.5-2003<br />
Max. measuring range 274 m³/h, length, Installation 250 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated transmitter, <br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br /><br />
UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard, <br />
Thread - electrical connection ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold</div>

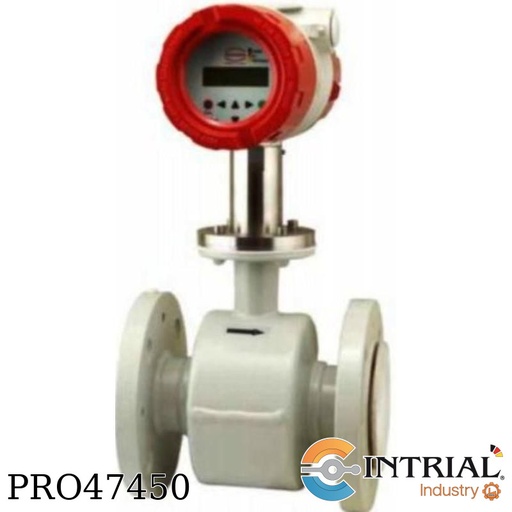

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-E-335B-1-H-H-1-0+UMF2-A-1-2-G-0BK</strong><br />
[EPS-E]: Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[335B]: Process connection,  DN100 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range, 274 m³/h, Installation length, 250 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal: current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

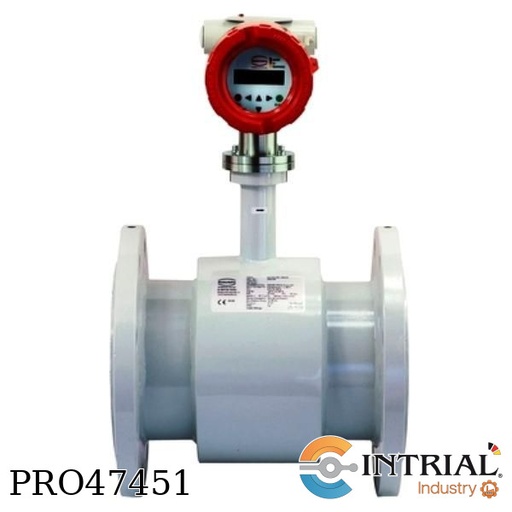

<br /><strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-E-330B-1-H-H-1-0+UMF2-A-1-2-G-0BK</strong><br />
[EPS-E]: Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[330B]: Process connection, DN80 PN16 Form B1 DIN EN 1092-1 <br />
Max. measuring range, 170 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal: current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-E-320B-1-H-H-1-0+UMF2-A-1-2-G-0BK</strong><br />
[EPS-E]: Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[320B]: Process connection,  DN50 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal: current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs (Alemania)<br />
Model: EPS-A-7030-G-N-0-1-0+UMF2-A-1-4-G-0BH</strong><br />
[EPS-A]: Sensor<br />
Material Lining Ceramics, Standard 2x Measuring Electrodes<br />
Process Temperature, -20°C…+150°C<br />
[7030]: Process connection, DN50 Tri-Clamp-Connection,<br />
Material Lining / Electrodes / Sealing, Ceramics / Platinum<br />
Max. measuring range (Water 20°C, 1 mPas), 70 m³/h<br />
Installation length, 184 mm<br />
[G]: Material Process connection, 316L(1.4404)/EPDM-gasket<br />
[N]: Material electrodes, Platinum / Iridium<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs

Vane Flowmeter<br />
Brand: Kobold- Alemania<br />
Model: DFT-18-36-N5-L442<br />
[DFT-18]<br />
Operating principle: Rotating Vane<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Body material: PTFE<br />
Material axle: Sapphire<br />
Max. Temperatura: -20...+80 °C<br />
Max. Pressure: 5 bar<br />
Accuracy: +-2,5% of FS<br />
Protection: IP 65<br />
[36] Measuring range: 2..36 L/min<br />
[N5] Mech. Connection: ¾" NPT female <br />
[L442] Electronic: connector DIN 43 650, 4-20 mA, 2-wire

<strong>Low Volume Vane Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: DPL-1-E-25-G4-L443</strong><br />
[DPL]:<br />
Operating principle: Rotating vane<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Body material: Polypropylene<br />
max. temperature: 70 °C<br />
max. pressure: 10 bar<br />
Accuracy +-2,5(5,0)% of FS<br />
Protection: IP 65<br />
[1]: Version; Standard<br />
[E]: Seal; EPDM<br />
[25]: Measuring range; 1...25 L/min water<br />
[G4]: Mech. Connection; G 1/2 male<br />
[L443]: Electronic; Analogue output4-20mA, DIN-plug, 3-wire

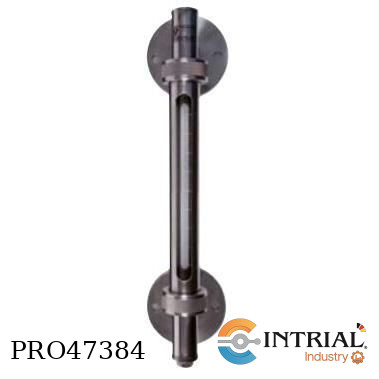

<strong>Bypass-Level Indicators with glass tube<br />
Brand: Kobold Alemania<br />
Model: SZM-S-4-1-N4-G1-G1-00</strong><br />
[SZM-S]<br />
Bypass- tube: Borosilicate glass<br />
O-ring: FPM<br />
Protecting tube: st. steel 1.4404<br />
Connection: st. steel 1.4404<br />
Max. temperature: 100 °C<br />
Max. pressure 10 bar<br />
Installation length: 1208 mm <br />
[4] Version (top/bottom): top: closed, bottom: drain valve<br />
[1] Valves: 2 shut off valves in connection<br />
[N4] Connection: union nut 1/2" NPT male<br />
[G1] Scale: Plastic foil on meas. tube (2 mm-division)<br />
[G1] Length of sclae, Plastic foil on meas. tube (2 mm-division)<br />
[00] Limit switch: without

<strong>Bypass-Level Indicators with glass tube<br />
Brand: Kobold Alemania<br />
Model: SZM-S-4-1-N4-G1-G1-00</strong><br />
[SZM-S]<br />
Bypass- tube: Borosilicate glass<br />
O-ring: FPM<br />
Protecting tube: st. steel 1.4404<br />
Connection: st. steel 1.4404<br />
Max. temperature: 100 °C<br />
Max. pressure 10 bar<br />
Installation length: 1700 mm <br />
[4] Version (top/bottom): top: closed, bottom: drain valve<br />
[1] Valves: 2 shut off valves in connection<br />
[N4] Connection: union nut 1/2" NPT male<br />
[G1] Scale: Plastic foil on meas. tube (2 mm-division)<br />
[G1] Length of sclae, Plastic foil on meas. tube (2 mm-division)<br />
[00] Limit switch: without

<strong>Bypass-Level Indicators with glass tube<br />
Brand: Kobold Alemania<br />
Model: SZM-S-4-1-N4-G1-G1-00</strong><br />
[SZM-S]<br />
Bypass- tube: Borosilicate glass<br />
O-ring: FPM<br />
Protecting tube: st. steel 1.4404<br />
Connection: st. steel 1.4404<br />
Max. temperature: 100 °C<br />
Max. pressure 10 bar<br />
Installation length: 2315 mm <br />
[4] Version (top/bottom): top: closed, bottom: drain valve<br />
[1] Valves: 2 shut off valves in connection<br />
[N4] Connection: union nut 1/2" NPT male<br />
[G1] Scale: Plastic foil on meas. tube (2 mm-division)<br />
[G1] Length of sclae, Plastic foil on meas. tube (2 mm-division)<br />
[00] Limit switch: without

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-15HG6-C3T-0</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 outputs free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Min. conductivity >20 µS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[15HG6] Measuring range (flow/temperature), 0,2…50 L/min / [°C], G1 male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output<br />
Part- or grand totaliser<br />
[0] Options, without<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

<strong>Vane Flowmeter<br />
Brand: Kobold- Alemania<br />
Model: DFT-13-36-N5-L442</strong><br />
[DFT-13]<br />
Operating principle: Rotating Vane<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Body material: PTFE<br />
Material axle: Ceramics<br />
Max. Temperatura: -20...+80 °C<br />
Max. Pressure: 5 bar<br />
Accuracy: +-2,5% of FS<br />
Protection: IP 65<br />
[36] Measuring range: 2..36 L/min<br />
[N5] Mech. Connection: ¾" NPT female <br />
[L442] Electronic: connector DIN 43 650, 4-20 mA, 2-wire

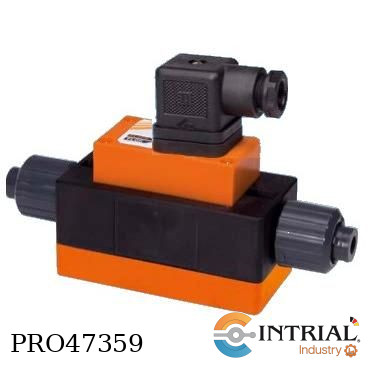

<strong>Compact Magneto-Inductive Flowmeter<br />
Model: MIK-6FC-30-K-L443<br />
Brand: Kobold Alemania</strong><br />
[MIK-6FC]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions<br />
Max. temperature/pressure, 80 °C / 10 bar<br />
Protection, IP 65<br />
PVDF-housing<br />
FFKM-seal,<br />
Hastelloy- electrode<br />
[30]: Measuring Range, Native, Process Connection, 1.6...32.0 l/min, G 1<br />
[K]: Optional Fitting Set, PVC-glue connection ( G1 - Ø15/20 mm) <br />
[L443]: Analogue output , 24 VDC, 4-20 mA, DIN-plug 3-wire

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-03HG4-C3T-0</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Min. conductivity, >20 uS/cm<br />
Power supply, 19 - 30 VDC<br />
Max. temperature (medium) -20°C..+70°C (compact),<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2] Material housing / insulation part, st. steel 1.4404 / PEEK / FKM<br />
[03HG4] Measuring range (flow/temperature), 0,03…3 l/min / [°C] G ½ male<br />
[C3T]: Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0] Options, without<br /><br /><br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-206R-1-H-H-1-0+UMF2-A-1-4-G-0BK<br />
Brand: Kobold-Heinrich</strong><br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[206R]:Process connection, 2" Class 150 RF ASME B16.5-2003<br />
(Water 20°C, 1 mPas) Max. measuring range 70 m³/h,<br />
Length Installation 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated Transmitter,<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br /><br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard,<br />
Thread – electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-203R-1-H-H-1-0+UMF2-A-1-4-G-0BK<br />
Brand: Kobold-Heinrich</strong><br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[203R]:Process connection, 1" Class 150 RF ASME B16.5-2003,<br />
(Water 20°C, 1 mPas) Max. measuring range 19,1 m³/h,<br />
Length Installation 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated Transmitter,<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br /><br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard, <br />
Thread – electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>Metal-Flowmeter / Switch<br />
Brand: Kobold (Alemania)<br />
Model: SMV-12-01H-F0-R08-Y</strong><br />
[SMV-12]<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Body material: St.St.<br />
Seal: FPM<br />
Side mounted indication: ----<br />
Switch point, adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C*<br />
Max. pressure 350 bar<br />
[01H] Adjustment range: 0.1...1 L/min water<br />
[F0] Contact ,1 ATEX-N/O <br />
[R08] Connection G 1/4 female<br />
[Y] Set point preadjusted @ 0.5 l/min increas. flow.

<div><strong>Oval Gear Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: OVZ-30-3–G5-N-I303</strong><br />
[OVZ-30]<br />
Operating principle Oval Gear<br />
Mounting position horizontal / vertical<br />
Measuring range by 10-100 mm²/s, 1,6-40 L/min<br />
Max. temperature 80 °C<br />
Accuracy +-2,5% FS<br />
Protection IP 65<br />
[3]: Body material / cover / max. pressure, Aluminium / PMMA / PN 16<br />
[G5]: Connection, G 3/4 <br />
[N]: Seals, NBR<br />
[I303]: Electronic, Hall sensor / round plug M12x1 <br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12K502<br />
[12K502]: Version, M12x1 box 2 m cable, 5-pin</div>

<strong>Heavy Duty Differential Pressure Flowmeters<br />
Brand: Kobold (USA)<br />
Model: KEL-D-5-1-A-40</strong><br />
[KEL-D]<br />
Back-lit Digital Rate/ Total Bargraph Display with 4-20 mA Output.<br />
Flow Range; 10 a 50 GPM<br />
Maximum Pressure: 230 PSIG or ANSI Cl B16.5<br />
Enclosure: IP65 (NEMA 4)<br />
Power Supply:18 ... 30 VDC<br />
Analog Output:4-20 mA, 500 ohm max<br />
Switch Output: 2x Relay, 50 VDC/VAC max<br />
[5] Turndown; 5:1<br />
[1] Body Material;  Brass or Brass/ Cast Iron<br />
[A] Fitting Style; ANSI<br />
[40] Piping Size;  1-1/2"
