<strong>Flowindicator with Rotor<br />
Brand: Kobold (Alemania)<br />
Model: DAA-1-1-04H-N-20</strong><br />
[DAA-1]:<br />
Operating principle: rotor <br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Max. temperature 100 °C<br />
Max. pressure 16 bar<br />
[1] Material (housing/connection): brass, nickle-plated<br />
[04H] Nom. diameter/ind. range: 3/4"  1...25 L/min water<br />
[N] Thread: NPT-thread female<br />
[20] Connection*:    3/4"

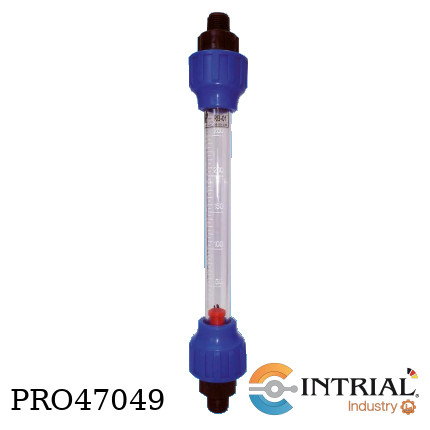

<strong>Variable Area Flowmeter with glass measuring tube<br />
Brand: Kobold (Alemania)<br />
Model: URB-20H-I7-0</strong><br />
[URB]:<br />
Operating principle:variable area<br />
Mounting position: vertical, from bottom<br />
Accuracy: class 4 acc. VDI/VDE 3513<br />
Max. temperature: 65°C<br />
Max. pressure: 3 bar<br />
Connection: PVC<br />
Seal: NBR option: EPDM<br />
Measuring tube/float: Borosilicate glass/st. steel (1.4404)<br />
[20H] Measuring range: 100...1000 L/h water<br />
[I7] Connection: G1 1/4 female<br />
[0] Gasket: NBR<br />

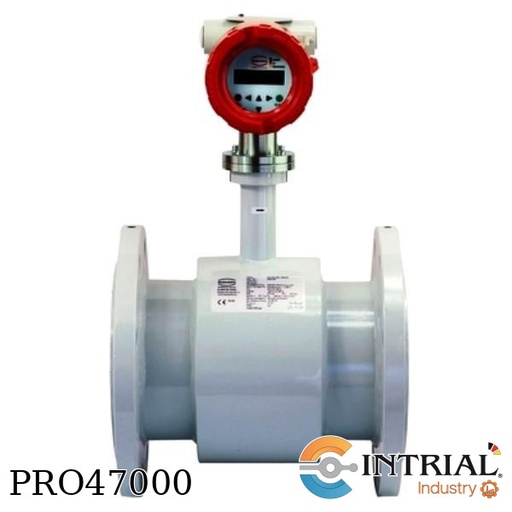

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-P-321B-1-H-H-1-0</strong><br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[321B] Process connection, DN50 PN40 Form B1 DIN EN 1092-1<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[H] Earthing electrode, Hastelloy<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor, IP 67<br />
[0] Certificates, w/o<br /><br />
[UMF2] Tranmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

<strong>Rotating Vane-Flowmeter with Pulse Output<br />
Brand: Kobold(Alemania)<br />
Model: DF-H2-A-N32-DLK-3-4-S-D</strong><br />
[DF] <br />
Operating principle: Rotating Vane<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. Temperatura: s. material combination<br />
Max. Pressure: s. material combination<br />
Accuracy: +-2,5% FS<br />
[H2] Measuring range; 5...120 L/min water<br />
[A] Material combination; Trogamide// Trogamide/ brass/ 60 °C/ 10 bar<br />
[N32] Connection; Material combination code: A/D/G NPT 1 1/4<br />
[DLK] Model of electronic; LC-Display, 1.5 m cable<br />
[3] Power supply; 24 VDC<br />
[4] Analogue output; 0(4)...20 mA<br />
[S] Options, Sapphire axis <br />
[D] Evaluating Electronics: measuring, counting and batching

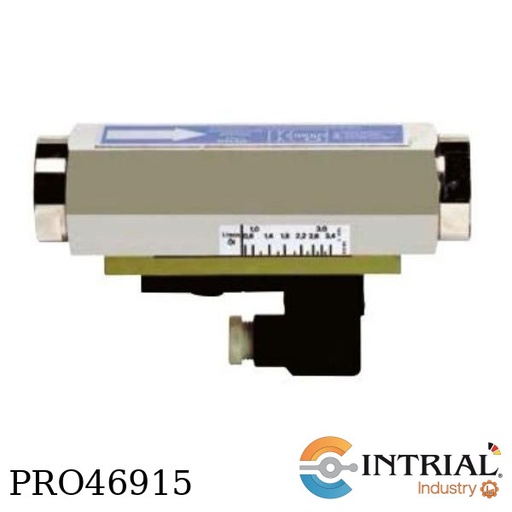

<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-32-10-U0-R25-0-B</strong><br />
[VKM-32]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material St.St.<br />
Seal: FPM<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS (at 105 mm²/s)<br />
Max. temperature: 100 °C<br />
Max. pressure: 350 bar<br />
Viscosity range: 1...540 mm²/s<br />
[10]: Measuring range 5...55 L/min oil <br />
[U0]: Contact: 1 SPDT<br />
[R25]: Connection: G 1  Female<br />
[0]: Option special connection, w/o<br />
[B]: Flow direction: from bottom

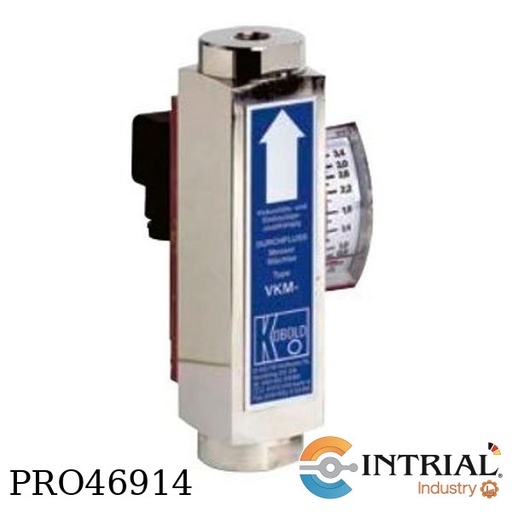

<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-12-10-U0-R25-0-B</strong><br />
[VKM-12]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material St.St.<br />
Seal: FPM<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS (at 105 mm²/s)<br />
Max. temperature: 100 °C<br />
Max. pressure: 350 bar<br />
Viscosity range: 1...540 mm²/s<br />
[10]: Measuring range 5...55 L/min oil <br />
[U0]: Contact: 1 SPDT<br />
[R25]: Connection: G 1  Female<br />
[0]: Option special connection, w/o<br />
[B]: Flow direction: from bottom

<strong>Low Volume Vane<br />
Flow Meter<br />
Model: DPM-1550G2C34PY</strong><br />
temp: -40 .. 80º C<br />
pmax: 16 bar<br />
Material: st . St .<br />
0,05 - 5,0 l/min water<br />
G 1/4 IG<br />
Compact electronic<br />
power supply: 24 VDC<br />
LED- display <br />
output: 4-20 mA, 1x open collector<br />
PNP, plug M 12X1<br />
RoHS conform<br />
Special option (Attention)<br />
++++++++++++++++++++++++++<br />
according to/nach S/N: 439442D. AB# 0580983<br />
Y: Dichtungsmaterial / sealing : NBR<br />
1,5 PN nur Kunststoffeile ohne Blasen vewenden<br />
Ausfuhrung mit normalen Schraube.<br />
Unit tested against leckage 1,5 x PN assembled c/w regular screws.

<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-12-11-U0-R25-0-B</strong><br />
[VKM-12]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material St.St.<br />
Seal: FPM<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS (at 105 mm²/s)<br />
Max. temperature: 100 °C<br />
Max. pressure: 350 bar<br />
Viscosity range: 1...540 mm²/s<br />
[11]: Measuring range 7...70 L/min oil<br />
[U0]: Contact: 1 SPDT<br />
[R25]: Connection: G 1  Female<br />
[0]: Option special connection, w/o<br />
[B]: Flow direction: from bottom

<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-32-11-U0-R25-0-B</strong><br />
[VKM-32]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material St.St.<br />
Seal: FPM<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS (at 105 mm²/s)<br />
Max. temperature: 100 °C<br />
Max. pressure: 350 bar<br />
Viscosity range: 1...540 mm²/s<br />
[11]: Measuring range 7...70 L/min oil<br />
[U0]: Contact: 1 SPDT<br />
[R25]: Connection: G 1  Female<br />
[0]: Option special connection, w/o<br />
[B]: Flow direction: from bottom

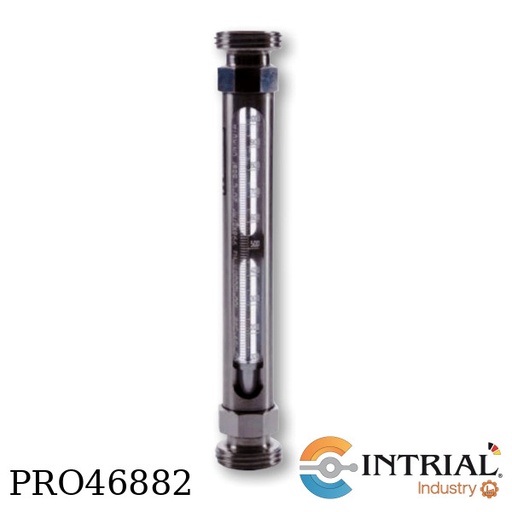

Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Brand: Kobold (Alemania)<br />
Model: URM-33-57H-N7-00<br />
[URM-33]<br />
Mounting position: vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Max. temperature: 65°C<br />
Max. pressure: 6 bar...16 bar<br />
Material: connection,float/seal/ring: 1.4301 / NBR / PVC <br />
[57H]: Range Full Scale, 10 000 L/h <br />
[N7]: Connection, N 1¼ Male<br />
[00]: Contacts, w/o

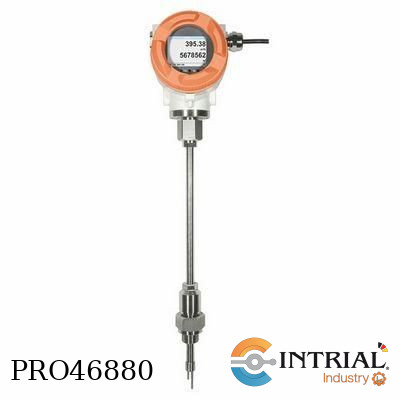

<strong>Thermal Mass Flow Meter for Gas<br />
Brand: Kobold (Alemania)<br />
Model: KEC-1-S-022-1-L-S-0-0</strong><br />
[KEC-1]:<br />
Function principle, direct thermal flow<br />
Mounting position all directions<br />
version inserting versión<br />
Output Modbus RTU, 2x4-20 mA (°C/Nm³/h), Modbus TCP, puls, alarm<br />
Counter 1 total counters (resettable)<br />
max. temperature -40…+180 °C<br />
max. pressure 50 (100) bar<br />
Accuracy,<br />
±1,5% of meas. value, ±0,3% of F.S.<br />
Option: ±1,0% of meas. value, ±0,3% of F.S.<br />
sensor material, st. st. 1.4571 /glass<br />
[S]: Measuring range, Standard 92,7 m/s<br />
[022]: Connection / sensor-length, 220 mm/ G1/2<br />
[1]: Display, 2" TFT-display, backlight<br />
[L]: Gas type, Standard air<br />
[S]: max. pressure, 50 bar (standard) <br />
[0]: Calibration, Standard<br />
[0]: Option, w/o

<strong>Multivariable Vortex Flowmeter Inline Version<br />
Model: DVH-P-1H-1-S-L-L-2-S-2-H<br />
Brand: Heinrichs</strong><br />
[DVH] Model<br />
[P] Elektronic - Options, Volume Measurement of Liquids, <br />
Gases and Steam + temperature sensor  + pressure sensor<br />
[1H] Flow Body - Flange, DN 100 DIN EN 4 inch ANSI<br />
Range: 8,1 a 244 m3/h<br />
[1] Process Connection, ANSI 150 lbs ASME B16.5.2003 (not for wafer)<br />
[S] Material Flow Body, Edelstahl 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option, <br />
Compact incl. Digital Display and Programming Buttons<br />
[L] Input Power, 12-36 VDC loop powered<br />
[2] Output Signal, 1x 4-20mA, HART 1x Impuls, Loop powered<br />
[S] Process Temperature, Standard temperature -40….+260°C<br />
[2] Option Pressure Sensor, Incl. Pressure Sensor 7 bar abs (100 psia)<br />
Electr.version P / M 14 bar abs. (200 psia)<br />
[H] Version, Heinrichs

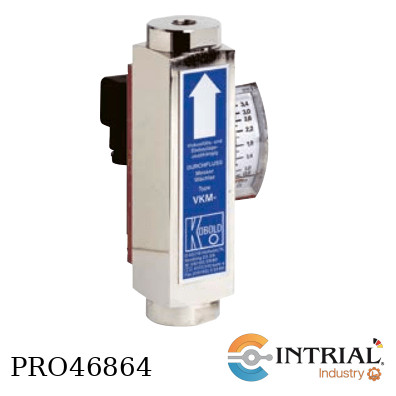

<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-31-10-U0-R20-0-L</strong><br />
[VKM-31]<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
Viscosity range 1...540 mm²/s<br />
[10] Measuring range, 5...55 L/min oil<br />
[U0] Contact, 1 SPDT<br />
[R20] Connection, G 3/4 female<br />
[0] Option special connection, w/o<br />
[L] Flow direction, from Left

<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-31-08-U0-R15-0-L</strong><br />
[VKM-31]<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
Viscosity range 1...540 mm²/s<br />
[08] Measuring range, 5...20 L/min oil<br />
[U0] Contact, 1 SPDT<br />
[R15] Connection, G 1/2 female <br />
[0] Option special connection, w/o<br />
[L] Flow direction, from Left

<strong>All Metal Flow Switch<br />
Model: DSS-11-03H-R0-N15<br />
Brand: Kobold (Alemania)</strong><br />
[DSS-11]<br />
Operating principle: variable area<br />
Mounting position: vertical<br />
Flow direction: from bottom<br />
Body material: Brass<br />
Seal: NBR<br />
Switch point: adjustable<br />
Accuracy: ±5 % FS<br />
Max. temperature: 100 °C<br />
Max. pressure: 250 bar<br />
[03H]: Measuring range: 0,15...1,7 L/min water<br />
[R0]: Contact: 1 N/O<br />
[N15]: Connection: 1/2 NPT female

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Model: URM-55-63H-G8-0<br />
Brand: Kobold Alemania</strong><br />
[URM-55]<br />
Mounting position vertical, flow direction from bottom<br />
Accuracy Class 4<br />
Temperatura Max: 100 ºC<br />
Presión Max: 12 bar<br />
Material conexión Flotador,sello,ring: 1.4404 / FPM / PTFE<br />
[63H] Rango: 1 600 a 16 000 L/h<br />
[G8] Conexión: G 1½<br />
[0] Contacts : w/o

<strong>Variable Area Flowmeter/-switch Glass Cone with Thread Connection<br />
Model: URM-33-63H-G8-0<br />
Brand: Kobold Alemania</strong><br />
[URM-33]<br />
Mounting position vertical, flow direction from bottom<br />
Accuracy Class 4<br />
Temperatura Max: 65 ºC<br />
Presión Max: 12 bar<br />
Material conexión Flotador,sello,ring: Acero Inox 1.4301,NBR,PVC<br />
[63H] Rango: 1 600 a 16 000 L/h<br />
[G8] Conexión: G 1½<br />
[0] Contacts : w/o

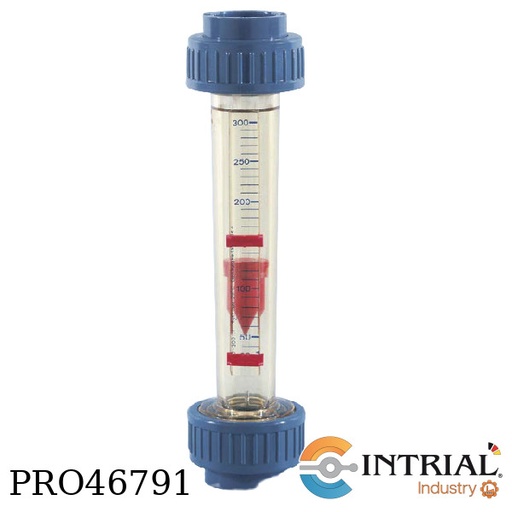

LOW VOLUME FLOWMETER/-SWITCH<br />
Brand: KOBOLD (Alemania)<br />
Model: KSK-1-050-K-P08-00<br />
[KSK-1]:<br />
Operation principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Material Trogamide<br />
Accuracy Class 4<br />
Max. temperature 60 °C<br />
Max. pressure PN 10<br />
Seal EPDM<br />
[050]: Measuring range, 5...50 L/h water<br />
[K]: Scale meas, Air; 8 bar rel.<br />
[P08]: Connection for size 50 L/h water, PVC G 1/4 female<br />
[00]: Option contact, w/o<br />
Reference Range: 1 to 6 Nm3/h<br />


<strong>Plastic Flowmeter/-switch<br />
Model: KSM-2-120-M-P25-R0<br />
Brand: Kobold</strong><br />
[KSM-2]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Armature material, Polysulfone<br />
Accuracy, ±4 % FS<br />
Max. temperature, 100 °C*<br />
* 60 °C c/w PVC-connection<br />
Max. pressure, 16 bar<br />
[120]: Measuring range: 1200...12000 L/h water <br />
[M]: Either scales for liquid media, L/min water<br />
[P25]: Option connection for size 120: PVC G 1 female<br />
[R0] Option contact: w/o contact

<strong>Variable Area Flowmeter with glass measuring tube<br />
Brand: Kobold (Alemania)<br />
Model: URB-20H-G7</strong><br />
[URB]:<br />
Operating principle: variable area<br />
Mounting position: vertical, from bottom<br />
Accuracy: class 4 acc. VDI/VDE 3513<br />
Max. temperature: 65°C<br />
Max. pressure: 3 bar<br />
Connection: PVC<br />
Seal: NBR option: EPDM<br />
Measuring tube/float: Borosilicate glass/st. steel (1.4404)<br />
[20H]: Measuring range:100...1000 L/h water<br />
[G7]: Connection: G 1 1/4 male
