<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-6FC-50-A-L443<br />
Brand: Kobold (Alemania)</strong><br />
[MIK-6FC]:<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PVDF<br />
Electrodes Hastelloy<br />
Seal FFKM<br />
[50]: Measuring range (liquid >30 µS/cm), 3,2...63 L/min G 1½ male<br />
[A]: Connection set, without<br />
[L443]. Evaluation electronic for MIK,<br />
Analogue output 24 VDC, 4-20 mA, DIN-plug 3-wire

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-6FC-08-P-L443<br />
Brand: Kobold</strong><br />
[MIK-6FC]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions<br />
Max. temperature/pressure, 80 °C / 10 bar<br />
Protection, IP 65<br />
Housing, PVDF<br />
Electrodes, Hastelloy<br />
Seal, FFKM<br />
[08]: Measuring range (liquid >30 μS/cm),10…500 mL/min G 1/2 male<br />
[P]: PVC-hose connection / G ½ - Ø12/14 mm<br />
[L443]: Evaluation electronic for MIK<br />
Analogue output : 24 VDC, 4-20 mA, DIN-plug 3-wire

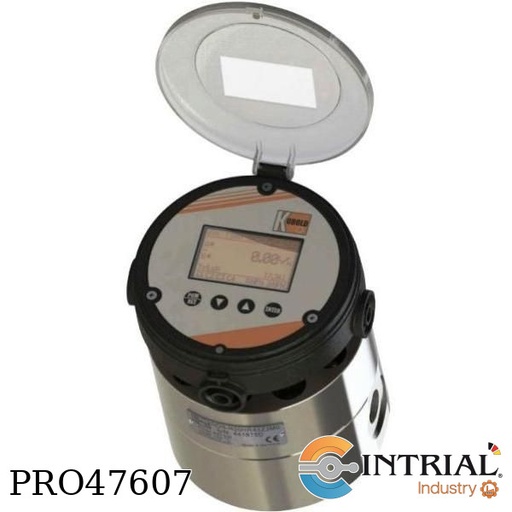

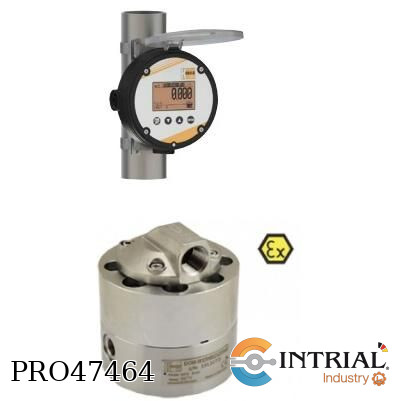

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-05G-R1-1-3A-N-N</strong><br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16…100 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[05G]: Measuring range, 0.13 A 9.5 GPH<br />
[R1]: Mech. connection, for meas. range 04H/05H G 1/8<br />
[1]: Seal, FKM up to DON-x25<br />
[3A]: Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S15-6030-L-0-S-0-0-S-5-0-0-K</strong><br />
[BGN]: Model<br />
[S15]: Model, Stainless Steel, process temperature ≤ 350°C <br />
[6030]: Thread connections, 1/2" NPT(f), 300 mm, float not removable<br />
[L]: Range: 20 s 200 lpm<br />
[0]: Heating / cooling, without heating / Cooling<br />
[S]: Damping / spring stop, Gas damping and spring stop <br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without<br />
Ambient temperature, -40° to +80°C<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

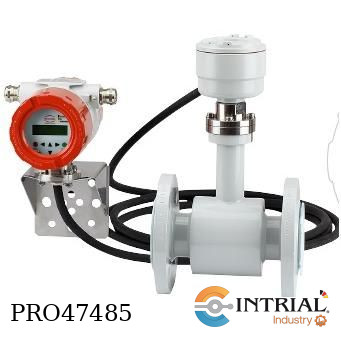

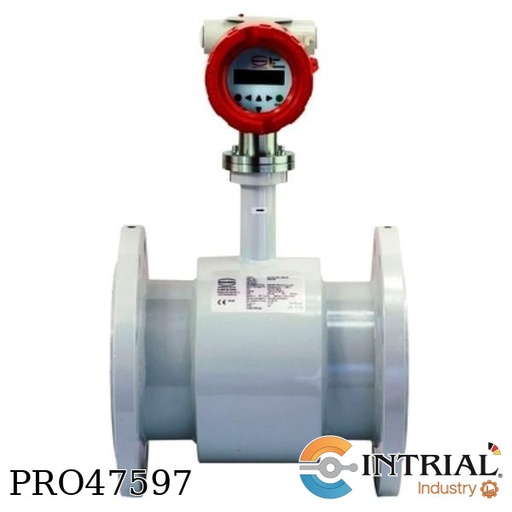

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-E-201R-1-S-S-1-0<br />
Brand: Kobold-Heinrich</strong><br />
[EPS] Sensor<br />
[E] Material Lining, EPDM, Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature, -10...+70°C<br />
[201R] Process connection, ½ "Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 6,6 m³/h, Installation length, 200 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br /><br />
UMF2-A-1-1-G-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, kobold

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-01HG2-C3T-0+ZUB-KAB-12-K002</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viskosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Max. temperature (medium): -20°C..+60°C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2] Material housing / insulation part / sealing, st. steel 1.4404 / PEEK / FKM<br />
[01HG2]: Measuring range (flow/temperature), 0,01…1 l/min / [°C] G ¼ male <br />
[C3T] Evaluation electronic, <br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output<br />
Part- or grand totaliser<br />
[0] Options, without<br /><br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

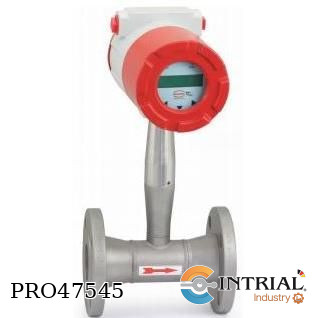

<strong>Multivariable Vortex Flowmeter<br />
Model: DVH-T-50-2-S-L-L-2-S-0-H<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[DVH] Model<br />
[T] Elektronic - Options, Volume Measurement of Liquids, Gases and Steam + temperature sensor<br />
[50] Flow Body FLANGE,  DN 50 DIN EN 2 inch ANSI JIS 50<br />
[2] Process Connection, ANSI 300 lbs ASME B16.5.2003<br />
[S] Material Flow Body,  st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option, Compact incl. LCD Display IP 66 / Nema 4 <br />
[L] Input Power, 12-36 VDC loop powered<br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1x Impuls<br />
[S] Process Temperature, Standard Temperature -200….+260 °C <br />
[0] Option Pressure Sensor, w/o Pressure Sensor<br />
[H] Version, Heinrichs<br /><br />
* Tag Number: Vapor Saturado<br />
* Rango: 38 kg/h …..4700 kg/h

<strong>Multivariable Vortex Flowmeter<br />
Model: DVH-P-50-2-S-L-L-2-S-3-H<br />
Brand: Kobold - Heinrich</strong><br />
[DVH] Model<br />
[P] Elektronic - Options, Volume Measurement of Liquids, Gases and Steam<br />
+ temperature sensor + pressure sensor<br />
[50] Flow Body FLANGE, DN 50 2 inch ANSI<br />
[2] Process Connection, ANSI Class 300 ASME B16.5-2003<br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option,<br />
Compact incl. Digital Display and Programming Buttons<br />
[L] Input Power, 12-36 VDC loop powered for Output Signal: 2<br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with Input Power L passive<br />
[S] Process Temperature, Standard Temperature  -40….+260°C<br />
[3] Option Pressure Sensor, Incl. Pressure Sensor; 20 bar abs ( 300 psia)<br />
[H] Version, Heinrichs<br />
* Tag Number: Vapor Saturado<br />
* Rango: 38 kg/h …..4700 kg/h<br /><br />


<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-20HG6-C3T-0+ZUB-KAB-12-K002</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3]: Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[20HG6]: Measuring range (flow/temperature), 0,4...100 L/min. / [°C] G 1 male<br />
[C3T]: Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold-Alemania<br />
Model: ZUB-KAB-12-K002<br />
[K002]: Version: M12x1 box 2 m cable, 4-pin

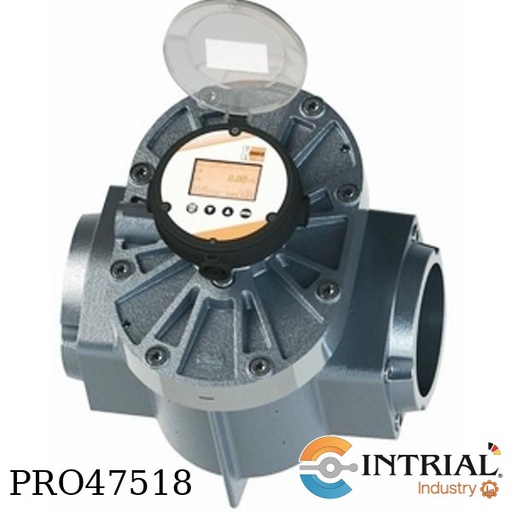

<strong>Oval Gear Flow Meter/Counter for viscosity<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-25G-R6-4-3A-N-N</strong><br />
[DON-1]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
max. temperature, 80 °C<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, from DON-x20 PTFE<br />
[25G]: Measuring range, 2.64 – 39.62 GPM<br />
[R6]: Mech. connection, G 1”<br />
[4]: Seal, NBR<br />
[3A]: Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Accessory, without battery<br />

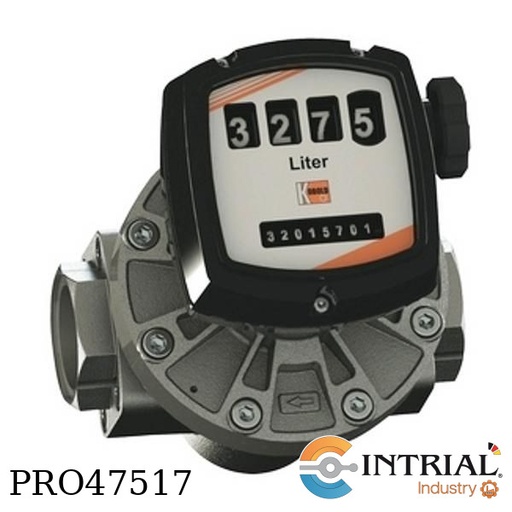

<strong>Oval Gear Flow Meter/Counter for viscosity<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-40G-A9-4-M4-0-0</strong><br />
[DON-1]<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16-64 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: Aluminium<br />
Rotor material: ***from DON-x20 PTFE<br />
[40G]: Measuring range, 13-153 GPM<br />
[A9]: for meas. range 40H ANSI flange 2" 150 lbs<br />
[4]: Seal, NBR<br />
[M4]: mech. totaliser 4-digit (not for DON-x05…DON-x15)<br />
[0]: Cable entry, without (only for mechanical totaliser "M4")<br />
[0]: Options, without

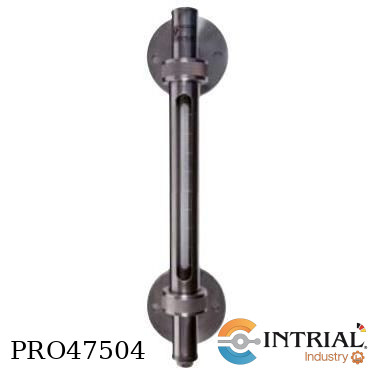

<strong>Bypass-Level Indicators with glass tube<br />
Brand: Kobold Alemania<br />
Model: SZM-S-4-1-A6-G1-G1-00</strong><br />
[SZM-S]<br />
Bypass- tube: Borosilicate glass<br />
O-ring: FPM<br />
Protecting tube: st. steel 1.4404<br />
Connection: st. steel 1.4404<br />
Max. temperature: 100 °C<br />
Max. pressure 10 bar<br />
Installation length: 1500 mm<br />
[4] Version (top/bottom): bottom: drain valve<br />
[1] Valves: 2 shut off valves in connection<br />
[A6] Connection: loose flange ANSI B16.5 1" 150 lbs<br />
[G1] Scale: Plastic foil on meas. tube (2 mm-division)<br />
[G1] Length of sclae, Plastic foil on meas. tube (2 mm-division)<br />
[00] Limit switch: without

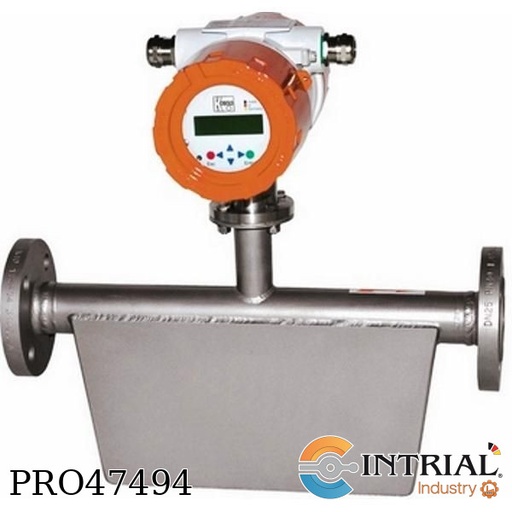

<strong>Coriolis Massflowmeter<br />
Brand: Kobold – Heinrichs<br />
Model: TMU-S-050-208R-A-0-0-A-0-1-1-0-K</strong><br />
[TMU] Model<br />
[S] Wetted materials; Stainless Steel 1.4404 / 1.4571<br />
Measuring range, 8000…80000 kg/h<br />
[050] Meter line size; DN50, ANSI 2"<br />
[208R] Process connection; 3" Class 150 RF ASME B16.5-2003<br />
Installation length; 900 mm<br />
[A] Containment options; Stainless steel containment<br />
[0] Heating / cooling; without<br />
[0] Connection for heating / cooling; without<br />
[A] Sensor configuration; Integral mount transmitter<br />
Process temperatura; -4° to 212°F, -20° to 100°C<br />
Sensor Cable Connection; IP66<br />
[0] Approvals; without<br />
[1] Calibration flow; Standard, 3-point<br />
[1] Calibration density; Standard, 3-point<br />
[0] Supplementary equipment; without<br />
[K] Design Kobold<br /><br />
UMC4-B-1-1-A-0-0-K<br />
[UMC4] Model number<br />
[B] Mounting; Integral mount<br />
Conduit port opening; M20 x 1,5  IP68<br />
[1] Display / Interface board; Integral within transmitter housing,<br />
for ambient temperature up to 60°C<br />
[1] Power supply; 90 - 265V AC, 50/60Hz<br />
[A] Outputs; Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0] Approvals; without<br />
[0] Type of protection (signal output); without Approval<br />
[K] Design Kobold

<strong>Coriolis Massflowmeter<br />
Brand: Kobold – Heinrichs<br />
Model: TMU-S-040-228R-A-0-0-A-0-1-1-0-K</strong><br />
[TMU] Model<br />
[S] Wetted materials; Stainless Steel 1.4404 / 1.4571<br />
Measuring range, 6000…60000 kg/h<br />
[040] Meter line size; DN40, ANSI 1½"<br />
[228R] Process connection; 3" Class 300 RF ASME B16.5-2003<br />
Installation length; 900 mm<br />
[A] Containment options; Stainless steel containment<br />
[0] Heating / cooling; without<br />
[0] Connection for heating / cooling; without<br />
[A] Sensor configuration; Integral mount transmitter<br />
Process temperatura; -4° to 212°F, -20° to 100°C<br />
Sensor Cable Connection; IP66<br />
[0] Approvals; without<br />
[1] Calibration flow; Standard, 3-point<br />
[1] Calibration density; Standard, 3-point<br />
[0] Supplementary equipment; without<br />
[K] Design Kobold<br /><br />
UMC4-B-1-1-A-0-0-K<br />
[UMC4] Model number<br />
[B] Mounting; Integral mount<br />
Conduit port opening; M20 x 1,5  IP68<br />
[1] Display / Interface board; Integral within transmitter housing,<br />
for ambient temperature up to 60°C<br />
[1] Power supply; 90 - 265V AC, 50/60Hz<br />
[A] Outputs; Analog output 1: 4 - 20mA with HART®<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0] Approvals; without<br />
[0] Type of protection (signal output); without Approval<br />
[K] Design Kobold

<strong>Paddle Type Flow Switch<br />
Brand: Kobold Alemania<br />
Model: PSR-22-258-N-25-U-P-H</strong><br />
[PSR-22]<br />
Operating principle paddle<br />
Mounting position all directions<br />
Approvals ATEX / IECEx<br />
Incl. Fitting st.st.<br />
Body material st. st.<br />
max. pressure* 250 bar<br />
[258] Measuring range/paddle, 7.4-18.2 L/min paddle: 8<br />
[N] Connection, NPT-thread<br />
[25] Connection, 1" (for PSR-xx25...)<br />
[U] Contact version, SPDT (ATEX IECEx)<br />
[P] Connecting PVC-cable (5m)<br />
[H] special version Medium temperature +110°C, <br />
marking according to approval

<strong>Paddle Type Flow Switch<br />
Brand: Kobold Alemania<br />
Model: PSR-22-32B-N-32-U-P-H</strong><br />
[PSR-22]<br />
Operating principle paddle<br />
Mounting position all directions<br />
Approvals ATEX / IECEx<br />
Incl. Fitting st.st.<br />
Body material st. st.<br />
max. pressure* 250 bar<br />
[32B] Measuring range/paddle, 19.7-36.8 L/min paddle: 12<br />
[N] Connection, NPT-thread<br />
[32] Connection, 1 1/4" (for PSR-xx32...)<br />
[U] Contact version, SPDT (ATEX IECEx)<br />
[P] Connecting PVC-cable (5m)<br />
[H] special version Medium temperature +110°C, <br />
marking according to approval

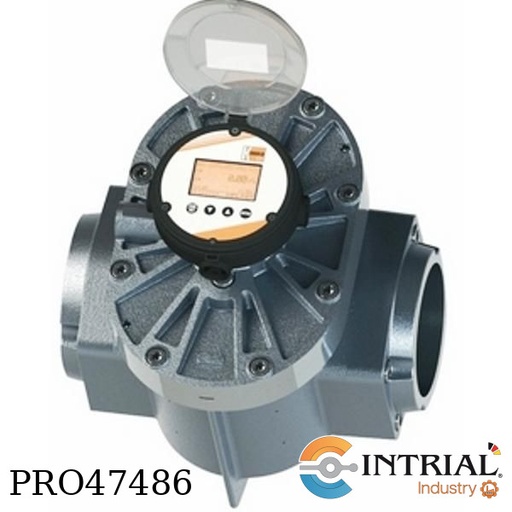

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-35H-A9-1-Z3-N-N</strong><br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[35H]: Measuring range, 30-450 L/min<br />
[A9]: Mech. connection for meas. range 35H, ANSI flange 2" 150 lbs<br />
[1]: Seal, FKM for DON-x30…DON-x40<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N]: Cable entry, 1/2 NPT<br />
[N]: Options, without battery

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-330B-1-S-S-2-0<br />
Brand: Kobold-Heinrich</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit)<br />
Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature, 0°C…+95°C<br />
[330B] Process connection, DN80 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range, 170 m³/h, Installation length, 200 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 -TI)<br />
[2] Transmitter mounting, Remote Transmitter<br />
Protection class, sensor, IP 67 terminal conn.box via M 20 x 1,5<br />
cable > 10m add. term.conn.box on transmitter<br />
[0] Certificates, w/o<br /><br />
UMF2-C-1-1-G-0BK-3<br />
[UMF2] Transmitter<br />
[C] Mounting, Remote transmitter,<br />
Connection to sensor: incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDCC<br />
[0BK] Design, kobold<br />
[3] Longer cable 15m,  add junction box to transmitter

<strong>Paddle Type Flow Switch<br />
Brand: Kobold Alemania<br />
Model: PSR-22-258-N-25-U-P5</strong><br />
[PSR-22]<br />
Operating principle paddle<br />
Mounting position all directions<br />
Approvals ATEX / IECEx<br />
Incl. Fitting st.st.<br />
Body material st. st.<br />
max. pressure* 250 bar<br />
[258] Measuring range/paddle, 7.4-18.2 L/min paddle: 8<br />
[N] Connection, NPT-thread<br />
[25] Connection, 1" (for PSR-xx25...)<br />
[U] Contact version, SPDT (ATEX IECEx)<br />
[P5] Connecting PVC-cable (5m)

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-H-20H-N4-1-HA-N-N</strong><br />
[DON-H]:<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 400 Bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[20H] Measuring range, 1-40 L/min<br />
[N4] Mech. Connection, 1/2 NPT<br />
[1] Seal, FKM up to DON-x25<br />
[HA] Electronic, Pulse output Hallsensor Push Pull <br />
(8-30 VDC) / Reed switch + ATEX (Exi)<br />
[N] Cable entry, 1/2 NPT<br />
[N] Options, without battery<br /><br /><strong>Flow Counter and Batch controller<br />
Brand: Kobold - Alemania<br />
Model: ZOK-E5-K-2F-3-P-0</strong><br />
[ZOK-E5]<br />
Function, Totaliser/ Controller<br />
LCD Digital display, grafic, 128 x 64 , backlight<br />
Measuring inputs, 2 x pulse (0,1…1000 Hz),<br />
type NPN, PNP, NAMUR, Reed, Hall, active<br />
Counter function, Partial /total value<br />
Actual flow, yes<br />
Pulse output (actual flow), yes<br />
Analogue output, 4-20 mA<br />
Ambient temperature -20…+60 °C<br />
Approval* ATEX: Ex II2G Exia IIC T4 Gb IECEx: Exia IIC T4 Gb<br />
[K] Housing version, Universal housing w. wall mounting kit (IP66/67)<br />
[2F] Electrical connection/Cable gland, 3 x cable entry ½ NPT<br />
[3] Supply voltage, 5…28 VDC<br />
[P] Output Optocouplers, 2x limit switch, 1x pulse output<br />
[0] Options, w/o
