<strong>All-Metal-Flowmeter / Switch<br />
Brand: Kobold (Alemania)<br />
Model: SMV-31-03H-R0-R15</strong><br />
[SMV-31]:<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Body material: Brass<br />
Seal: NBR<br />
Side mounted indication: yes<br />
Switch point, adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
[03H] Adjustment range: 0.15...1.7 L/min water<br />
[R0] Contact ,1 N/O<br />
[R15] Connection G 1/2 female

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-206R-1-S-S-2-0+UMF2-C-1-1-G-0BK-4<br />
Brand: Kobold - Heinrichs</strong><br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature 0°C...95°C<br />
[206R]: Process Connection, 2" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 70 m³/h<br />
Installation length, 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[2]: Transmitter mounting remote transmitter<br />
Protection class sensor, IP 67 terminal conn.box via M 20 x 1,5<br />
cable >10m add. junction box on Transmitter<br />
[0]: Certificates, without<br /><br />
UMF2-C-1-1-G-0BK-4<br />
[UMF2-C]: Mounting, remote transmitter<br />
Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
cable >10m c/w term.conn box on transmitter<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output,<br />
current output 1: 4 - 20mA with HART-protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold<br />
[4]: Extended cable length, 20m add junction box to transmitter

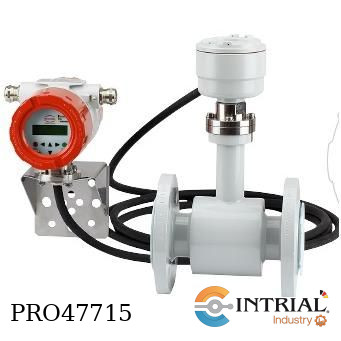

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-206R-1-S-S-2-0+UMF2-C-1-1-G-0BK-2<br />
Brand: Kobold - Heinrichs</strong><br />
[EPS]:Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature 0°C...95°C<br />
[206R]: Process Connection, 2" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 70 m³/h<br />
Installation length, 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[2]: Transmitter mounting remote transmitter<br />
Protection class sensor, IP 67 terminal conn.box via M 20 x 1,5<br />
cable >10m add. junction box on Transmitter<br />
[0]: Certificates, without<br /><br />
UMF2-C-1-1-G-0BK-2<br />
[UMF2-C]: Mounting, remote transmitter<br />
Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
cable >10m c/w term.conn box on transmitter<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output,<br />
current output 1: 4 - 20mA with HART-protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold<br />
[2]: Extended cable length,  10m breakout cable

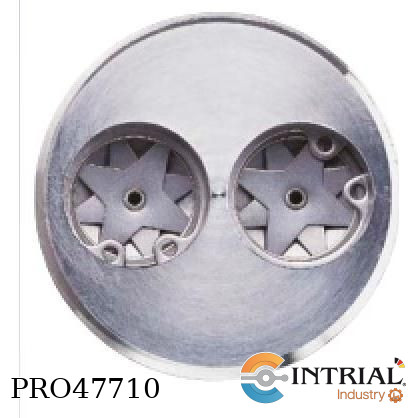

<strong>Flow Limiter Multiple units<br />
Model: REG-92-R585-200<br />
Brand: Kobold</strong><br />
[REG-92]:<br />
operating temperature max. 300 °C<br />
operating pressure max. 200 bar<br />
differential pressure min. 1,5 bar / max. 10 bar<br />
type of thread, outside<br />
housing material st. st. 1.4301<br />
[R585] Size, G 2 1/4; 5-fold <br />
[200] flow rate, 2.5 ... 200 L/min

<strong>Flow Limiter Multiple units<br />
Model:  REG-92-R656-240<br />
Brand: Kobold</strong><br />
[REG-92]:<br />
operating temperature max. 300 °C<br />
operating pressure max. 200 bar<br />
differential pressure min. 1,5 bar / max. 10 bar<br />
type of thread, outside<br />
housing material st. st. 1.4301 <br />
[R656] Size, G 2 1/2; 6-fold<br />
[240] flow rate, 3.0 a 240 L/min<br />
*Rango: 200 L/min

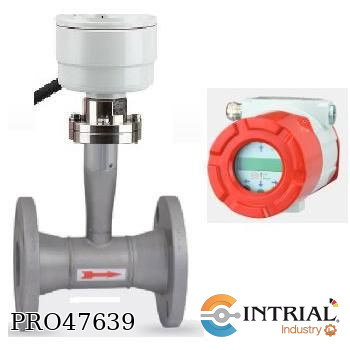

<strong>Multivariable Vortex Flowmeter<br />
Model: DVH-T-40-1-S-L-L-2-S-0-H<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[DVH] Model<br />
[T] Elektronic - Options, Volume Measurement of Liquids, Gases and Steam<br />
+ temperature sensor<br />
[40] Prozess connection - Flange: Flow Body FLANGE, DN 40, 1½" ANSI<br />
[1] Process Connection, ANSI 150 lbs ASME B16.5.2003 (not for wafer)<br />
Rango: 65 a 2450 kg./h<br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option, (IP 66 / Nema 4)<br />
Compact incl. LCD Display and Programming Buttons<br />
[L] Input Power, 12-36 VDC loop powered  for Output Signal: 2<br />
[2] Output Signal, 1x 4-20mA, HART  1x Impuls, Loop powered<br />
[S] Process Temperature, Standard Temperature  -40….+260°C<br />
[0] Option Pressure Sensor, w/o Pressure Sensor<br />
[H] Version , Heinrichs

<strong>Multivariable Vortex Flowmeter<br />
Model: DVH-T-50-1-S-L-L-2-S-0-H<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[DVH] Model<br />
[T] Elektronic - Options, Volume Measurement of Liquids, Gases and Steam<br />
+ temperature sensor<br />
[50] Prozess connection - Flange:<br />
Flow Body FLANGE, DN 50 DIN EN 2 inch ANSI JIS 50<br />
[1] Process Connection, ANSI 150 lbs ASME B16.5.2003 (not for wafer)<br />
Rango: 110 a 4150 kg./h<br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option, (IP 66 / Nema 4)<br />
Compact incl. LCD Display and Programming Buttons<br />
[L] Input Power, 12-36 VDC loop powered  for Output Signal: 2<br />
[2] Output Signal, 1x 4-20mA, HART  1x Impuls, Loop powered<br />
[S] Process Temperature, Standard Temperature  -40….+260°C<br />
[0] Option Pressure Sensor, w/o Pressure Sensor<br />
[H] Version , Heinrichs

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-251-N-25-U-2</strong><br />
[PSR-11]<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Incl. fitting: brass<br />
Body material: brass<br />
Max. pressure: 100 bar<br />
[251] Measuring range/paddle, 47.6-67.2 L/min paddle: 1<br />
[N] Connection, NPT-thread<br />
[25] Connection, 1" (for PSR-xx25...)<br />
[U] Contact version, SPDT<br />
[2] Connecting cable, PVC-cable 2.0 m<br />

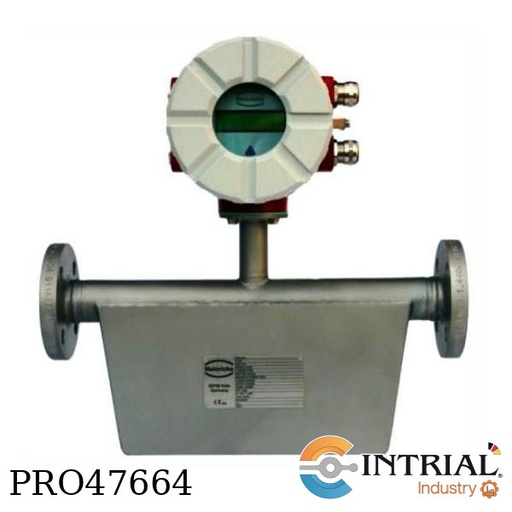

<strong>Coriolis Massflowmeter<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: TMU-S-010-202R-A-0-0-A-L-1-1-0-0-H+UMC3-B-1-2-F-2-1-H</strong><br />
[TMU-S]:<br />
Wetted materials, Stainless steel<br />
[010]: Meter line size, DN10, ANSI 3/8"<br />
Range: 0-1020 kg / m3  Diesel Fuel<br />
[202R]: Process connnection, ¾" Class 150 RF ASME B16.5-2003<br />
Installation length: 380 mm<br />
[A]: Containment options, Stainless steel containment 1.4301 (304)<br />
[0]: Heating/cooling, without<br />
[0]:Connection for heating / cooling, without<br />
[A]: Sensor configuration, Integral mount transmitter<br />
Process temperature: -4° to 212°F, -20° to 100°C /  IP66<br />
[L]: ApprovaIs, ATEX / IECEx II 1/2G Ex ia IIC T6...T2 Ga/Gb<br />
[1]: Calibration Flow, standard, 3-points<br />
[1]: Calibration Density, Standard (3-point)<br />
[0]: Supplementary equipment, None<br />
[H]: Design: Heinrichs<br /><br />
[UMC3] Model <br />
[B] Mounting, Integratel mount<br />
Conduit port opening: M20 x 1,5 <br />
[1]: Display/Interface board, Integral within transmitter housing, <br />
for ambient temperature up to 60°C <br />
[2]: Power supply, 19 - 36V DC, 24V AC (±20%), 50/60Hz<br />
[F]: Outputs,<br />
Modbus RTU (RS 485)<br />
Analog output 1: (0) 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[2]: Approvals, II(1)2G Ex d [ia IIC Ga] IIB/IIC T3-T6 Ga/Gb <br />
(Type of protection connection area Ex d), for ambient temperature up to 60°C (ATEX/IEC Ex) <br />
[1]: Type of protection (signal output), EEx ia<br />
[H] Design: Heinrichs

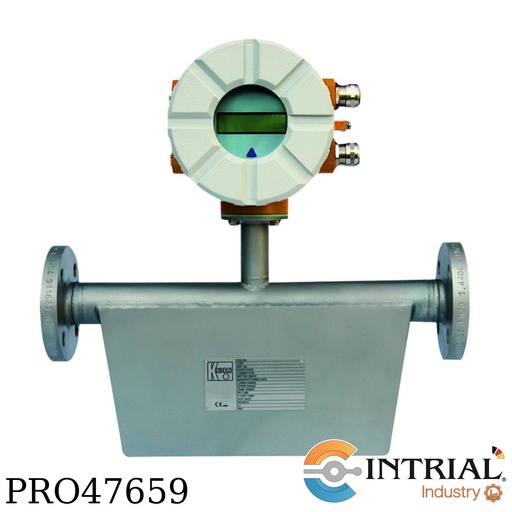

<strong>Coriolis-Mass Flow Meter<br />
Brand: Kobold – Heinrichs<br />
Model Kits</strong>: <strong>TMU-S-040-228R-A-0-0-F-0-7-1-0-H+UMC3-D-1-1-C-0-0-H+ZUB-TMKBL-K-K-005+ZUB-TMKV-GUDEIAM20</strong><br /><strong>Model Sensor : TMU-S040-228R-A00-F0-71-0-H+UMC3-D11C00H</strong><br /><strong>Processconditions:</strong><br />
Flow rate [kg/h] : 10000 - 40000<br />
Fluid : crude palm oil<br />
Density [kg/m3] : 888<br />
Viscosity [cSt] : 27,06<br />
Fluid temperature [°C] : 50<br />
Line pressure [PSI] : 80<br />
Flow direction : - please state<br /><br /><strong>Sensor Information:</strong><br />
Wetted parts : 1.4571 (316Ti)/1.4404 (316L)<br />
Range : 6000-60000 kg/h<br />
Process connection : 3" Cl. 300 RF ASME B16.5-2003<br />
Pressure rating : Cl. 300<br />
Sensor housing material : 1.4301 (304L)<br />
Pressure rating sec. containment: 0 bar<br />
Ingress protection Sensor : IP65 (EN60529)<br />
Heating/cooling : without<br />
Connection for heating/cooling : without<br />
Sensor configuration : remote mount<br />
Temperature service rating : -20°C to +100°C<br />
Ambient temperature : -40°C to +55 °C<br />
Sensor cable connection : terminal box M20x1,5<br />
Approval : without<br />
Calibration flow : 7-point OIML calibration<br />
Calibration density : 3-point<br />
Installation length : 900mm<br /><br /><strong>Transmitter:</strong><br />
Type : UMC3<br />
Mounting : remote mount<br />
Connection to sensor cable : terminal box M20x1,5<br />
Conduit port opening : M20x1,5<br />
Display/Interface board : Integral within transmitter housing<br />
Power supply : 90-265V AC, 50/60Hz<br />
Analog output : 4...20 mA active<br />
Pulse output 1 : passive Um=30V DC<br />
Pulse output 2 : passive Um=30V DC<br />
Status output : passive Um=30V DC<br />
Bnary input : passive Um=30V DC<br />
Approval : without<br />
Type of protection Signal output: without<br />
Ambient temperature : -20°C to +55°C<br />
Ingress protection transmitter : IP65 (EN60529)<br /><br /><strong>Performance Characteristics:</strong><br />
Accuracy class Mass-flow : 0,5<br />
Density : 0,5<br />
Volume : 0,5<br />
Temperature : 0,5<br />
Pressure loss : ca. 7,41 PSI at 40000 kg/h value calculated<br /><br /><strong>Supplementary Equipment:</strong><br />
In accordance with: The applicable requirements of Welmec Guides 7.2 and 8.8,<br />
and OIML R117-1 Edition 2007 (E)<br /><br />
Include:<br />
Interconnecting cable - Sensor to transmitter<br />
Model: ZUB-TMKBL-K-K-005<br />
length : 5m (non Ex)<br /><br />
Include: <br />
Cable gland set for remote mount transmitter<br />
Model code : ZUB-TMKV-GUDEIAM20<br />
Ex de - Ex ia, M20x1,5

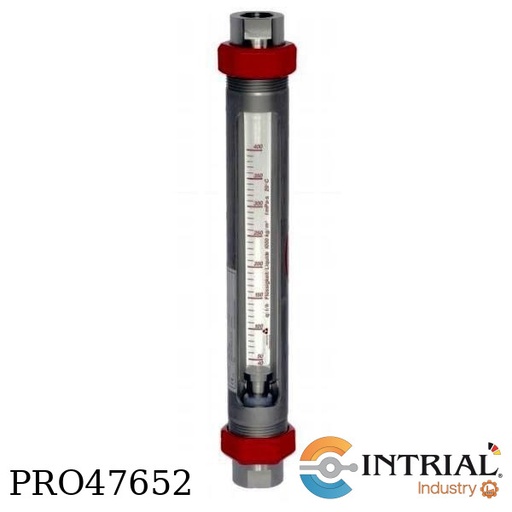

<strong>Variable Area Flowmeter<br />
Brand: Heinrichs (Alemania)<br />
Model: V31-60501S-02-D2L-F-F-A-0-0-4-0-0-0-0-0-0-0-K</strong><br />
[V31]: Model<br />
[60501S]: Thread<br />
NPT 1"(F) Verschraubung, Length, 375 mm, connection-wetted parts Edelstahl<br />
[02]: Type of float, Material, Stainless steel 1.4571 guided, with guide rod 1.4571,<br />
[D2L]: Measuring range - PVDF floatt, Range:  AIR  12 a 120 lpm<br />
[F]: Gasket, Viton®<br />
[F]: Float Stop, PVDF<br />
[A]: Union nut, Aluminium lacquered<br />
[0]: Shatter protection max. 80°C, without<br />
[0]: Electrical output, without<br />
[4]: Scale,  Measuring range-scale (Medium) <br />
[0]: Approvals, without<br />
[0]: Calibration certificate, without<br />
[0]: Cleaning according works standard (free of oil and grease), without<br />
[0]: Pressure / leakage test, without<br />
[0]: Approvals, without<br />
[0]: Marking, without<br />
[0]: Accessories, without<br />
[K]: Make, Kobold

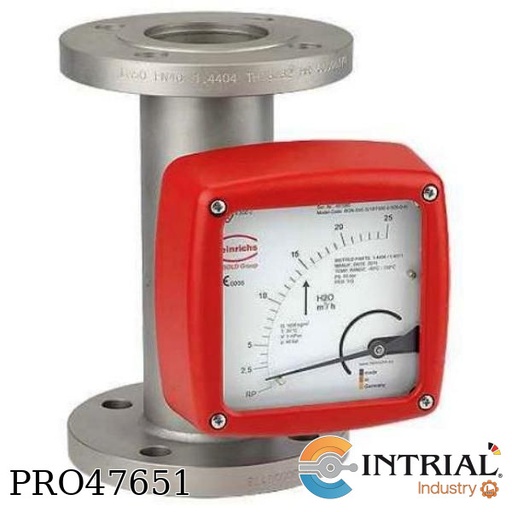

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Heinrichs (Kobold Group)<br />
Model: BGN-S40-205R-R-0-S-0-0-S-5-0-0-K</strong><br />
[BGN] Model<br />
[S40] Stainless Steel, process temperature ≤ 350°C<br />
[205R] Connection, 1½" 150 lbs RF ASME B16.5-2003<br />
[R] Range (water 20°C, 1 mPas): AIR 6.1 a 61 m3/h<br />
[0] Heating/cooling: without heating / Cooling<br />
[S] Damping/spring stop: Gas damping and spring stop<br />
[0] Self-draining: without<br />
[0] Certificates: without<br />
[S] Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5] Scale: Measuring range-Scale (Media)<br />
[0] Switches: without<br />
[0] Accessories: without<br />
[K] Design: Heinrichs<br /><br />

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-5VA-85-K-G34R<br />
Brand: Kobold</strong><br />
[MIK-5VA]<br />
Operating principle, Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal FPM<br />
[85] Measuring range (liquid >30 µS/cm), 35…700 L/min G 2 ¾ male <br />
[K] Connection set, PVC-glue connectio; G 2 ¾ - Ø54/63 mm<br />
[G34R] Evaluation electronic for MIK,<br />
Dosing electronic, LC-display, 4-20 mA, 24 VDC, 2x relay, M12 plug<br /><br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K502<br />
[ZUB-KAB-12]<br />
[K502] Version: M12x1 box 2 m cable, 5-pin<br /><br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K802<br />
[ZUB-KAB-12]<br />
[K802] Version: M12x1 box with 2 m cable, 8-pin

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-5VA-80-K-G34R<br />
Brand: Kobold</strong><br />
[MIK-5VA]<br />
Operating principle, Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal FPM<br />
[80] Measuring range (liquid >30 µS/cm), 25...500 L/min G 2 ¾ male<br />
[K] Connection set, PVC-glue connectio; G 2 ¾ - Ø54/63 mm<br />
[G34R] Evaluation electronic for MIK,<br />
Dosing electronic, LC-display, 4-20 mA, 24 VDC, 2x relay, M12 plug<br /><br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K502<br />
[ZUB-KAB-12]<br />
[K502] Version: M12x1 box 2 m cable, 5-pin<br /><br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K802<br />
[ZUB-KAB-12]<br />
[K802] Version: M12x1 box with 2 m cable, 8-pin

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs Kobold<br />
Model: DVH-T-80-1-S-L-L-2-S-0-H</strong><br />
[DVH] Model<br />
[T] Elektronic - Options, Volume Measurement of Liquids, Gases and Steam<br />
+ temperature sensor<br />
[80] Flow Body FLANGE, DN 80 DIN EN 3 inch ANSI <br />
[1] Prozess connection - Flange, ANSI Class 150 ASME B16.5-2003 (not for wafer)<br />
Rango: 100  a 1500 kg/h<br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option (IP 66 / Nema 4)<br />
Compact incl. Digital Display and Programming Buttons<br />
[L] Input Power, 12-36 VDC loop powered for Output Signal: 2<br />
[2] Output Signal (passiv), 1x 4-20mA, HART 1x Impuls, <br />
Loop powered only with power supply: L<br />
[S] Process Temperature, Standard Temperature -40….+260°C<br />
[0] Option Pressure Sensor (Electronic versions T/P/E/M), w/o Pressure Sensor<br />
[H] Version Heinrichs<br />

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Heinrichs Kobold<br />
Model: DVH-T-80-1-S-R-L-2-S-0-H</strong><br />
[DVH] Model<br />
[T] Elektronic - Options, Volume Measurement of Liquids, Gases and Steam<br />
+ temperature sensor<br />
[80] Flow Body FLANGE, DN 80 DIN EN 3 inch ANSI <br />
[1] Prozess connection - Flange, ANSI Class 150 ASME B16.5-2003 (not for wafer)<br />
Rango: 100  a 1500 kg/h<br />
[S] Material Flow Body, st.st. 1.4404 / 316 L (standard)<br />
[R] Sensor Configuration / Mounting Option (IP 66 / Nema 4)<br />
Remote incl. Digital Display and Programming Buttons (incl. 5m cable)<br />
IP 66 / Nema 4 , 15 m cable length<br />
[L] Input Power, 12-36 VDC loop powered for Output Signal: 2<br />
[2] Output Signal (passiv), 1x 4-20mA, HART 1x Impuls, <br />
Loop powered only with power supply: L<br />
[S] Process Temperature, Standard Temperature -40….+260°C<br />
[0] Option Pressure Sensor (Electronic versions T/P/E/M), w/o Pressure Sensor<br />
[H] Version Heinrichs

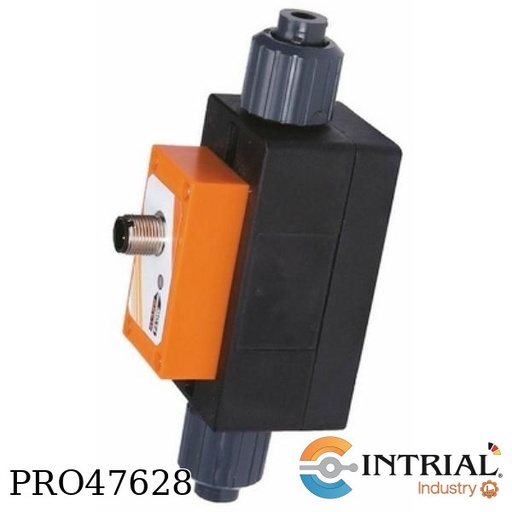

<strong>Compact Magnetic<br />
Brand: Kobold (Alemania)<br />
Model: MIK-5NA80KL343Y</strong><br />
Inductive Flow Meter<br />
Housing: PPS<br />
Electrodes: st.st  1.4404<br />
Gasket: NBR<br />
Range: 25-500 L/min<br />
Connection: G2  3/4 male<br />
including frontal gasket<br />
Protection: IP65<br /><br />
PVC-glue connection<br />
Analgue output: 4-20 mA<br />
plug M12x1,  3-wire<br />
Power supply: 24 vdc<br />
RoHS conform<br />
Special option (Attention)<br /><br />
Y= Special option / Sonderheit:<br />
- Adjustment / Einstellung 20 mAdc = 302 LPM<br />
- Flow direcction / Durchflussr. : vert. up / unten nach oben<br />
- According to S/N K05995730010002

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-E-210R-1-H-H-1-0+UMF2-B-1-1-F-0BK</strong><br />
[EPS-E]: Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[210R]: Process connection, 4" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 274 m³/h, Installation length, 250 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br />
[UMF2]:Transmitter<br />
[B]: Mounting,<br />
Integrated transmitter IP 67 standard<br />
Thread - electrical connection, M20 x 1,5<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobol

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-6FC-60-A-L443<br />
Brand: Kobold (Alemania)</strong><br />
[MIK-6FC]:<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PVDF<br />
Electrodes Hastelloy<br />
Seal FFKM<br />
[60]: Measuring range (liquid >30 µS/cm), 8...160 L/min G 2 male<br />
[A]: Connection set, without<br />
[L443]. Evaluation electronic for MIK,<br />
Analogue output 24 VDC, 4-20 mA, DIN-plug 3-wire

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIK-6FC-55-A-L443<br />
Brand: Kobold (Alemania)</strong><br />
[MIK-6FC]:<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PVDF<br />
Electrodes Hastelloy<br />
Seal FFKM<br />
[55]: Measuring range (liquid >30 µS/cm), 5...100 L/min G 1½ male<br />
[A]: Connection set, without<br />
[L443]. Evaluation electronic for MIK,<br />
Analogue output 24 VDC, 4-20 mA, DIN-plug 3-wire
