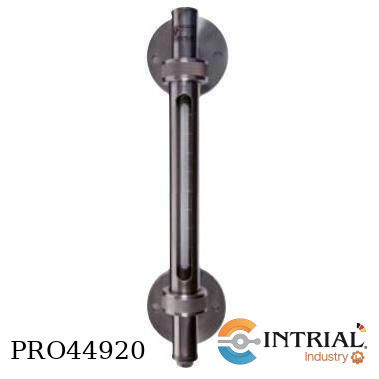

<strong>Bypass-Level Indicators with glass tube<br />
Model: SZM-S-5-1-A4-00-00(3000 mm)<br />
Brand: Kobold - Alemania</strong><br />
[SZM-S] Bypass-Level Indicators with glass tube<br />
Bypass- tube: Borosilicate glass<br />
O-ring: FPM<br />
Protecting tube: st. steel 1.4404<br />
Connection: st. steel 1.4404<br />
Max. temperature: 100 °C<br />
Max. pressure 10 bar<br />
Installation length: L=3000 mm<br />
[5] Version (top/bottom): top: cleaning hole, bottom: drain valve<br />
[1] Valves: 2 shut off valves in connection<br />
[A4] Connection: loose flange ANSI B16.5 1/2" 150 lbs<br />
[00] Scale: without<br />
[00]: Limit switch, without

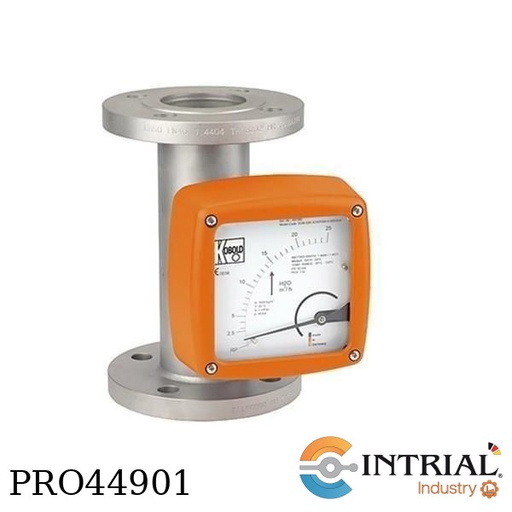

<strong>ALL-METAL VARIABLE AREA FLOWMETER BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S50-206R-S-0-F-0-S-5-6-0-K </strong><br />
[BGN]: <br />
[S50]: Model, Stainless Steel, process temperature ≤ 350°C<br />
[206R]: Connection, size, 2" Class 150 RF ASME B16.5-2003<br />
[S]: Range (water 20°C, 1 mPas), 1-10 m3/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[F]: Damping/spring stop, with liquid damping<br />
[0]: Self-draining, without<br />
[S]: Certificates, without<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia, Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

<strong>ALL-METAL VARIABLE AREA FLOWMETER BGN<br />
Brand: Kobold - Heinrichs (Alemania)<br />
Model: BGN-S50-206R-S-0-F-0-S-5-0-0-K</strong><br />
[BGN]:  BGN<br />
[S50]: Model, Stainless Steel, process temperature ≤ 350°C<br />
[206R]: Connection, size, 2" Class 150 RF ASME B16.5-2003<br />
[S]: Range (water 20°C, 1 mPas), 1-10 m3/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[F]: Damping/spring stop, with liquid damping<br />
[0]: Self-draining, without<br />
[S]: Certificates, without<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without, Ambient temperature, -40° to +80°C<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

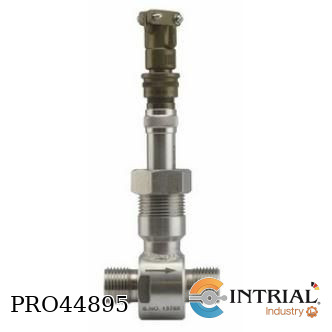

Turbine Wheel Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: DOT-13-35H-N9-F4S-L<br />
[DOT-13]<br />
Operating principle Turbine wheel<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Connection/ Housing material st. Steel / st. steel<br />
max. temperature -20…+120 °C<br />
max. pressure 250 bar<br />
Linearity ± 0.5 % of Reading<br />
[35H]: measuring range, 6.8-68 m³/h<br />
[N9]: Mechanical connection, 2" NPT<br />
[F4S]: Electronics / cable entry,<br />
only pulse output pre-amplified/ MS (military style), max. 120°C<br />
[L]: Flow direction, from left to right, indication on top

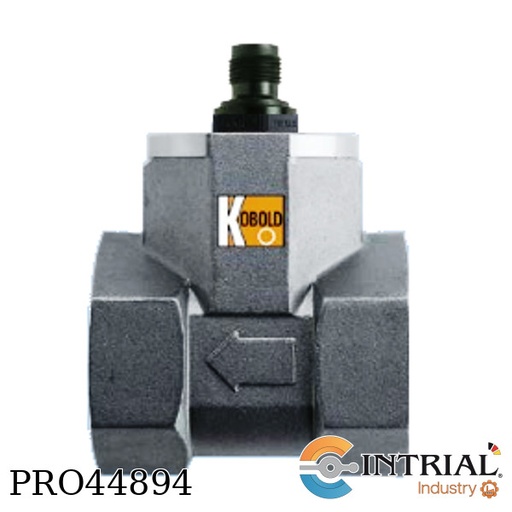

<strong>Pelton Wheel Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DPE-12-25-N9-F300</strong><br />
[DPE-12]<br />
Operating principle: Pelton Wheel (6-vane)<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: PN 40 (DPE-1200W: 16 bar)<br />
Accuracy of final value: +/-2,5%<br />
Material Housing: St. St.<br />
Material Axis Hard metal<br />
[25]: Measuring range, 30-350 L/min <br />
[N9]: Mech. connection, for MR-Code: 25, 2 NPT female<br />
[F300]: Electronic, Frequency output, plug M12x1

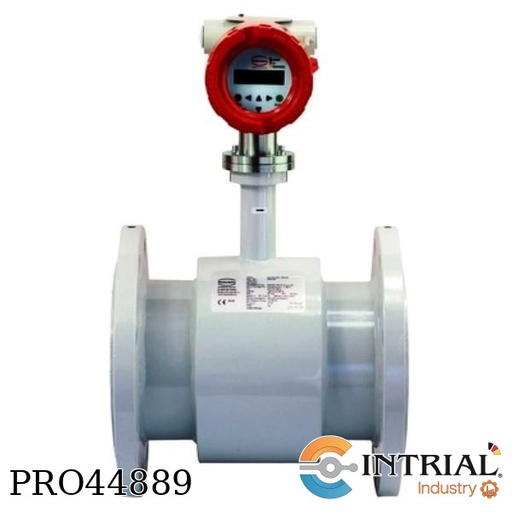

EPS Electromagnetic Flow Meter<br />
Model: EPS-H-345B-1-S-S-1-0+UMF2-A-1-4-F-0BK<br />
Brand: Kobold-Heinrich<br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[345B]: Process connection, DN150 PN16 Form B1 DIN EN 1092-1 <br />
Max. Proc measuring range (Water 20°C, 1 mPas), 632 m³/h<br />
stallation length 300 mm<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, integrated transmitter. <br />
Protection class sensor, IP67<br />
[0] Certificates, w/o<br /><br />
[UMF2]<br />
[A] Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-349B-1-S-S-2-0+UMF2-C-1-4-F-0BK-7<br />
Brand: Kobold-Heinrich</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[349B]: Process connection, DN200 PN10 Form B1 DIN EN 1092-1 <br />
Max. Proc measuring range (Water 20°C, 1 mPas), 1110 m³/h<br />
Installation length 350 mm<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[2] Transmitter mounting, Remote Transmitter. <br />
Protection class sensor, IP 67 terminal conn.box via M 20 x 1,5<br />
[0] Certificates, w/o<br /><br />
[UMF2]<br />
[C] Mounting, Remote transmitter<br />
Connection to sensor, Incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold<br />
[7] Longer cable, 50m.

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-350B-1-S-S-1-0+UMF2-A-1-4-F-0BK<br />
Brand: Kobold-Heinrich</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[350B]: Process connection, DN200 PN16 Form B1 DIN EN 1092-1 <br />
Max. Proc measuring range (Water 20°C, 1 mPas), 1110 m³/h<br />
Installation length 350 mm<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0] Certificates, w/o<br /><br />
[UMF2]<br />
[A] Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-321B-1-S-S-1-0+UMF2-A-1-4-F-0BK<br />
Brand: Kobold-Heinrich</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[321B]: Process connection, DN50 PN40 Form B1 DIN EN 1092-1 <br />
Max. Proc measuring range (Water 20°C, 1 mPas), 70 m³/h<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0] Certificates, w/o<br /><br />
[UMF2]<br />
[A] Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-309B-1-S-S-1-0+UMF2-A-1-4-F-0BK<br />
Brand: Kobold-Heinrich</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C...95°C<br />
[309B]: Process connection, DN25 PN40 Form B1 DIN EN 1092-1<br />
Max. Proc measuring range (Water 20°C, 1 mPas), 19,1 m³/h<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1] Transmitter mounting, integrated transmitter. Protection class sensor, IP67<br />
[0] Certificates, w/o<br /><br />
[UMF2]<br />
[A] Mounting, integrated transmitter IP67 standard<br />
Electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[4] Power supply, 24V DC (±15%)<br />
[F] Output:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

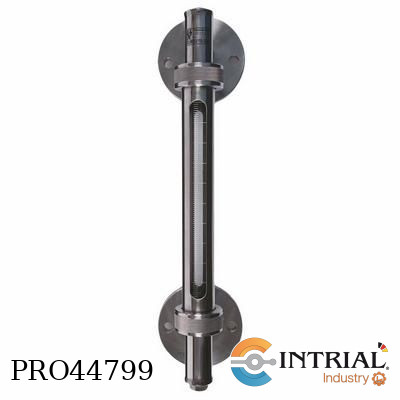

Bypass-Level Indicators with glass tube<br />
Brand: Kobold (Alemania)<br />
Model: SZM-K-5-1-A6-S2-0-2300 mm<br />
[SZM-K]<br />
Bypass- tube: Borosilicate glass<br />
O-ring, FPM<br />
Protecting tube: st.steel 1.4301<br />
Connection: st.steel 1.4301<br />
Max. temperature: 100 °C<br />
Max. pressure 10 bar<br />
Installation length, 2300 mm<br />
[5] Version (top/bottom), top: cleaning hole, bottom: drain valve<br />
[1] Valves, 2 shut off valves in connection<br />
[A6] Connection, loose flange ANSI B16.5 1" 150 lbs <br />
[S2] Scale, sidewise engraved Alu-scale (cm division)<br />
[0] Limit switch, without

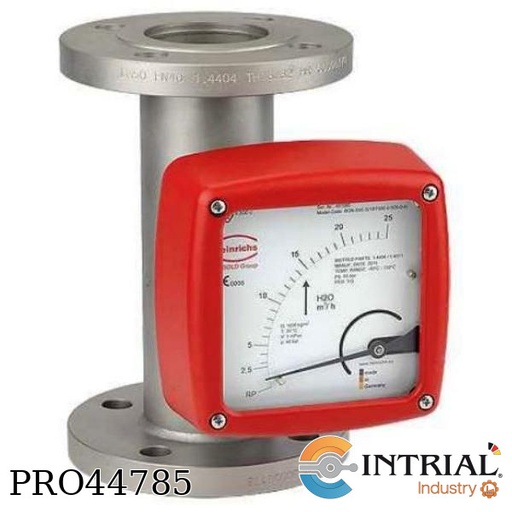

<strong>All-Metal Variable Area Flowmeter BGN<br />
Model: BGN-S80-208R-T-0-F-0-0-S-2-I-0-H<br />
Brand: Kobold – Heinrichs</strong><br />
[BGN]<br />
[S80] Stainless Steel, process temperature <= 350°C<br />
[208R] Connection, 3" Class 150 RF ASME B16.5-2003<br />
[T] Range: 1.6 a 16 m3/h<br />
[0] Heating/cooling, without heating / Cooling<br />
[F] Damping/spring stop, with liquid damping<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[S] Display,<br />
Standard display housing,<br />
Process temperature <= 150°C for electrical output,<br />
Process temperature <= 200°C for local indication<br />
[2] Scale, Measuring range-Scale (Water)<br />
[I] Switches, Transmitter ES with HART-protocol and counter module<br />
Ambient temperature: -40° to +70°C<br />
[0] Accessories, without<br />
[H] Design, Heinrichs

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-P-208R-1-H-0-1-0<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[EPS-P]: Sensor Model<br />
Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes<br />
Process temperature, -20°C...150°C<br />
[208R]: Process connection, 3" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 170 m³/h, length, Installation, 272 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, IP67<br />
[0]: Certificates, w/o<br /><br />
UMF2-A-1-1-G-0BH<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67<br />
Thread - electrical connection, 1/2 NPT<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs
<div>
<div class="gtx-trans-icon"></div>
</div>

<strong>Modular, compact Inline flow meter<br />
Brand: Kobold (Alemania)<br />
Model: KME-7-25-N-0-L-1-N-Q-4</strong><br />
[KMT-7]<br />
Function principle, Direct thermal flow<br />
Measuring tube, Aluminium<br />
Sensor head/ sensor, st. steel 1.4404/ glass<br />
Housing, Polycarbonet<br />
Flow direction, +/- 3% of meas. value +0,3% full scale<br />
Power supply, 18-30 VDC<br />
Electr. connection, M12x1<br />
max. pressure / max. temperature, PN 16 / -20…+60 °C<br />
[25] Measuring range, 0.6-212 Nm³/h for tube DN 25 (1")<br />
[N] Connection, NPT- femal connection<br />
[0] Display, without display<br />
[L] Medium, air<br />
[1] Units, SI units<br />
[N] Physical size,output 1, Standard volume flow (standard Nm³/h)<br />
[Q] Physical size,output 2, Consumption (standard Nm³)<br />
[4] Output 1/ Output 2; Analogue-output 0-40 mA / totalizer output

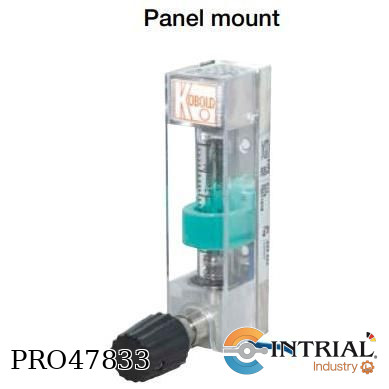

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDF-92-84-N-V-W-00-0</strong><br />
[KDF-92]<br />
Mounting length: 90 mm<br />
Operating principle: variable area<br />
Flow direction: from bottom to top<br />
Body material: st.st.<br />
Glass: Borosilicate<br />
Accuracy: class 3<br />
Max. temperature: without/with contact 100<br />
°C / 70 °C<br />
Max. pressure: PN 16<br />
[84] Measuring range: 2,5...25 L/h water<br />
[N] Connection, 1/4 NPT<br />
[V] Seal, FPM<br />
[W] Wall mounting kit, with wall mounting set<br />
[00] Contacts measuring range: w/o<br />
[0] Flow differential pressure regulator, w/o

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIS-H-208R-1-HH-100+ZUB-KAB-12-K002<br />
Brand: Kobold(Alemania)</strong><br />
[MIS]:<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display: TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display window PMMA<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H]: Material Lining, Hard rubber (NBR)<br />
[208R]: Flange size, ASME B16.5-2003, 3" Class 150FF<br />
[1]: Material Process Connection, steel, coated<br />
[HH]: Measuring and Grounding electrodes, Hastelloy C-276<br />
[100]: Transmitter Mounting, direct mounted<br /><br />
Include:<br />
Accessories Circular Plug-in connector<br />
Model: ZUB-KAB-12-K002<br />
Brand: Kobold (Alemania)<br />
[ZUB-KAB-12]<br />
[K002] Design: M12x1 box 2 m cable, 4-pin

<strong>All-Metal-Flow Switch<br />
Brand: Kobold Alemania<br />
Model: SMN-12-50H-R0-N25</strong><br />
[SMN-12]<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material st.st.<br />
Seal w/o<br />
Switch point ca. 1 L/min (decreasing)<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 350 bar<br />
[50H] Switching range, flow up to 100 L/min water<br />
[R0] Contact, 1 N/O<br />
[N25] Connection, 1 NPT female

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIK-5VA-65-K-C34P+ZUB-KAB-12-K502</strong><br />
[MIK-5VA]:<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS<br />
Electrodes St. st.<br />
Seal FPM<br />
[65] Measuring range (liquid >30 μS/cm), 16...320 L/min G 2 male<br />
[K] Connection set, PVC-glue connection, G 2 - Ø33/40 mm<br />
[C34P] Evaluation electronic for MIK, Compact electronic <br />
24 VDC, 4-20 mA, 1x PNP.<br /><br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K502<br />
[ZUB-KAB-12]<br />
[K502]: Version: M12x1 box 2 m cable, 5-pin

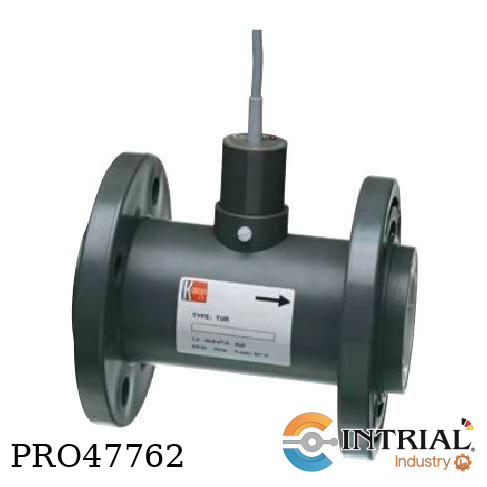

<strong>Turbine Wheel Flowmeter<br />
Plastic Model for Liquids<br />
Brand: Kobold<br />
Model: TUR-3-0-10-N</strong><br />
Technical Details<br />
Measuring Accuracy: ±1% of Full Scale<br />
Max. Pressure: 145 PSIG<br />
Protection Type: IP 65<br />
[TUR] Model<br />
[3] Output, Blind Pulse<br />
[0] Body Material, PVC<br />
[10] Connection / Measuring Range,<br />
4" 150lb ANSI Flange, 11...440 GPM<br />
[N] Electronics, NPN, 24 VDC, 3-wire

<strong>Turbine Wheel Flowmeter<br />
Plastic Model for Liquids<br />
Brand: Kobold<br />
Model: TUR-3-0-50-N</strong><br />
Technical Details<br />
Measuring Accuracy: ±1% of Full Scale<br />
Max. Pressure: 145 PSIG<br />
Protection Type: IP 65<br />
[TUR] Model<br />
[3] Output, Blind Pulse<br />
[0] Body Material, PVC<br />
[50] Connection / Measuring Range,<br />
2" 150lb ANSI Flange 5.3...88 GPM.<br />
[N] Electronics, NPN, 24 VDC, 3-wire
