<strong>Manifold Valves For Multiple Installation<br />
Model: BVB-4102<br />
Brand: Kobold (USA)</strong><br />
[BVB]<br />
Housing, Anodized Aluminum<br />
Max. temperature, 212 °F<br />
Max. pressure, 930 PSI<br />
Max. flow per multiple block, 6.3 GPM<br />
Process connection, 1/2" NPT<br />
[4102]:Version, Double fold blockvalve

Viscosity Compensated Flowmeter and Switch<br />
Brand: Kobold (USA)<br />
Model: VKG-7101-U<br />
Base Accuracy:   ±5% Full Scale<br />
Flow Media: Oil, Water, and Other Liquids<br />
Mounting: Universal, without Recalibration<br />
Measuring Principle: With Float, Spring Loaded<br />
Max. Temperature:  212 °F<br />
Housing: Anodized Aluminum (non-wetted)<br />
Glass: Borosilicate<br />
Fittings: Brass<br />
Float: Brass<br />
Elect. Switch Housing:  Plastic<br />
Ingress Protection:  IP65 (Electrical Switch)<br />
Electrical Connection<br />
Standard:  DIN 43 650 w/Cable Gland<br />
Range Oil (GPM): 0.03...0.12<br />
Stand. Conn. 1/4'' NPT<br />
Press. Drop Max. 13.1 PSI<br />
Flowmeter and Switch 1 N/O Contact Oil Scale<br />
[U]: SPDT Switch Contact<br /><br />


Viscosity Compensated Flowmeter and Switch<br />
Brand: Kobold (USA)<br />
Model: VKG-7102-U<br />
Base Accuracy:   ±5% Full Scale<br />
Flow Media: Oil, Water, and Other Liquids<br />
Mounting: Universal, without Recalibration<br />
Measuring Principle: With Float, Spring Loaded<br />
Max. Temperature:  212 °F<br />
Housing: Anodized Aluminum (non-wetted)<br />
Glass: Borosilicate<br />
Fittings: Brass<br />
Float: Brass<br />
Elect. Switch Housing:  Plastic<br />
Ingress Protection:  IP65 (Electrical Switch)<br />
Electrical Connection<br />
Standard:  DIN 43 650 w/Cable Gland<br />
Range Oil (GPM): 0.05...0.3<br />
Stand. Conn. 1/4'' NPT<br />
Press. Drop Max. 14.5 PSI<br />
Flowmeter and Switch 1 N/O Contact Oil Scale<br />
[U]: SPDT Switch Contact<br /><br />

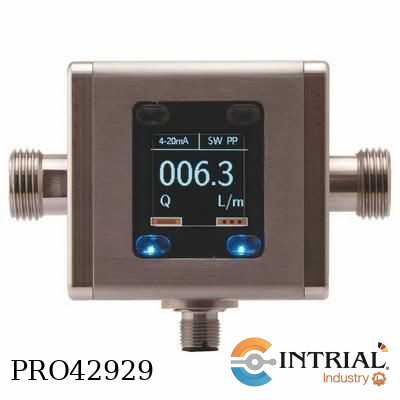

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIS-H-349B-1-HH-100<br />
Brand: Kobold (Alemania)</strong><br />
[MIS]:<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display Windows PMMA<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H]: Material Lining, Hard rubber (NBR)<br />
[349B]: Flange size, DIN EN 1092-1, Form A DN200 PN10<br />
[1]: Material Process Connection, steel, coated<br />
[HH]: Measuring and Grounding electrodes, Hastelloy C-276<br />
[100]: Transmitter Mounting, direct mounted

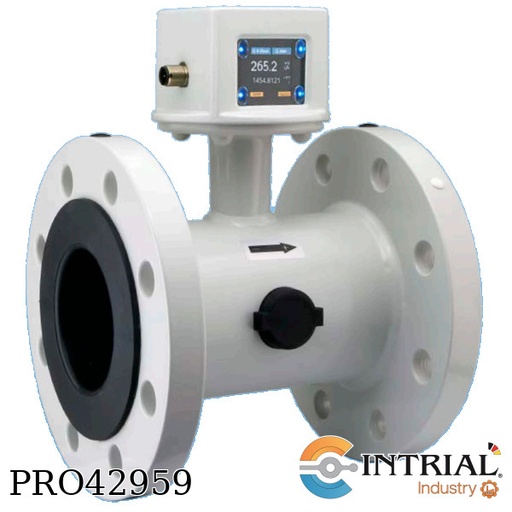

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIS-H-320B-1-HH-100<br />
Brand: Kobold (Alemania)</strong><br />
[MIS]:<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display Windows PMMA<br />
Accuracy ±(0.5% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 uS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H] Material Lining, Hard rubber (NBR)<br />
[320B] Flange size, DIN EN 1092-1, Form A DN50 PN16<br />
[1] Material Process Connection, steel, coated<br />
[HH] Measuring and Grounding electrodes, Hastelloy C-276<br />
[100] Transmitter Mounting, direct mounted

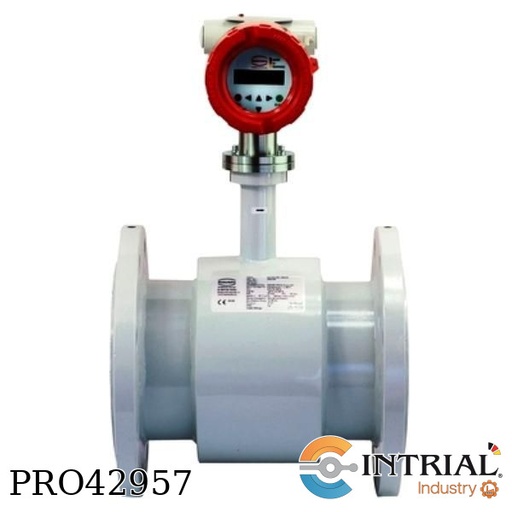

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold – Heinrichs (Germany)<br />
Model: EPS-H-213R-1-H-H-1-0+UMF2-A-1-4-G-0BK</strong><br />
[EPS]: Model Sensor<br />
[H]: Material Lining, Hard Rubber (Ebonit),<br />
Electrodes, Standard 2x Measuring- + 2x Ground electrodes, 0°C...95°C<br />
[213R] Process connection, 8" Class 150 RF ASME B16.5-2003<br />
Max. measuring range (Water 20°C, 1 mPas), 1110 m³/h<br />
[1]: Material Process connection, Flange steel painted<br />
[H] :Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy <br />
[1]: Transmitter mounting,  Integrated transmitter<br />
Protection class, sensor IP67<br />
[0]:Certificates, w/o<br /><br /><br />
[UMF2]: Model Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection,  ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>EP magnetic inductive flowmeter<br />
Model: EP-H-0317-0-S-S-1-0+UMF2-1-2-G-0BK<br />
Brand: Heinrichs (Alemania) </strong><br />
[EP-H]:<br />
Material - lining, hard-rubber <br />
standard 3 stainless steel electrodes <br />
Temperature, 0°C...80°C <br />
[0317]: Process Connection, flangeless sandwich design for <br />
DIN EN 1092-1 DN40 PN40 flanges<br />
Max. measuring range (Water 20°C, 1 mPas), 45 m³/h <br />
Installation length, 104 mm <br />
[0]: Material flanges, without<br />
[S]: Material electrodes, Stainless steel, <br />
[S]: Earthing electrode, Stainless steel,<br />
[1]: Transmitter mounting, integrated transmitter <br />
Protection class sensor, IP67  <br />
[0]: Approvals, without<br /><br /><strong>[UMF2-A]: </strong><br />
Mounting, integrated transmitter IP67 standard <br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output 1: 4 - 20mA  with HART-protocol<br />
pulse output:  passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold

<strong>EP magnetic inductive flowmeter<br />
Model: EP-H-0321-0-S-S-1-0+UMF2-1-2-G-0BK<br />
Brand: Heinrichs (Alemania) </strong><br />
[EP-H]:<br />
Material - lining, hard-rubber <br />
standard 3 stainless steel electrodes <br />
Temperature, 0°C...80°C <br />
[0321]: Process Connection, flangeless sandwich design for <br />
DIN EN 1092-1 DN50 PN40 flanges / 2" class 300<br />
Max. measuring range (Water 20°C, 1 mPas), 72 m³/h <br />
Installation length, 104 mm<br />
[0]: Material flanges, without<br />
[S]: Material electrodes, Stainless steel, <br />
[S]: Earthing electrode, Stainless steel,<br />
[1]: Transmitter mounting, integrated transmitter <br />
Protection class sensor, IP67  <br />
[0]: Approvals, without<br /><br /><strong>[UMF2-A]: </strong><br />
Mounting, integrated transmitter IP67 standard <br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output 1: 4 - 20mA  with HART-protocol<br />
pulse output:  passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold

<strong>EP magnetic inductive flowmeter<br />
Model: EP-H-0340-0-S-S-1-0+UMF2-1-2-G-0BK<br />
Brand: Heinrichs (Alemania) </strong><br />
[EP-H]:<br />
Material - lining, hard-rubber <br />
standard 3 stainless steel electrodes <br />
Temperature, 0°C...80°C <br />
[0340]: Process Connection, flangeless sandwich design for <br />
DIN EN 1092-1 DN125 PN16 flanges / 5" class 150<br />
Max. measuring range (Water 20°C, 1 mPas), 430 m³/h <br />
Installation length, 134 mm <br />
[0]: Material flanges, without<br />
[S]: Material electrodes, Stainless steel, <br />
[S]: Earthing electrode, Stainless steel,<br />
[1]: Transmitter mounting, integrated transmitter <br />
Protection class sensor, IP67  <br />
[0]: Approvals, without<br /><br /><strong>[UMF2-A]: </strong><br />
Mounting, integrated transmitter IP67 standard <br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output:<br />
current output 1: 4 - 20mA  with HART-protocol<br />
pulse output:  passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BK]: Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-340B-1-S-S-1-0+UMF2-A-1-4-G-0BK<br />
Brand: Heinrichs (Alemania)</strong><br />
[EPS]: Sensor Model<br />
[H]: Material – lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring+2x Groundelectrodes<br />
Process-Temperature, 0°C…+95°C<br />
[340B]: Process Connection, DN125 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range (Water 20°C, 1 mPas), 431 m³/h<br />
Installation length, 250 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, integrated transmitter<br />
Protection class sensor, IP67<br />
[0]: Certificates, w/o<br /><br /><strong>[UMF2]: Transmitter Model</strong><br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[G]: Output signal,<br />
current output: 1x 0/4-20 mA c/w HART protocol<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

<strong>Oval Gear Flow Meter/Counter<br />
Model: DON-2-25H-F6-1-Z3-M-0-Y<br />
Brand: Kobold (Alemania)</strong><br />
[DON-2]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 120°C (80°C for electronic Z,L,M)<br />
max. pressure, 16...100 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, st. steel<br />
Rotor material, st. steel<br />
[25H]: Measuring range, 10-150 L/min<br />
[F6]: Mech. connection, DIN flange DN 25, PN 16/40<br />
[1]: Seal, FKM up to DON-x25<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue.<br />
[M]: Cable entry, M20<br />
[0]: Accessory, without<br />
[Y]: Not include battery

<strong>Oval Gear Flow Meter/Counter<br />
Model: DON-1-25H-F6-1-Z3-M-0-Y<br />
Brand: Kobold (Alemania)</strong><br />
[DON-1]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80°C<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[25H]: Measuring range, 10-150 L/min<br />
[F6]: Mech. connection, DIN flange DN 25, PN 16/40<br />
[1]: Seal, FKM up to DON-x25<br />
[Z3]: Electronic, dual LCD totaliser/rate, outputs: pulse, analogue.<br />
[M]: Cable entry, M20<br />
[0]: Accessory, without<br />
[Y]: Not include battery

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-255-N-25-U-1</strong><br />
[PSR-11]<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Incl. fitting: brass<br />
Body material: brass<br />
Max. pressure: 100 bar<br />
[255] Measuring range/paddle, 26-36.3 L/min paddle: 5<br />
[N] Connection, NPT-thread<br />
[25] Connection, 1" (for PSR-xx25...)<br />
[U] Contact version, SPDT<br />
[1] Connecting cable, PVC-cable 1.5 m (standard)

<strong>Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-254-N-25-U-1</strong><br />
[PSR-11]<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Incl. fitting: brass<br />
Body material: brass<br />
Max. pressure: 100 bar<br />
[254] Measuring range/paddle, 29.8-42.8 L/min paddle: 4<br />
[N] Connection, NPT-thread<br />
[25] Connection, 1" (for PSR-xx25...)<br />
[U] Contact version, SPDT<br />
[1] Connecting cable, PVC-cable 1.5 m (standard)

<strong>Paddle Type Flow Switch<br />
Model: PSR-11-257-N-25-U-1<br />
Brand: Kobold (Alemania)</strong><br />
[PSR-11]<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
Incl. fitting: brass<br />
Body material: brass<br />
Max. pressure: 100 bar<br />
[257] Measuring range/paddle, 17.7-26.8 L/min paddle: 7<br />
[N] Connection, NPT-thread<br />
[25] Connection, 1" (for PSR-xx25...)<br />
[U] Contact version, SPDT<br />
[1] Connecting cable, PVC-cable 1.5 m (standard)

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-03HG4-C3T-0</strong><br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Min. conductivity, >20 uS/cm<br />
Power supply, 19 - 30 VDC<br />
Max. temperature (medium) -20°C..+70°C (compact),<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2] Material housing / insulation part, st. steel 1.4404 / PEEK / FKM <br />
[03HG4] Measuring range (flow/temperature), 0,03…3 l/min / [°C] G ½ male<br />
[C3T]: Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0] Options, without

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-317B-1-S-S-1-0+UMF2-A-1-4-G-0BH<br />
Brand: Heinrichs (Alemania)</strong><br />
[EPS]: Sensor Model<br />
[H]: Material – lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature, 0°C…+95°C<br />
[317B]: Process Connection, DN40 PN40 Form B1 DIN EN 1092-1  <br />
Max. measuring range (Water 20°C, 1 mPas), 38 m³/h<br />
Installation length, 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, integrated transmitter<br />
Protection class sensor, IP67<br />
[0]: Certificates, w/o<br /><br /><strong>[UMF2]: Transmitter Model</strong><br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output signal,<br />
current output: 1x 0/4-20 mA c/w HART protocol<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs

<strong>All-Metal Variable Area Flowmeter BGF<br />
Model: BGF-S40-6050-Q-P-L-0-0-S-5-0-0-H<br />
Brand: Heinrichs (Alemania)</strong><br />
[BGF]: Model<br />
[S40]: Model, Stainless Steel, process temperature <= 200°C<br />
[6050]: Connection, 1" NPT(f)<br />
[Q]: Range (water 20°C, 1 mPas), 10.68 – 106-76 Nm3/h<br />
[P]: Magnet bearer, maximum 125 °C PTFE<br />
[L]: Flow direction, Left to right<br />
[0]: Heating / cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without<br />
Ambient temperature, -40° to +80°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>Magnetic inductive Flowmeter PIT with UMF2<br />
Model: PIT-S-206R-163-H-0-1-0-0-0-H+UMF2-A-1-1-G-0BH-0<br />
Brand: Heinrichs (Alemania)</strong><br />
[PIT]: Sensor<br />
[S]: Model, Stainless steel (1.4571/1.4404)/PTFE <br />
for nominal diameters DN125 - DN2000 (PN16) (PIT-520)<br />
Temperature, Tmax. = 80°C compact version<br />
[206R]: Process connection, 2" Class 150 RF ASME B16.5-2013<br />
[163]: Sensor Length, 163 mm (for Tubes < DN600) <br />
[H]: Electrode Material, Hastelloy C-4<br />
[0]: Measuring range / medium velocity, 1-10 m/s<br />
[1]: Transmitter layout, compact transmitter<br />
Protection class, IP67<br />
[0]: Approvals, without approval<br />
[0]: Certificate, without<br />
[0]: Supplementary equipment, without<br />
[H]: Design, Heinrichs<br /><br /><strong>Model: UMF2-A-1-1-G-0BH-0</strong><br />
[UMF2]: Transmitter<br />
[A]: Transmitter layout, compact transmitter IP67<br />
Power supply cable entry, ½" NPT (F)<br />
[1]: Indication / user interfcace, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Outputs, <br />
current output: (0)4-20mA with HART® - protocol<br />
pulse output: passive Um=24VDC<br />
status output: passive Um=24VDC<br />
[0BH]: Design, Heinrichs<br />
[0]: Interconnecting cable, 2,5m standard on remote version

<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-32-09-R0-N20-0-R</strong><br />
[VKM-32]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material St.St.<br />
Seal: FPM<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS (at 105 mm²/s)<br />
Max. temperature: 100 °C<br />
Max. pressure: 350 bar<br />
Viscosity range: 1...540 mm²/s<br />
IP65= Electric contact<br />
IP54=  Side indicator<br />
[09]: 4...40 L/min oil<br />
[R0]: Contact, 1 N/O<br />
[N20]: 3/4 NPT female<br />
[0]: Option special connection, w/o<br />
[R]: Flow direction, from right
