<strong>All-Metal-Flowmeter / Switch<br />
Brand: Kobold-Alemania<br />
Model: SMO32-09H-R0-R15</strong><br />
Operating principle: variable area<br />
Mounting position: vertical<br />
Flow direction: from top<br />
Body material: St.St.<br />
Seal: FPM<br />
Side mounted indication: yes<br />
Switch point: adjustable<br />
Accuracy: ±5 % FS<br />
Max. Temperature: 100 °C<br />
Max. Pressure: 350 bar<br />
[09H] Adjustment range: 2...18 L/min wate<br />
[R0] Contact: 1 N/O<br />
[R15] Connection: G 1/2 female

<strong>Flowindicator with Rotor<br />
Brand: Kobold (Alemania)<br />
Model: DAH-2-1-02H-R-10</strong><br />
[DAH-2]<br />
Operating principle sight glass<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Max. temperature 100 °C<br />
Max. pressure 16 bar<br />
[1] Material (housing/connection), brass, nickle-plated<br />
[02H] Nom. diameter/ind. range*, 3/8" 0,6...8 L/min water<br />
[R] Thread, G-thread female<br />
[10] Connection*, 3/8"

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold-Alemania<br />
Model: DON-1-60H-NC-1-Z3-N-0</strong><br />
[DON-1] Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. Temperature: 80 °C<br />
max. Pressure: 16...64 bar<br />
Accuracy: ±0,2 % …1 % of reading**<br />
Housing material: Aluminium<br />
Rotor material: PPS<br />
[60H] Measuring range: 150-2500 L/min <br />
[NC] Mech. Connection: G 4 for NPT<br />
[1] Seal: FKM for DON-x45…DON-x60<br />
[Z3] Electronic: dual LCD totaliser/rate, outputs: pulse, analogue, incl. Battery<br />
[N] Cable entry: 1/2 NPT<br />
[0] Options (please specify in clear text): without

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold-Alemania<br />
Model: DON-1-50H-NB-1-Z3-N-0</strong><br />
[DON-1] Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
max. Temperature: 80 °C<br />
max. Pressure: 16...64 bar<br />
Accuracy: ±0,2 % …1 % of reading**<br />
Housing material: Aluminium<br />
Rotor material: PPS<br />
[50H] Measuring range: 50-1000 L/min<br />
[NB] Mech. Connection: G 3<br />
[1] Seal: FKM for DON-x45…DON-x60<br />
[Z3] Electronic: dual LCD totaliser/rate, outputs: pulse, analogue, incl. Battery<br />
[N] Cable entry: 1/2 NPT<br />
[0] Options (please specify in clear text): without

Rotating Vane Flow Meter<br />
Brand: Kobold-Alemania<br />
Model: DOR-42-2-F-N8-F5-00-0<br />
Operating principle: Rotating Vane<br />
Flow direction: in direction of arrow<br />
Housing material: 316L st. St<br />
max. Temperature: 100 °C<br />
max. Pressure: max. 80 bar<br />
Accuracy: 1 % of f.s<br />
[2] Rotor material: PVDF-rotor/ shaft st. Steel<br />
[F] seal: FPM (standard)<br />
[N8] Mechanical connection: 1 1/2 NPT male<br />
[F5] Output: NPN OC + 1,5 V-pulse + terminal box on stem kit<br />
[00] Electronic: only frequency output<br />
[0] Options: none

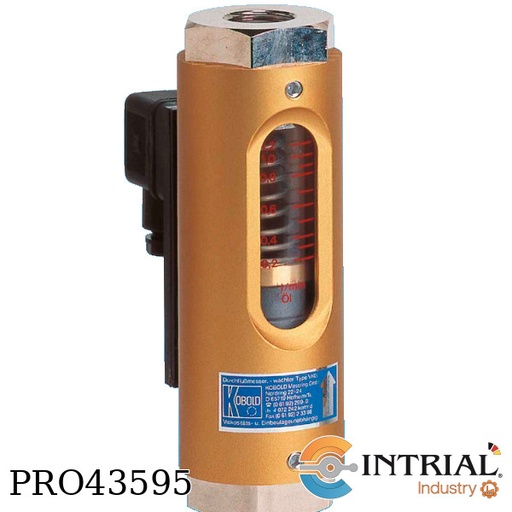

Viscosity Compensated Flowmeter/-switch<br />
Brand: Kobold(Alemania)<br />
Model: VKG-21-07-R0-N20-B<br />
[VKG-21]<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Sight glass Duran<br />
Side mounted dial w/o<br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 12 bar<br />
Viscosity range 1...540 mm²/s<br />
[07] Measuring range; 4...20 L/min oil<br />
[R0] Contact; 1 N/O<br />
[N20] Connection;  3/4 NPT female<br />
[B] Option special connection<br />
on top female thread, bottom BVB

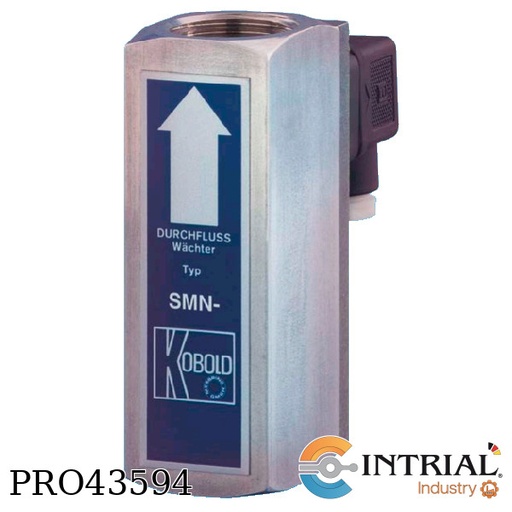

<strong>All-Metal-Flow Switch<br />
Brand: Kobold Alemania<br />
Model: SMN-11-50H-R0-N25</strong><br />
[SMN-11]<br />
Operating principle variable area  <br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material brass<br />
Seal w/o<br />
Switch point ca. 1 L/min (decreasing)<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 250 bar<br />
[50H] Switching range, flow up to 100 L/min water<br />
[R0] Contact, 1 N/O<br />
[N25] Connection, 1 NPT female

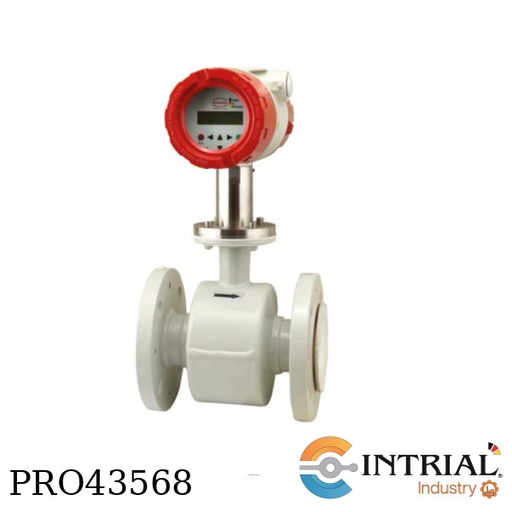

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-E-375B-1-H-H-1-0+UMF2-A-1-1-G-0BK<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[EPS] Sensor<br />
[E] Material Lining, EPDM,<br />
Electrodes Standard 2x Measuring Electrodes,<br />
Process-Temperature, -10...+70°C<br />
[375B] Process connection, DN400 PN10 Form B1 DIN EN 1092-1<br />
Max. measuring range, 4191 m³/h, Installation length, 600 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[H] Earthing electrode, Hastelloy<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br />
<br />
Model: UMF2-A-1-1-G-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-E-350B-1-H-H-1-0+UMF2-A-1-1-G-0BK<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[EPS] Sensor<br />
[E] Material Lining, EPDM,<br />
Electrodes Standard 2x Measuring Electrodes,<br />
Process-Temperature, -10...+70°C<br />
[350B] Process connection, DN200 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range, 1110 m³/h, Installation length, 350 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[H] Earthing electrode, Hastelloy<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br />
<br />
Model: UMF2-A-1-1-G-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-E-317B-1-H-H-1-0+UMF2-A-1-1-G-0BK<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[EPS] Sensor<br />
[E] Material Lining, EPDM,<br />
Electrodes Standard 2x Measuring Electrodes,<br />
Process-Temperature, -10...+70°C<br />
[317B] Process connection, DN40 PN40 Form B1 DIN EN 1092-1<br />
Max. measuring range, 38 m³/h, Installation length, 200 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[H] Earthing electrode, Hastelloy<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br />
<br />
Model: UMF2-A-1-1-G-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-E-362B-1-H-H-1-0+UMF2-A-1-1-G-0BK<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[EPS] Sensor<br />
[E] Material Lining, EPDM,<br />
Electrodes Standard 2x Measuring Electrodes,<br />
Process-Temperature, -10...+70°C<br />
[362B] Process connection, DN300 PN10 Form B1 DIN EN 1092-1<br />
Max. measuring range, 2560 m³/h, Installation length, 500 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[H] Earthing electrode, Hastelloy<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br />
<br />
Model: UMF2-A-1-1-G-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

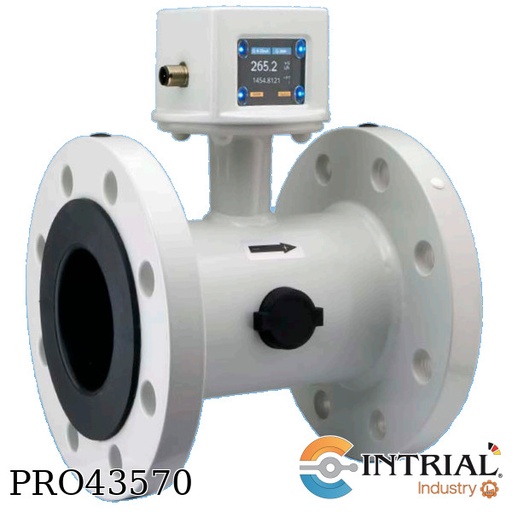

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-362B-1-H-H-1-0+UMF2-A-1-1-G-0BK<br />
Brand: Heinrichs (KOBOLD Group)</strong><br />
[EPS] Sensor<br />
[H] Material Lining, Hard Rubber (Ebonit), Standard 2x Measuring Electrodes,<br />
Process-Temperature, 0°C…+95°C<br />
[362B] Process connection, DN300 PN10 Form B1 DIN EN 1092-1<br />
Max. measuring range, 2560 m³/h, Installation length, 500 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[H] Earthing electrode, Hastelloy<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br />
<br />
Model: UMF2-A-1-1-G-0BK<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-20H-N4-1-E3-N-0<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. Temperatura: 120 °C<br />
max. Pressure: 16…100 bar<br />
Accuracy ±0,2 % …1 % of Reading<br />
Housing material: st. Steel<br />
Rotor material: st. Steel<br />
[20H] Measuring range; 1-40 L/min<br />
[N4] Mech. Connection; 1/2 NPT<br />
[1] Seal; FKM up to DON-x25<br />
[E3] Electronic; Z3 electronic with ATEX approval (Exi), incl. battery<br />
[N] Cable entry; 1/2 NPT<br />
[0] Options; without<br />

EPS Electromagnetic Flow Meter<br />
Brand: Kobold – Heinrich<br />
[E] Material Lining: EPDM:<br />
Protection class, sensor Standard 2x Measuring- + 2x Groundelectrodes, <br />
Process-Temperature: -10...+70°C<br />
[380B] DN500 PN10 Form B1 DIN EN 1092-1: 6669 m³/h: 600 mm<br />
[1]Material Process connection: Flange steel painted<br />
[S] Material electrodes: st.st. 1.4571 (316 -TI)<br />
{S] Earthing electrode: st.st. 1.4571 (316 TI)<br />
[S] Transmitter mounting: Remote Transmitter: <br />
Protection class, sensor: IP 67 terminal conn.box via M 20 x 1,5: cable > 10m add. term.conn.box on transmitter<br />
[0] Certificates: w/o <br />
UMF2-C-1-2-G-0BK-/-2<br />
EPS Electromagnetic Flow Meter<br />
Brand: Kobold- Heinrich<br />
UMF2-[C]: Remote transmite: incl 2,5 m cable, c/w pipe-/wall mounting bracket, cable > 10m add. term.conn.box on transmitter ½" NPT (f)<br />
[1]Display and control unit: Integrated<br />
[2]Power supply: 115V AC (+10%, -15%), 50/60Hz<br />
[G] Output signal: current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[OBK] Design: Kobold<br />
[2]Longer cable: 10m : breakout cable<br />
<br />
<br />

EPS Electromagnetic Flow Meter<br />
Brand: Kobold – Heinrich<br />
Model: EPS-H-380B-1-S-S-2-0<br />
[H] Material Lining;  Hard Rubber (Ebonit) <br />
Electrodes: Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature: 0°C…+95°C<br />
[380B] Process connection: DN500 PN10 Form B1 DIN EN 1092-1: <br />
Max. measuring range (Water 20°C, 1 mPas):6669 m³/h, <br />
Installation length : 600 mm<br />
[1]Material Process connection: Flange steel painted<br />
[S] Material electrodes: st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode: st.st. 1.4571 (316 TI)<br />
[S] Transmitter mounting: Remote Transmitter: <br />
Protection class, sensor: IP 67 terminal conn.box via M 20 x 1,5: cable > 10m add. term.conn.box on transmitter<br />
[0] Certificates: w/o <br />
6929<br />
<br />
UMF2-C-1-2-G-0BK-/-2<br />
EPS Electromagnetic Flow Meter<br />
Brand: Kobold- Heinrich<br />
Model: UMF2-C-1-2-G-0BK-/-2<br />
UMF2-[C]: - Mounting: Remote transmite <br />
Connection to sensor : incl 2,5 m cable, c/w pipe-/wall mounting bracket, <br />
Thread - electrical connection: cable > 10m add. term.conn.box on transmitter ½" NPT (f)<br />
[1]Display and control unit: Integrated<br />
[2]Power supply: 115V AC (+10%, -15%), 50/60Hz<br />
[G]Output signal: current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC <br />
[OBK] Design: Kobold<br />
[2]Longer cable: 10m : breakout cable

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-42-69-N0</strong><br />
[KFR-42]<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length, 165 mm<br />
Accuracy, ±3 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, St.st.<br />
Connection size,1/8" NPT female on rear<br />
Seal, FPM<br />
[69] Measuring range, 1...10 L/min water<br />
[N0] Options,  Needle valve<br />


Differential Pressure Flow Meter / Monitor<br />
Brand: Kobold(Alemania)<br />
Model: RCD-11-25L-N6-C34P  <br />
perating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class IP 65<br />
max. temperature 80 °C (100 °C)<br />
max.pressure 40 bar<br />
[25L] Measuring range: 20-188 m³N/h Luft/Air (20 °C; 1 bar abs)<br />
[N6] Process Connection; 1 NPT female<br />
[C34P] Evaluating electronics; 4-20mA, 1x PNP<br />

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIS-H-335B-1-HH-100<br />
Brand: Kobold (Alemania)</strong><br />
[MIS]<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display window PMMA<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H] Material Lining, Hard rubber (NBR)<br />
[335B] Flange size, DIN EN 1092-1, Form A DN100 PN16<br />
[1] Material Process Connection, steel, coated<br />
[HH] Measuring and Grounding electrodes, Hastelloy C-276<br />
[100] Transmitter Mounting, direct mounted<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-335B-1-S-S-2-0+UMF2-C-1-1-G-0BK_1<br />
Brand: Heinrichs (Kobold Group)</strong><br />
[EPS]: Sensor Model<br />
[H] Material Lining, Hard Rubber (Ebonit)<br />
Standard 2x Measuring- + 2x Groundelectrodes<br />
Process-Temperature 0°C…+95°C<br />
[335B] Process connection, DN100 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range 274 m³/h, length, Installation 250 mm<br />
[1] Material Process connection, Flange steel painted<br />
[S] Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S] Earthing electrode, st.st. 1.4571 (316 TI)<br />
[2] Transmitter mounting, Remote Transmitter<br />
Protection class, sensor IP 67 terminal conn.box via M 20 x 1,5<br />
[0] Certificates, w/o<br />
<br />
[UMF2] Transmitter Model<br />
[C] Mounting, Remote transmitterr IP 67 standard,<br />
Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread – electrical connection, ½" NPT (f).<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold<br />
[1] Loger cable 5m

EPS Electromagnetic Flow Meter<br />
Brand: KOBOLD (Heinrichs)<br />
Model: EPS-H-335B-1-S-S-1-0<br />
[H]: Lining material, Hardrubber (Ebonite)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes<br />
Process temperature, 0…+95 °C<br />
[335B]: Process connection,<br />
DIN - Flange, DN100 PN16 Form B1 DIN EN 1092-1<br />
Q Max., 274,0 m³/h<br />
Installation length, 250 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br />
<br />
Include<br />
TRANSMITTER<br />
Brand: KOBOLD (Heinrichs)<br />
Model: UMF2-A-1-1-G-0BK<br />
[A]: Transmitter design, compact mounting<br />
protection class, IP 67<br />
Conduit port opening, 1/2" NPT (f)<br />
[1]: Display / Interface board, Integral within transmitter housing<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output,<br />
1x current output: 4...20mA, active. With HART® protocol<br />
1x pulse output: passive Um=24V DC<br />
1x status output: passive Um=24V DC<br />
[0BK]: Design, Kobold
