<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KDG-22-51-N-V-S-00-0</strong><br />
[KDG-22]:<br />
Mounting length 125 mm<br />
Operating principle variable area<br />
Flow direction from bottom to top<br />
Body material st.st.<br />
Glass Borosilicate<br />
Accuracy class 2.5<br />
Max. temperature without/with contact  100 °C / 80 °C<br />
Max. pressure PN 16<br />
With needle valve<br />
[51]: Measuring range, 180...1800 L/h air<br />
[N]: Connection, 1/4 NPT<br />
[V]: Seal, FPM<br />
[S]: Panel mounting kit: with panel mounting set<br />
[00]: Contacts measuring range, w/o<br />
[0]: Flow differential pressure regulator, w/o

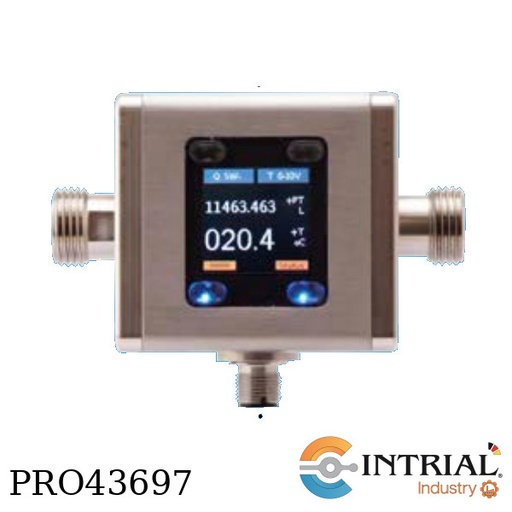

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-05HG4-C3T-0+ ZUB-KAB-12-K002</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing / insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[05HG4] Measuring range (flow/temperature), 0,04…10 l/min / [°C] G ½ male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0] Options, without<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold-Alemania<br />
Model: ZUB-KAB-12-K002<br />
[K002]: Version: M12x1 box 2 m cable, 4-pin

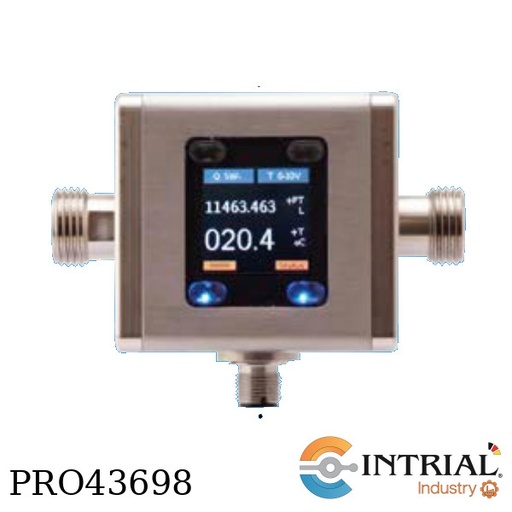

Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-3-03HG4-C3T-0 + ZUB-KAB-12-K002<br />
[MIM-1]:<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[3]: Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / EPDM<br />
[03HG4]: Measuring range (flow/temperature), 15…3000 ml/min / [°C] G ½ male<br />
[C3T]: Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without<br />
Accessories round plug<br />
Brand: Kobold-Alemania<br />
Model: ZUB-KAB-12-K002<br />
[K002]: Version: M12x1 box 2 m cable, 4-pin

<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-1209-R0-N20-0</strong><br />
[VKM-12]:<br />
Operating principle: variable area<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Body material: St.St.<br />
Seal: FPM<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS (at 105 mm²/s)<br />
Max. temperature: 100 °C<br />
Max. pressure: 350 Bar<br />
Viscosity range: 1...540 mm²/s<br />
[09]: Measuring range, 4...40 L/min oil<br />
[R0]: Contact, 1 N/O<br />
[N20]: Connection, 3/4 NPT female***<br />
***for 14 up to 70 L/min<br />
[0]: Option special connection,w/o<br />


<strong>Multivariable Vortex Flowmeter<br />
Model: DVH-P-15-1-S-L-L-2-S-3-H<br />
Brand: Kobold - Heinrich</strong><br />
[DVH] Model<br />
[P]: Elektronic – Options: Flow Velocity including temperature and pressure sensor<br />
[15]: Flow Body FLANGE: DN15 DIN EN, 1/2 inch ANSI, JIS 15<br />
[1]: Process Connection: ANSI 150 lbs ASME B16.5.2003 (not for wafer) <br />
[S]: Material Flow Body:  st.st. 1.4404 / 316 L (standard)<br />
[L]: Sensor Configuration / Mounting Option: Kompakt inkl. LCD Anzeige,IP 66 / Nema 4 <br />
[L]: Input Power, 12-36 VDC loop powered <br />
[2]: Output Signal, Loop powered 1x 4-20mA, HART 1 x pulse only with Input Power L passive<br />
[S]: Process Temperature,:Standard Temperature -200….+260 °C -330+500°F<br />
[3]: Option Pressure Sensor (Electronic versions T/P/E/M) (min. temp -40°C): Incl. Pressure Sensor 20 bar abs ( 300 psia) Electr.version P / M 41 bar abs. (600 psia)<br />
[H]: Version, Heinrichs

<strong>Thermal Mass Flow Meter for Gas<br />
Brand: Kobold(Alemania)<br />
Model: KEC-2-M-A15-1-A-S-0-0</strong><br />
function principle: Direct thermal Flow<br />
Mounting position: all directions<br />
Versión: inline version<br />
Output: Modbus RTU, 2x4-20 mA (°C/Nm³/h), Modbus TCP, puls, alarm<br />
Counter: 1 total counters (resettable)<br />
max. Temperatura: -40…+180 °C, -20…+120°C (data sheet)<br />
max. Pressure: 10 (40) bar<br />
Accuracy: ±1,5% of meas. value, ±0,3% of F.S. Option: ±1,0% of meas. value, ±0,3% of F.S.<br />
sensor material: st. st. 1.4571 /glass<br />
[M] Measuring range; Max. Version 185 m/s<br />
[A15] Connection / sensor-length; Flange 1/2" ASME Class 150<br />
[1] Display; 2" TFT-display, backlight<br />
[A] Gas type; Argon, carbon dioxide, oxygen, nitrous oxide ,methane,propane<br />
[S] max. Pressure; 16 bar (standard)<br />
[0] Calibration; Standard<br />
[0] Option; w/o<br />
<br />


All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs <br />
Model: BGN-S50-321B-S-0-0-0-0-T-1-6-0-H<br />
[S50] Stainless Steel, process temperature ≤ 350°C<br />
[321B] Connection, size: DN50 PN40 Form B1 DIN EN 1092-1<br />
[S] Range (water 20°C, 1 mPas): H2O: 1000 - 10000 l/h<br />
[0] Heating / cooling; without heating / Cooling<br />
[0] Damping / spring stop: without  <br />
[0] Self draining: without<br />
[0] Certificates: without<br />
[T] Display: Standard display housing with pressure compensation<br />
Process temperature ≤ 150°C for electrical output<br />
Process temperature ≤ 200°C for local indication<br />
[1] Scale: %-Scale (Water)<br />
[6] Switches: Transmitter ES with HART-protocol, 4-20 mA,<br />
EEx ia -40° to +70°C, <br />
[0] Accessories, without<br />
[H] Design, Heinrichs

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs<br />
Model: BGN-S25-309B-P-0-0-0-0-T-1-6-0-H</strong><br />
[S25] Stainless Steel, process temperature ≤ 350°C<br />
[309B] Connection, size: DN25 PN40 Form B1 DIN EN 1092-1<br />
[P] Range (water 20°C, 1 mPas): 250 - 2500 l/h<br />
[0] Heating / cooling; without heating / Cooling<br />
[0] Damping / spring stop: without  <br />
[0] Self draining: without<br />
[0] Certificates: without<br />
[T] Display: Standard display housing with pressure compensation<br />
Process temperature ≤150°C for electrical output<br />
Process temperature ≤ 200°C for local indication<br />
[1] Scale: %-Scale (Water)<br />
[6] Switches: Transmitter ES with HART-protocol, 4-20 mA,<br />
EEx ia -40° to +70°C<br />
[0] Accessories, without<br />
[H] Design, Heinrichs

<strong>VISCOSITY COMPENSATED FLOWMETER /-SWITCH <br />
Brand: KOBOLD (Alemania)<br />
Model: VKM-31-06-HH-N15-0-B</strong><br />
[VKM-31]<br />
Operating principle: variable área<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Body material: Brass<br />
Seal: NBR<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS  (at 105 mm²/s)<br />
Max. Temperatura: 100 °C<br />
Max. Pressure: 250 bar<br />
Viscosity range: 1...540 mm²/s<br />
[06] Measuring range: 3...9 L/min oil<br />
[HH] Contact: 2 ATEX cahngeover type 41R57U<br />
[N15] Connection: 1/2 NPT female<br />
[O] Option special connection :w/o <br />
[B]:Flow direction : from bottom

<strong>VISCOSITY COMPENSATED FLOWMETER /-SWITCH <br />
Brand: KOBOLD (Alemania)<br />
Model: VKM-31-06-HH-N15-B-B</strong><br />
[VKM-31]<br />
Operating principle: variable área<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Body material: Brass<br />
Seal: NBR<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS  (at 105 mm²/s)<br />
Max. Temperatura: 100 °C<br />
Max. Pressure: 250 bar<br />
Viscosity range: 1...540 mm²/s<br />
[06] Measuring range: 3...9 L/min oil<br />
[HH] Contact: 2 ATEX cahngeover type 41R57U<br />
[N15] Connection: 1/2 NPT female<br />
[B] Option special connection: on top female thread, bottom BVB<br />
[B]:Flow direction : from bottom

<strong>All-Metal-Flowmeter / Switch<br />
Brand: Kobold (Alemania)<br />
Model: SMO-32-09H-R0-R15</strong><br />
[SMO-32]:<br />
Operating principle: variable area<br />
Mounting position: vertical<br />
Flow direction: from top<br />
Body material: St.St.<br />
Seal :FPM<br />
Side mounted indication: yes<br />
Switch point: adjustable<br />
Accuracy: ±5 % FS<br />
Max. Temperatura: 100°C<br />
Max. pressure 350 bar<br />
[09H]: Adjustment range: 2...18 L/min water<br />
[R0]: Contact: 1 N/O<br />
[R15]: Connection: G 1/2 female<br />

<br />
<strong>Coriolis Massflowmeter<br />
Model: TMU-S-015-205R-A-0-0-A-0-1-1-0-H-UMC4-B-1-2-A-0-0<br />
Brand: Kobold - Heinrichs</strong><br />
[TMU-S]<br />
Wetted materials: Stainless steel<br />
[015]: Meter line size: DN15, ANSI ½"<br />
Range: 3000 l/h<br />
[205R]: Process connection: 1½" Class 150 RF ASME B16.5-2003<br />
Installation length: 586 mm<br />
[A]: Containment options: Stainless steel containment 1.4301 (304)<br />
[0]: Heating/cooling: none<br />
[0]: Connection für heating/cooling: none<br />
[A]: Sensor configuration: Integral mount transmitter<br />
Process temperature: -4° to 212°F, -20° to 100°C<br />
[0]: Approvals: none<br />
[1]: Calibration flow, Standard, 3-point<br />
[1]: Calibration density, Standard (3-point)<br />
[0]: Supplementary equipment: None<br />
[H]: Design, Heinrichs<br />
<br />
[UCMC4], Transmitter<br />
[B] Mounting Integral mount, M20 x 1,5 <br />
[1]: Display/Interface board: Integral within transmitter housing, <br />
for ambient temperature up to 60°C<br />
[2]: Power supply: 19-36 VDC, 24 VAC (±20 %), 50/60 Hz<br />
[A]: Output: 1x 0(4)-20 mA with HART®,1x 0(4)-20 mA,<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approvals, none<br />
[0]: Type of protection (signal output): none

<strong>Coriolis Massflowmeter<br />
Model: TMU-S-010-225R-A-0-0-A-0-1-1-0-H+UMC4-B-1-2-A-0-0<br />
Brand: Kobold - Heinrichs</strong><br />
[TMU-S]<br />
Wetted materials: Stainless steel<br />
[010]: Meter line size: DN10, ANSI 3/8"<br />
Range: 1500 l/h<br />
[225R]: Process connection:  1½" Class 300 RF ASME B16.5-2003 <br />
Installation length: 500 mm<br />
[A]: Containment options: Stainless steel containment 1.4301 (304)<br />
[0]: Heating/cooling: none<br />
[0]: Connection für heating/cooling: none<br />
[A]: Sensor configuration: Integral mount transmitter<br />
Process temperature: -4° to 212°F, -20° to 100°C<br />
[0]: Approvals: none<br />
[1]: Calibration flow, Standard, 3-point<br />
[1]: Calibration density, Standard (3-point)<br />
[0]: Supplementary equipment: None<br />
[H]: Design, Heinrichs<br />
<br />
[UCMC4], Transmitter<br />
[B] Mounting Integral mount, M20 x 1,5 <br />
[1]: Display/Interface board: Integral within transmitter housing, <br />
for ambient temperature up to 60°C<br />
[2]: Power supply: 19-36 VDC, 24 VAC (±20 %), 50/60 Hz<br />
[A]: Output: 1x 0(4)-20 mA with HART®,1x 0(4)-20 mA,<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approvals, none

<strong>Coriolis Massflowmeter<br />
Model: TMU-S-010-203R-A-0-0-A-0-1-1-0-H+UMC4-B-1-2-A-0-0<br />
Brand: Kobold - Heinrichs</strong><br />
[TMU-S]<br />
Wetted materials: Stainless steel<br />
[010]: Meter line size: DN10, ANSI 3/8"<br />
Range: 1800 l/h<br />
[203R]: Process connection:  1" Class 150 RF ASME B16.5-2003<br />
Installation length: 460 mm<br />
[A]: Containment options: Stainless steel containment 1.4301 (304)<br />
[0]: Heating/cooling: none<br />
[0]: Connection für heating/cooling: none<br />
[A]: Sensor configuration: Integral mount transmitter<br />
Process temperature: -4° to 212°F, -20° to 100°C<br />
[0]: Approvals: none<br />
[1]: Calibration flow, Standard, 3-point<br />
[1]: Calibration density, Standard (3-point)<br />
[0]: Supplementary equipment: None<br />
[H]: Design, Heinrichs<br />
<br />
[UCMC4], Transmitter<br />
[B] Mounting Integral mount, M20 x 1,5 <br />
[1]: Display/Interface board: Integral within transmitter housing, <br />
for ambient temperature up to 60°C<br />
[2]: Power supply: 19-36 VDC, 24 VAC (±20 %), 50/60 Hz<br />
[A]: Output: 1x 0(4)-20 mA with HART®,1x 0(4)-20 mA,<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approvals, none<br />
[0]: Type of protection (signal output): none

Coriolis Massflowmeter<br />
Model: TMU-S-025-206R-A-0-0-A-0-1-1-0-H+UMC4-B-1-2-A-0-0<br />
Brand: Kobold - Heinrichs<br />
[TMU-S]<br />
Wetted materials: Stainless steel<br />
[025]: Meter line size: DN25, ANSI 1" <br />
Range: 8000 l/h<br />
[206R]: Process connection: 2" Class 150 RF ASME B16.5-2003 <br />
Installation length: 530 mm<br />
[A]: Containment options: Stainless steel containment 1.4301 (304)<br />
[0]: Heating/cooling: none<br />
[0]: Connection für heating/cooling: none<br />
[A]: Sensor configuration: Integral mount transmitter<br />
Process temperature: -4° to 212°F, -20° to 100°C<br />
[0]: Approvals: none<br />
[1]: Calibration flow, Standard, 3-point<br />
[1]: Calibration density, Standard (3-point)<br />
[0]: Supplementary equipment: None<br />
[H]: Design, Heinrichs<br />
<br />
[UCMC4], Transmitter<br />
[B] Mounting Integral mount, M20 x 1,5 <br />
[1]: Display/Interface board: Integral within transmitter housing, <br />
for ambient temperature up to 60°C<br />
[2]: Power supply: 19-36 VDC, 24 VAC (±20 %), 50/60 Hz<br />
[A]: Output: 1x 0(4)-20 mA with HART®,1x 0(4)-20 mA,<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approvals, none<br />
[0]: Type of protection (signal output): none

<br />
<strong>Coriolis Massflowmeter<br />
Model: TMU-S-015-205R-A-0-0-A-0-1-1-0-H-UMC4-B-1-2-A-0-0<br />
Brand: Kobold - Heinrichs</strong><br />
[TMU-S]<br />
Wetted materials: Stainless steel<br />
[015]: Meter line size: DN15, ANSI ½"<br />
Range: 4500 l/h<br />
[205R]: Process connection: 1½" Class 150 RF ASME B16.5-2003<br />
Installation length: 586 mm<br />
[A]: Containment options: Stainless steel containment 1.4301 (304)<br />
[0]: Heating/cooling: none<br />
[0]: Connection für heating/cooling: none<br />
[A]: Sensor configuration: Integral mount transmitter<br />
Process temperature: -4° to 212°F, -20° to 100°C<br />
[0]: Approvals: none<br />
[1]: Calibration flow, Standard, 3-point<br />
[1]: Calibration density, Standard (3-point)<br />
[0]: Supplementary equipment: None<br />
[H]: Design, Heinrichs<br />
<br />
[UCMC4], Transmitter<br />
[B] Mounting Integral mount, M20 x 1,5 <br />
[1]: Display/Interface board: Integral within transmitter housing, <br />
for ambient temperature up to 60°C<br />
[2]: Power supply: 19-36 VDC, 24 VAC (±20 %), 50/60 Hz<br />
[A]: Output: 1x 0(4)-20 mA with HART®,1x 0(4)-20 mA,<br />
Analog output 2: 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0]: Approvals, none<br />
[0]: Type of protection (signal output): none

<strong>Thermal Mass Flow Meter for Gas<br />
Brand: Kobold<br />
Model: KMT-1-26-R-1-0-L-1-N-Q-3</strong><br />
[KMT-1]<br />
Function principle Direct thermal flow<br />
Sensor fix mounted<br />
Flow direction, right to left <br />
Power supply 18-30 VAC/DC<br />
max. pressure / max. temperature PN 16 / 80 °C<br />
Sensor material st. st./ plastic<br />
[26] Measuring range, 0.90-352 Nm³/h for tube DN 25 (1")<br />
[R] Connection, Ball valve with G-thread<br />
[1] Display, LCD-display<br />
[0] Cable length sensor/electronik , w/o<br />
[L] Medium, AIR<br />
[1] Units, SI units<br />
[N] Physical size,output 1, <br />
Standard volume flow (standard Nm³/h)<br />
[Q] Physical size,output 2, Consumption (standard Nm³)<br />
[3] Output 1/ Output 2, Analogue-output 0-10 V / totalizer output

Flow Limiter Multiple units<br />
Model:  REG-92-R656-240<br />
Brand: Kobold<br />
[REG-92]:<br />
operating temperature max. 300 °C<br />
operating pressure max. 200 bar<br />
differential pressure min. 1,5 bar / max. 10 bar<br />
type of thread, outside<br />
[R656] Size, G 2 1/2; 6-fold<br />
[240] flow rate, 3.0 a 240 L/min<br />
* Operation range 167 L/ min

<strong>Variable Area Flowmeter/-switch Glass Cone<br />
Brand: Kobold-Alemania<br />
Model: URK-33-31H-L-A9-0</strong><br />
Operating principle: variable área<br />
variable área: vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Type: loose flange<br />
Max. Temperatura: 100 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Housing: st. st. 1.4301<br />
Connection: 1.4301<br />
Float: 1.4301<br />
Ring: PTFE<br />
Seal: FPM<br />
[31H] Range Full Scale: wáter: 6300 L/h  <br />
[L] Type: loose flange<br />
[A9] ANSI 150 lbs: 2"<br />
[0] Contacts: w/o

<strong>Variable Area Flowmeter/-switch Glass Cone<br />
Brand: Kobold-Alemania<br />
Model: URK-33-19H-L-A6-0</strong><br />
Operating principle: variable área<br />
variable área: vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Type: loose flange<br />
Max. Temperatura: 100 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Housing: st. st. 1.4301<br />
Connection: 1.4301<br />
Float: 1.4301<br />
Ring: PTFE<br />
Seal: FPM<br />
[19H] Range Full Scale: wáter: 400 L/h <br />
[L] Type: loose flange<br />
[A6] ANSI 150 lbs: 1"<br />
[0] Contacts: w/o
