Restriction Orifice Plate<br />
Brand: Kobold<br />
Model: RO-S00<br />
Single stage<br />
Type: concentric<br />
Size: 2" 150#<br />
Plate thicnness: 0.125" (3 mm)<br />
Bore diameter: 7.27 mm<br />
Material: AISI-316L<br />
Mounting: Between customer´s flange<br />
TAG: RO-341 (see attached data sheet)

<strong>Bypass-Level Indicators with glass tube<br />
Brand: Kobold Alemania<br />
Model: SZM-S-4-1-N4-G1-G1-0</strong><br />
[SZM-S]<br />
Bypass- tube: Borosilicate glass<br />
O-ring: FPM<br />
Protecting tube: st. steel 1.4404<br />
Connection: st. steel 1.4404<br />
Max. temperature: 100 °C<br />
Max. pressure 10 bar<br />
Installation length: 2640 mm<br />
[4] Version (top/bottom): top: closed, bottom: drain valve<br />
[1] Valves: 2 shut off valves in connection<br />
[N4] Connection: union nut 1/2" NPT male<br />
[G1] Scale: Plastic foil on meas. tube (2 mm-division)<br />
[G1] Length of sclae, Plastic foil on meas. tube (2 mm-division)<br />
[0] Limit switch: without<br />
<br />


Thermal Mass Flow Meter for Gas<br />
Brand: Kobold(Alemania)<br />
Model: KEC-2-M-R15-1-A-H-E-0<br />
function principle: Direct thermal Flow<br />
Mounting position: all directions<br />
Versión: inline versión<br />
Output: Modbus RTU, 2x4-20 mA (°C/Nm³/h), Modbus TCP, puls, alarm<br />
Counter: 1 total counters (resettable)<br />
max. Temperatura: -40…+180 °C, -20…+120°C (data sheet)<br />
max. Pressure: 10 (40) bar<br />
Accuracy: ±1,5% of meas. value, ±0,3% of F.S. Option: ±1,0% of meas. value, ±0,3% of F.S.<br />
sensor material: st. st. 1.4571 /glass<br />
[M] Measuring range; Max. Version 185 m/s<br />
[R15] Connection / sensor-length; G 1/2 male <br />
[1] Display; 2" TFT-display, backlight<br />
[A] Gas type; Argon<br />
[H] max. Pressure; 40 bar (high pressure)<br />
[E] Calibration; real gas calibration<br />
[0] Option; w/o<br />

Thermal Mass Flow Meter for Gas<br />
Brand: Kobold(Alemania)<br />
Model: KEC-2-M-R15-1-N-H-E-0<br />
function principle: Direct thermal Flow<br />
Mounting position: all directions<br />
Versión: inline versión<br />
Output: Modbus RTU, 2x4-20 mA (°C/Nm³/h), Modbus TCP, puls, alarm<br />
Counter: 1 total counters (resettable)<br />
max. Temperatura: -40…+180 °C, -20…+120°C (data sheet)<br />
max. Pressure: 10 (40) bar<br />
Accuracy: ±1,5% of meas. value, ±0,3% of F.S. Option: ±1,0% of meas. value, ±0,3% of F.S.<br />
sensor material: st. st. 1.4571 /glass<br />
[M] Measuring range; Max. Version 185 m/s<br />
[R15] Connection / sensor-length; G 1/2 male <br />
[1] Display; 2" TFT-display, backlight<br />
[N] Gas type; Nitrogen<br />
[H] max. Pressure; 40 bar (high pressure)<br />
[E] Calibration; real gas calibration<br />
[0] Option; w/o<br />

<br />
<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-31-12-R0-R25-0-L</strong><br />
[VKM-31]<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal: NBR<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS (at 105 mm²/s)<br />
Max. temperature: 100 °C<br />
Max. pressure: 250 bar<br />
Viscosity range: 1...540 mm²/s<br />
[12] Measuring range, 8...80 L/min oil<br />
[R0] Contact, 1 N/O<br />
[R25] Connection, G 1 female<br />
[0] Option special connection, w/o<br />
[L] Flow direction, from left

<div><strong>Viscosity Compensated Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKG-41-04-R0-R15-B</strong><br />
[VKG-41]<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material Brass<br />
Seal NBR<br />
Sight glass Duran<br />
Side mounted dial with<br />
Switch point adjustable<br />
Accuracy ±4 % FS (at 105 mm²/s)<br />
Max. temperature 100 °C<br />
Max. pressure 12 bar<br />
Viscosity range 1...540 mm²/s<br />
[04] Measuring range, 0,6...3,4 L/min oil<br />
[R0] Contact, 1 N/O<br />
[R15] Connection, 1/2 G female<br />
[B] Option special connection, on top female thread, bottom BVB     <br />
  </div>

<strong>Oval Gear Flow Meter-Counter<br />
Model: DON-1-45H-NB-4-Z3-N-0<br />
Brand: Kobold (Alemania)</strong><br />
[DON-1]<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80°C<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[45H] Measuring range, 35-750 L/min<br />
[NB] Mech. connection, 3 NPT<br />
[4] Seal, NBR<br />
[Z3] Electronic, dual LCD totaliser/rate, outputs: pulse, analogue<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without

<strong>All-Metal-Flowmeter / Switch<br />
Brand: Kobold (ALEMANIA)<br />
Model: SMV-32-13H-UU-N15</strong><br />
[SMV-32]: <br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Body St.St.<br />
Seal FPM<br />
Side mounted indication yes<br />
Switch point adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 350 bar<br />
[13H]: Adjustment range, 2.5...20 L/min water<br />
[UU]: Contact, 2 SPDT<br />
[N15]: Connection, 1/2 NPT female

<strong>All-Metal Flowmeter /Switch<br />
Brand: Kobold (ALEMANIA)<br />
Model: SMW-32-05H-L-UU-N15</strong><br />
[SMW-32]:<br />
Operating principle variable area<br />
Mounting position horizontal<br />
Flow direction s. below<br />
Body material St.St.<br />
Seal FPM<br />
Side mounted indication yes<br />
Switch point adjustable<br />
Accuracy ±5 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 350 bar<br />
[05H]: Adjustment range, 2,5...15 L/min water<br />
[L]: Flow direction, from left<br />
[UU]: Contact, 2 SPDT<br />
[N15]: Connection, 1/2 NPT female<br />

<strong>Torsional Paddle Flow Meter/Monitor<br />
Brand: Kobold (ALEMANIA)<br />
Model: DPT-12-15H-N4-K-0-0-2</strong><br />
[DPT-12]:<br />
Operating principle paddle-torsion<br />
Flow direction horizontal, in direction of the arrow<br />
Max. temperature 80 °C<br />
Material st. st.<br />
[15H]: Measuring range, 5,5-30 L/min water<br />
[N4]: Connection size, 1/2 NPT female<br />
[K]: ADI- evaluating electronic, ADI-display Bargraph/Digital<br />
[0]: Power supply, 100-240 VAC/VDC<br />
[0]: Output, w/o<br />
[2]: Contacts, 2 SPDT

<br />
<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-15H-N3-3-E3-N-0</strong><br />
[DON-2]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 120°C<br />
Max. pressure: 16…100 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: st. steel<br />
[15H] Measuring range,15-550 L/h<br />
[N3] Mech. connection for meas. range 15H, NPT 3/8,<br />
[3] Seal, FEP O-seal / EPDM-core up to DON-x15<br />
[E3] dual LCD totaliser/rate  outputs: pulse, analogue electronic<br />
with ATEX approval (Exi)<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS-P-212R-1-H-0-1-0+UMF2-A-1-1-G-0BK</strong><br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[212R]:Process connection, 6" Class 150 RF ASME B16.5-2003<br />
Max. measuring range 632 m³/h,<br />
length, Installation 300 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br />
<br />
UMF2-A-1-1-G-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67<br />
Thread - electrical connection, 1/2 NPT<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

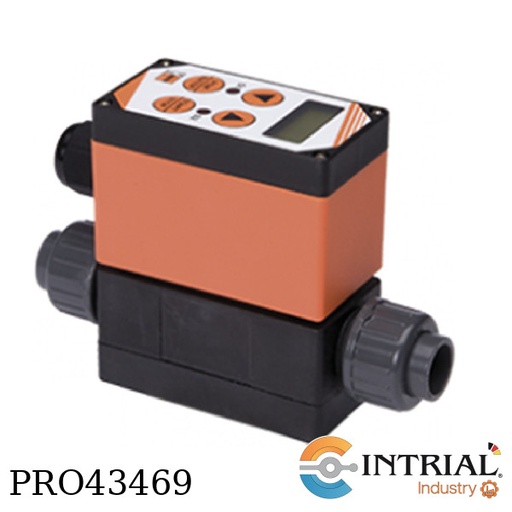

Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold(Alemania)<br />
Model: MIK-6FT-15-P-E14R<br />
Operating principle; Magnetic Inductive<br />
Mounting position; all directions<br />
Max. temperature/pressure; 80 °C / 10 bar<br />
Protection; IP 65<br />
Housing; PVDF<br />
Electrodes; Tantalum<br />
Seal; FFKM<br />
[15] Measuring range (liquid >30 μS/cm); 0,16...3,2 L/min - G 1/2 male<br />
[P] Connection set; G ½ - Ø12/14 mm<br />
[E14R] Evaluation electronic for MIK[4-20 mA, 24 VDC, 1,5 m cable connection]

<strong>Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-8-35H-N9-1-E3-N-0</strong><br />
[DON-8]<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16-100 Bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: st. steel<br />
Rotor material: PPS<br />
[35H] Measuring range, 30-450 L/min<br />
[N9] Mech. connection for meas. range 35H, 2"NPT<br />
[1] Seal, FKM<br />
[E3] Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N] Cable entry, 1/2 NPT<br />
[0] Options, without

<strong>Oval Gear Flow Meter/Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-2-35H-R9-1-M4-0-0</strong><br />
[DON-2]<br />
Operating principle Gear Wheel<br />
Mounting position horizontal / vertical<br />
Flow direction in direction of the arrow<br />
max. temperature 120 °C*<br />
max. pressure 16…100 bar<br />
Accuracy ±0,2 % …1 % of reading<br />
Housing material st. steel<br />
Rotor material st. steel<br />
[35H] Measuring range, 30-450 L/min<br />
[R9] Mech. Connection, G 2 for meas. range 35H<br />
[1] Seal, FKM for DON-x30…DON-x40<br />
[M4] Electronic, mech. totaliser 4-digit<br />
[0] Cable entry, without (only for mechanical totaliser "M4"<br />
[0] Options (please specify in clear text), without

<strong>Plastic Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSM-2-030-H-P40-R0</strong><br />
[KSM-2]<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Polysulfone<br />
Accuracy ±4 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 16 bar**<br />
[030] Measuring range, 300...3000 L/h water<br />
[H] either scales for liquid media, L/h water<br />
[P40] Option connection, PVC G 1 1/2 female<br />
[R0] Option contact, w/o contact

<strong>Pelton Wheel Flow Meter<br />
Brand: Kobold-Alemania<br />
Model: DRB-11-30-N9-F390</strong><br />
[DRB-11]:<br />
Operating principle, Pelton Wheel (4-vane)<br />
Mounting position / flow direction:<br />
in all directions/ in direction of the arrow<br />
Protection IP 65<br />
Max. temperature 80 °C<br />
Max. pressure, 16bar<br />
Accuracy of final value, +/-3%<br />
Material Housing Brass casting<br />
Material Axis Hard metal<br />
[30]: Measuring range, 50-750 L/min<br />
[N9]: Mech. connection, for MR-Code: 25 2 NPT female<br />
[F390]: Electronic, Frequency divider 1...1/128, plug M12x1<br />

<strong>Pelton Wheel Flow Meter<br />
Brand: Kobold-Alemania</strong><br />
<strong>Model: DRB-11-25-N9-F390</strong><br />
[DRB-11]:<br />
Operating principle, Pelton Wheel (4-vane)<br />
Mounting position / flow direction:<br />
in all directions/ in direction of the arrow<br />
Protection IP 65<br />
Max. temperature 80 °C<br />
Max. pressure, 16bar<br />
Accuracy of final value, +/-3%<br />
Material Housing Brass casting<br />
Material Axis Hard metal<br />
[25]: Measuring range, 30-350 L/min<br />
[N9]: Mech. connection, for MR-Code: 25 2 NPT female<br />
[F390]: Electronic, Frequency divider 1...1/128, plug M12x1

<strong>Plastic Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSM-1-030-H-P40-R0</strong><br />
[KSM-1]<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Trogamide<br />
Accuracy ±4 % FS<br />
Max. temperature 60 °C<br />
Max. pressure 16 bar**<br />
[030] Measuring range, 300...3000 L/h water<br />
[H] either scales for liquid media, L/h water<br />
[P40] Option connection, PVC G 1 1/2 female<br />
[R0] Option contact, w/o contact

<strong>Multivariable VORTEX Flowmeter<br />
Brand: Kobold - Heinrichs<br />
Model: DVH-P-25-2-S-L-L-2-S-5-H</strong><br />
[DVH]: Inline Version<br />
[P] Electronic – Options, Flow Velocity including temperature and pressure sensor<br />
[25] Flow Body Flange, DN 25 DIN EN 1 inch ANSI JIS 25<br />
Fluido: Hidrogeno<br />
Rango: 180 a 4300 Nm3/h  <br />
[2] Process Connection, ANSI 300 lbs ASME B16.5.2003<br />
[S] Material Flow Body, Edelstahl 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option,<br />
Compact incl. LCD Display IP 66 / Nema 4<br />
[L] Input Power, 12-36 VDC loop powered<br />
[2] Output Signal, Loop powered 1x 4-20mA, HART 1x Impuls<br />
[S] Process Temperature, Standard Temperature -200….+260 °C<br />
[5] Option Pressure Sensor (Electronic versions T/P/E/M),<br />
Incl. Pressure Sensor 100 bar abs (1500 psia), Electr.version P / M 172 bar abs. (2500 psia)<br />
[H] Version, Heinrichs<br />
<br />
<br />
