<strong>Variable Area Flowmeter/-switch Glass Cone<br />
Brand: Kobold-Alemania<br />
Model: URK-33-11H-L-A4-0</strong><br />
Operating principle: variable área<br />
variable área: vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Type: loose flange<br />
Max. Temperatura: 100 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Housing: st. st. 1.4301<br />
Connection: 1.4301<br />
Float: 1.4301<br />
Ring: PTFE<br />
Seal: FPM<br />
[11H] Range Full Scale: wáter: 63 L/h<br />
[L] Type: loose flange<br />
[A4] ANSI 150 lbs: 1/2"<br />
[0] Contacts: w/o

<strong>Variable Area Flowmeter/-switch Glass Cone<br />
Brand: Kobold-Alemania<br />
Model: URK-33-05H-L-A4-0</strong><br />
Operating principle: variable área<br />
variable área: vertical, flow direction from bottom<br />
Accuracy: Class 4<br />
Type: loose flange<br />
Max. Temperatura: 100 °C<br />
Max. Pressure: 6 bar...16 bar depend see data sheet<br />
Housing: st. st. 1.4301<br />
Connection: 1.4301<br />
Float: 1.4301<br />
Ring: PTFE<br />
Seal: FPM<br />
[05H] Range Full Scale: wáter: 16 L/h<br />
[L] Type: loose flange<br />
[A4] ANSI 150 lbs: 1/2"<br />
[0] Contacts: w/o

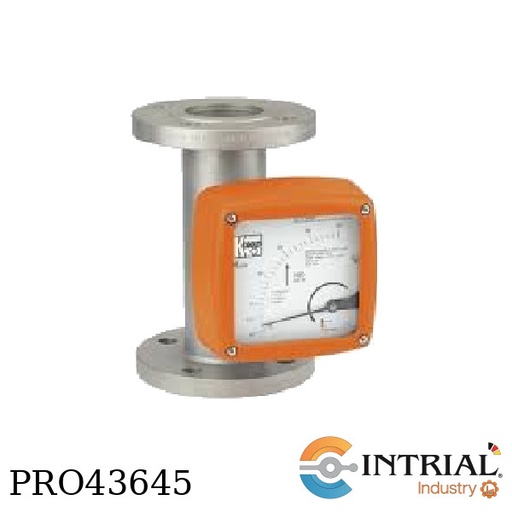

All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S15-6030-L-0-S-0-0-S-5-6-0-K<br />
[BGN]: Model<br />
[S15]: Model, Stainless Steel, process temperature <span style="color:rgb(32,33,36);font-family:arial, sans-serif;font-size:16px;background-color:rgb(255,255,255);"><=</span> 350°C<br />
[6030]: Thread connections, 1/2" NPT(f), 300 mm, float not removable<br />
[L]: Range, 51.06--474.10  Nl/m (108 a 1004 SCFH)<br />
[0]: Heating / cooling, without heating / Cooling<br />
[S]: Damping / spring stop, Gas damping, and spring stop<br />
[0]: Self draining, without<br />
[0]: Certificates, without<br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature <span style="color:rgb(32,33,36);font-family:arial, sans-serif;font-size:16px;background-color:rgb(255,255,255);"><=</span> 150°C for electrical output,<br />
Process temperature <span style="color:rgb(32,33,36);font-family:arial, sans-serif;font-size:16px;background-color:rgb(255,255,255);"><=</span> 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40° to +70°C<br />
[0]: Accessories, without<br />
[K]: Design, Kobold

Turbine Wheel Flowmeter<br />
Model: SFL-1320-R10<br />
Brand: Kobold - Alemania<br />
[SFL-1320]:<br />
Operating principle, Turbine wheel<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
Material, PVDF / EPDM<br />
max. temperature, 90 °C<br />
max. pressure, 16 bar<br />
Accuracy, +- 1% FS<br />
Measuring range (water), 0,5...20 L/min<br />
Output, 6250 Pulse/L<br />
[R10]: Connection, G 3/8 female

Ultrasonic Flow Meter/-Monitor/-Counter/-Doser<br />
Brand: Kobold (Alemania)<br />
Model: DUK-11-N4H-L343-L<br />
[DUK-11]:<br />
Operating principle Ultrasonic<br />
Mounting position all directions<br />
Indication/Output see electronic version<br />
Max. temperature/pressure 90 °C / 16 bar<br />
Protection IP 65<br />
Seal NBR<br />
Sensor Housing Brass<br />
[N4H]: Measuring range/connection, 0,08…20 L/min 1/2 NPT female<br />
[L343]: Evaluation electronic for DUK, 24 VDC, 4-20 mA, plug M12, 3-wire<br />
[L]: Flow direction, from left to right<br />
<br />
Include:<br />
Accessories Round Plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K005<br />
[ZUB-KAB-12]<br />
[K005]: Version: M12x1 socket with 5 m cable, 4 pins

High Performance Coriolis Mass-Flowmeter<br />
Brand: Heinrich Grupo Kobold<br />
Model: HPC-S-01-6140-10-A-4-P0-21-0-H / Transmissor: UMC4-E12A00<br />
[HPC-S]  flow body stainless steel  1.4404 (316L), <br />
measuring pipes  stainless steel  1.4571 (316ti)<br />
[02]     measuring range  0 - 50  kg/h, Sensor 2 mm<br />
[6140]  6 mm Swagelok®,  via adaptor  stainless steel, <br />
installation length  150 mm + ~60 mm<br />
[10] Nominal pressure, PN 100, PN 100<br />
[A] Sensor housing, =   aluminium anodised, up to 120 °C temperature of medium<br />
[4] Mounting style, =    desk mounting (liquids) - measuring tubes bottom-mounted, incl. cradle for placing on flat surfaces<br />
[P] Sensor  configuration , =    remote mount transmitter /   -40 °  to  +80 °C  (-40 °F  to  176 °F) /  ODU Mini Snap®,  IP 68<br />
[0] Approvals, = withou<br />
[2] Calibration mass-flow, =   10-point<br />
[1] Calibration density,  standard (3-point<br />
[0] Supplementary equipment,  without<br />
[H] Heinrichs<br />
<br />
[UMC4] Model<br />
[E]    remote transmitter  incl. 5 m cable,  w/o junction box / M 20 x 1.5 <br />
[1] Display Integral -20...+60º<br />
[2] Power supply, 19 - 36  VDC,  24 VAC(+5 %  -  -20 %), 50 / 60  Hz<br />
[A] =    analog output 1:  4  -  20 mA with HART® - protocol analog output 2: 4 -  20 mA pulse output: passive Um = 30  VDC<br />
status output: passive Um = 30  VDC<br />
[0] Approvals, without<br />
[0] Protection type for signal output,  without (ONLY without approval)

High Performance Coriolis Mass-Flowmeter<br />
Brand: Heinrich Grupo Kobold<br />
Model: HPC-S-01-6140-10-A-4-P0-21-0-H+UMC4-E12A00<br />
[HPC-S]  flow body stainless steel  1.4404 (316L), <br />
measuring pipes  stainless steel  1.4571 (316ti)<br />
[01]  measuring range  0 - 20  kg/h, Sensor 1.5 mm<br />
[6140]  6 mm Swagelok®,  via adaptor  stainless steel, <br />
installation length  150 mm + ~60 mm<br />
[10] Nominal pressure, PN 100, PN 100<br />
[A] Sensor housing, =   aluminium anodised, up to 120 °C temperature of medium<br />
[4] Mounting style, =    desk mounting (liquids) - measuring tubes bottom-mounted, incl. cradle for placing on flat surfaces<br />
[P] Sensor  configuration , =    remote mount transmitter /   -40 °  to  +80 °C  (-40 °F  to  176 °F) /  ODU Mini Snap®,  IP 68<br />
[0] Approvals, = withou<br />
[2] Calibration mass-flow, =   10-point<br />
[1] Calibration density,  standard (3-point<br />
[0] Supplementary equipment,  without<br />
[H] Heinrichs<br />
<br />
[UMC4] Model<br />
[E]    remote transmitter  incl. 5 m cable,  w/o junction box / M 20 x 1.5 <br />
[1] Display Integral -20...+60º<br />
[2] Power supply, 19 - 36  VDC,  24 VAC(+5 %  -  -20 %), 50 / 60  Hz<br />
[A] =    analog output 1:  4  -  20 mA with HART® - protocol analog output 2: 4 -  20 mA pulse output: passive Um = 30  VDCstatus output: passive Um = 30  VDC<br />
[0] Approvals, without<br />
[0] Protection type for signal output,  without (ONLY without approval)

<strong>Coriolis Massflowmeter<br />
Brand: Grupo Heinrich - Kobold<br />
Model: TM-S-01-6010-0350-E-0-R-1-0-0-0</strong><br />
[TM] Coriolis Massflowmeter<br />
[S] Wetted materials, Stainless steel<br />
[01] Range, min. 0-0,8 kg/h - max. 0-8 kg/h<br />
[6010] Process connection, ¼" NPT (f)<br />
[0350] Installation length, 350mm<br />
[E] Containment options, Standard sensor body (1.4301, SS304)<br />
[0] Heating / cooling, without<br />
[R] Flow direction, Right to left<br />
[1] Sensor configuration , Integral mount transmitter<br />
[0] Approvals, without approval<br />
[0] Certificate, without<br />
[0] Supplementary equipment, without<br /><br />
UMC3-B-0-2-A-0-0-K<br />
[UMC3] Transmitter<br />
[B] Mounting, Integral mount, M20 x 1,5<br />
[0] Display / Interface board, None<br />
[2] Power supply, 19 - 36V DC, 24V AC (±20%), 50/60Hz<br />
[A] Outputs,<br />
Analog output 1: (0) 4 - 20mA with HART®<br />
Analog output 2: (0) 4 - 20mA<br />
Pulse output: passive Um=30V DC<br />
Status output: passive Um=30V DC<br />
[0] Approvals, none<br />
[0] Type of protection (signal output) , none<br />
[K Desing, Kobold

<strong>High Precision Pelton Wheel Flowmeter<br />
Brand: Kobold-Alemania<br />
Model: PEL-L-220-LMX-F</strong><br />
Operating principle: Pelton Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. Temperatura: 100 °C<br />
Max. Pressure: 100 bar<br />
Accuracy: ± 2 % FS<br />
[220] Measuring range / connection size: 0,1...28 L/min<br />
[LMX] Material fitting/ conn./ temp./ pressure: st.st. / R 1/2 male/ 100 °C/ 100 bar<br />
[F] Electronic: Standard pulse output<br />

<strong>High Precision Pelton Wheel Flowmeter<br />
Brand: Kobold-Alemania<br />
Model: PEL-L-00L-LMX-F</strong><br />
Operating principle: Pelton Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. Temperatura: 100 °C<br />
Max. Pressure: 100 bar<br />
Accuracy: ± 2 % FS<br />
[00L] Measuring range / connection size: 0,004...0,06 L/min<br />
[LMX] Material fitting/ conn./ temp./ pressure: st.st. / R 1/2 male/ 100 °C/ 100 bar<br />
[F] Electronic: Standard pulse output<br />

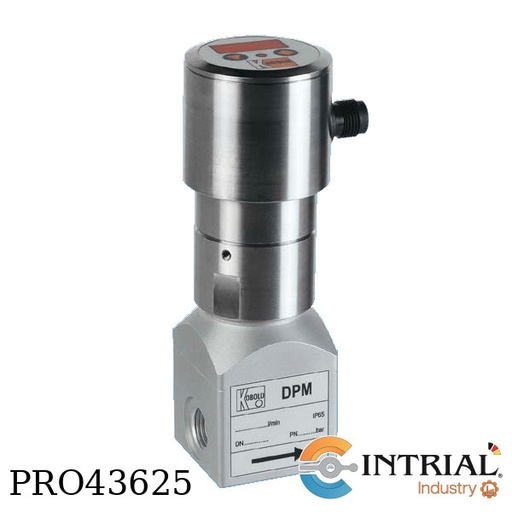

<strong>Rotating Vane Flow Meter<br />
Brand: Kobold-Alemania<br />
Model: DPM-1-1-50-N2-L343</strong><br />
Operating principle: Rotating vane <br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
max. Temperatura: 80 °C<br />
max. Pressure: 16 bar<br />
Accuracy: +/-1,0 (2,5)%<br />
Protection: IP 65<br />
[1] Material: brass <br />
[50] Measuring range: 0,05-5,0 L/min<br />
[N2] Mech. Connection: 1/4 NPT female<br />
[L343] Evaluating Eectronic: Analogue output 4-20mA, M12x1, 3-wire

<strong>Rotating Vane Flow Meter<br />
Brand: Kobold-Alemania<br />
Model: DPM1-1-20-N2-L343</strong><br />
Operating principle: Rotating vane <br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
max. Temperatura: 80 °C<br />
max. Pressure: 16 bar<br />
Accuracy: +/-1,0 (2,5)%<br />
Protection: IP 65<br />
[1] Material: brass <br />
[20] Measuring range: 0,05-2,0 L/min<br />
[N2] Mech. Connection: 1/4 NPT female<br />
[L343] Evaluating Electronic: Analogue output 4-20mA, M12x1, 3-wire

<strong>Rotating Vane Flow Meter<br />
Brand: Kobold-Alemania<br />
Model: DPM1-1-07-N2-L343</strong><br />
Operating principle: Rotating vane <br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
max. Temperatura: 80 °C<br />
max. Pressure: 16 bar<br />
Accuracy: +/-1,0 (2,5)%<br />
Protection: IP 65<br />
[1] Material: brass <br />
[07] Measuring range: 50-700 mL/min<br />
[N2] Mech. Connection: 1/4 NPT female<br />
[LN343] Evaluating Electronic: Analogue output 4-20mA, M12x1, 3-wire

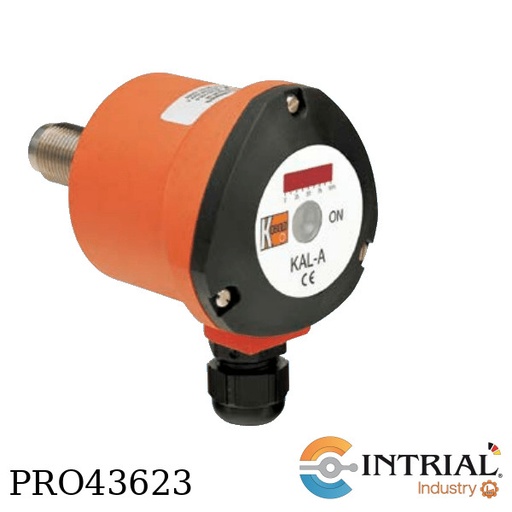

<strong>Calorimetric Flowswitch, Compact Version<br />
Brand: Kobold-Alemania<br />
Model: KAL-K5-3-15-S-ST3 + ZUB-KAB-12-K502</strong><br />
Operating principle: calorimetric<br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
max. Temperatura: 80 °C (120 °C for KAL-KH, KAL-43)<br />
max. pressure: 100 bar<br />
Protection class: IP 65<br />
Connection thread: NPT<br />
[3] Probe material: st.st. 1.4301<br />
Version: Standard<br />
[15] Connection: 1/2"<br />
[S] Contact versión: N/O<br />
[ST3[ Electron. connection/power supply: plug connector M12x1 NPN/PNP 24 VDC<br />
Accessories round plug<br />
Brand: Kolbold- Alemania<br />
Model: ZUB-KAB-12-K502<br />
[K502] Version: M12x1 box 2 m cable, 5-pin

<strong>Calorimetric Flowswitch, Compact Version<br />
Brand: Kobold-Alemania<br />
Model: KAL-K5-3-16-S-ST3 eliminado</strong><br />
Operating principle: calorimetric<br />
Mounting position: all directions<br />
Indication: DUO-LED and LED-chain<br />
max. Temperatura: 80 °C (120 °C for KAL-KH, KAL-43)<br />
max. pressure: 100 bar<br />
Protection class: IP 65<br />
Connection thread: NPT<br />
[3] Probe material: st.st. 1.4301<br />
Version: Standard<br />
[15] Connection: 1/2"<br />
[S] Contact versión: N/O<br />
[ST3[ Electron. connection/power supply: plug connector M12x1 NPN/PNP 24 VDC<br />
Accessories round plug<br />
Brand: Kolbold- Alemania<br />
Model: ZUB-KAB-12-K502<br />
[K502] Version: M12x1 box 2 m cable, 5-pin

<strong>Flap Flow Meter<br />
Brand: Heinrichs (Grupo Kobold)<br />
Model: TSK-S-335B-F2-L-5-V-1-0-S-2-C-0-H</strong><br />
[TSK-S]<br />
Wetted materials, Armature: Stainless steel<br />
Built-in parts: Stainless steel<br />
Pressure rating: 16 bar<br />
Process temperature: -40° to +300°C<br />
[335B]: Process connection, for DN100 PN16 Form B1 DIN EN 1092-1<br />
[F2]: Range  Water: 8 - 80 m³/h<br />
[L]: Flow direction, Left to right<br />
[5]: Temperature class, max. 100°C<br />
Contains: enclosure of magnet PVDF<br />
[V]: Sealing, Viton, Process temperature: max. 150°C<br />
[1]: Protection against particle-penetration into transmission chamber, with (Viton)<br />
[0]: Certificates, without<br />
[S]: Indicating part, Standard indicating housing (aluminum)<br />
[2]: Product scale, Measuring range-Scale (Water)<br />
[C]: Electrical output: 1 x microswitch<br />
Ambient temperature: -40° to +65°C<br />
[0]: Accessory, without<br />
[H]: Design, Heinrichs
<p class="MsoNormal"></p>

<p></p>

<strong>Flap Flow Meter<br />
Brand: Heinrichs (Grupo Kobold)<br />
Model: TSK-S-335B-F2-L-5-V-0-0-S-2-C-0-H</strong><br />
[TSK-S]<br />
Wetted materials, Armature: Stainless steel<br />
Built-in parts: Stainless steel<br />
Pressure rating: 16 bar<br />
Process temperature: -40° to +300°C<br />
[335B]: Process connection, for DN100 PN16 Form B1 DIN EN 1092-1<br />
[F2]: Range  Water: 8 - 80 m³/h<br />
[L]: Flow direction, Left to right<br />
[5]: Temperature class, max. 100°C<br />
Contains: enclosure of magnet PVDF<br />
[V]: Sealing, Viton, Process temperature: max. 150°C<br />
[0]: Protection against particle-penetration into transmission chamber, without<br />
[0]: Certificates, without<br />
[S]: Indicating part, Standard indicating housing (aluminum)<br />
[2]: Product scale, Measuring range-Scale (Water)<br />
[C]: Electrical output: 1 x microswitch<br />
Ambient temperature: -40° to +65°C<br />
[0]: Accessory, without<br />
[H]: Design, Heinrichs
<p class="MsoNormal"></p>

<p></p>

<strong>Digital Thermal Mass Flow Meter and Controller<br />
Brand: Kobold-Alemania<br />
Model: DMS-2-12-N4-F-D2-3-L</strong><br />
[DMS -2]Operating principle: thermal<br />
Mounting position: all directions<br />
Indication: LC-Display (Option)<br />
Output: 4-20 mA + 0-5/0-10/1-5V<br />
max. Temperature: 50 °C<br />
max. Pressure: 35 bar<br />
Design: M-Body <br />
[12] Measuring range (air): 0-50 LN/min<br />
[N4] Connection: 1/2 FNPT<br />
[F] Seal: FPM<br />
[D2] Display: with Display<br />
[3] Electrical connection: 24 VDC / plug connection incl. 3 m cable<br />
[L] Options: w/o

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold - Heinrichs<br />
Model: BGN-S50-321B-Q-0-0-0-0-S-2-0-0-K</strong><br />
[BGN] Model<br />
[S50] Stainless Steel, process temperature ≤ 350°C<br />
[321B] Connection, size, DN50 PN40 Form B1 DIN EN 1092-1<br />
[Q] Range (water 20°C, 1 mPas), H2O, 400 - 4000 l/h<br />
[0] Heating/cooling, without<br />
[0] Damping/spring stop, with liquid damping<br />
[0] Self-draining, without<br />
[0] Certificates, without<br />
[S] Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2] Scale, Measuring range-Scale (Water)<br />
[0] Switches, without<br />
[0] Accessories, without<br />
[K] Design, Kobold

Restriction Orifice Plate<br />
Brand: Kobold<br />
Model: RO-S00<br />
Single stage<br />
Type: concentric<br />
Size: 2" 150#<br />
Plate thicnness: 0.125" (3 mm)<br />
Bore diameter: 7.27 mm<br />
Material: AISI-316L<br />
Mounting: Between customer´s flange<br />
TAG: RO-341 (see attached data sheet)
