<strong>Compact Magnetic Inductive Flow Meter<br />
Model: Kobold (Alemania)<br />
Brand: MIK-5NA-60-A-E14R</strong><br />
[MIK-5NA]:<br />
Operating principle Magnetic Inductive<br />
Mounting position all directions<br />
Max. temperature/pressure 80 °C / 10 bar<br />
Protection IP 65<br />
Housing PPS <br />
Electrodes St. st.<br />
Seal NBR<br />
[60]: Measuring range (liquid >30 µS/cm), 8...160 L/min G 2 male <br />
[A]: Connection set, without<br />
[E14R]: Evaluation electronic for MIK, Counter electronic, 4-20 mA, 24 VDC, 1,5 m cable connection

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrichs - Kobold (Heinrichs)<br />
Model: EPS-A-7020-N-N-0-1-0+ UMF2-A-1-1-G-0BH</strong><br />
[EPS-A]: Sensor<br />
Material Lining Ceramics, Standard 2x Measuring Electrodes<br />
Process Temperature, -20°C…+150°C<br />
[7020] Food design: DN40 Tri-Clamp-Connection  , Ceramics / Platinum<br />
Material Lining / Electrodes / Sealing, Ceramics / Platinum<br />
Max. measuring range, 38 m³/h<br />
Installation length, 174 mm<br />
[N] Material Process connection, HC22(2.4602)PTFE-gasket<br />
[N] Material electrodes, Platinum / Iridium<br />
[0] Earthing electrode, w/o<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br />
UMF2-A-1-1-G-0BH<br />
Brand: Kobold (Heinrichs)<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH] Design, Heinrichs

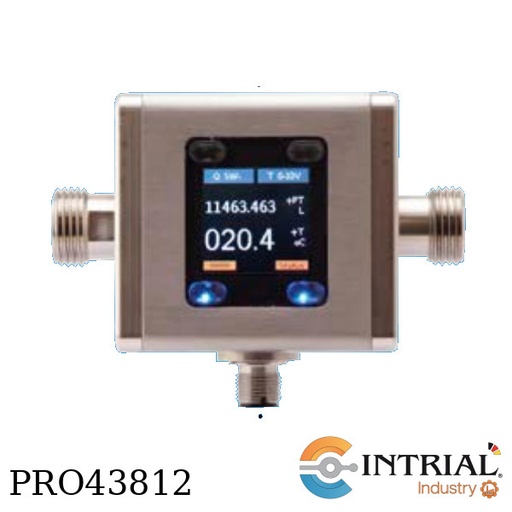

<strong>Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model:</strong> <strong>MIM-1-2-35HG9-C3T-K+ZUB-AD2G50T50+ZUB-KAB-12-K002+DOK-FM-F3-MIM-05</strong><br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / FKM<br />
[35HG9] Measuring range (flow/temperature), 1,5…350 L/min. / [°C], G 2 male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[k]: Options, with calibration report according to the following line item<br />
Include:<br />
MIM Fitting Sets Accessory Kits<br />
Brand: Kobold-Alemania<br />
Model: ZUB-AD2G50T50<br />
Meter connection: G2 IG<br />
Process connection: T-Clamp 2"<br />
Fitting set type: Adapter<br />
Accessories Circular Plug-in connector<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
[K002]<br />
Design: M12x1 box 2 m cable, 4-pin<br />
Calibration Certificate<br />
Brand: Kobold-Alemania<br />
Model: DOK-FM-F3-MIM-05<br />
Execution: Measurement report for water -devices 5 measurement points **

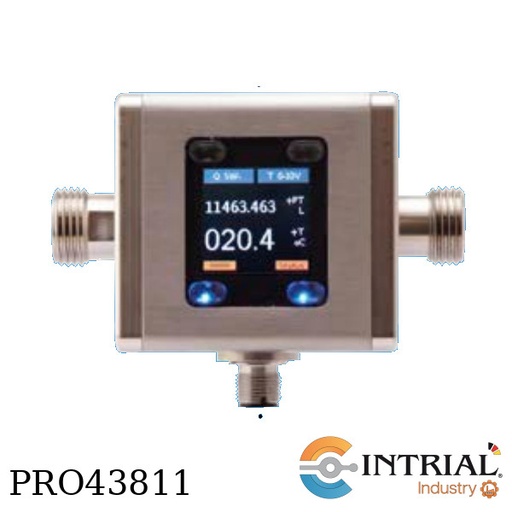

Compact Magnetic Inductive Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: MIM-1-2-20HG6-C3T-K + ZUB-AD2G25T25+ ZUB-KAB-12-K002+ DOK-FM-F3-MIM-05<br />
[MIM-1]<br />
Operating principle, Magnetic Inductive<br />
Mounting position, all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Integrated temperature sensor, Pt 1000<br />
Material housing/insulation part, see below<br />
Accuracy, ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity, 70 mm²/s<br />
Min. conductivity, >20 μS/cm<br />
Power supply, 19 - 30 VDC<br />
Ambient temperature: -20 °C … +60 °C<br />
Max. temperature (medium): -20°C..+70°C (compact)<br />
Max. pressure, PN 16<br />
Protection, IP 67<br />
[2] Material housing / insulation part / sealingt, st. steel 1.4404 / PEEK / FKM<br />
[20HG6] Measuring range (flow/temperature), 0,4...100 L/min. / [°C], G 1 male<br />
[C3T] Evaluation electronic:<br />
Analogue output: 0(4)-20 mA, 0-10 V,<br />
Switching output NPN, PNP, PushPull,<br />
Frequency output, pulse output,<br />
Part- or grand totaliser.<br />
[0]: Options, without<br />
Include:<br />
MIM Fitting Sets Accessory Kits<br />
Brand: Kobold-Alemania<br />
Model: ZUB-AD2G25T25<br />
Meter connection: G1 IG<br />
Process connection: T-Clamp 1"<br />
Fitting set type: Adapter<br />
Accessories Circular Plug-in connector<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
[K002]<br />
Design: M12x1 box 2 m cable, 4-pin<br />
Calibration Certificate<br />
Brand: Kobold-Alemania<br />
Model: DOK-FM-F3-MIM-05<br />
Execution: Measurement report for water -devices 5 measurement points **

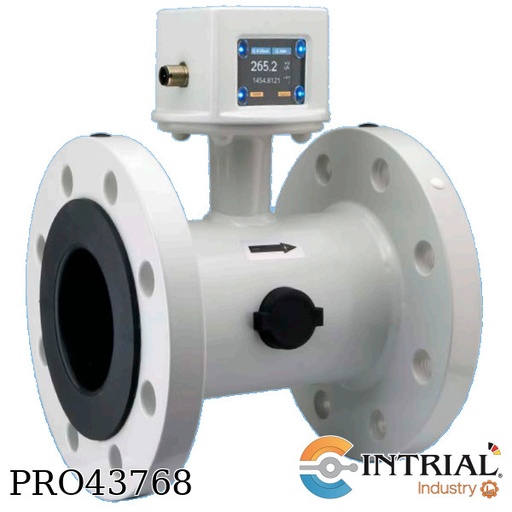

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIS-H-349B-1-HH-100<br />
Brand: Kobold (Alemania)</strong><br />
[MIS]:<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display Windows PMMA<br />
Accuracy ±(0.8% of meas. value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H]: Material Lining, Hard rubber (NBR)<br />
[349B]: Flange size, DIN EN 1092-1, Form A DN200 PN10<br />
[1]: Material Process Connection, steel, coated<br />
[HH]: Measuring and Grounding electrodes, Hastelloy C-276<br />
[100]: Transmitter Mounting, direct mounted<br /><br />
Accessories Round Plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K005<br />
[ZUB-KAB-12]<br />
[K005]: Version: M12x1 socket with 5 m cable, 4 pins

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-E-213R-1-H-H-1-0+UMF2-A-1-1-G0BH<br />
Brand: Heinrich (Alemania)</strong><br />
[EPS-E] Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[213R] Process connection, 8" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 1110 m³/h, Installation length, 350 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[H] Earthing electrode, Hastelloy<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br />
<br />
[UMF2] Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH] Design, Heinrichs

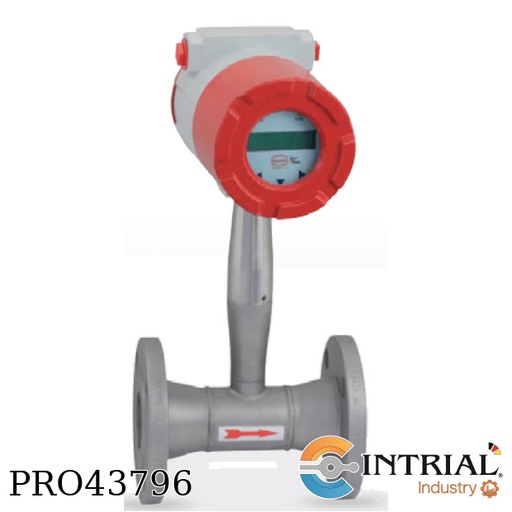

<strong>Multivariable Vortex Flowmeter Inline Version<br />
Model: DVH-T-1H-1-S-L-L-2-S-0-H<br />
Brand: Heinrichs</strong><br />
[DVH] Model<br />
[T] Elektronic - Options, Volume Measurement of Liquids, <br />
Gases and Steam + temperature sensor<br />
[1H] Flow Body - Flange, DN 100 DIN EN 4 inch ANSI<br />
Range: 8,1 a 244 m3/h<br />
[1] Process Connection, ANSI 150 lbs ASME B16.5.2003 (not for wafer)<br />
[S] Material Flow Body, Edelstahl 1.4404 / 316 L (standard)<br />
[L] Sensor Configuration / Mounting Option, <br />
Compact incl. Digital Display and Programming Buttons<br />
[L] Input Power, 12-36 VDC loop powered<br />
[2] Output Signal, 1x 4-20mA, HART 1x Impuls, Loop powered<br />
[S] Process Temperature, Standard temperature -40….+260°C<br />
[0] Option Pressure Sensor, w/o Pressure Sensor<br />
[H] Version, Heinrichs

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Alemania<br />
Model: EPS-P-212R-1-H-0-2-0+ UMF2-C-1-1-G0BK-1</strong><br />
[EPS-P]: <br />
Mounting position: all directions<br />
Display / Protection class: LCD Display / IP 68<br />
Output: Analogue, frequency, connection and status output<br />
max. medium temperatura: -20…+150 °C<br />
Coating: PTFE<br />
[212R] Connection flange ASME 16.5: 6" 150 Class lbs, max. 632 m³/h<br />
 [1]: Material Process connection, Flange steel painted<br />
[H]: Electrodes material : Hastelloy®  <br />
[0]: Grounding Electrodes material: without<br />
[2]: Transmitter mounting: separate version, protection IP 67<br />
[0]: Certificates (NET prices, no discount): without<br />
UMF2-C-1-1-G0BK-1<br />
[UMF2]:Transmitter<br />
Output: analogue, binary, status<br />
Communication: HART®<br />
Power supply: 115/250 VAC, 24 VDC<br />
Ambient temperatura: -20...+60 °C<br />
Housing material: Aluminium painted, display cover out of safety class<br />
Protection: IP 68<br />
[C] Mounting: remote version IP67 incl., wall mounting bracket/ ½ NPT<br />
[1]: Display / Interface board  <br />
[1]: Power supply, 230 VAC 50/60 Hz<br />
[G0BK]: Output Signal: Analogue, pulse, status, with HART®<br />
[1]: IP 67 5 m (fixed cable)

<strong>Turbine Wheel Flowmeter<br />
Brand: Kobold<br />
Model: DOT-13-50H-FE-Z3N-L</strong><br />
[DOT-13]<br />
Operating principle Turbine wheel<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Connection/ Housing material st. Steel / st. steel<br />
max. temperature -20…+120 °C<br />
max. pressure 250 bar<br />
Linearity ± 0.5 % of Reading<br />
[50H] measuring range, 55-550 m³/h<br />
[FE] Mechanical connection, DIN Flange DN 150/ PN 16 <br />
[Z3N] Electronics / cable entry, dual LCD totaliser/rate,<br />
outputs: pulse, analogue, cable entry 1/2 NPT<br />
[L] Flow direction, from left to right, indication on top

<strong>Paddle Type Flow Switch<br />
Brand: Kobold  - Alemania<br />
Model: PSE-12-498-R-15-U-1</strong><br />
[PSE-12]<br />
Operating principle paddle<br />
Mounting position horizontal<br />
Approvals w/o<br />
Body material,  st.st.<br />
max. Pressure  250 bar <br />
[498]  Paddle length: 49 mm(60 mm for NPT) <br />
[R]  Connection, G-thread<br />
[15]  Connection , 1/2" <br />
[U]  Contact version, SPDT<br />
[1] Connecting cable , PVC-cable 1.5 m (standard)

<br />
<strong>Plastic Flowmeter/-switch<br />
Model: KSM-1-010-3-P20-R0<br />
Brand: Kobold (Alemania)</strong><br />
[KSM-1]<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Trogamide<br />
Accuracy ±4 % FS<br />
Max. temperature 60 °C<br />
Max. pressure 16 bar**<br />
[010] Measuring range,   8 - 70 Nm³/h air*<br />
[3] scales for air, 3 bar rel.<br />
[P20] Option connection,  PVC G 3/4 female<br />
[R0] Option contact, w/o contact

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-41-73-N0-KFR-PPHW024</strong><br />
[KFR-41]<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Total length 165 mm<br />
Accuracy  ±3 % FS<br />
Max. temperature 65 °C<br />
Max. pressure 6,5 bar<br />
Housing Acryl<br />
Connection material brass<br />
Connection size 1/4 NPT female on rear<br />
Seal NBR<br />
[73] Measuring range, 100…560 L/min air<br />
[N0] Options, Needle valve<br />
[KFR-PPHW024] set hose barbes (2 pcs.)

Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-21-18-N0+KFR-PPHW024<br />
[KFR-21]<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Total length 102 mm<br />
Accuracy ±5 % FS<br />
Max. temperature 65 °C<br />
Max. pressure 6,5 bar<br />
Housing Acryl<br />
Connection material brass<br />
Connection size 1/8 NPT female on rear<br />
Seal NBR<br />
[18]: Measuring range, 10...100 L/min air<br />
[N0]: Options, Needle valve<br />
[KFR-PPHW024] set hose barbes (2 pcs.)

<strong>EPS Electromagnetic Flow Meter<br />
Brand: Kobold-Heinrich<br />
Model: EPS Electromagnetic Flow Meter<br />
Model: EPS-P-201R-1-H-0-1-0 + UMF2-A-1-1-G-0BH</strong><br />
[EPS]: Sensor<br />
[P]: Material Lining, PTFE, <br />
Electrodes, Standard 2x Measuring Electrodes,<br />
Process-Temperature, -20°C...150°C<br />
[201R]:Process connection: ½ "Class 150 RF ASME B16.5-2003<br />
(Water 20°C, 1 mPas)Max. measuring range: 6,6 m³/h<br />
Installation length: 200 mm<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br />
<br />
UMF2-A-1-1-G-0BH<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH] Design: Heinrichs

<br />
<strong>Digital Thermal Mass Flow Meter and Controller<br />
Brand: Kobold (Alemania)<br />
Model: DMS-1-12-N4-F-02-3-L</strong><br />
[DMS-1]<br />
Operating principle, thermal<br />
Mounting position,all directions<br />
Indication LC-Display (Option)<br />
Output 4-20 mA + 0-5/0-10/1-5V<br />
max. temperature 50 °C<br />
max. pressure 35 bar<br />
Design, Meter, L-Body<br />
[12] Measuring range (air), 0-50 LN/min<br />
[N4] Connection , 1/2 FNPT<br />
[F] Seal, FPM<br />
[02] Display, w/o Display<br />
[3] Electrical connection, 24 VDC / plug connection incl. 3 m cable<br />
[L] Options,w/o.

<strong>Compact Magnetic Inductive Flow Meter<br />
Model: MIS-H-345B-1-HH-100<br />
Brand: Kobold (Alemania)</strong><br />
[MIS]<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display: TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display window PMMA<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H] Material Lining, Hard rubber (NBR)<br />
[345B] Flange size, DIN EN 1092-1, DN 150 PN 16; max. 632 m³/h<br />
[1] Material Process Connection, steel, coated<br />
[HH] Measuring and Grounding electrodes, Hastelloy C-276<br />
[100] Transmitter Mounting, direct mounted<br /><br />
Incluide:<br />
Accessories Round Plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K005<br />
[ZUB-KAB-12]<br />
[K005]: Version: M12x1 socket with 5 m cable, 4 pins

Compact Magnetic Inductive Flow Meter<br />
Model: MIS-H-335B-1-HH-100<br />
Brand: Kobold (Alemania)<br />
[MIS]<br />
MIS Operating principle Magnetic Inductive<br />
Mounting position all directions, display rotatable<br />
Display:<br />
TFT-display, 128 x 128 color pixel,<br />
1,4", rotatable in 90° steps,<br />
2 indications free assignable<br />
Functions/output:<br />
Pulse, Frequency, Analogue Output<br />
Alarm function, IO-link<br />
dosing and counter function<br />
Material electronic housing Aluminium coated, display window PMMA<br />
Accuracy ±(0.8% of meas.value +0,5% of FS)<br />
Max. Viscosity 70 mm²/s<br />
Min. conductivity >20 μS/cm<br />
Power supply 19 - 30 VDC<br />
Max. temperature (ambient) -10°C …+60°C<br />
Max. temperature (medium) -10°C…+70°C<br />
Max. pressure PN 16<br />
Protection IP 67<br />
[H] Material Lining, Hard rubber (NBR)<br />
[335B] Flange size, DIN EN 1092-1, Form A DN100 PN16<br />
[1] Material Process Connection, steel, coated<br />
[HH] Measuring and Grounding electrodes, Hastelloy C-276<br />
[100] Transmitter Mounting, direct mounted<br /><br />
Include:<br />
Accessories Round Plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K005<br />
[ZUB-KAB-12]<br />
[K005]: Version: M12x1 socket with 5 m cable, 4 pins

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-E-208R-1-H-H-1-0+UMF2-A-1-1-G-0BK<br />
Brand: Heinrich (Alemania)</strong><br />
[EPS-E] Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[208R] Process connection, 3" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 170 m³/h, Installation length, 272 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[H] Earthing electrode, Hastelloy<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br />
<br />
[UMF2]:Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-E-210R-1-H-H-1-0+UMF2-A-1-1-G-0BK<br />
Brand: Heinrich (Alemania)</strong><br />
[EPS-E] Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[210R] Process connection, 4" Class 150 RF ASME B16.5-2003 <br />
Max. measuring range, 274 m³/h, Installation length, 250 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[H] Earthing electrode, Hastelloy<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br />
<br />
[UMF2]:Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-E-212R-1-H-H-1-0+UMF2-A-1-1-G-0BK<br />
Brand: Heinrich (Alemania)</strong><br />
[EPS-E] Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[212R] Process connection, 6" Class 150 RF ASME B16.5-2003 <br />
Max. measuring range, 632 m³/h, Installation length, 300 mm.<br />
[1] Material Process connection, Flange steel painted<br />
[H] Material electrodes, Hastelloy C276<br />
[H] Earthing electrode, Hastelloy<br />
[1] Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0] Certificates, w/o<br />
<br />
[UMF2]:Transmitter<br />
[A] Mounting, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1] Display and control unit, integrated<br />
[1] Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[G] Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK] Design, Kobold
