<strong>Viscosity Compensated Flowmeter /-switch<br />
Brand: Kobold (Alemania)<br />
Model: VKM-32-06-U0-R15-0-R</strong><br />
[VKM-32]:<br />
Operating principle variable area<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Body material St.St.<br />
Seal: FPM<br />
Switch point: adjustable<br />
Accuracy: ±4 % FS (at 105 mm²/s)<br />
Max. temperature: 100 °C <br />
Max. pressure: 350 bar <br />
Viscosity range: 1...540 mm²/s<br />
[06]: Measuring range, 3...9 L/min oil<br />
[U0]: Contact, 1 SPDT<br />
[R15]: Connection, G 1/2 female<br />
[0]: Option special connection, w/o<br />
[R]: Flow direction, from right

<strong>All-Metal Variable Area Flowmeter <br />
Model: BGF-S50-206R-T-P-O-0-0-S-5-6-0-H<br />
Brand: Kobold - Heinrichs</strong><br />
[BGF]: Model<br />
[S50]: Stainless Steel, process temperature ≤ 200°C<br />
[206R]: Connection, size, 2" Class 150 RF ASME B16.5-2003<br />
[T]: Range (Air)  43.99 - 439.89 Nm3/h<br />
[P]: Magnet bearer, 81 - 125 °C PTFE<br />
[O]: Flow direction, Top to bottom<br />
[0]: Heating/cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Switches, Transmitter ES with HART-protocol, <br />
4-20 mA, EEx ia, Ambient temperature -40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

All-Metal Variable Area Flowmeter <br />
Model: BGF-S50-206R-R-K-O-0-0-S-5-6-0-H<br />
Brand: Kobold - Heinrichs<br />
[BGF]: Model<br />
[S50]: Stainless Steel, process temperature ≤ 200°C <br />
[206R]: Connection, size, 2" Class 150 RF ASME B16.5-2003 <br />
[R]: Range (water 20°C, 1 mPas), H2O: 600 - 6000 l/h <br />
[K]: Magnet bearer, Standard PP bis 80 °C <br />
[O]: Flow direction, Top to bottom<br />
[0]: Heating / cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia, Ambient temperature--40° to +70°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

EPS Electromagnetic Flow Meter<br />
Model: EPS-P-206R-1-H-0-1-0<br />
Brand: Kobold-Heinrich<br />
[EPS-P]: Material Lining, PTFE<br />
Electrodes, Standard 2x Measuring Electrodes, -20°C...150°C<br />
[206R]:Process connection,<br />
ANSI flanges 2" Class 150 RF ASME B16.5-2003,<br />
Max. measuring range, 70 m³/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]:Material electrodes, Hastelloy C276<br />
[0]: Earthing electrode, w/o<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]:Certificates, w/o<br /><br />
UMF2-A-1-2-F-0BK<br />
[UMF2]:Transmitter<br />
[A]: Mounting, Remote transmitter, Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[2]: Power supply, 115V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BK]: Design, Kobold

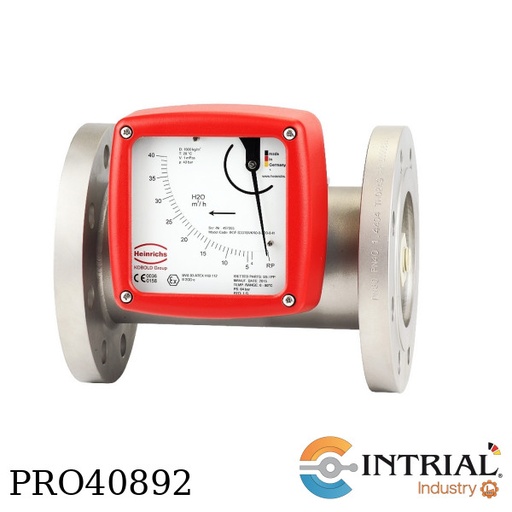

<strong>All-Metal Variable Area Flowmeter BGF<br />
Model: BGF-S50-206R-T-P-O-0-0-S-5-6-0-H<br />
Brand: Kobold - Heinrichs</strong><br />
[BGF-S50]:<br />
Stainless Steel, process temperature ≤ 350°C<br />
[206R]: 2" Class 150 RF ASME B16.5-2003<br />
[T]: Range (water 20°C, 1 mPas),  H2O:1600 - 16000l /h<br />
[P]: Magnet bearer,81 - 125 °C PTFE<br />
[O]: Flow direction, Top to bottom<br />
[0]: Heating/cooling, without Heating / Cooling<br />
[0]: Certificates, without<br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[6]: Transmitter ES with HART-protocol, 4-20 mA, EEx ia, -40° to +70°C, SIL1<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>All-Metal Variable Area Flowmeter BGF<br />
Model:BGF-S50-206R-R-K-O-0-0-S-5-6-0-H<br />
Brand: Kobold - Heinrichs</strong><br />
[BGF-S50]: <br />
Stainless Steel, process temperature  ≤ 350°C <br />
[206R]: 2" Class 150 RF ASME B16.5-2003 <br />
[R]: Range (water 20°C, 1 mPas),  H2O: 600 - 6000 l/h <br />
[K]: Magnet bearer, Standard PP bis 80 °C <br />
[O]: Flow direction, Top to bottom <br />
[0]: Heating/cooling, without Heating / Cooling <br />
[0]: Certificates, without <br />
[S]: Display, <br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[6]: Transmitter ES with HART-protocol, 4-20 mA, EEx ia, -40° to +70°C, SIL1<br />
[0]: Accessories, without <br />
[H]: Design, Heinrichs

<strong>All-Metal Variable Area Flowmeter BGF<br />
Model:BGF-S50-206R-S-K-O-0-0-S-5-6-0-H<br />
Brand: Kobold - Heinrichs</strong><br />
[BGF-S50]: <br />
Stainless Steel, process temperature ≤ 350°C <br />
[206R]: 2" Class 150 RF ASME B16.5-2003 <br />
[S]: Range (water 20°C, 1 mPas),  H2O: 1000 - 10000 l/h<br />
[K]: Magnet bearer, Standard PP bis 80 °C <br />
[O]: Flow direction, Top to bottom <br />
[0]: Heating/cooling, without Heating / Cooling <br />
[0]: Certificates, without <br />
[S]: Display, <br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[6]: Transmitter ES with HART-protocol, 4-20 mA, EEx ia, -40° to +70°C, SIL1<br />
[0]: Accessories, without <br />
[H]: Design, Heinrichs

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-20H-R4-1-RE-N-0<br />
[DON-1]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16…64 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: Aluminium<br />
Rotor material: PPS<br />
[20H]: Measuring range, 1-40 L/min<br />
[R4]: Mech. connection for meas. range 20H G 1/2<br />
[1]: Seal, FKM up to DON-x25<br />
[RE]: Electronic, Pulse output / Reed switch with ATEX approval (Exd).<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

Oval Wheel Flowmeter Model DON<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-15H-R3-1-RE-N-0<br />
[DON-1]:<br />
Operating principle: Gear Wheel<br />
Mounting position: horizontal / vertical<br />
Flow direction: in direction of the arrow<br />
Max. temperature: 80°C<br />
Max. pressure: 16…64 bar<br />
Accuracy: ±0,2 % …1 % of reading<br />
Housing material: Aluminium<br />
Rotor material: PPS<br />
[15H]: Measuring range,15-550 L/h<br />
[R3]: Mech. connection for meas. range 15H G 3/8<br />
[1]: Seal, FKM up to DON-x25<br />
[RE]: Electronic, Pulse output / Reed switch with ATEX approval (Exd).<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without

Low Volume Flowmeter<br />
Model: KFR-41-70-00<br />
Brand: Kobold<br />
[KFR-41]:<br />
Operating principle, variable area<br />
Mounting position, vertical<br />
Flow direction, from bottom<br />
Total length, 165 mm<br />
Accuracy, ±3 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, brass<br />
Connection size,<br />
Seal, NBR<br />
[70]: Measuring range, 30…300 L/min air<br />
[00]: Options, w/o<br />
* Connection: ¼" NPT female at the back and dual scales l/min and l/h

Ultrasonic Flow Meter/-Monitor/-Counter/-Doser<br />
Brand: Kobold (Alemania)<br />
Model: DUK-12-G5H-K-0-4-2-L<br />
[DUK-12]:<br />
Operating principle Ultrasonic<br />
Mounting position all directions<br />
Indication/Output see electronic version<br />
Max. temperature/pressure 90 °C / 16 bar<br />
Protection IP 65<br />
Seal NBR<br />
Sensor Housing St. st.<br />
[G5H]: Measuring range/connection, 0,16…40 L/min / G 3/4 female<br />
[K]: Evaluation electronic for DUK, ADI-Evaluation electronic Bar graph / Digital display<br />
Housing 97 x 96<br />
Display 3.5 LED + Bar graph<br />
Temperature range -20...80 °C<br />
Min. /Max. memory Yes<br />
Housing Aluminium/PA66<br />
Protection IP 65<br />
[0]: Supply voltaje, 100-240 VAC/DC<br />
[4]: Output, 0-10 VDC, 0(4)-20 mA selectable<br />
[2]: Contacts, 2 change over contacts<br />
[L]: Flow direction, from left to right

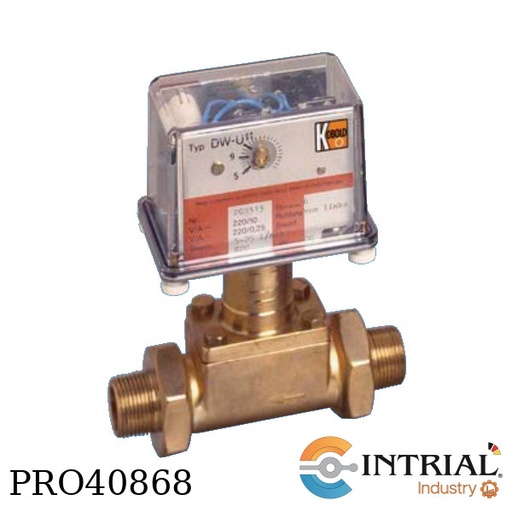

<strong>Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold (Alemania)<br />
Model: DWU-1-6-N15-1-B-R-2</strong><br />
[DWU-1]:<br />
Operating principle, paddle-bellow<br />
Indication, pointer indication<br />
Flow direction, in direction of the arrow<br />
Output, 1 microswitch/SPDT<br />
Max. Temperature, 100°C<br />
Connection, male thread<br />
[6]: Material combination, st.st.<br />
[N15]: Connection, NPT 1/2 male<br />
Flow Range: 1 a 55 l/m<br />
[1]: Signal lamp, 110 VAC<br />
[B]: Flow direction, flow from bottom to top<br />
[R]: Location of Indicator, right of the lead <br />
[2]: Options, double cont., sep. Adjustable

<strong>Flow Indicator and Switch with Paddle and Bellows<br />
Brand: Kobold (Alemania)<br />
Model: DWU-2-6-F10-1-L-T-2</strong><br />
[DWU-2]:<br />
Operating principle, paddle-bellow<br />
Indication, pointer indication<br />
Flow direction, in direction of the arrow<br />
Output, 1 microswitch/SPDT<br />
Max. Temperature, 100 °C<br />
Connection, flange<br />
[6]: Material combination, st.st.<br />
[F10]: Connection, flange DN 10<br />
Flow Range: 1 a 25 l/m<br />
[1]: Signal lamp, 110 VAC<br />
[L]: Flow direction, flow from left to right <br />
[T]: Location of Indicator, above lead<br />
[2]: Options, double cont., sep. Adjustable

Oval Gear Flow Meter-Counter<br />
Brand: Kobold (Alemania)<br />
Model: DON-1-35H-A9-3-E3-N-0<br />
[DON-1]:<br />
Operating principle, Gear Wheel<br />
Mounting position, horizontal / vertical<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80°C<br />
max. pressure, 16...64 bar<br />
Accuracy, ±0,2 % …1 % of reading<br />
Housing material, Aluminium<br />
Rotor material, PPS<br />
[35H]: Measuring range, 30-450 L/min<br />
[A9]: Mech. connection, ANSI flange 2" 150 lbs<br />
[3]: Seal, FEP O-seal / EPDM-core for DON-x35<br />
[E3]: Electronic, Z3 electronic with ATEX approval (Exi)<br />
[N]: Cable entry, 1/2 NPT<br />
[0]: Options, without<br />
*Not incl. battery

EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-H-203R-1-S-S-1-0 + UMF2-A-1-1-F-0BH <br />
[EPS-H]: Sensor<br />
Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, 0°C…+95°C<br />
[203R]: Process connection, 1"Class 150 RF ASME B16.5-2003 <br />
Max. measuring range, 19.10 m3/h, Installation length, 200 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[1]: Transmitter mounting, Integrated transmitter<br />
Protection class, sensor IP 67<br />
[0]: Certificates, w/o<br /><br />
[UMF2]:Transmitter<br />
[A]: Mounting, <br />
Integrated transmitter IP 67 standard<br />
Thread - electrical connection, ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[1]: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
[F]: Output Signal:<br />
status output: passive Um=24 VDC<br />
current output: 1x 0/4-20 mA<br />
pulse output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs

<strong>EPS Electromagnetic Flow Meter<br />
Model: EPS-H-210R-1-S-S-2-0<br />
Brand: Kobold-Heinrich</strong><br />
[EPS-H]: Material Lining, Hard Rubber (Ebonit)<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes, Process-Temperature 0°C...95°C<br />
[210R]:Process connection, ANSI flanges 4" Class 150 RF ASME B16.5-2003<br />
Max. measuring range, 282 m³/h, Installation length, 250 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[S]: Material electrodes, st.st. 1.4571 (316 -TI)<br />
[S]: Earthing electrode, st.st. 1.4571 (316 TI)<br />
[2]: Transmitter mounting, Remote Transmitter, Protection class, sensor, IP 67<br />
terminal conn.box via M 20 x 1,5, cable > 10m add. term.conn.box on transmitter<br />
[0]: Certificates, w/o<br /><br /><strong>UMF2-C-1-4-G-0BH-1<br />
[UMF2]:Transmitter</strong><br />
[C]: Mounting IP 67, Remote transmitter, Connection to sensor, incl 2,5 m cable, <br />
c/w pipe-/wall mounting bracket, Thread - electrical connection, cable > 10m add. <br />
term.conn.box on transmitter ½" NPT (f).<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%),<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs<br />
[1]: Longer cable IP67, 5m, breakout cable

Flowindicator with Threaded Connection<br />
Brand: Kobold<br />
Model: DAR-1-3-07H-R-40-B<br />
[DAR-1]:<br />
Operating principle: Rotor<br />
Mounting position: all directions<br />
Flow direction: in direction of the arrow<br />
Max. temperature, 120 °C (Option B/R: 260 °C)<br />
Max. pressure, 16 bar (Option 25 or 40 bar)<br />
[3]: Housing: Cast steel<br />
[07H]: Nom. diameter, 1 1/2"<br />
[R]: Thread, G-thread female<br />
[40]: Connection*, 1 1/2"<br />
[B]: Option: borosilicate glass

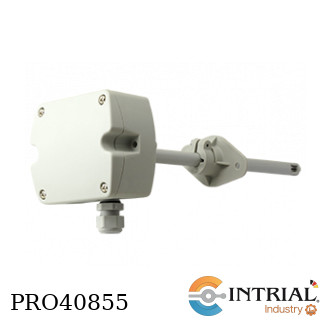

Air velocity sensor <br />
Marca: Kobold (Alemania)<br />
Modelo: KAH-2-200-4<br />
[KAH-2]<br />
Operating principle: calorimetric<br />
Measuring range (adjustable): 0-10 m/s / 0-15 m/s / 0-20 m/s<br />
Mounting position: all directions<br />
Material housing / probe: Polycarbonate<br />
Power supply: 24 VDC/AC ±20%<br />
Mec. connection: Compression flange<br />
Temperature range:<br />
Probe: -25…+50 °C<br />
Electronic: -10…+50°C<br />
max. pressure: atmospheric pressure<br />
Protection class: IP 65<br />
[200]: Probe length: 200mm<br />
[4]: Output: 0-10 VDC / 4-20 Ma

Differential Pressure Flow Meter/Monitor<br />
Model: RCD-12-25H-G8-K-0-4-2<br />
Brand: Kobold (Alemania)<br />
[RCD-12]:<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class, IP 65<br />
max. temperature, 80 °C (100 °C)<br />
max.pressure, 40 bar<br />
Material, st. st<br />
[25H]: Measuring range, 20-132 L/min water<br />
[G8]: Process Connection, G 1 1/2 female<br />
[K]: ADI-indication<br />
ADI Electronics for Flow Switch<br />
Housing 97 x 96<br />
Display 3.5 LED + Bar graph<br />
Temperature range -20...80 °C<br />
Min./Max. memory Yes<br />
Housing Aluminium/PA66<br />
Protection IP 65<br />
[0]: Supply voltage, 100-240 VAC/DC<br />
[4]: Output, 0-10 VDC, 0(4)-20 mA selectable<br />
[2]: Contacts, 2 change over contacts

Differential Pressure Flow Meter/Monitor<br />
Model: RCD-12-17H-G6-K-0-4-2<br />
Brand: Kobold (Alemania)<br />
[RCD-12]:<br />
Operating principle Venturi-nozzle<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
Protection class, IP 65<br />
max. temperature, 80 °C (100 °C)<br />
max.pressure, 40 bar<br />
Material, st. st<br />
[17H]: Measuring range, 20-118 L/min water<br />
[G6]: Process Connection, G 1 female<br />
[K]: ADI-indication, Display 3.5 LED + Bar graph<br />
ADI Electronics for Flow Switch<br />
Housing 97 x 96<br />
Display 3.5 LED + Bar graph<br />
Temperature range -20...80 °C<br />
Min./Max. memory Yes<br />
Housing Aluminium/PA66<br />
Protection IP 65<br />
[0]: Supply voltage, 100-240 VAC/DC<br />
[4]: Output, 0-10 VDC, 0(4)-20 mA selectable<br />
[2]: Contacts, 2 change over contacts
