TEMPERATURE PANEL METER
Brand: DWYER
4 to 20 mA transmitter
Inputs: Thermocouple J, K, T, E, R, S, B, N, C; RTD 100  platinum, 10  copper,
120" nickel, 1000  platinum.
Input Impedance: Greater than 100 k.
Output: 4 to 20 mA.
Power Requirements: 85 to 265 VAC 50/60 Hz
Power Consumption:
90 to 265 VAC models: 20 W max;
12 to 24 VDC models: 15 W max.
Display: Dual-line, 6-digit display.
Resolution: 1° (up to four digits) or 0.1° (up to five digits).
Temperature Limits:
Operating:-4 to 149°F (-20 to 65°C);
Storage: -40 to 185°F (-40 to 85°C).
Humidity Limits: 0 to 90% (non-condensing).
Front Panel Rating: NEMA 4X, IP65.
Weight: 9.5 oz (269 g).
Agency Approvals: CE, RoHS, cUL, UL.

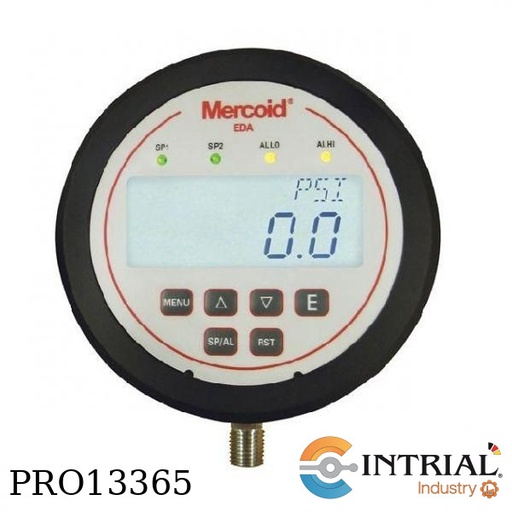

ELECTRONIC PRESSURE CONTROLLER
Brand: DWYER
Range 0-300 psi,
1/4" male NPT bottom connection
316L SS,
2 SPDT relays.
Series EDA Electronic Pressure Controller 2 Switches,
Indicating Gage,
Transmitter in One Pack

SWITCH-TEK™ LU10
2: Sensor Material in PFA
3: sensor length:  short(76mm)
0:  process mount, 3/4” NPT
5: standar
Switch-Tek™ LU10
Ultrasonic Liquid Level Switch for Chemical
Orientation:Universal
Accuracy:± 1mm in water
Repeatibility:± 0.5mm in water
Supply voltage:12-36 VDC
Consumption:25 mA maximum
Contact type:(1) SPST relay
Contact rating:GP: 60 VA, IS: 32 VDC @ 0.5A
Contact output:Selectable NO / NC
Process temp.:F-40° to 176°, C: -40° to 80°
Pressure:150 psi (10 bar) @ 25º C, derated @ 1.667, psi (0.113 bar) per ºC, above 25º C
Cable type:  4- condusctor, shielded 22 AWG
Cable length: 10”(3m)
Process mount:              3/4” NPT

FLOTEC; MINI-SIZE FLOW SWITCHES
Brand: DWYER
V6: Series V6 Flow switch
EP: Construction: Explosion proof
B-B: Body: Brass
S: Circuit (Switch): SPDT
2: Tee Connection Size+: 3/4" (19.50 mm)
MI: Tee Material+: Iron

DTC-SSC/CUB-6-1-1
Heat Exchangers SENTRY Tube-IN-Tube DTC-6
DTC-6 dual tube coil heat exchangers spiral wound.
•    Inner Tube Design/Material:  (5100 Psi at 1000F) / 3/8” in OD 316SS
•    Outer Tube Design / Material:  (700 Psi at 300F) / 3/4" in OD Copper
•    H.T. Area: 1.90 ft2
•    Total weight: 16 lb
For more details, please see datasheet attached

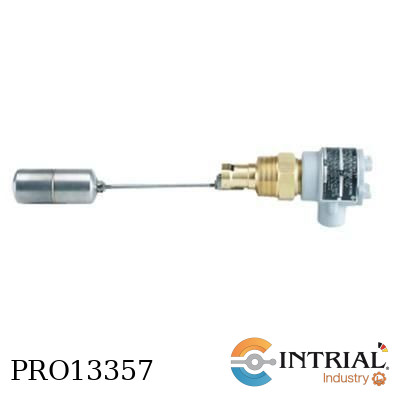

FLOTECT® FLOAT SWITCH
Brand: DWYER
Brass body, side wall mounting
Service: Liquids compatible with wetted materials.
Wetted Materials: Float and Rod: 316 SS; Body: Brass or 316 SS standard;
Magnet Keeper: 430 SS standard
Temperature Limits: 4 to 275°F (-20 to 135°C) standard
Pressure Limit: Brass body 1000 psig (69 bar)
Standard float rated 100 psig (6.9 bar)
Enclosure Rating: Weatherproof and Explosion-proof. **Listed with UL and CSA
for Class I, Groups C and D; Class II, Groups E, F, and G.
ATEX 0344 II 2 G Ex d IIB T6 Gb -20°C≤Tamb≤73°C.
Switch Type: SPDT snap switch standard,
Electrical Rating: UL, FM, ATEX and IECEx models: 10 A @ 125/250 VAC (V~).
CSA models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC (V ). MV
option: 1 A @ 125 VAC (V~); 1 A res., .5 A ind. @ 30 VDC (V ). MT option: 5 A @
125/250 VAC (V~). [MT and MV option not UL, CSA, FM, ATEX or IECEx].
Electrical Connections: UL and CSA models: 16 AWG, 6" (152 mm) long. ATEX and IECEx unit: terminal block.
Conduit Connection: 3/4" (19.05 mm) female NPT standard or M25 with –BSPT option.
Process Connection: 1-1/2" (38.10 mm) male NPT or 1-1/2" (38.10 mm) male
BSPT standard, 2-1/2" (63.50 mm) male NPT or 2-1/2" (63.50 mm) male BSPT standard optional floats.
Mounting Orientation: Horizontal installation standard, optional vertical top mount.
Dead Band: 3/4" (19 mm) for standard float.
Specific Gravity: 0.7 minimum with standard float. For other floats see model chart.
Weight: 4 lb 9 oz (2.07 kg).
Agency Approvals: ATEX, CE, CSA, FM, IECEx, UL**.

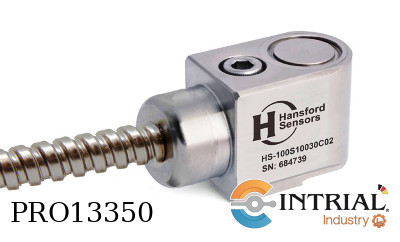

ACELEROMETRO
Model HS 100 Series Accelerometer
100mVg +/-80g sensitivity, side exit,
Integral helical wound armoring
covering 20m (60ft) integral FEP cable
and 1/4''-28 UNF male mounting
thread Compression Design for high
shock and vibration

ACELEROMETRO
Model HS 100 Series Accelerometer
100mVg +/-80g sensitivity, side exit,
Integral helical wound armoring
covering 10m (30ft) integral FEP cable
and 1/4''-28 UNF male mounting
thread Compression Design for high
shock and vibration

MANOMETRO TIPO FENOLICO RELLENO DE GLYCERINA
Marca: AFRISO(Alemania)
Dial Ø: 4 ½ “
Carcaza: PP-GF 20, negra
Elemento de medición: Acero Inoxidable 316Ti/316 L
Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)
Conexión: ½ NPTM- Inferior
Rangos: 0 a 700 Kpa
Doble escala: KPa / PSI
MD 80 (31393W)
SELLO DE DIAFRAGMA
MD 80 VERSION BRIDADA, CONEXION BRIDADA SEGUN ASME B 16.5
Marca: AFRISO (Alemania)
Conexión a Instrumento: ½” NPTF
Conexión al proceso: Bridada DN 1” CL150
Material de Diafragma: Acero Inoxidable

• Screw-in resistance thermometer

• 1 x Pt 100Ohm

• DIN EN 60751

• Class B

• Protective tuve ø 4,8 mm

• Built-in length 319 mm

• Material stainless Steel

• Spring loaded thread NPT1/2"

• SW27, with 1000 mm connection wire PFA

• 2 x red/1 x White

• Temperature range: -50 to +155°C

Model :61168

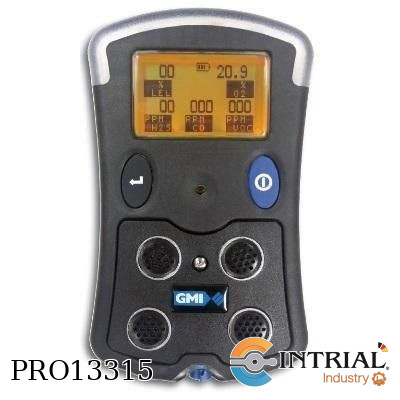

• Any combination of (O2/CO/CO2/NO2)
• Audible, visual and vibrating alarms
• Fully certified
• Internal pump (optional)
• Run up time up to 80 hours, when using low power LEL sensor (optional)
• Lightweight
• Sensor integrity checking
• Robust construction
• Ease of maintenance

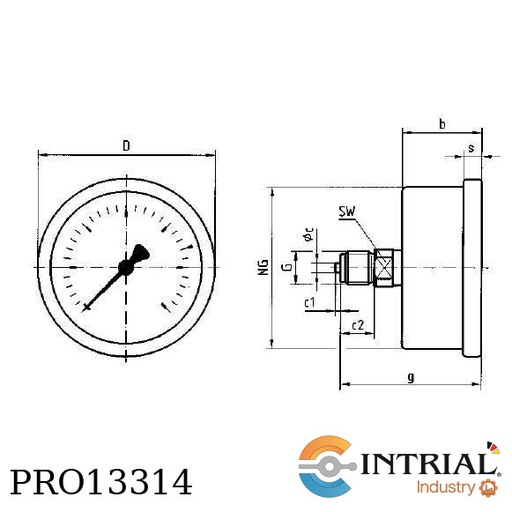

Manometro tipo Capsula
Manometro 0/400 mbar/psi
Manómetro tipo Bourdon
Marca AFRISO(Alemania)
Diámetro de Carcasa 4''(100 mm)
Precisión 1.6(EN 837-1/6)
Temperatura operación Max 80°C
Conexión POSTERIOR,1/4'' NPT Bronce
Escala 0.2 psi
Material: caja acero inoxidable

-WIRE ROPE LOAD CELL 2T
-BRAND: SENSY
-Load t. (1) Min-Nominal-Max: 0.75 - 2 - 2.8
-Torque: 15 Nm
-Wire rope diameter: 6 to 22 mm

-WIRE ROPE LOAD CELL 1.1T
-BRAND: SENSY
-Load t. (1) Min-Nominal-Max: 0.4 - 1.1 - 1.5
-Torque: 15 Nm
-Wire rope diameter: 6 to 15 mm

PROTECTIVE COVER WITH HOLE (Carbon Stee)
A non-Pressure retaining steel cover with an access hole on the top for use with devices that require routine access to the plug assembly (such as corrosion monitoring probes).

PROTECTIVE COVER WITHOUT HOLE (Polycarbonate)
A non-pressure retaining polycarbonate cover for use with devices that do not require routine access to the plug assembly (such as coupon holders). This is a lighter duty alternative to the standard steel cover.

Heavy Protective Cover without hole – 1025 C.S.
* Normally  used  with  corrosion  monitoring devices  which  rely  upon  retrieval  and visual inspection for recording.

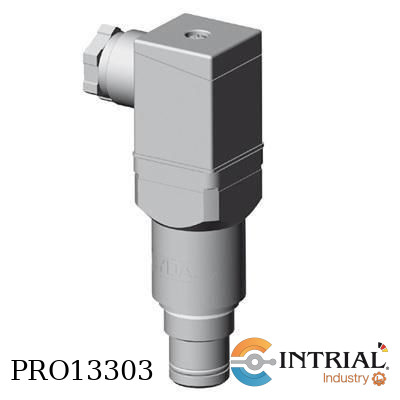

INDICATOR DIFERENCIAL DE PRESION

• Para filtro

• senal eléctrica. Rango: 5 bar, voltaje: 100 V - NPB:

• Marca HYDAC

INTERRUPTOR DE NIVEL TIPO FLOTADOR ,PARA APLICACIONES EXTREMAS,
Cable HR HY
Marca: INTRIAL
Función : Vaciado/Llenado ,
Funcionamiento : Omnidireccional ,
Angulo diferencial : +/- 120° ,
Densidad fluidos : 0,80 a 1,10 ,
RANGO : 4 bares ,
Temperatura máxima : 90°C ,
Índice de protección : IP 68 ,
Características eléctricas ,: 250 VCA/VCC - 50/60 Hz ,
Potencia de desconexión : 20 (8) A ,(20 A resistivos - 8 A inductivos) ,
Microinterruptor inversor :, Contactos plata / Oxido Cd ,
Envolvente bicónico : Polipropileno, copolímero + HR HY (hypalon) ,
Cables normalizados 3 cond. 1 mm2 : ,HR HY (hypalon) H07RN8-F ,
Dimensiones : Altura 200 mm Ø 92 mm,
Peso flotador sin cable : 295 g
Peso del cable : HR HY (hypalon) H07RN8-F 110 g/m ,
Lastre ajustable (opcion) :
Resina cargada 250 g
Longitud del cable : 30 m  (otras bajo pedido)

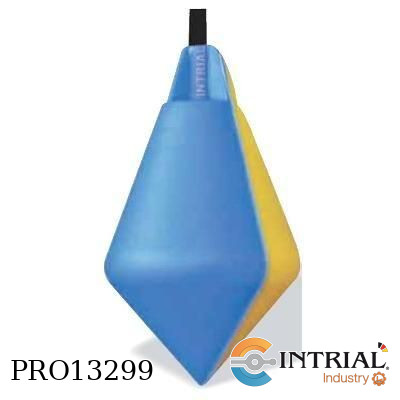

Interruptor de Nivel para SOLIDOS,
-RANGO :3.5 bar(bar)
Interruptores de Nivel tipo,
-10 mt de cable Hypalón
-Altura :152 mm
-Diametro :95 mm
-Angulo Diferencial +/- 110°
Principio de Operación :Omnidireccional
-Densidad Fluidos 0.70 a 1.50
-Presión Máxima:3.5 bar
-Temperatura máxma :95°C
-Indice de  Protección :IP 68
-Alimentación Eléctrica: 250 VAC-50/60 Hz
-Capacidad del Contacto :2,0(8) A(20 A resistivos-8 A inductivos)
Contacto,(Microrruptor Inversor):Contactos plata/niquel
-Envolvente Bicónico:Polipropileno copolímero)
-Cable Normalizado:HY(Hypalón) H07RN8-F
-Tipo de Cable :3 conductores 1 mm2(con tierra),
Peso del cable :HR HY(Hypalón) 110 g/m  ,
-Marca: INTRIAL
