Variable Area Flowmeter
Model: BGN-S1H-210R-2-0-0-0-0-S-2-0-0-H
Brand: Kobold – Heinrichs
[BGN] Model,
[S1H] Model, Stainless Steel, process temperature ≤ 350°C
[210R] Process connection - Flange,
4" Class 150 RF ASME B16.5-2003; Installation length 250 mm
[2] Measuring range (water 20°C, 1000kg/m³, 1mPas)
Model S: 10000…100000 l/h ( 10-100 M3/h )
[0] Heating / cooling, without
[0] Damping / spring stop, without
[0] Self draining, without
[0] Certificates, without
[S] Display, Standard display housing
Process temperature, for electrical output ≤ 150°C
Process temperature, for local indication ≤ 200°C
[2] Scale, Measuring range-Scale (Water)
[0] Switches, without
[0] Accessories, without
[H] Design, Heinrichs


EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold–Heinrichs
Material – lining, hard-rubber
Process Connection, 10" Class 150 RF
Material electrodes, Hastelloy C-4 standard for PTFE
Power supply, 230VAC (+10%, -15%), 50/60Hz
Output signal, 1: 0(4) - 20mA

EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold – Heinrichs
Material – lining, hard-rubber
Process Connection, 4" Class 150 RF
Material electrodes, Hastelloy C-4 standard for PTFE
Power supply, 230VAC (+10%, -15%), 50/60Hz
Output signal, 1: 0(4) - 20mA

EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold–Heinrichs
Material – lining, hard-rubber
Process Connection, 6" Class 150 RF
Material electrodes, Hastelloy C-4 standard for PTFE
Power supply, 230VAC (+10%, -15%), 50/60Hz
Output signal, 1: 0(4) - 20mA

FLUJÓMETRO DOPPLER PORTÁTIL
- Non-invasive clampon sensor
- Hand held flowmeter
- Pipe sizes DN25
- Volumetric flow units of
measurement
- Metric and English units
- Easy to use
- Flow total and rate display
- Long battery life
- Data logger option

EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold – Heinrichs
Material – lining, hard-rubber
Process Connection, 3" Class 150 RF
Material electrodes, Stainless steel
Power supply, 230V AC (+10%, -15%), 50/60Hz
Output signal, 1: 0(4) - 20mA

EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold – Heinrichs
Material – lining, hard-rubber
Process Connection, 2" Class 150 RF
Material electrodes, Stainless steel
Power supply, 230VAC (+10%, -15%), 50/60Hz
Output signal, 1: 0(4) - 20mA

EP MAGNETIC INDUCTIVE FLOWMETER
Brand: Kobold – Heinrichs
Material – lining, hard-rubber
Process Connection, 1 1/4" Class 150 RF
Material electrodes, Stainless steel
Power supply, 230VAC, 50/60Hz
Output signal, 1: 0(4) - 20mA

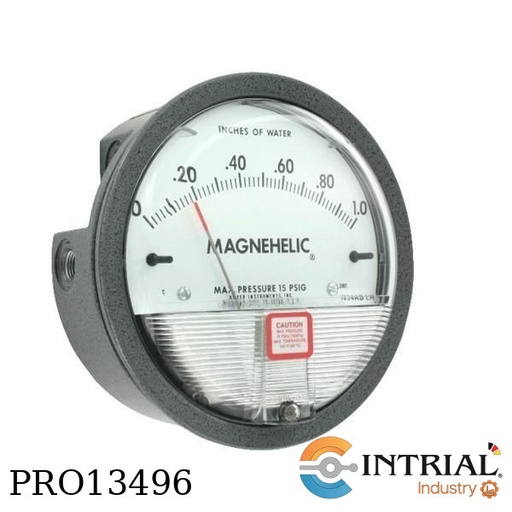

MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL
MARCA: DWYER INSTRUMENTS
Rango:  0 a 8 Inches of water
Conexión: 1/8 NPT hembra
Dial: 4"
Precisión: +/-4%

Modelo: SPXCDULNG1

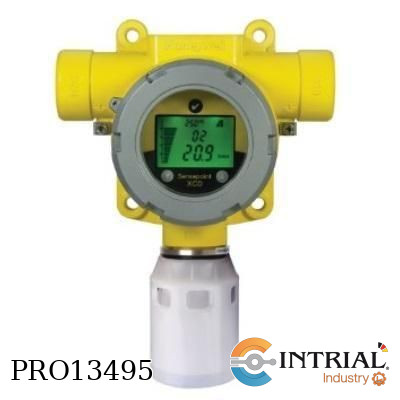

• Honeywell Sensepoint XCD Gas Detector
• Certification: UL/CSA/In metro (+$104.00)
• Sensor Type: Hydrogen; 0-1,000ppm
• Enclosure Material: Epoxy painted aluminum alloy
• Conduit Entry: 3/4 inch NPT
• Communication: None

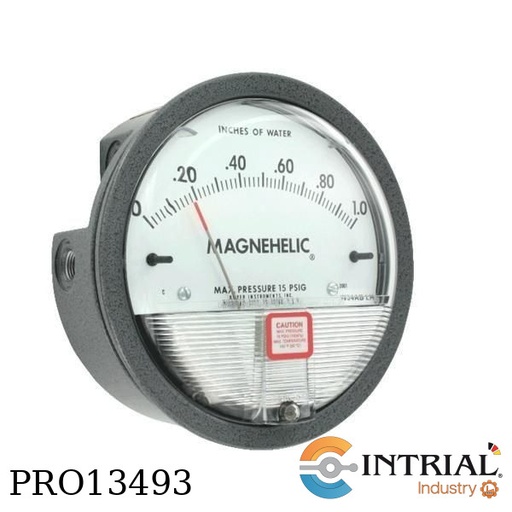

MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL
ZERO CENTER RANGES
MARCA: DWYER INSTRUMENTS
Rango: 2-0-2 Inches of water
Conexión: 1/8 NPT hembra
Dial: 4"
Precisión: +/-4%

MEDIDOR DE CAUDAL TIPO DESPLAZAMIENTO POSITIVO
MODELO: JVM-30CG-50-NPT
-POSITIVE DISPLACEMENT SPUR GEAR FLOW METER
-Brand: AW LAKE
-Flow Range: 0.1 - 7.0 GPM
-Body Material: 303 STAINLESS STEEL
-Ports: 1/2” NPT
-Pressure Rating: 5000 PSI
-Filtration Recommended: 120 MICRON

Modelo: 2220
MAGNEHELIC - MANOMETRO PRESION DIFERENCIAL
MARCA: DWYER INSTRUMENTS
Rango:  0 a 20 PSI
Conexión: 1/8 NPT hembra
Dial: 4"
Precisión: +/-4%

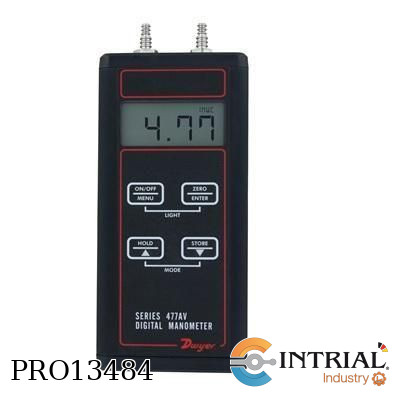

HANDHELD DIGITAL MANOMETER
Measures Pressure, Flow and Velocity; ±0.5% Accuracy
Range: 0 to 1.000 in w.c.
Brand: DWYER (USA)
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% FS, 60 to 78°F (15.6 to 25.6°C);
±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C)
Pressure Hysteresis: ±0.1% FS.
Pressure Limits: See chart.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4 digit LCD.
Resolution: See chart.
Units of Pressure: in w.c., ft w.c., in Hg,
psi, oz/in2, mm w.c., cm w.c., mm Hg,
mbar, Pa, kPa, hPa.
Units of Velocity: fpm, fps, mph, m/h, m/s, k/h, knot.
Units of Flow: cfm, m3/h, m3/s.
Power Requirements: 9 V alkaline
battery, installed non-functional, user replaceable.
Weight: 10.2 oz (289 g).
Process Connections: Two barbed
connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm)
ID tubing. Two compression fittings for use with 1/8"
(3.18 mm) ID x 1/4" (6.35 mm) OD tubing
for 477AV-7 and 477AV-8 only.
Agency Approvals: CE.

HANDHELD DIGITAL MANOMETER
Measures Pressure, Flow and Velocity; ±0.5% Accuracy
Range: 0 to 10.00 in w.c.
Brand: DWYER (USA)
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% FS, 60 to 78°F (15.6 to 25.6°C);
±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C)
Pressure Hysteresis: ±0.1% FS.
Pressure Limits: See chart.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4 digit LCD.
Resolution: See chart.
Units of Pressure: in w.c., ft w.c., in Hg,
psi, oz/in2, mm w.c., cm w.c., mm Hg,
mbar, Pa, kPa, hPa.
Units of Velocity: fpm, fps, mph, m/h, m/s, k/h, knot.
Units of Flow: cfm, m3/h, m3/s.
Power Requirements: 9 V alkaline
battery, installed non-functional, user replaceable.
Weight: 10.2 oz (289 g).
Process Connections: Two barbed
connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm)
ID tubing. Two compression fittings for use with 1/8"
(3.18 mm) ID x 1/4" (6.35 mm) OD tubing
for 477AV-7 and 477AV-8 only.
Agency Approvals: CE.

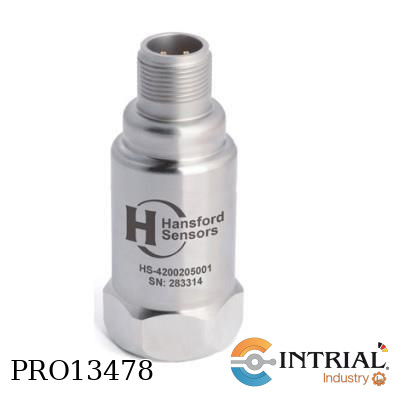

ACELEROMETRO
Model HS420 Series
Brand: HANSFORD SENSORS
Transmitter with 4-20mA proportional to velocity Metric units
0-25mm/s (0-1 ins/sec)
RMS sensitivity
2 pin MS connector and
M6 x 1mm male mounting thread

MEDIDOR DE CAUDAL ULTRASONIDO
•    Medición externa (Sin contacto con el líquido)
•    Principio De Medición : Tiempo En Transito
•    Marca: (INTRIAL)
•    Alimentación : 220 VAC / 10…30 VDC . Seleccionable
•    Sensores magnéticos , para montaje externo a la tubería.
•    Sensores sin contacto con el fluido (*)
•    Temperatura del Fluído : -40 á 100 ºC
•    Indicación digital de flujo instantáneo
•    Indicación digital de totalizador
•    Salida analógica 4…20 mA
•    Salida de pulsos para totalizador remoto
•    Precisión : +/- 1 %
•    Programación por teclado frontal
•    Fluidos Preprogramados :
•    Agua . Agua de Mar, Gasolina, Petróleo Diesel ,
•    Petróleo Crudo, Kerosene , Alcohol, Aceite .
•    (Para otros fluidos se debe conocer la velocidad del sonido)
•    Analizador de flujo para montaje en pared
•    Incluye abrazaderas para montaje de sensores
•    Incluye manual de operaciones en inglés
•    Incluye un envase de silicona
//////Incluye: ////////
•    sensor Type High-Heat L2
•    Large size transducer(magnetic with clamp-on fixture)
•    Temperature 0~160°C
•    For pipe size 11”~240”(DN300~6000mm)/////

Modelo:    INT-100H + L2
•    FLOWSONIC - Handheld / Hand Hold Ultrasonic Flowmeter
•    Brand (INTRIAL), Made in Taiwan for INTRIAL
•    Measuring Accuracy Flowmeter/Calorimeter: Better than 1% ; Water meter: Better than 2%; Heat Meter: EN1434 Standard
•    Repeatability Better than 0.2% or 0.5%
•    Flow Type Water, sea water, industrial water, oil liquid, sewage and single liquid available for ultrasonic
•    Velocity ±0.03~±105ft/s(±0.01~±32m/s),bi-ditectional
•    Pipe Material Steel, stainless steel, cast iron, copper, PVC, aluminum, glass reinforced plastics or other compact pipe and lined pipe allowed
•    Liquid Temp 32 F~320 F (0 C~160 C)
•    Output Interface OCT, RS232
•    Battery and Power 3AAA Ni-H built-in batteries, when fully recharged, it will last over 12 hours of operation.
•    90V-230VAC for the charger
•    Flow Type Water, sea water, industrial water, oil liquid, sewage and single liquid available for ultrasonic
TRANSDUCTORES QUE INCLUYE:
L2
•    Type High-Heat L2
•    Large size transducer(magnetic with clamp-on fixture)
•    Temperature 0~160°C
•    For pipe size 11”~240”(DN300~6000mm)
HM
•    Medium size trasducer (magnetic with mounting rack)
•    Dim 11”*1.6”*1.6”(180*40*40mm3))
•    For pipe size 2”~28”(DN50~DN700mm)

FLUJOMETRO EN POLICARBONATO
Marca: DWYER
RMA 2" escala
Con  válvula en Acero Inoxidable
150: Rango:  10 a 100 cc/min;  Aire
Proceso de conexión: 1/8"
Precision: 8%
Límite de temperatura: 130°F (54°C)
Límite de presión: 100 psi (6,9 bar)
Materiales en contacto: Cuerpo: en policarbonato
O-ring: neopreno y buna-N
Piezas de metal: Acero Inoxidable
Flotador: Acero Inoxidable

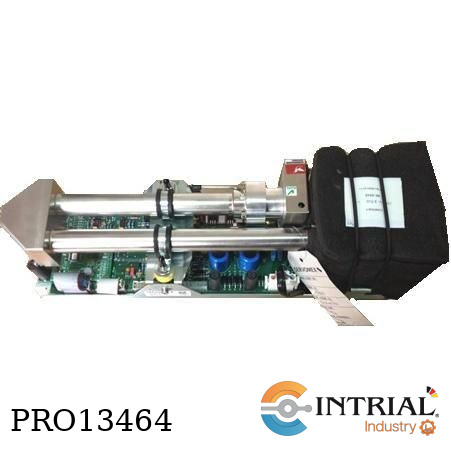

Gfx 5 vpm CO2, Spare
Complete GFX sensor for direct replace,ent on 4100 series
Brand: SERVOMEX
