HANDHELD DIGITAL MANOMETER
Brand: Dwyer
(477B-1)
Service: Air and compatible gases.
Wetted Parts: Consult factory.
Accuracy: ±0.10% FS from 60 to 78°F (15.6 to 25.6°C); ±1% FS from 32 to 60 and
78 to 104°F (0 to 15 .6 and 25.6 to 40°C).
Pressure Hysteresis: ±0.1% FS.
Pressure Limits: See chart.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 4-digit LCD (.425 " H x .234 " W digits).
Resolution: See chart.
Power Requirements: 9 volt alkaline battery. Battery included but not connected.
Connections: Two barbed connections for use with 1/8 " (3.18 mm) or 3/16 "
(4.76 mm) I.D. tubing for 477B-1, 477B-2, 477B-3, 477B-4 and 477B-5 only. Two
compression fittings for use with 1/8 " (3.18 mm) I.D. x 1/4 " (6.35 mm) O.D. tubing
for 477B-6 and 477B-7 only.
Weight: 10.2 oz. (289 g).
Agency Approvals: CE.
Range: 0 to 20.00 in w.c.

181030
Acetic Acid Reagent– for 6 months operation includes:
•    (1) x 1 L bottle acetic acid reagent
•    Does not include tubing

211050XPF
Reagent-less Ammonia Consumables Kit– for one year operation, includes:
•    (2) x 1 L empty bottles for use with ammonia reagent (181130)
•    (2) x 4 ft diffusion tubing assemblies with O-rings(150060)
•    Reagent bottle adapter (2110RBA)
•    (1) ammonia standard solution kit (181040)
•    (1) ammonia electrode (100047)
•    (1) reference electrode (210056)
•    (5) x 2 oz bottles reference filling solution(181073)
•    (1) O-ring kit (2110OK)
•    (1) restriction tube assembly (2100RT)
•    (2) x 60 micron inlet filters
•    (1) filter gasket (181127) and
•    (1) set of 100 pipette tips (204846-001)

2110XPCAL
Calibration Kit with Carrying Case
•    0.5 mL pipette (204847-001)
•    Set of 100 pipette tips (204846-001)
•    (1) ammonia standard solution kit (181040)
•    (1) inlet filter
•    Wash bottle and
•    (1) x 4 ft length diffusion tubing (150060)

2110XPEN
Ammonia Analyzer with Protective Enclosure Package includes:
•    Ammonia analyzer with protective enclosure
•    Ammonia electrode
•    Reference electrode
•    ATC probe
•    Ammonia standard solution kit
•    CD user guide
•    More information please see datasheet Attached
•    Brand: Thermo Scientific

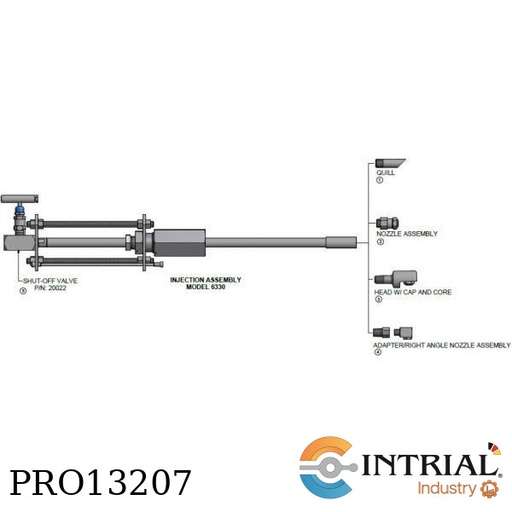

Retractable Injection/Sampling Tube Assembly
• Pressure Rating 1500 Psi
• Mounting 1” Full Port Valve
• Temperature Rating 260 C
• Tube and Adaptor Material: 304 SS
• Stuffing Box: 316 SS
• Seal Material: Teflon
• Order Length: 36 Inches
• Safety Clamp INCLUDED

BiTh100Ch,D412(0 a 120ºC)
TERMÓMETROS BIMETALICO PARA APLICACIONES QUÍMICAS
• Marca: AFRISO (Alemania)
• Dial Ø: 100 mm
• Carcasa: acero inoxidable 304 con bisel ,ventana de cristal instrumento
• Conex posterior
• Bulbo: Acero inoxidable 316
• Longitud y diámetro bulbo: 160 mm x 8 mm
• Rango: 0 a 120 ºC
• Grado de protección: IP65
• Conexión macho fijo (G1//2)

006277
Stainless Steel TAG-Etched
Up to 3 Lines of text
COSASCO

SENSOR DE TEMPERATURA TIPO PT-100 CON TRANSMISOR Y THERMOWELL

• Salida de 3 hilos; Clase B

• Completo acero inoxidable.

• Diámetro bulbo 1/4"

• Conexión a proceso 1/2" hilo Npt macho.

• Cabezal de Aluminio Grande tapa roscada IP 67

• Conector eléctrico 1/2" Npt

• Largo inserción: 1000 mm.

• Marca: Intrial



THERMOWELL

• Material: PTFE

• Diámetro thermowell: 20 mm

• Longitud Themowell: 1000 mm

• Conexión a Instrumento 1/2" NPT.

• Conexión a proceso: 1/2" NPT.



INCLUYE TRANSMISOR DE TEMPERATURA

• Rango: 0-200°C, alojado en cabezal.

• Salida de 4-20mA.

• Marca: Intrial

SENSOR DE TEMPERATURA TIPO PT-100 CON TRANSMISOR

• Salida de 3 hilos; Clase B

• Completo acero inoxidable.

• Diámetro bulbo 1/4"

• Conexión a proceso 1/2" hilo Npt macho.

• Cabezal de Aluminio Grande tapa roscada IP 67

• Conector eléctrico 1/2" Npt

• Largo inserción: 250 mm.

• Marca: Intrial



INCLUYE TRANSMISOR DE TEMPERATURA

• Rango: 0-200°C, alojado en cabezal.

• Salida de 4-20mA.

MH1222
Wash Head Assembly

RF100 Ch,D402 (0 a 10 Bar)
MANÓMETRO TIPO BOURDON CON GLICERINA
•    Marca: AFRISO (Alemania)
•    Rangos: 0 a 10 bar
•    Diámetro de Carcasa: 4''(100 mm)
•    Precisión: 1.0
•    Temperatura operación medio: Max 150°C
•    Material caja /conexión: Acero inoxidable 304/Acero Inoxidable 316
•    Doble escala Bar/PSI
MD60 (31324W)
SELLO DE DIAFRAGMA MD 30 EN ACERO INOXIDABLE
•    Marca: AFRISO (Alemania)
•    Presión Nominal: PN40
•    Conexión a Proceso: 1½” NPT
•    Conexión a Instrumento: Conexión Soldada
•    Material del diafragma: Acero Inoxidable 316

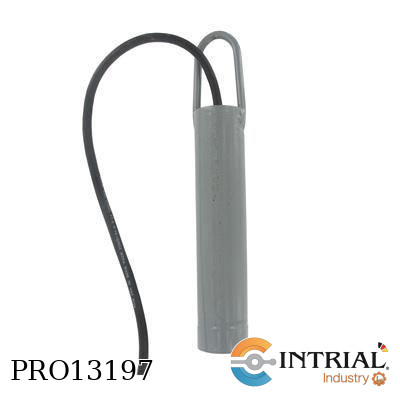

SERIES LTS TILT SWITCH PROBES - Standard (Probe Material Steel)
Brand: DWYER
Service: Powder and bulk.
Temperature Limit: -4 to 104°F (-20 to 40°C).
Switch Type: SPST, normally closed.
Electrical Rating: < 50 mA @ 12 VDC as supplied by Series LTC controller.
Electrical Connection: 3-wire +12 VDC (supplied by controller).
Cable Length: 25´ (7.6 m) unless otherwise specified.
Probe Length: Standard: 9" (23 cm)
Contact Rating: When not used with LTC controller: 60 V max., 0.25 A max.
Actuation Angle: 25° from vertical.
Material: Steel
Switch Surrounding: Epoxy encapsulated.
Mounting Orientation: Vertical.
Weight: Standard: 4.75 lb (2.15 kg)
Agency Approvals: Meets NEMA 4.

TM SERIES WATER METER Brand: GPI Flow Rate / Size: 20 to 200 GPM 2 inches Fitting: NPT female Display / Output: Electronic display

GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications
- Power Input 10-30VDC at less than 0.75 watts
- Display 64 x 128 pixel LCD with 30-minute trend, bargraph and
- engineering units display.
- Input Accepts microamp-level signals from local or remote
- GDS Corp toxic or oxygen deficiency sensors
- Accuracy +/- 5% of full scale range (typical)
- Standard
- Output
- Standard 2-wire 4-20mA current sink output. Max loop R
- is 600 ohms with nominal 24VDC power supply.
- Temp Electronics -40°C to +60°C. See Echem Sensor Manual
- for additional information
- Housing Aluminum housing with epoxy paint standard; #316
- stainless steel optional
- Dimensions Width 5.4” (137 mm), Height 8” (203 mm), Depth 5”
- (127 mm) Shipping weight 6.5 pounds (3 kg)
- Approvals CSA Certified Div 1 & 2 Groups B, C, D. Suitable for
- explosion-proof installations
- CSA Certified Div 1 & 2 Groups A, B, C, D. Intrinsically
- safe. IMPORTANT: Intrinsically Safe installations
- require IS barrier #10-0263 (MTL 7787P+) or equivalent.
- ATEX Certified EX II 2 G EEx d IIB + H2 T5
- Warranty Two years on electronics and one year on sensors.
//////////CODIGOS PARA ORDENAR///////
- GM-EC: GASMAX EC Gas Monitor, Loop-Powered Gas Monitor for Toxic Applications
- 3: Sensor Head (Local sensor head for reactive gases IS)
- 12: Sensor Type (chlorine)
- 5:  Target Gas Range (0 - 50 ppm)

GMII:         GASMAX II Gas MonitorSingle / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Location Chanel 1
0:    Sensor Head (No sensor head)
00:    Senor Type (No sensor)
0:      Target Gas Range (None)
 Chanel 2
2:    Sensor Head (Local sensor head with splash guard)
50:    Senor Type (SmartIR 0 to 100% LEL Methane)
6:          Target Gas Range (0 - 100% LEL)
 Output
0:    standard 4 -20 ma output (3-wires)
0:    standard temperature range

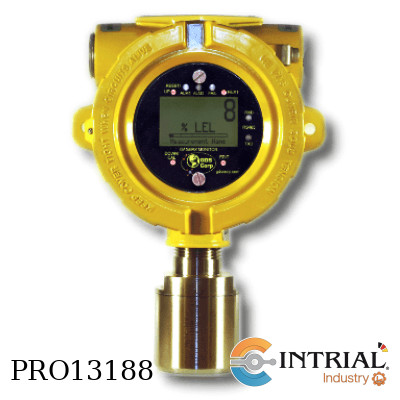

GASMAX II Gas Monitor Single / Dual Channel Toxic & Combustible Gas Monitor for Hazardous Locations
Power Input:    10-30VDC at < 4 watts with relay board. Additional power required for Extended Temp & GDS-IR option.
Display:        Backlit 64 x 128 pixel LCD with 30-minute trend, bargraph
Electrochemical Sensor Input:    Channel 1 accepts microamp-level signals from GDS Corp toxic & oxygen deficiency sensors or 4-20mA current source
Bridge Type Sensor Input:        Channel 2 provides adjustable excitation voltage for SmartIR, PID and catalytic bead or 4-20mA current source
Standard Output:            Standard dual 3-wire 4-20mA current source. Max loop R is 750 ohms with nominal 24VDC power supply
Optional Outputs:        Dual 1500CMV isolated 4-20mA current source. Max loop R is 650 ohms with nominal 24VDC; Single or dual MODBUS slave ports; 3x program-mable alarm relays with 5A capability
Temp:        Electronics -40°C to +60°C; See Echem Sensor Manual for sensor limits
Housing :        Aluminum housing with epoxy paint standard; Optional #316 stainless steel housing (specify [SS] in part number)
Dimensions:        Width 5.4” (137 mm), Height 8” (203 mm), Depth 5” (127 mm) Shipping weight 6.5 pounds (3 kg)
Approvals:        CSA Certified for Class I, Div 1, Grps B, C, D. Suitable for XP installations
Warranty:        2 years on electronics and one year on sensors

ACCESS VALVE ASSY, RETRACTABLE SYSTEM
• W/ C.S. SOCKETWELD-O-LET FOR 6" PIPE SIZE.
• X = 1-1/2in DIA FULL PORT BALL VALVE IN C.S.
• X = 1-1/2" PIPE X 1.00" NPT CONCENTRIC REDUCER C.S.
• WITH BLEED VALVE 316 S.S.
• X = SOCKOLET 6" PIPE SIZE IN C.S.
• C= Customized requirement (All thread Nipple welded to both sides of Valve and also to Threadolet as picture show by customer)
Please Refer to “ANEX 01” attached with this Purchase Order

Retractable Strip Coupon,
•Alloy A106GrB,
•Dimensions: 1/16"TH x 1/2"W x 3"LG,
•Grid Blast, Standard Nylon Insulators (250F),
•Preweighed
•Brand: COSASCO

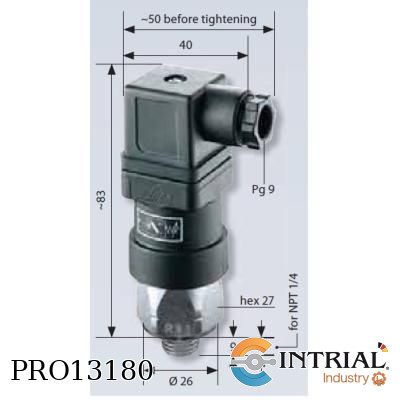

Diaphragm pressure Switch,
Modelo: 0184-45703-1-003
Con Punto de Presion a 0.3 bar F
- Diaphragm pressure switch 0184.
- Rango ajustable 0.3-1.5 bar
- Hilo 1/4" BSPP.
- Para aplicaciones con fluido hidráulico.
- Set at 0.5 bar falling
