Temperature Switch For Liquids
Brand: Kobold
Fitting/housing, brass
Max. temperature, 150 °C
Max. pressure, PN 64
Hysteresis, max. 20 °C
Contact, N/O
Connection, G 3/4 male
Electron. connection, plug acc. DIN 43 650
Switch point, 45°C

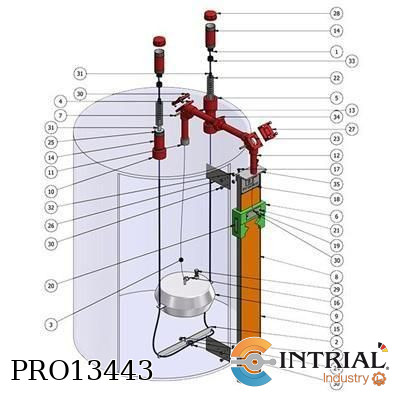

INDICADOR DE NIVEL REGLETA

• Marca: Franko

• Serie 4010

• Regleta en aluminio anodizado para ambiente marino

• con escala vinílica graduada en Galones

• 7.50 metros de longitud

• Flotador de SS304

• Incluye anclas de montaje al tanque

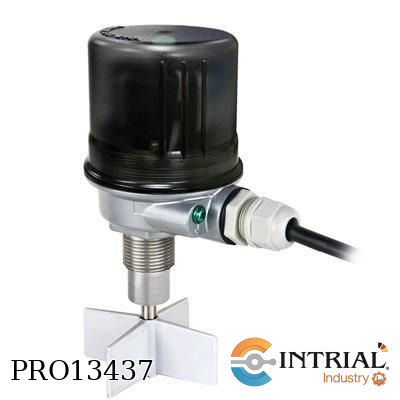

MINI ROTARY PADDLE LEVEL SWITCH
Brand: FINETEK
General type with plastic cover
Supply Voltage: 24Vdc
Connection: 1” PT
Scimitar paddle, material PC
Cable length: 300mm
Operation temperature: -40~85’C

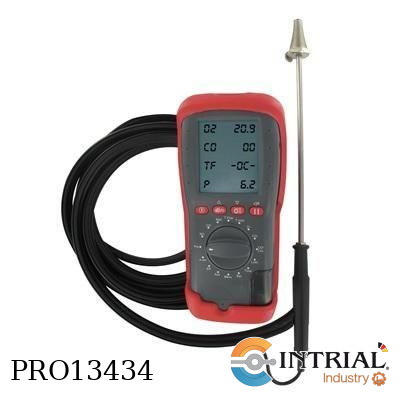

HANDHELD FLUE GAS COMBUSTION ANALYZER
Brand: DWYER(USA)
Rotary Dial Selection, Display 4 Parameters Simultaneously
Range: O2: 0 to 21%; CO: 0 to 2000 ppm (4000 ppm max for 15 minutes);
CO2: 0 to 30%; Temp. (flue and net): 32 to 1112°F (0 to 600°C)
Efficiency: 0 to 99.9%; Excess air: 0 to 250%.
Accuracy: O2: ±0.2%; CO: ±10 PPM
< 100 PPM else ±5% of reading;
CO2: ±0.3% reading; Temp. (flue and net): ±2°C ±0.3% reading;
Efficiency: ±1% reading; Excess air: ±0.2%.
Resolution: O2: 0.1%; CO: 1 PPM;
CO2: 0.1%; Temp. (flue and net):
0.1°F/C; Efficiency: 0.1%; Excess air: 0.1%.
Ambient Operating Temperature: 32 to 104°F (0 to 40°C).
Power Requirements: (8) AA
alkaline batteries, installed functional,
user replaceable, (4) AA NiMH batteries,
included, user replaceable (charger
included) or optional power adapter.
Pre-Programmed Fuels: Natural gas,
light oil, propane, butane, LPG, and wood pellets.
Probe: 11.8 (300 mm) length x 0.25 (6 mm) diameter with 7.8 (200 mm)
stainless steel shaft.
Hose: 10 ft (3 m).
Weight: 1.7 lb (0.77 kg).
Agency Approvals: CE.

M4-8T1HX51-W003
Magnetic, Heavy Mill Duty HOLLOW SHAFT
8: Rotor Size 1-1/2”
T: Thru Shaft
1: Line driver 5-24v in/out (7272)
H: 1024 PPR Left Out
51: Base PPR
W: 3’ Flexible Cable, sealed
003: Torque Arm Mount

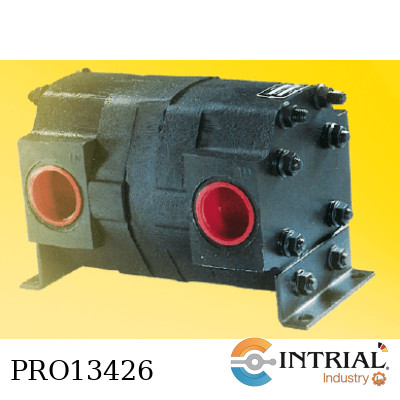

flow divider PR 418-S
2-section flow divider
max. inlet flow: 380 l / min
max. working pressure continuous: 210 bar
including mounting feet
net weight: 21,4 kg / a piece

HS45 – Heavy Mill Duty MAGNETIC Hollow Shaft
Part Number: HS45FAYXX6HPA000
F - 1 in. bore, insulated shaft bushing, universal end or thru shaft mountable
AY - 1024 PPR
XX - No Right Output
6 - 5-24v in, 5-24v out (7272) recommended for single-ended wiring (A,B,Z, no Complements, and differential wiring up to 500'.
H - Terminal box w/USA 1/2 in. conduit, LED & Remote Alarm Diagnostics
P - Threaded Rod Torque Arm Kit, Fixed 70mm Length
A - All Channels (A, A/, B, B/, Z, Z/ )
000 - No Special Options

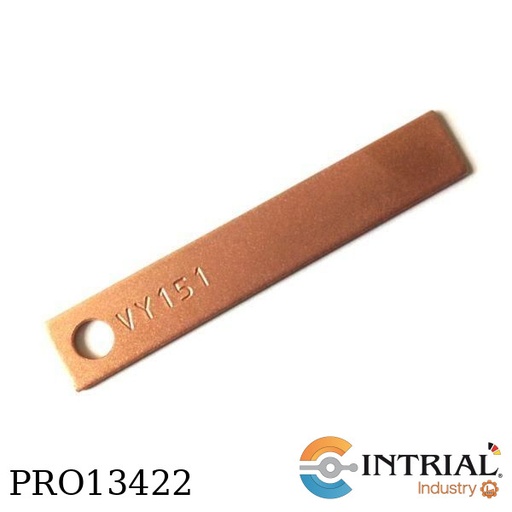

WTC-103-C11000
Water Treater Coupon
Size and Configuration: 1/2” x 3” x 1/16” with 1/4” hole 1/4” from end
Material: C11000 (110 ETP Copper)

1" Stuffing Box-Packing, Replacement
COSASCO

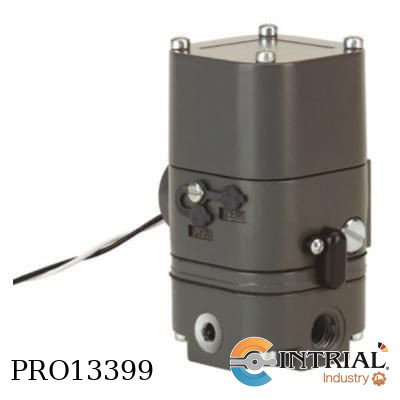

CURRENT TO PRESSURE TRANSDUCER
Brand: DWYER
4-20 mA input
3-15 psi (20-100 kPa) output
Service: Oil free, clean dry air filtered to 40 microns.
Input Signal: 4 to 20 mA.
Input Impedance: IP-42: 180 ohms; IP-43 and IP-44: 220 Ω.
Air Pressure: Min: 3 psig (21 kPa) above max output; Maximum: 100 psig (700 kPa).
Linearity: < ±0.75% of span.
Hysteresis: < 1% of span.
Repeatability: < 0.5% of span.
Supply Pressure Sensitivity: < ±0.1% of span per psig (< ±0.15% of span per 10 kPa).
Power Requirements: Loop-powered.
Temperature Limits: -20 to 140°F (-30 to 60°C)
Pressure Connections: 1/4" female NPT.
Electrical Connection: 1/2" female NPT.
Air Consumption: 0.03 SCFM (0.5 m3/h) typical.
Output Capacity: 4.5 SCFM (7.6 m3/h ANR) at 25 psig (175 kPa) supply; 12 SCFM (20
m3/h) at 100 psig (700 kPa) supply.
Relief Capacity: 2 SCFM (3.4 m3/h) at 5 psig (35 kPa) above 20 psig (140 kPa) setpoint.
Weight: 2.1 lb (0.94 kg).
Agency Approvals: CE, FM.

Standard SwitcH
Brand: Kobold (Alemania)
Model: M08-E-9A9-S-S-X-X-0-0
[M08-E]:
Guiding tube, st.st. 1.4404
Float material, st.st. 1.4404
max. temperature (PVC-cable), 70 °C 7
max. temperature (silicone-cable), 150 °C
max. pressure, 20 bar
min. density, 0,65 kg/dm3
min. guiding tube length, 105 mm
Switchpoint at L1(min.), 35 mm
[9A9]:
flange ANSI B16.5 150 lbs RF, 2"
Connection material, st.steel 1.4404
Housing material, aluminium
Electrical connection, M16 x 1,5
[S]: contact, 1st N/O
[S]: additional contacts, 2nd N/O
[X]: additional contacts, w/o 3rd contact
[X]: Additional contacts, w/o 4th contact
[0]: electr. connection, w/o cable / with housing
[0]: ATEX, without
Longer guiding tube, 1500 MM
L0 = 1500 mm
L1 =   400 mm
L2 = 1400 mm

Heavy-Duty Silicone Rubber Drum/Pail Heaters (DHCS/DPCS)
Brand Name: BriskHeat
Height  3.0  inches
Length  44.0  inches
Manufacturer Series Number    DHCS
Material             Silicone Rubber
Width   24.0  inches
Incluye Heater 700 watts; 240 Volts

Sensor Infrarojo de Metano, Filament Detector
Incluye:
Sensor Infrarrojo de Methano (093-0500)
Filament Detector Guard Assembly (Combustible).(096-3363)

AWRT20T4XXXC6XX+FA4A4+C034Z
Acoustic Wave Remote Transducer
* 20kHz for applications up to 20m Liquids,10m Slurry and 7m Solids(large & Medium Part)
* Facing material: Teflon 80 C
* Housing: Polypropylene
* Connection: IP68 Sealed unit w/cable
* Cable Length: 6 m
ACCESORIOS INCLUIDO
==================
Flange: ANSI 4"
============
* Cone Mounted
* Flange Material: Polypropylene
Focaliser Cone
============
* 3" Cone for 30-20 & 15 Khz
* Cone Material: Polypropylene

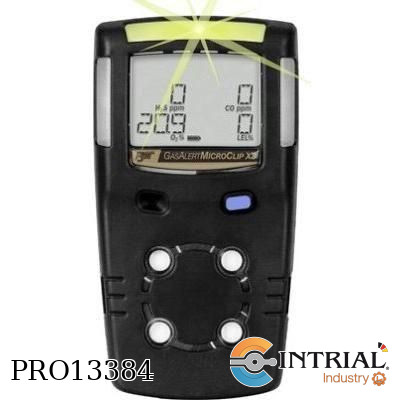

•    BW Technologies GasAlert MicroClip XL Multi-Gas Detector
•    Number of Gases: Four(4)
•    Gas: Combustible, Oxygen, Hydrogen Sulfide & Carbon
•    Monoxide
•    (%LEL, O2, H2S, CO)
•    Color: Black
•    Size 4.4 x 2.4 x 1.2 in. /11.3 x 6.0 x 3.1 cm
•    Weight 6.7 oz. / 190 g
•    Temperature -4 to +122°F / -20 to +50°C
•    Typical battery life 18 hours (recharges in less than 6 hours)
o    Note: Battery is guaranteed to have 12 hour runtime during warranty period under normal operating temperature of 4°F / -20°C to 122°F / 50°C.
•    Ingress Protection IP68
•    Certifications and
•    approvals n Class I, Div. 1, Gr. A, B, C, D
•    ATEX: X g II 1 G
•    Ex ia IIC T4 Ga
•    IECEx: Ex ia IIC T4 Ga
•    X: European Conformity
•    Standard Package Contents
•    Detector complete with specified sensor(s), stainless steel alligator clip and concussion-proof housing
•    Rechargeable battery
•    Wall outlet charging adaptor
•    Calibration/test cap and hose
•    Manual
•    Multi-language CD manual

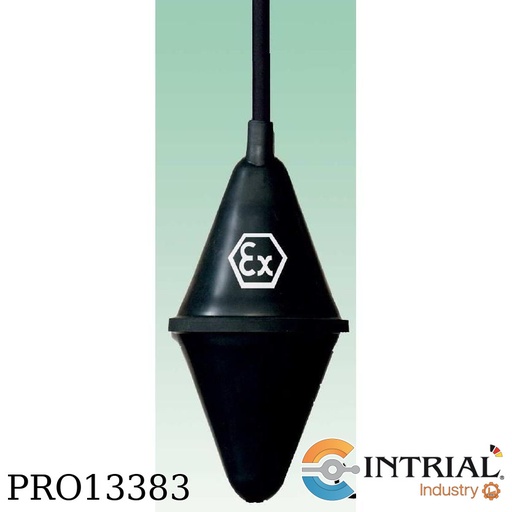

Regulador de Nivel Tipo Flotador
Marca: ATMI /Modelo: SOBA EX
Funcionamiento: Omnidireccional
Angulo diferencial: +/- 25°
Densidad fluidos: 0.80 a  1.10
Presión Máxima: 4 bar
Temperatura máxima: T6 y Ta: de -20°C a + 70°C/ídem
