COMPACT ULTRASONIC FLOWMETERS
Brand: Dwyer
Service: Clean water with < 3% by volume of particulate content.
Range: 0.33 to 32.8 ft/s (0.1 to 10 m/s).
Display: Backlit: 3.27" H x 0.74" W (83.1 mm x 18.8 mm), 2 line x 16 characters.
Accuracy: ±3% of flow reading for > 0.98 ft/s (> 0.3 m/s).
Power Requirements: 12 to 24 VDC or VAC.
Power Consumption: 7 W max.
Temperature Limits: Process: 32 to 185°F (0 to 85°C); Ambient: 32 to 122°F (0 to 50°C).
Outputs: Analog: 1 opto-isolated: 4 to 20 mA; Error current: 3.5 mA; Load resistance: 620 Ωmax; Pulse: 1 optoisolated MOSFET relay, 500 mA max, 166 pps max, 200 Hz max.
Enclosure Rating: IP54.
Enclosure Material: Plastic polycarbonate.
Repeatability: ±0.5% of measured value.
Electrical Connections: 16.4´ (5 m) cable.
Response Time: < 1 s.
Weight: 2.9 lb (1.315 kg).
Agency Approvals: CE.
Applicable Pipe Material: Steel, copper, or plastic.
Pipe Outside Diameter: 0.98 to 4.62" (24.89 to 117.35 mm).
Applicable Pipe Lining: None.
Pipe Wall Thickness: 0.02 to 0.39" (0.5 to 10 mm).

MANÓMETRO TIPO BOURDON
Marca AFRISO(Alemania)
RANGO: 0 to 2.5 bar/0 to 37 psi
Diámetro de Carcasa 6''(160mm)
Precisión 1.6(EN 837-1/6)
Temperatura Operación Max 120°C
Conexión  INFERIOR,1/2 ''NPT
Material: Caja y conexión en acero inoxidable
Con/sin glicerina(Especificar al ordenar, no afecta el precio)

SERIES 301 TOP MOUNT FLOAT TYPE LEVEL CONTROL
Brand: DWYER(USA)
E: Enclosure: Explosion-proof
4820: Circuits: 9-51 NC SPST Mercury Switch
A0: Float/Guide Rod: 3-1/2" x 6" 304SS Float, 316SS Stops, No Extension
24: Operating Point In Inches: 24 Inches
.75: Specific Gravity: 0.75 S.G.
0: Flange: No Flange

RF160 Ch,D402 (85266402)
MANÓMETRO TIPO BOURDON CON GLICERINA
• Marca: AFRISO (Alemania)
• Rangos: 0 a 16 bar
• Diámetro de Carcasa: 6''(100 mm)
• Precisión: 1.0
• Temperatura operación medio: Max 150°C
• Material caja /conexión: Acero inoxidable
• 304/Acero Inoxidable 316
• Doble escala: PSI/BAR
MD30 (31417W) (PFA)

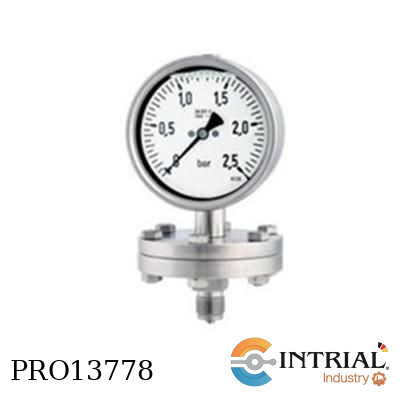

SELLO DE DIAFRAGMA
• Marca: AFRISO (Alemania)
• Presión Nominal: PN25
• Conexión a Proceso: ½” NPT
• Material del cuerpo: Acero Inoxidable
• Material del diafragma: PFA


RF160 Ch,D402 (85265402)
MANÓMETRO TIPO BOURDON CON GLICERINA
• Marca: AFRISO (Alemania)
• Rangos: 0 a 10 bar
• Diámetro de Carcasa: 6''(100 mm)
• Precisión: 1.0
• Temperatura operación medio: Max 150°C
• Material caja /conexión: Acero inoxidable
• 304/Acero Inoxidable 316
• Doble escala: PSI/BAR
MD30 (31417W) (PFA)
SELLO DE DIAFRAGMA
• Marca: AFRISO (Alemania)
• Presión Nominal: PN25
• Conexión a Proceso: ½” NPT
• Material del cuerpo: Acero Inoxidable
• Material del diafragma: PFA

Weld in sleeves.
Brand: Kobold
[LZE-Z]:
Type of sleeve, Cylindrical
Description, for tanks
Material, st. st. 1.4404
Surface, Hygiene class H3
Max. temperature, 250 °C
Max. operating pressure, 10 bar
Measuring unit connection, G ½

Capacitive Level Limit Switch LNZ
Brand: Kobold
Process temperature, 0..100 °C (150 °C)
Protection, IP 67
max. operating pressure, 10 bar
dielectric constant, Er >20
Version, Process connection, Food*, G 1/2
Electric connection, M12 x 1 plug

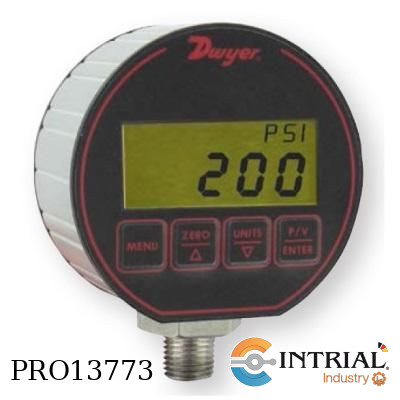

MANOMETRO DIGITAL
Marca: DWYER (USA)
Modelo: DPG-211
Pressure Ranges bar: 344.8
Output: 4 a 20 mA
Process Connection: 1/4" male NPT.

FLOW MONITOR
• SN series
• Brand: UFM
• Range: rango  0-3GPM

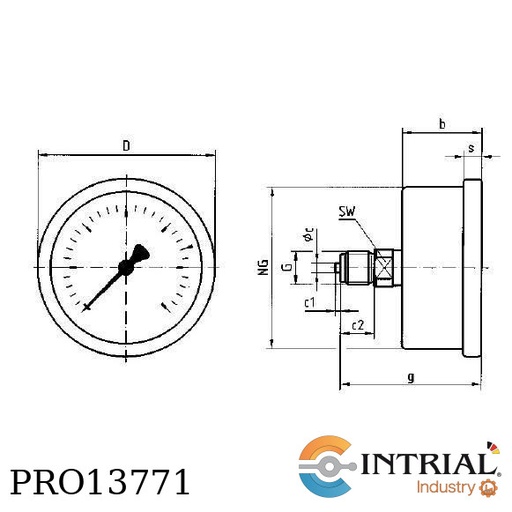

Modelo RF63Ch,D912
-RANGO 0 to 2.5 bar/0 to 37 psi
-Manómetro tipo Bourdon
-Marca AFRISO(Alemania)
-Diámetro de Carcasa 2 1/2''(63mm)
 Precisión 1.6(EN 837-1/6)
-Temperatura operación Max 120°C
 Conexión POSTERIOR,1/4''NPT
-Material:caja y conección en acero
con/sin glicerina no afecta el precio, indicar al ordenar.

SWITCH DE NIVEL
Marca: GEMS
TIPO: FLOTADOR
MONTAJE: LATERAL – HORIZONTAL.
MATERIAL DEL CUERPO: BRONCE
MATERIAL DEL FLOTADOR: BUNA N
CONEXIÓN DE MONTAJE  1PLG NPT
SWITCH SPDT20 VA

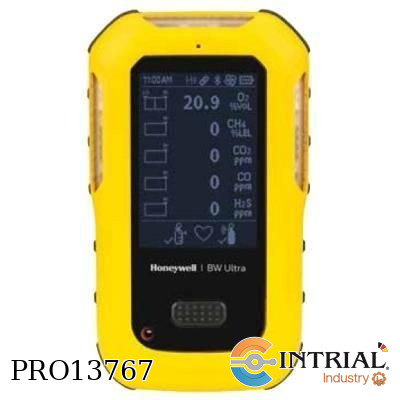

Honeywell BW Ultra Multi-Gas Detector
SELECTED OPTIONS:
Sensor 1: Oxygen
Sensor 2: % LEL (combustibles), filtered
Sensor 3: H2S (hydrogen sulfide)
Sensor 4: CO (carbon monoxide)
Sensor 5: IR (infrared) for CO2 (carbon dioxide)
Housing: Yellow

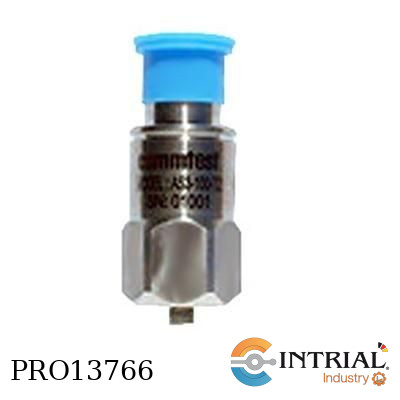

SENSOR ACELEROMETRO RECTO
Marca: GENERAL ELECTRIC - COMMTEST
SENSIBILIDAD 100 MV/G
RANGO ACELERACION 80G PEAK
CLASE 1 DIVISION 2

PRESOSTATO VARI
Marca: TRAFAG (Suiza)​
• Características:
• Diferencia de conmutacion amplia ajustable, con pantalla y tornillo de ajuste interno (903)
• Microinterruptor de elevada resistencia a vibraciones (23)
• Rango de Medicion: 4..40 Bar
• Sobre presion Maxima: 40 Bar
• Presion de rafaga: 75 Bar (81)
• Diferencia de conmutacion ajustable
• Salida: 1 Contacto flotante SPDT
• Sensor de Fuelle de bronce
• Material de la caja: Laton
• Conexion al proceso: G 1/4" Hembra (907)
• Repetibilidad: +/- 1.0 FS Tipica
• Temperatura del Proceso: Estandar -40°C a +150°C
• Carcasa: AlMgSi1 anodizado
• Proteccion: IP65
• Aprobaciones: ABS, BV, DNV, GL, KRS, LRS, NKK, RINA

TILT SENSOR CONTROL IN DIN RAIL MOUNT BOX
• Brand: THERMO SCIENTIFIC

MANOMETRO TIPO FENOLICO RELLENO DE GLYCERINA
RF130PG,D102(0-150 PSI)
Marca: AFRISO(Alemania)
Dial Ø: 4 ½ “
Carcaza: PP-GF 20, negra
Elemento de medición: Acero Inoxidable 316Ti/316 L
Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)
Conexión: ½ NPTM- Inferior
Rangos: 0 a 150 PSI
Doble escala: PSI/Bar

MANOMETRO TIPO FENOLICO RELLENO DE GLYCERINA
RF130PG,D102(0-500 PSI)
Marca: AFRISO(Alemania)
Dial Ø: 4 ½ “
Carcaza: PP-GF 20, negra
Elemento de medición: Acero Inoxidable 316Ti/316 L
Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)
Conexión: ½ NPTM- Inferior
Rangos: 0 a 500 PSI

MANOMETRO TIPO FENOLICO RELLENO DE GLYCERINA
RF130PG,D102(0-1000 PSI)
Marca: AFRISO(Alemania)
Dial Ø: 4 ½ “
Carcaza: PP-GF 20, negra
Elemento de medición: Acero Inoxidable 316Ti/316 L
Precisión Clase: Grado 2A según ANSI B 40.1 (correspondiente para clase 0.5)
Conexión: ½ NPTM- Inferior
Rangos: 0 a 1000 PSI

DIGIHELIC® 3 DIFFERENTIAL PRESSURE CONTROLLER
Range: 0-5 in w.c.
Brand: DWYER INSTRUMENTS
Service: Air and non-combustible,compatible gases.
Housing Material: Die cast aluminum case and bezel.
Accuracy: ±1.5%
Stability: < ±1% per year.
Temperature Limits: 32 to 140°F (0 to 60°C).
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).
Thermal Effects: 0.020%/°F (0.036/°C) from 77°F (25°C).
For 0.25 in and ±0.25 in w.c. ranges: ±0.03%/°F (±0.054%/°C).
Power Requirements: 12-28 VDC, 12-28 VAC 50 to 400 Hz.
Power Consumption: 3 VA max.
Output Signal: 4-20 mA DC into 900 Ω max.
Zero & Span Adjustments: Accessible via menus.
Response Time: 250 ms (damping set to 1).
Display: Backlit 4 digit LCD 0.4" height
LED indicators for set point and alarm status.
Electrical Connections: 15 pin male high density D-sub connection.
18" (46 cm) cable with 10 conductors included.
Process Connections: 1/8" female NPT
Side or back connections.
Mounting Orientation: Mount unit in vertical plane.
Size: 5" (127 mm) OD x 3-1/8" (79.38 mm).
Weight: 1.75 lb (794 g).
Agency Approvals: CE.
SWITCH SPECIFICATIONS
Switch Type: 2 SPDT relays.
Electrical Rating: 1 A @ 30 VAC/VDC.
Set Point Adjustment: Adjustable via keypad on face.

PHOTOHELIC® PRESSURE SWITCH/GAGES
3-in-1 Indicating Gage, Lo-Limit and Hi-Limit Control
Range: 0 a 4 In w.c.
Brand: DWYER
GAGE SPECIFICATIONS
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±2% of FS at 70°F (21.1°C). ±3% on -0 and ±4% on -00 models.
Pressure Limits: -20" Hg to 25 psig (-0.677 to 1.72 bar)
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C)
Process Connections: 1/8" female NPT.
Size: 4" (101.6 mm) dial face, 5" (127 mm) OD x 8-1/4" (209.55 mm).
Weight: 4 lb (1.81 kg).
SWITCH SPECIFICATIONS
Switch Type: Each setpoint has 2 form C relays (DPDT).
Repeatability: ±1% of FS.
Electrical Rating: 10 A @ 28 VDC, 10 A @ 120, 240 VAC.
Electrical Connections: Screw terminals. Use 167°F (75°C) copper conductors only.
Power Requirements: 240 VAC.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment: Adjustable knobs on face.
Agency Approvals: CE, CSA, UL.
