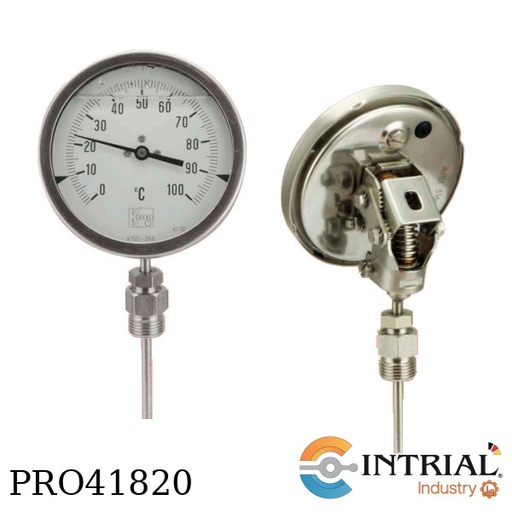

<strong>Bimetallic Thermometers<br />
Marca: Kobold (Alemania)<br />
Model: TBE-3-2-F12-3A-6-000-500mm</strong><br />
[TBE-3]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to, bottom<br />
Probe: st.st.<br />
[2]: Diameter, 125 mm<br />
[F12]: Scale °F, ranges 0…+200°F<br />
[3A]: Probe type/Process Connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm/500 mm<br />
[000]: Options, without.

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-D-6-N15-C-4-G-0-0<br />
[MWD-D]:<br />
Version, compact with removable measuring<br />
insert and extension neck pipe<br />
Neck pipe HL: 130 mm<br />
Electrical connection: M20x1.5<br />
Max. pressure, 30 bar<br />
Protective tube: according to DIN 43772<br />
Material: stainless steel 1.4404 (316L)<br />
[6]: Diameter / length thermowell, 6 mm / 900 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[4]: Wiring, 4 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-1-1-C28-52-6-000<br />
[TBE-1]:<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): Class 1<br />
Connection to: Rear<br />
Probe: st.st.<br />
[1]: Diameter: 100 mm<br />
[C28]: Measuring Range: Scale °C, ranges acc. data sheet (-20-80°C)<br />
[52]: Probe type/Process connection: Male swivel nut 3/4 BSP<br />
[6]: Bulb diameter/-length: 6mm / 100mm<br />
[000]: Options: w/o

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-1-1-C40-52-6-000 (150mm)<br />
[TBE-1]:<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): Class 1<br />
Connection to: Rear<br />
Probe: st.st.<br />
[1]: Diameter: 100 mm<br />
[C40]: Measuring Range: Scale °C, ranges acc. data sheet (0-400°C)<br />
[52]: Probe type/Process connection: Male swivel nut 3/4 BSP<br />
[6]: Bulb diameter/-length: 6mm / 150mm<br />
[000]: Options: w/

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-1-1-C16-52-6-000 (116mm)<br />
[TBE-1]:<br />
Housing material: st.st.<br />
Accuracy (DIN 16203): class 1<br />
Connection to: Rear<br />
Probe: st.st.<br />
[1]: Diameter: 100 mm<br />
[C16]: Measuring Range: Scale °C, ranges acc. data sheet (0-160°C)<br />
[52]: Probe type/Process connection: Male swivel nut 3/4 BSP<br />
[6]: Bulb diameter/-length: 6mm / 116mm<br />
[000]: Options: w/o

<strong>Bimetallic Thermometers<br />
Model: TBE-1-1-C16-3A-6-000<br />
Brand: Kobold (Alemania)</strong><br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[1]: Diameter, 100 mm<br />
[C16]: Measuring Range, Scale °C, ranges acc. data sheet (0-160°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT <br />
[6]: Bulb diameter/-length, 6 mm / 131 mm<br />
[000]: Options: w/o<br /><br />
Dimensions:<br />
Thermometer immersion length (s) = 131 mm<br />
Thermometer bulb diameter = 6 mm

V-Form Glass Thermometers for Machines<br />
Brand: Kobold (Alemania)<br />
[TGL-11]:<br />
Housing (mm): 110x36<br />
Form B, acc. DIN: 16181<br />
Housing material: aluminum<br />
Design: straight<br />
Immersion tube: brass<br />
[10]: Meas. range/scaling: 0...100 °C / 2°<br />
[C]: Scale: ºC<br />
[063]: Imm. Length: 63 mm<br />
[G]: Connection: G 1/2 male

Digital Thermometers Battery Powered<br />
Brand: Kobold (Alemania)<br />
[DTE-A]:<br />
Version: Sensor bottom, fix mounted<br />
Housing diameter/ -material: 100 mm/ st. steel 304<br />
Display: 6-digit LCD, 15,8 mm high<br />
Measuring input: Pt100, Ni100, Ni120, Cu53,Cu100 (3-wire) and thermo couples<br />
Functions: Min./Max.-value, 2 relay, data logger, USB-connection, NFC-Interface<br />
Accuracy: ± 0,1% of measuring value ±0,2°C (for Pt100)<br />
Power supply: 3,6 V lithium battery<br />
Max. Ambient Temperature: -30…+70 °C<br />
Protection: IP 65<br />
[2]: Probe / Sensor type: Smooth probe fix mounted, 250 mm, st. steel 316, Pt100<br />
[06]: Probe diameter: 6,0 mm<br />
[0]: Cable material /-length: without<br />
[0]: Options: without

Digital Thermometers Battery Powered<br />
Brand: Kobold (Alemania)<br />
[DTE-B]:<br />
Version: Sensor external, for wall mounting<br />
Housing diameter/ -material: 100 mm/ st. steel 304<br />
Display: 6-digit LCD, 15,8 mm high<br />
Measuring input: Pt100, Ni100, Ni120, Cu53,Cu100 (3-wire) and thermo couples<br />
Functions: Min./Max.-value, 2 relay, data logger, USB-connection, NFC-Interface<br />
Accuracy: ± 0,1% of measuring value ±0,2°C (for Pt100)<br />
Power supply: 3,6 V lithium battery<br />
Max. Ambient Temperature: -30…+70 °C<br />
Protection: IP 65<br />
[8]: Probe / Sensor type: Smooth probe with cable, 250 mm, st. steel 316, Pt100<br />
[06]: Probe diameter: 6,0 mm<br />
[0]: Cable material /-length: without<br />
[0]: Options: without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-8-N15-C-3-G-A-0(400mm)<br />
[MWD-L]:<br />
Version: Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material: stainless steel 1.4404<br />
Max. pressure (@ 20°C) : 30 bar<br />
Connection : Fixed connection<br />
Neckpipe: Without<br />
[8]: Diameter/ length thermowell: 8mm/ 400mm<br />
[N15]: Process connection: 1/2"" NPT male<br />
[C]: Sensor: 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring: 3 wires<br />
[G]: Terminal head: Screw cap with chain, aluminium<br />
[A]: Head-mounted transmitter: Programable 2 wire transmitter model 5334D<br />
[0]: Options: Without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-5-N15-C-3-G-A-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[5]: Diameter / length thermowell, 5 mm / 63.10 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[0]: Options, without<br /><br />
*L= 38.1+25 = 63.10 mm<br />
Incluye Termopozo

Thermocouple Measuring Probe* Type K for HND-T110/215/120/125<br />
Brand: Kobold (Alemania)<br />
Model: HND-TF32 <br />
Type of Probe:<br />
For straight and solid metal surfaces<br />
spring-mounted Cu-plate<br />
Temperature/ response time (t90):<br />
-65 ... + 500 °C approx. 3 sec

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-1-C30-9A-6-000(100mm)<br />
[TBE-2]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom <br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[1]: Diameter, 100mm<br />
[C30]: Scale °C, ranges 0-300°C<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm/100 mm<br />
[000]: Options, without

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-1-2-C16-3A-6-000<br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[C16]: Measuring Range, 0 ... +160 °C<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT <br />
[6]: Bulb diameter/-length, 6 mm / 153 mm<br />
[000]: Options, without<br />
Dimensions:<br />
Thermometer Inmersion length (S): 153 mm<br />
Thermometer Bulb diameter: 6 mm

<strong>Infrared Thermometers for fixed Installation<br />
Model: TIR-SN-4-20-G+TIR-ZS100<br />
Brand: Kobold (Alemania)</strong><br />
[TIR-SN]<br />
Housing, st.st.<br />
Accuracy, ±1,5% of full scale<br />
Emittance, 0,4...1<br />
Power supply, 24 VDC ± 25%<br />
Electron. connection, 2 m tightly wired<br />
[4]:Output, 4-20 mA<br />
[20]: Measuring range, 0...+200 °C<br />
[G]: Optic, Optic 300 mm(1:15)<br /><br /><strong>Include:<br />
Accessories for TIR<br />
Model: TIR-ZS100</strong><br />
Adjustable mounting bracket

Temperature Sensors for Liquids and Gases<br />
Brand: Kobold (Alemania)<br />
Model: TSA-12-20<br />
[TSA-12]:<br />
Housing material, st.st.<br />
Seal, FPM<br />
Measuring range, -40...150 °C<br />
Output, Pt 100<br />
Accuracy, Class B (IEC 751) <br />
Max. Pressure, 25 bar<br />
Max. Temperature, 180 °C<br />
Electr. Connection, 1,5 m Silicone cable<br />
[20]: Connection, G 3/4

Capillary Thermometers DIN EN 13190<br />
Brand: Kobold (Alemania) <br />
Model: TNF-5D-2-12-E-41<br />
[TNF-5D]:<br />
Diameter 63 mm<br />
Probe material st.st.<br />
Class 1,6<br />
[2]: Housing Material, st.st.<br />
[12]: Measuring Ranges, 0...120 °C<br />
[E]: Capillaries tube, st.st.<br />
Capillary tube, 8 meters<br />
Probe length, 100 mm <br />
Probe diameter, 12 mm<br />
[41]: Probe, G 1/2 turnable nipple

Precision Hand-Held Thermometers<br />
Brand: Kobold<br />
Model: HND-T215<br />
[HND-T215]:<br />
Measuring Input, Thermocouple T ype J,K,N,S,T<br />
Measuring Range, -220 °C...+1750 °C <br />
Resolution, 0,1°C resp. 1°C<br />
Display, 2 x 4-digit, LCD<br />
Accuracy, ±0,03% to ±0,2% MV <br />
Functional Range, Storage Min.-/Max.-Values, Holdfunction, Differential Measurement, Zero Point Adjustment<br />
Additional Functions, Min.-/Max.-Alarm, Loggerfunction, Real-Time Clock<br />
Interface, Serial*<br />
Power-supply, 9 V Battery / optional Mains Adapter<br />
*Via Interface Converter, See Accessories<br /><br />
Include:<br />
Thermocouple Measuring Probe Type K<br />
Brand: Kobold<br />
Model: HND-TF37<br />
Immersion Probe

<p class="MsoNormal"><b><u><span>Bimetallic Thermometers</span></u></b><br /><b><span>Brand: Kobold (Alemania)<br />
Model: TBE-2-3-C20-9A-6-R11-C01 + TWL-0000-N-GN4B-0-0</span></b><br /><br /><span>[TBE-2]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom <br />
Probe st.st.<br />
Process connection, AISI 316 St. St.<br />
Welding, AISI 304 St. St. TIG<br />
Case, AISI 304 St. St. <br />
Ring, AISI 304 St. St. bayonet lock<br />
Min. order quantity 5 pieces per order<br />
[3]: Diameter, 150mm<br />
[C20]: Measuring Range, Scale °C, ranges 0-200°C<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm / 189 mm<br /><span style="background:#FFFF00;"><span style="background-color:#FFFFFF;">[R11]: Options, Silicone filling (max. 250 °C) IP 67</span><br /><span style="background-color:#FFFFFF;">[C01]: Options, Calibration report</span></span><br /><br />
Dimensions:<br />
Thermometer Inmersion length (S): 189 mm<br />
Thermometer Bulb diameter: 6 mm<br /><br /><b>Include:<br /><u>Thermowells for Temperature Sensors</u><br />
Model: TWL-0000-N-GN4B-0-0</b><br /><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 150 mm (6”)<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br />
Dimensions:<br />
Thermowell Inmersion length (U): 150 mm<br />
Thermowell Bulb diameter: 15 mm</span></p><p></p>

Screw- In and Insertion Thermocouples acc. to DIN<br />
Brand: Kobold (Alemania)<br />
Model: TTD-AFK-1TK-K1-B<br />
[TTD-AFK]:<br />
Fitting, according to DIN 43 764<br />
Protective tube material, ceramic<br />
Protective tube, adjustable flange<br />
Dimensions, 15 mm<br />
[1TK]: Immersion length, 733.60 mm<br />
[K1]: Type of sensor, 1x NiCr-Ni, Class 2 (-200 a 1150 ºC)<br />
[B]: Connection head, Form B<br />
Dimensions:<br />
Length (M): 252.29 mm (9.93") <br />
Length (P): 747.71 mm (29 7/16")<br />
Length (N): 1000 mm (Standard for model TTD)<br />
Bulb diameter (Q): 15 mm<br />
** Specify measuring range, 0-1000 ºC
