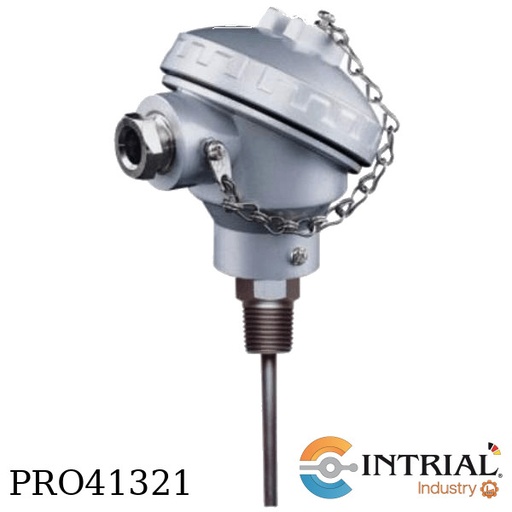

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-G15-J-2-G-0-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, <br />
filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[6]: Diameter / length thermowell, 6 mm/ 100 mm<br />
[G15]: Process connection, G1/2 male<br />
[J]: Sensor, 2x Pt100, cat. B, (-70..+600 °C)<br />
[2]: Wiring, 2 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Accessories for TIR-SN/-FS/-FG<br />
Brand: Kobold - Alemania<br />
Model: TIR-ZS910<br />
Cool. hous. with integ. vent noozle for TIR-FS/FG

Cable with plug for TIR-FG<br />
Brand: Kobold - Alemania<br />
Model: TIR-ZF630<br />
Cable 10 m

Infrared Thermometers for fixed Installation<br />
Brand: Kobold (Alemania)<br />
Model: TIR-FG-4-T3-K<br />
[TIR-FG]:<br />
Housing: st.st.<br />
Accuracy: ±0,8% MW +1°C (<1500°C),<br />
± 1% MW +1°C (>1500°C)<br />
Emittance: 0,2...1<br />
Power supply: 24 VDC ± 25%<br />
Electron. connection: with plug<br />
[4]: Output, 4-20 mA<br />
[T3]: Measuring range, 300...+1300 °C<br />
[K]: Optic 1400 mm

Screw-in Resistance Thermometers acc. to DIN Ex ia<br />
Brand: Kobold (Alemania)<br />
Model: TWL-B94-10-2-3-2-G-0-0<br /><br />
[TWL-B94]:<br />
Protective tube material: st. Steel 1.4571 <br />
Protective tube dimensions 8 x 6 mm <br />
Form acc. DIN 43 772 2G <br />
with stand-off yes<br />
[10]: Immersion length, 100 mm<br />
[2]: Connection, G 1/2 AG<br />
[3]: Sensor type, 1x Pt100, cta. A (-80..+600 °C)<br />
[2]: Wiring, 2 wires<br />
[G]: Connection head, Form B with chain<br />
[0]: Head transmitter, without<br />
[0]: Option, without

Resistance Thermometers Exd<br />
Brand: Kobold (Alemania)<br />
Model: TWL-1-1-3-B-N-GN5B-D-2<br />
[TWL-1]:<br />
Version standard<br />
Thermowell cylindrical, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404<br />
Connection head Form XD with chain, M20 x 1,5<br />
Approval ATEX II 2 GD Ex d IIC T6<br />
Immersion length (U), 150 mm <br />
[1]: Sensor, 1x Pt100, cat. B, (-30..+550 °C) <br />
[3]: Wiring, 3 wires<br />
[B]: Head-mounted transmitter, Model 5337D *(*only with 3-wire)<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN5B]: Connection thermowell, 3/4" NPT male, PN 100<br />
[D]: Neckpipe/lagging extension (HL/T), w/o neckpipe w/o lagging extension<br />
[2]: Options, with LED-display<br /><br />
Dimensions:<br />
U (Inmersion length Thermowell) = 150 mm<br />
H (Length see Thermowell) = 46 mm<br />
EL (Inmersion length) =U+H-8 mm = 150 + 46 – 8 = 188 mm

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-A-3-G-A-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[6]: Diameter / length thermowell, 6 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[A]: Sensor, 1x Pt100, cat. B, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[0]: Options, without<br /><br />
Include 1:<br />
Thermowells for Temperature Sensors<br />
Brand: Kobold (Alemania)<br />
Model: TWL-0000-N-GN4B-0<br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe,1/2" NPT male<br />
[GN4B]: Connection thermowell,1/2" NPT male, PN 100<br />
Immersion length (U), 65 mm<br />
[0]: Lagging extension (T),w/o lagging extension

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-A-3-G-A-0<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[6]: Diameter / length thermowell, 6 mm/ 100 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[A]: Sensor, 1x Pt100, cat. B, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[0]: Options, without

Capillary Thermometers with Casing<br />
Brand: Kobold (Alemania)<br />
Model: TNF-Q91-20-E-8A-Y-M11<br />
[TNF-Q91]:<br />
Casing,  96 x 96 mm <br />
Probe material, st.st.<br />
Housing steel, black <br />
Class, 1,6<br />
[20]: Range, 0...200 °C<br />
[E]: Capillary tube, st.st., 2500 mm<br />
Probe  length, Specify length in mm, 80 mm<br />
[8A]: Probe, 1/2 NPT<br />
[Y]: Options for Capillary Thermometers, Probe diameter 10 mm<br />
[M11]: Magn. spring contact, 2x N/O

Thermowells for Temperature Sensors<br />
Kobold (Alemania)<br />
Model: TWL-0000-G-BG4A-0-0 <br />
[TWL-0000]:<br />
Thermowell,welded<br />
Material neckpipe/sensor/thermowell,st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval,ATEX II 2 GD Ex d IIC T6<br />
[G]: Connection neckpipe, G 1/2 male<br />
[BG4A]: Connection thermowell, G1/2 male, PN 25<br />
[0]: Lagging extension (T), w/o lagging extension<br />
[0]: Options, w/o<br />
Dimensions:<br />
*Thermowell for model MMA-0-XX-G15-M-3-M-0-0 (345 mm)<br />
*Length (H) = 36 mm<br />
*Immersion length (U) = 315 mm<br />
*Thermowell diameter (d) = 12 mm<br />
*Thermowell length total = 315 + 36 mm = 351 mm

Capillary Thermometers<br />
Brand: Kobold (Alemania) <br />
Model: TNF-5F-2-10-E-A0<br />
[TNF-5F]:<br />
Diameter 100 mm<br />
Probe material st.st.<br />
Class 1,0<br />
[2]: Housing Material, st.st.<br />
[10]: Measuring Ranges, 0...100 °C<br />
[E]: Capillaries tube, st.st.<br />
Capillary tube, 1500 mm <br />
Probe length, 3” (80 mm)<br />
[A0]: Probe, Smooth probe

Capillary Thermometers<br />
Brand: Kobold (Alemania) <br />
Model: TNF-5F-2-20-E-1A<br />
[TNF-5F]:<br />
Diameter 100 mm<br />
Probe material st.st.<br />
Class 1,0<br />
[2]: Housing Material, st.st.<br />
[20]: Measuring Ranges, 0...200 °C<br />
[E]: Capillaries tube, st.st.<br />
Capillary tube, 3 meters<br />
Probe length, 65 mm <br />
Probe diameter, 12 mm<br />
[1A]: Probe, NPT 1/2 sl. nut + 2 nipple

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-1-3-C40-3A-9-000   <br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[3]: Diameter, 150 mm<br />
[C40]: Measuring Range, Scale °C, ranges acc. data sheet (0-400°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[9]: Bulb diameter/-length, 9.6mm / 19"<br />
[000]: Options: w/o

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-1-3-C30-3A-9-000   <br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[3]: Diameter, 150 mm<br />
[C30]: Measuring Range, Scale °C, ranges acc. data sheet (0-300°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[9]: Bulb diameter/-length, 9.6mm / 19"<br />
[000]: Options: w/o

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-1-1-C30-3A-6-000<br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[1]: Diameter, 100 mm<br />
[C30]: Measuring Range, Scale °C, ranges acc. data sheet (0-300°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 6mm / 6"<br />
[000]: Options: w/o

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-1-1-C30-3A-6-000<br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[1]: Diameter, 100 mm<br />
[C30]: Measuring Range, Scale °C, ranges acc. data sheet (0-300°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 6mm / 4"<br />
[000]: Options: w/o

Sheath Resistance Thermometers<br />
Model: TWM-1-62-202-1-3-M<br />
Brand: Kobold<br />
[TWM-1]: <br />
Protective tube material: st.st. (1.4541)<br />
Sheath tip: st.st. (1.4571)<br />
Temperature range: -20 - 600 °C<br />
Connecting G 1/2 male<br />
[62]: Sheath diameter: 6,0 mm<br />
[202]: Immersion length: 200 mm<br />
[1]: Type of sensor: 1x Pt100 (-200 - 400°C)<br />
[3]: Wiring: 3 wires<br />
[M]: electr. Connection: Head form MA.

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-C-3-G-0-0<br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm / 200 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter <br />
[0]: Options, without<br />
[Y1]: length thermowell,200 mm

V-Form Glass Thermometers for Machines<br />
Brand: Kobold (Alemania)<br />
Model: TGL-21-20-C-063-G<br />
[TGL-21]<br />
Housing (mm), 200x36<br />
Form B, acc. DIN, 16189<br />
Housing material, aluminum<br />
Design, straight<br />
Immersion tube, brass<br />
[20]: Meas. range/scaling, 0...200 °C / 2°<br />
[C] Scale: ° C <br />
[063] Imm. Length: 63 mm<br />
[G] Connection: G1/2 male

V-Form Glass Thermometers for Machines<br />
Brand: Kobold (Alemania)<br />
Model: TGL-21-12-C-063-G<br />
[TGL-21]<br />
Housing (mm), 200x36<br />
Form B, acc. DIN, 16189<br />
Housing material, aluminum<br />
Design, straight<br />
Immersion tube, brass<br />
[12]: Meas. range/scaling, 0...120 °C / 1°<br />
[C] Scale: ° C <br />
[063] Imm. Length: 63 mm<br />
[G] Connection: G1/2 male
