Sensor de Temperatura, 150C, G 1/2, 1.5 m cable Temperature Sensors for Liquids and Gases<br /> Brand: Kobold (Alemania)<br /> Model: TSA-12-15<br /> [TSA-12]:<br /> Housing material, st.st.<br /> Seal, FPM<br /> Measuring range, -40...150 °C<br /> Output, Pt 100<br /> Accuracy, Class B (IEC 751) <br /> Max. Pressure, 25 bar<br /> Max. Temperature, 180 °C<br /> Electr. Connection, 1,5 m Silicone cable<br /> [15]: Connection, G 1/2 S/ 1,607.62 1607.6200000000001 PEN	Head Mounted Temperature Transmitters, Power supply 7,5..45 VDC Head Mounted Temperature Transmitters<br /> Brand: Kobold (Alemania)<br /> Model: KM-323-V<br /> [KM-323]: <br /> Input,<br /> Pt100, Pt500, Pt1000,<br /> Cu40, Cu100, Ni100, Ni550, Ni1000<br /> Thermocouples:.B;E,J,K,N,R,S,T<br /> Resistance: 100...400 Ohm, 10...2000 Ohm<br /> Voltage:: 10..75 mV, 100...2000 mV<br /> Output 4..20 mA <br /> Mounting, connection head <br /> Galvanic isolation: YES <br /> Programmier Modus: U-Pro <br /> Power supply 7,5..45 VDC <br /> [V]: Factory setting: To be specified in words S/ 878.88 878.88 PEN	Transmisor temperatura cabezal, 4-20mA Head Mounted Temperature Transmitters<br /> Brand: Kobold (Alemania)<br /> Model: KM-320-V<br /> [KM-320]:<br /> Input,<br /> Pt100, Pt500, Pt1000,<br /> Cu40, Cu100, Ni100, Ni550, Ni1000<br /> Thermocouples:.B;E,J,K,N,R,S,T<br /> Resistance: 100...400 Ohm, 10...2000 Ohm<br /> Voltage:: 10..75 mV, 100...2000 mV<br /> Output 4..20 mA<br /> Mounting, connection head<br /> Galvanic isolation: no<br /> Programmier Modus: U-Pro<br /> Power supply 7,5..45 VDC<br /> [V]: Factory setting: To be specified in words<br /> Standard range: TC E(NiCr-CuNi) -270 ... +1000 ºC S/ 761.70 761.7 PEN	Termometro resistencia; 250C, 150mm Industrial Resistance Thermometers acc. DIN<br /> Brand: Kobold (Alemania)<br /> Model: MWD-L-6-N15-C-3-G-0-0-150<br /> [MWD-L]:<br /> Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br /> Protective tube material, st.st. 1.4404<br /> Max. pressure (@ 20°C), 30 bar<br /> Connection, fixed connection<br /> Neckpipe, without<br /> [6]: Diameter / length thermowell, 6 mm / 150 mm<br /> [N15]: Process connection, 1/2" NPT male<br /> [C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br /> [3]: Wiring, 3 Wires<br /> [G]: Terminal head, screw cap with chain, aluminium<br /> [0]: Head-mounted transmitter, without transmitter <br /> [0]: Options, without<br /> Length thermowell, 150 mm S/ 373.52 373.52 PEN
Contact Resistance Thermometers, PTFE, Probe length 40 mm Contact Resistance Thermometers<br /> Brand: Kobold Alemania<br /> Model: TWA-R4404012P<br /> Protection housing st.st.<br /> Element Pt 100 (2 wire)<br /> Temperature range -20°...260 °C<br /> Probe length 40 mm<br /> Connection cable (2,5 m) PTFE S/ 490.71 490.71000000000004 PEN	Termometro resistencia, 150C, 100mm, 1/2" NPT Insertion Resistance Thermometers compact<br /> Brand: Kobold (Alemania)<br /> Model: MMA-0-10-L15-C-2-M-A-0 + ZUB-KAB-12-K002<br /> [MMA-0]:<br /> Probe material st.st. 1.4404<br /> Connection fixed <br /> Design w/o stand-off <br /> Max. temperature - 70...+150°C <br /> [10]: Immersion length / diameter: 100 mm / Ø6 <br /> [L15]: Connection, Compression fitting 1/2" NPT AG<br /> [C]: Sensor Type/Category, 1x Pt100, class A (-70..+250°C) <br /> [2]: Wiring, 2-wire<br /> [M]: Electr. Connection, Plug M12x1<br /> [A]: Head Transmitter, 4..20 mA, range 0 bis 100 °C <br /> [0]: Options, without<br /><br /> Include:<br /> Accessories round plug<br /> Model: ZUB-KAB-12-K002<br /> M12x1 box 2 m cable, 4-pin S/ 662.82 662.82 PEN	Termometro resistencia insercion, 4..20 mA, 100C Insertion Resistance Thermometers compact<br /> Brand: Kobold (Alemania)<br /> Model: MMA-0-10-L15-C-2-M-A-0 <br /> [MMA-0]:<br /> Probe material st.st. 1.4404<br /> Connection fixed <br /> Design w/o stand-off <br /> Max. temperature - 70...+150°C <br /> [10]: Immersion length / diameter: 100 mm / Ø6 <br /> [L15]: Connection, Compression fitting 1/2" NPT AG<br /> [C]: Sensor Type/Category, 1x Pt100, class A (-70..+250°C) <br /> [2]: Wiring, 2-wire<br /> [M]: Electr. Connection, Plug M12x1<br /> [A]: Head Transmitter, 4..20 mA, range 0 bis 100 °C <br /> [0]: Options, without S/ 560.29 560.29 PEN	Termostato varilla, 120C Rod Thermostats general application<br /> Brand: Kobold (Alemania)<br /> Model: TEA-S31-12-V-A<br /> [TEA-S31]<br /> Probe, copper<br /> Housing, plastic<br /> Switching difference, 1 K<br /> Thermostat version, single-level<br /> Contact, change over switch<br /> [12]: Range, 50...120 °C<br /> [V]: Thermowell, st. st.<br /> [A]: Option, internal adjustment S/ 882.54 882.54 PEN
Termometro resistencia, 250C, 500mm, G1/2 Industrial Resistance Thermometers acc. DIN<br /> Brand: Kobold Alemania<br /> Model: MWD-L-A-G15-A-2-G-0-0<br /> [MWD-L]:<br /> Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br /> Protective tube material, st.st. 1.4404<br /> Max. pressure (@ 20°C), 30 bar<br /> Connection, fixed connection<br /> Neckpipe, without<br /> [A]:Diameter / length thermowell, 10mm / (L=500mm)<br /> [G15]: Process Connection, G1/2 male<br /> [A]: Sensor, 1x Pt100, cat. B, (-70..+250 °C)<br /> [2]: Wiring, 2 wire<br /> [G]: Terminal Head, screw cap with chain, aluminium<br /> [0]: Head-mounted transmitter, without transmitter<br /> [0]: Options, Withou S/ 406.48 406.48 PEN	Termometro resistencia linea, 200C In-Line Resistance Thermometers<br /> Brand: Kobold (Alemania)<br /> Model: TWP-MA4-D32-1-4-B-P<br /> [TWP-MA4]:<br /> Material: st.st., 1.4571<br /> Sensor, Pt 100, Class B<br /> Temperature range, -20...200 °C<br /> Connection, A DIN 11 887<br /> [D32]: Connection, DN 32<br /> [1]: Type of sensor, 1 x Pt 100<br /> [4]: Wiring, 3 wires<br /> [B]: Head, Form B<br /> [P]: Option, electropolished S/ 2,640.30 2640.3 PEN	Termometro Bimetalico con thermowel, 191.60mm, 3/4 NPT Bimetallic Thermometers<br /> Brand: Kobold (Alemania)<br /> Model: TBE-1-2-D30-3A-9-000 + TWL-0000-N-BN5A-0 <br /> [TBE-1]:<br /> er<br /> Dimensions:<br /> Thermometer Inmersion length (S): 228.6 mm (9”)<br /> Thermometer Bulb diameter: 9.6 mm<br /><br /> Include:<br /> Thermowells for Temperature Sensors<br /> Model: TWL-0000-N-BN5A-0 <br /> [TWL-0000]: <br /> Thermowell, welded<br /> Material neckpipe/sensor/thermowell, st.st. 1.4404<br /> Connection head, Form XD with chain, M20 x 1,5,<br /> Approval,ATEX II 2 GD Ex d IIC T6<br /> [N]: Connection neckpipe, 1/2" NPT male<br /> [BN5A]: Connection thermowell, 3/4" NPT male, PN 25<br /> Immersion length (U), 192.60 mm<br /> [0]: Lagging extension (T), w/o lagging extension<br /><br /> Dimensions:<br /> Thermowell Inmersion length (U): 191.60 mm <br /> Thermowell Bulb diameter (d): 12 mm S/ 795.24 795.24 PEN	Thermowell 192.60mm, 3/4 NPT Thermowells for Temperature Sensors<br /> Brand: Kobold (Alemania)<br /> Model: TWL-0000-N-BN5A-0 <br /> [TWL-0000]: <br /> Thermowell, welded<br /> Material neckpipe/sensor/thermowell, st.st. 1.4404<br /> Connection head, Form XD with chain, M20 x 1,5,<br /> Approval,ATEX II 2 GD Ex d IIC T6<br /> [N]: Connection neckpipe, 1/2" NPT male<br /> [BN5A]: Connection thermowell, 3/4" NPT male, PN 25<br /> Immersion length (U), 192.60 mm<br /> [0]: Lagging extension (T), w/o lagging extension<br /> Dimensions:<br /> Thermowell Inmersion length (U): 191.60 mm <br /> Thermowell Bulb diameter (d): 12 mm S/ 381.43 381.43 PEN
Bimetallic Thermometers, Measuring Range, Dual Scale °C/°F, 0-300°C / 32-572°F <strong>Bimetallic Thermometers<br /> Brand: Kobold (Alemania)<br /> Model: TBE-1-2-D30-3A-9-000</strong><br /> [TBE-1]:<br /> Housing material, st.st.<br /> Accuracy (DIN 16203), class 1<br /> Connection to, rear<br /> Probe, st.st.<br /> [2]: Diameter, 125 mm<br /> [D30]: Measuring Range, Dual Scale °C/°F, 0-300°C / 32-572°F<br /> [3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT <br /> [9]: Bulb diameter/-length, 9.6 mm / 228.6 mm (9”) <br /> [000]: Options, without<br /> Dimensions:<br /> Thermometer Inmersion length (S): 228.6 mm (9”)<br /> Thermometer Bulb diameter: 9.6 mm S/ 413.81 413.81 PEN	Bimetallic Thermometers, 150mm, 250C Bimetallic Thermometers<br /> Brand: Kobold (Alemania)<br /> Model: TBE-2-3-C20-9A-8-C40-P01-R11-C01 + TWL-0000-N-GN4B-0-0<br /> [TBE-2]:<br /> Housing material st.st.<br /> Accuracy (DIN 16203) class 1<br /> Connection to bottom <br /> Probe st.st.<br /> Process connection, AISI 316 St. St.<br /> Welding, AISI 304 St. St. TIG<br /> Case, AISI 304 St. St. <br /> Ring, AISI 304 St. St. bayonet lock<br /> Min. order quantity 5 pieces per order<br /> [3]: Diameter, 150mm<br /> [C20]: Measuring Range, Scale °C, ranges 0-200°C<br /> [9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br /> [8]: Bulb diameter/-length, 8 mm / 249 mm aprox.<br /> [C40]: Options, Case and ring stainless steel AISI 316<br /> [P01]: Options, Suitable for Silicone<br /> [R11]: Options, Silicone filling (max. 250 °C) IP 67<br /> [C01]: Options, Calibration report<br /><br /> Dimensions:<br /> Thermometer Inmersion length (S): 189 mm<br /> Thermometer Bulb diameter: 8 mm<br /><br /> Include:<br /> Thermowells for Temperature Sensors<br /> Model: TWL-0000-N-GN4B-0-0<br /> [TWL-0000]:<br /> Thermowell, cylindrical drilled<br /> Material neckpipe/sensor/thermowell, st.st. 1.4404<br /> Connection head, Form XD with chain, M20 x 1,5,<br /> Approval, ATEX II 2 GD Ex d IIC T6<br /> [N]: Connection neckpipe, 1/2" NPT male<br /> [GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br /> Immersion length (U), 150 mm (6”)<br /> [0]: Lagging extension (T), w/o lagging extension<br /><br /> Dimensions:<br /> Thermowell Inmersion length (U): 150 mm<br /> Thermowell Bulb diameter: 15 mm S/ 1,594.80 1594.8 PEN	Thermowells for Temperature Sensors, 1/2 NPT MALE, 150 MM <strong>Thermowells for Temperature Sensors<br /> Model: TWL-0000-N-GN4B-0-150mm</strong><br /> [TWL-0000]:<br /> Thermowell, cylindrical drilled<br /> Material neckpipe/sensor/thermowell, st.st. 1.4404<br /> Connection head, Form XD with chain, M20 x 1,5,<br /> Approval, ATEX II 2 GD Ex d IIC T6<br /> [N]: Connection neckpipe, 1/2" NPT male<br /> [GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br /> Immersion length (U), 150 mm (6”)<br /> [0]: Lagging extension (T), w/o lagging extension<br /><br /> Dimensions:<br /> Thermowell Inmersion length (U): 150 mm<br /> Thermowell Bulb diameter: 15 mm S/ 628.03 628.03 PEN	Termometro Bimetalico, 189mm, 200C, 1/2 NPT Bimetallic Thermometers<br /> Brand: Kobold (Alemania)<br /> Model: TBE-2-3-C20-9A-8-C40-P01-R11-C01<br /> [TBE-2]<br /> Housing material st.st.<br /> Accuracy (DIN 16203) class 1<br /> Connection to bottom <br /> Probe st.st.<br /> Process connection, AISI 316 St. St.<br /> Welding, AISI 304 St. St. TIG<br /> Case, AISI 304 St. St. <br /> Ring, AISI 304 St. St. bayonet lock<br /> Min. order quantity 5 pieces per order<br /> [3]: Diameter, 150mm<br /> [C20]: Measuring Range, Scale °C, ranges 0-200°C<br /> [9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br /> [8]: Bulb diameter/-length, 8 mm / 249 mm aprox.<br /> [C40]: Options, Case and ring stainless steel AISI 316<br /> [P01]: Options, Suitable for Silicone<br /> [R11]: Options, Silicone filling (max. 250 °C) IP 67<br /> [C01]: Options, Calibration report<br /><br /> Dimensions:<br /> Thermometer Inmersion length (S): 189 mm<br /> Thermometer Bulb diameter: 8 mm S/ 959.44 959.44 PEN

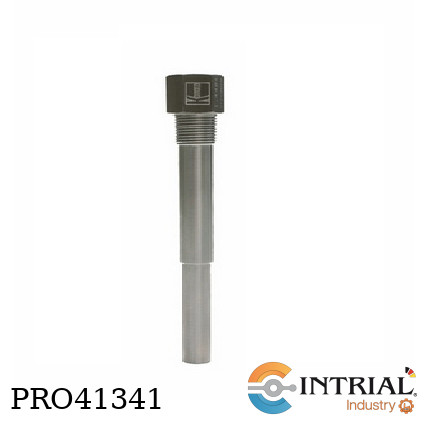

Termopozo, 280mm Thermowells for Temperature Sensors<br /> Model: TWL-0000-N-GN4B-0-0-280mm<br /> [TWL-0000]:<br /> Thermowell, cylindrical drilled<br /> Material neckpipe/sensor/thermowell, st.st. 1.4404<br /> Connection head, Form XD with chain, M20 x 1,5,<br /> Approval, ATEX II 2 GD Ex d IIC T6<br /> [N]: Connection neckpipe, 1/2" NPT male<br /> [GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br /> Immersion length (U), 280 mm (11”)<br /> [0]: Lagging extension (T),w/o lagging extension<br /><br /> Dimensions:<br /> Thermowell Inmersion length (U): 280 mm<br /> Thermowell Bulb diameter: 15 mm S/ 909.64 909.64 PEN	Termometro Bimetalico , 319mm, 200C, 1/2 NPT Bimetallic Thermometers<br /> Brand: Kobold (Alemania)<br /> Model: TBE-2-3-C20-9A-6-C40-P01-R11-C01<br /> [TBE-2]:<br /> Housing material st.st.<br /> Accuracy (DIN 16203) class 1<br /> Connection to bottom <br /> Probe st.st.<br /> Process connection, AISI 316 St. St.<br /> Welding, AISI 304 St. St. TIG<br /> Case, AISI 304 St. St. <br /> Ring, AISI 304 St. St. bayonet lock<br /> Min. order quantity 5 pieces per order<br /> [3]: Diameter, 150mm<br /> [C20]: Measuring Range, Scale °C, ranges 0-200°C<br /> [9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT <br /> [6]: Bulb diameter/-length, 6 mm / 319 mm<br /> [C40]: Options, Case and ring stainless steel AISI 316<br /> [P01]: Options, Suitable for Silicone<br /> [R11]: Options, Silicone filling (max. 250 °C) IP 67<br /> [C01]: Options, Calibration report<br /><br /> Dimensions:<br /> Inmersion length (S): 319 mm<br /> Bulb diameter: 6 mm S/ 966.77 966.77 PEN	Termometro Bimetalico thermowell, 280mm, 200C, 1/2 NPT <strong>Bimetallic Thermometers<br /> Brand: Kobold (Alemania)<br /> Model: TBE-2-3-C20-9A-6-C40-P01-R11-C01 + TWL-0000-N-GN4B-0-0</strong><br /> [TBE-2]:<br /> Housing material st.st.<br /> Accuracy (DIN 16203) class 1<br /> Connection to bottom <br /> Probe st.st.<br /> Process connection, AISI 316 St. St.<br /> Welding, AISI 304 St. St. TIG<br /> Case, AISI 304 St. St. <br /> Ring, AISI 304 St. St. bayonet lock<br /> Min. order quantity 5 pieces per order<br /> [3]: Diameter, 150mm<br /> [C20]: Measuring Range, Scale °C, ranges 0-200°C<br /> [9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT <br /> [6]: Bulb diameter/-length, 6 mm / 319 mm<br /> [C40]: Options, Case and ring stainless steel AISI 316<br /> [P01]: Options, Suitable for Silicone<br /> [R11]: Options, Silicone filling (max. 250 °C) IP 67<br /> [C01]: Options, Calibration report<br /><br /> Dimensions:<br /> Inmersion length (S): 319 mm<br /> Bulb diameter: 6 mm<br /><br /> Include:<br /> Thermowells for Temperature Sensors<br /> Model: TWL-0000-N-GN4B-0-0<br /> [TWL-0000]:<br /> Thermowell, cylindrical drilled<br /> Material neckpipe/sensor/thermowell, st.st. 1.4404<br /> Connection head, Form XD with chain, M20 x 1,5,<br /> Approval, ATEX II 2 GD Ex d IIC T6<br /> [N]: Connection neckpipe, 1/2" NPT male<br /> [GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br /> Immersion length (U), 280 mm (11”)<br /> [0]: Lagging extension (T),w/o lagging extension<br /><br /> Dimensions:<br /> Thermowell Inmersion length (U): 280 mm<br /> Thermowell Bulb diameter: 15 mm S/ 1,902.04 1902.04 PEN	Termometro resistencia, 600C, 100mm Industrial Resistance Thermometers acc. DIN<br /> Brand: Kobold(Alemania)<br /> Model: MWD-L-6-G15-J-2-M-0-0<br /> [MWD-L]:<br /> Version Protective tube acc. DIN 43772,<br /> filled with MgO, insert not removable<br /> Protective tube material st.st. 1.4404<br /> Max. pressure (@ 20°C), 30 bar<br /> Connection fixed connection<br /> Neck pipe without<br /> [6]: Diameter / length thermowell, 6 mm/ 100 mm<br /> [G15]: Process connection, G1/2 male<br /> [J]: Sensor, 2x Pt100, cat. B, (-70..+600 °C)<br /> [2]: Wiring, 2 Wires<br /> [M]: Terminal head, Mini screw cap with chain, aluminium<br /> [0]: Head-mounted transmitter, without transmitter<br /> [0]: Options, without S/ 465.07 465.07 PEN
