Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-1-C10-3A-6-000<br />
[TBE-2]<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[1] Diameter, 100mm<br />
[C10] Measuring Range, 0 ... +100 °C<br />
[3A] Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]Bulb diameter/-length, 6 mm / 150 mm<br />
[000] Options without

<strong>Infrared Thermometers for fixed Installation<br />
Brand: Kobold (Alemania)<br />
Model: TIR-FG-4-T5-K+TIR-ZS100+TIR-ZF610</strong><br />
[TIR-FG]:<br />
Housing: st.st.<br />
Accuracy: ±0,8% MW +1°C (<1500°C),<br />
± 1% MW +1°C (>1500°C)<br />
Emittance: 0,2...1<br />
Power supply: 24 VDC ± 25%<br />
Electron. connection: with plug<br />
[4]: Output, 4-20 mA<br />
[T5]: Measuring range, 500...+1500 °C <br />
[K]: Optic, Optic 1400 mm<br /><br /><strong>Include:<br />
Accessories for TIR-SN/-FS/-FG<br />
Model: TIR-ZS100</strong><br />
Adjustable mounting bracket<br /><br /><strong>Cable with plug for TIR-FS.../ TIR-FG…<br />
Model: TIR-ZF610</strong><br />
Cable 2 m

<strong>Infrared Thermometers for fixed Installation<br />
Brand: Kobold (Alemania)<br />
Model: TIR-FG-4-T5-K</strong><br />
[TIR-FG]:<br />
Housing: st.st.<br />
Accuracy: ±0,8% MW +1°C (<1500°C),<br />
± 1% MW +1°C (>1500°C)<br />
Emittance: 0,2...1<br />
Power supply: 24 VDC ± 25%<br />
Electron. connection: with plug<br />
[4]: Output, 4-20 mA<br />
[T5]: Measuring range, 500...+1500 °C <br />
[K]: Optic, Optic 1400 mm

Stem Thermometers diam. 100 acc. to DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNS-1F-A-06-0CA-Y-M10<br />
[TNS-1F]<br />
Diameter 100 mm<br />
Probe material st.st.<br />
Class 1,0<br />
[A] Housing material, Aluminum / st.st.<br />
[06] Range, 0...60 °C<br />
[0CA] Probe, 1/2 NPT fixed nipple<br />
[Y] Probe diameter 8 mm<br />
[M10] Magn. spring contact, N/O<br />
Probe tube length (L) = 80 mm<br />
Probe diameter (d) = 8 mm

<strong>Model: MWD-L-6-N15-D-4-G-0-0<br />
Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)</strong><br />
[MWD-L]: <br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6]: Inmersion tube diameter and inmersión length, Tube (6mm/284mm)<br />
[N15]: Process connection, ½” NPT-M<br />
[D]: Sensor type/category, 1x Pt100, cat. A,  (-70..+400 °C) <br />
[4]: RTD Wiring, 4 wires <br />
[G]: Terminal Head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

<strong>Model: MWD-L-9-N15-D-4-G-0-0<br />
Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)</strong><br />
[MWD-L]: <br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[9]: Inmersion tube diameter and inmersión length, Tube (9mm/235mm)<br />
[N15]: Process connection, ½” NPT-M<br />
[D]: Sensor type/category, 1x Pt100, cat. A,  (-70..+400 °C) <br />
[4]: RTD Wiring, 4 wires <br />
[G]: Terminal Head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-1-C08-9A-6-C40-E65-C01+TWL-0000-N-DA95-0<br />
[TBE-2]<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
[1]: Diameter, 100mm<br />
[C08]: Measuring Range, Scale °C, ranges acc. data sheet, 0-80°C<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm / 290 mm<br />
[C40]: Options, Case and ring stainless steel AISI 316<br />
[E65] Protection degree IP 65 (without filling)<br />
[C01] Calibration report<br /><br />
Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-DA95-0-0<br />
[TWL-0000]:<br />
Thermowell, tapared drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[DA95]: Connection thermowell, ANSI-flange 2" 150 lbs<br />
Immersion length (U), 231 mm (11”)<br />
[0]: Lagging extension (T), w/o lagging extension

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-1-C06-9A-6-C40-E65-C01+TWL-0000-N-DA95-0<br />
[TBE-2]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
[1]: Diameter, 100mm<br />
[C06]: Measuring Range, Scale °C, ranges acc. data sheet, 0-60°C<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm / 290 mm<br />
[C40]: Options, Case and ring stainless steel AISI 316<br />
[E65] Protection degree IP 65 (without filling)<br />
[C01] Calibration report<br /><br />
Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-DA95-0-0<br />
[TWL-0000]:<br />
Thermowell, tapared drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[DA95]: Connection thermowell, ANSI-flange 2" 150 lbs<br />
Immersion length (U), 230 mm (11”)<br />
[0]: Lagging extension (T), w/o lagging extension

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-A-8-C15-A-3-G-0-0</strong><br />
[MWD-A]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, Compression fitting<br />
Neckpipe, without<br />
[8]: Diameter / length thermowell, 8mm / <span style="background-color:#00FF00;">455mm</span><br />
[C15]: Process Connection, Compression fitting 1/2 NPT male<br />
[A]: Sensor, 1x Pt100, cat. B,  (-70..+250 °C) <br />
[3]: Wiring, 3 wires<br />
[G]: Terminal Head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without<br />
[0]: Options, without

<strong>Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-3-1-C12-9A-6-R10+TWL-0000-N-GN4B-0</strong><br /><br />
[TBE-3]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[1]: Diameter, 100mm<br />
[C12]: Measuring Range, 0 ... +120 °C<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT <br />
[6]:Bulb diameter/-length, 6 mm / <span style="background-color:#00FF00;">100 mm</span><br />
[R10]: Glycerine filling (max. 160 °C) IP 67<br /><br /><strong>Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GN4B-0</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 61 mm<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br /><span style="background-color:#00FF00;">Dimensions:</span><br /><span style="background-color:#00FF00;">Thermowell Inmersion length (U): 61 mm</span><br /><span style="background-color:#00FF00;">Thermowell Bulb diameter: 7 mm</span>

<strong>Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-1-C12-9A-6-R10+TWL-0000-N-GN4B-0</strong><br /><br />
[TBE-2]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[1]: Diameter, 100mm<br />
[C12]: Measuring Range, 0 ... +120 °C<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT <br />
[6]:Bulb diameter/-length, 6 mm / <span style="background-color:#00FF00;">100 mm</span><br />
[R10]: Glycerine filling (max. 160 °C) IP 67<br /><br /><strong>Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GN4B-0</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 61 mm<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br /><span style="background-color:#00FF00;">Dimensions:</span><br /><span style="background-color:#00FF00;">Thermowell Inmersion length (U): 61 mm</span><br /><span style="background-color:#00FF00;">Thermowell Bulb diameter: 7 mm</span>

<strong>Thermowells for Temperature Sensors<br />
Brand: Kobold (Alemania)<br />
Model: TWL-0000-N-GN4B-0-(61 mm)</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
Immersion length (U), 61 mm<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br />
Dimensions:<br />
Thermowell Inmersion length (U): 61 mm<br />
Thermowell Bulb diameter: 7 mm

<strong>Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-3-1-C12-3A-6-R10</strong><br /><br />
[TBE-3]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[1]: Diameter, 100mm<br />
[C12]: Measuring Range, 0 ... +120 °C<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]:Bulb diameter/-length, 6 mm / <span style="background-color:#00FF00;">100 mm</span><br />
[R10]: Glycerine filling (max. 160 °C) IP 67

<strong>Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-1-C12-3A-6-R10</strong><br /><br />
[TBE-2]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[1]: Diameter, 100mm<br />
[C12]: Measuring Range, 0 ... +120 °C<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]:Bulb diameter/-length, 6 mm / <span style="background-color:#00FF00;">100 mm</span><br />
[R10]: Glycerine filling (max. 160 °C) IP 67

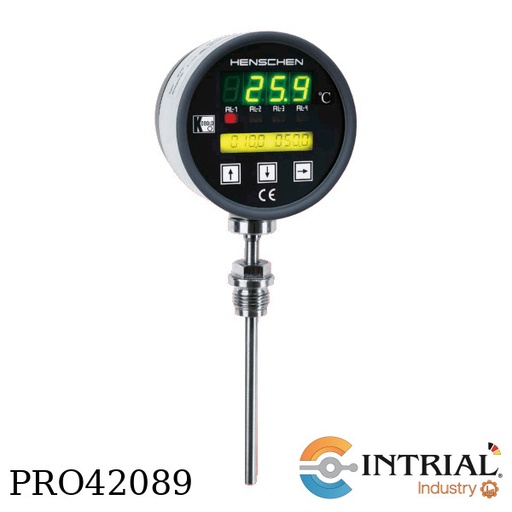

<strong>Digital Thermometers, microprocessor-controlled<br />
Brand: Kobold (Alemania)<br />
Model: DTM-S0-46-0-1A-A4G-R</strong><br /><br />
[DTM-S0] Digital Thermometers,<br />
Housing material: st. st. /Polyamide<br />
Housing diameter 100 mm<br />
Accuracy class 0,5<br />
max. temperature: 200 °C<br />
Power supply: 15...30 VDC<br />
Connection : to bottom<br />
Diameter bulb: 8mm<br />
**Probe Length: 50 mm<br />
[46] Range: -30...60 °C<br />
[0] Cable: w/o<br />
[1A] Probe for all models: 1/2 NPT sl. nut + nipple<br />
[A4G] Output: 4..20 mA, 2 contacts<br />
[R] Options: Interface RS 232

<strong>Digital Thermometers, microprocessor-controlled<br />
Brand: Kobold (Alemania)<br />
Model: DTM-F0-46-P-1A-A4G-R</strong><br /><br />
[DTM-F0] Digital Thermometers,<br />
Housing material: st. st. /Polyamide<br />
Housing diameter 100 mm<br />
Accuracy class 0,5<br />
max. temperature: 400 °C<br />
Power supply: 15...30 VDC<br />
Connection : wall brack.<br />
Diameter bulb: 8mm<br />
**Probe Length: 100 mm<br />
[46] Range: -30...60 °C<br />
[P] Cable: PVC (max. 90 °C)<br />
**Cable Length: 10m<br />
[1A] Probe for all models: 1/2 NPT sl. nut + nipple<br />
[A4G] Output: 4..20 mA, 2 contacts<br />
[R] Options: Interface RS 232

Thermowells for Temperature Sensors<br />
Brand: Kobold<br />
Model: TWL-0000-G-GN4B-0-0<br />
[TWL-0000]<br />
Thermowell cylindrical welded <br />
Material neckpipe/sensor/thermowell , st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[G] Connection neckpipe, G1/2 male<br />
[GN4B] Connection thermowell, 1/2" NPT male, PN 100<br />
[0] w/o lagging extension<br />
[0] Options w/o<br />
Data Process:<br />
Length (U): 61 mm<br />
Bulb diameter Thermometer: 8 mm<br />
Bulb diameter Thermowell: 15 mm

Digital Thermometers, microprocessor-controlled<br />
Brand: Kobold (Alemania)<br />
Model: DTM-S0-10-0-41-AVG+TWL-0000-G-GN4B-0-0<br />
[DTM-S0]<br />
Housing material: st. st. /Polyamide<br />
Housing diameter 100 mm<br />
Accuracy class 0,5<br />
max. temperature: 200 °C<br />
Power supply: 15...30 VDC<br />
Connection : to bottom.<br />
Diameter bulb: 8 mm<br />
Probe Length: 100 mm<br />
[10] Range: 0...100 °C<br />
[0] Cable: whitout<br />
[41] Probe for all models: G 1/2 turnable nipple<br />
[AVG] Output: 0..10 V, 2 contacts<br />
[0] Options: without<br /><br />
Include:<br />
Thermowells for Temperature Sensors<br />
Brand: Kobold<br />
Model: TWL-0000-G-GN4B-0-0<br />
[TWL-0000]<br />
Thermowell cylindrical welded <br />
Material neckpipe/sensor/thermowell , st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[G] Connection neckpipe, G1/2 male<br />
[GN4B] Connection thermowell, 1/2" NPT male, PN 100<br />
[0] w/o lagging extension<br />
[0] Options w/o<br />
Data Process:<br />
Length (U): 61 mm<br />
Bulb diameter Thermometer: 8 mm<br />
Bulb diameter Thermowell: 15 mm

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;"><b><u>Industrial Resistance Thermometers acc. DIN</u><br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-A-3-G-B-0</b></p>

<p class="MsoNormal" style="margin-bottom:.0001pt;line-height:normal;">[MWD-L]:<br />
Versión, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neck pipe, without<br />
Length thermowell (EL) = 80mm<br />
Measuring range = 0-100°C<br />
[6]: Diameter, 6mm / <strong>length thermowell, 200 mm</strong><br />
[N15]: Process connection, 1/2" NPT male<br />
[A]: Sensor, 1x Pt100, cat. B, (-70..+250 °C)<br />
[3]: Wiring, 3 wire<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[B]: Head-mounted transmitter, 2 wire transmitter with HART protocol model 5337D<br />
[0]: Options, without</p>

<p></p>

Temperature Transmitters for DIN-Rail and Surface Mounting<br />
Brand: Kobold (Alemania)<br />
Model: KM-665<br />
Input: Pt100, Pt500, Pt1000, Cu40, Cu100, Ni100, Ni550, Ni1000<br />
Thermocouples:.B;E,J,K,N,R,S,T<br />
Resistance: 100...400 Ohm, 10...2000 Ohm<br />
Voltage: 10..75 mV, 100...2000 mV<br />
Output: 4..20 mA<br />
Mounting: DIN-rail<br />
Galvanic isolation: yes<br />
Programmier Modus: HART<br />
Power supply: 7,5..45 VDC
