Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-3-1-C25-9A-6-C40-R11<br />
[TBE-3]<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom<br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[1] Diameter, 100mm<br />
[C25] Measuring Range, 0 ... +250 ºC<br />
[9A] Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[6] Bulb diameter/-length, 6 mm / 50 mm<br />
[C40] Case and ring stainless steel AISI 316<br />
[R11] Silicone filling (max. 250 °C) IP 67<br />
* Include Termopozo

Capillary Thermometers diam. 100 acc. DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNF-1F-2-10-E-B1-M11<br />
[TNF-1F]<br />
Diameter 100 mm<br />
Probe material st.st.<br />
Class 1,0<br />
[2]: Housing material, st.st.<br />
[10]: Range, 0...100 °C<br />
[E]: Capillary tube, st.st.,<br />
Capillary tube Length, 1000 mm<br />
Probe Length 1000 mm<br />
[B1] Probe, G 1/2 sleeve nut<br />
[M11] Magn. spring contact, 2x N/O<br />
[Y] Probe diameter 10 mm

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N08-C-3-E-0-0<br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6] Diameter / length thermowell, 6 mm / 30 mm<br />
[N08] Process connection, 1/4" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[E] Terminal head, Anschlusskopf<br />
[0] Head-mounted transmitter, without transmitter<br />
[0] Options, without<br />
* Include Termopozo of 30 mm<br />
* Include Certificado de Calibracion.

<strong>Temperature Switch For Liquids<br />
Brand: Kobold (Alemania)<br />
Model: TWR-42-100-0</strong><br />
[TWR-42]:<br />
Standard contact<br />
Fitting/housing, st. st.<br />
Seal w/o<br />
Max. temperature 150 °C<br />
Max. pressure PN 64<br />
Tolerance, from 100 °C = +-7 °C<br />
Hysteresis max. 20 °C<br />
Contact N/O<br />
Connection G 3/4 male<br />
Electron. connection plug acc. DIN 43 650<br />
[100]: Switch point 100 °C<br />
[0]: Signal lamp, w/o

<strong>Temperature Switch For Liquids<br />
Brand: Kobold (Alemania)<br />
Model: TWR-32-100-0</strong><br />
[TWR-32]:<br />
“PLC” contact<br />
Fitting/housing, st. st.<br />
Seal w/o<br />
Max. temperature 150 °C<br />
Max. pressure PN 64<br />
Tolerance, from 100 °C = +-7 °C<br />
Hysteresis max. 20 °C<br />
Contact N/C<br />
Connection G 3/4 male<br />
Electron. connection plug acc. DIN 43 650<br />
[100]: Switch point 100 °C<br />
[0]: Signal lamp, w/o

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-F-6-G15-A-3-G-0-0</strong><br />
[MWD-F]:<br />
Version, For mounting in thermowell, insert filled with MgO, removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), Patm only with thermowell TWL-0<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm / 145 mm<br />
[G15]: Process connection, G1/2 male<br />
[A]: Sensor, 1x Pt100, cat. B,  (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-F-6-G15-A-3-G-0-0</strong><br />
[MWD-F]:<br />
Version, For mounting in thermowell, insert filled with MgO, removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), see thermowell<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm / 570 mm<br />
[G15]: Process connection, G1/2 male<br />
[A]: Sensor, 1x Pt100, cat. B,  (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

<strong>Thermocouples Exd<br />
Brand: Kobold (Alemania)<br />
Model: TTL-1-4-2-A-N-GA96-A-0</strong><br />
[TTL-1]:<br />
Version standard<br />
Thermowell, cylindrical, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404<br />
Connection head Form XD with chain, M20 x 1,5<br />
Approval ATEX II 2 GD Ex d IIC T6<br />
[4]: Sensor, 2x NiCr-Ni (type K), cat, 2<br />
[2]: Wiring: 2 wires<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GA96]: Connection thermowell, ANSI-flange 2" 300 lbs<br />
Immersion length (U): 774.7 mm<br />
[A]: Neckpipe/lagging extension (HL/T), Standard neckpipe (130 mm)w/o lagging extension<br />
[0]: Options: w/o<br /><br />
Dimensions:<br />
Neck pipe length (HL): Standard 130 mm for TTL-1<br />
Termocuple Inmersion length (EL): U+H–8<br />
Termocuple Inmersion length (EL) : 826.70 mm<br />
Thermowell Inmersion length (U): 774.7 mm<br />
Thermowell Bulb diameter (d) : 15 mm<br />
Termocuple Bulb diameter: 6 mm<br />
Length (H): 60 mm<br />
Length (i): 7 mm

<strong>Thermocouples Exd<br />
Brand: Kobold (Alemania)<br />
Model: TTL-2-3-2-A-N-DA66-A-0</strong><br />
[TTL-2]:<br />
Version with nipple union<br />
Thermowell tapered, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404<br />
Connection head Form XD with chain, M20 x 1,5<br />
Approval ATEX II 2 GD Ex d IIC T6<br />
[3]: Sensor, 1x NiCr-Ni (type K), cat, 2<br />
[2]: Wiring: 2 wires<br />
[A]: Head-mounted transmitter, programable 2 wire transmitter model 5334D<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[DA66]: Connection thermowell, ANSI-flange 1" 300 lbs<br />
Immersion length (U): 500 mm<br />
[A]: Neckpipe/lagging extension (HL/T): Standard neckpipe (150 mm) w/o lagging extension<br />
[0]: Options: without<br /><br /><strong>Dimensions:</strong><br />
Neck pipe length (HL): Standard 150 mm for TTL-2<br />
Termocuple Inmersion length (EL): U + H – 8<br />
Termocuple Inmersion length (EL): 552 mm<br />
Thermowell Inmersion length (U): 500 mm<br />
Thermowell Bulb diameter (d): 18 mm<br />
Termocuple Bulb diameter: 6 mm<br />
Length (H): 60 mm<br />
Length (i): 7 mm

<strong>Industrial Resistance Thermometers acc. DIN<br />
Model: MWD-B-6-N15-C-3-G-A-0<br />
Brand: Kobold (Alemania)</strong><br />
[MWD-B]<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe HL: 130 mm<br />
Electrical connection: M20x1.5<br />
[6] Diameter / length thermowell, 6 mm / 50 mm <br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[G]Terminal head, screw cap with chain, aluminium<br />
[A] Head-mounted transmitter, programable 2 wire <br />
transmitter 4-20 mA model 5334D<br />
[0] Options, without<br /><br />
Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-DN5C-0-0<br />
[TWL-0000]:<br />
Thermowell, tapered drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[DN5C]: Connection thermowell, 3/4" NPT male, PN 250<br />
Immersion length (U), 50 mm<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br />
Dimensions:<br />
Thermowell Inmersion length (U): 50 mm<br />
Thermowell Bulb diameter: 7 mm

<strong>Thermowells for Temperature Sensors<br />
Brand: Kobold (Alemania)<br />
Model: TWL-0000-N-DN5C-0-0</strong><br />
[TWL-0000]:<br />
Thermowell, tapered drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[DN5C]: Connection thermowell, 3/4" NPT male, PN 250<br />
Immersion length (U), 50 mm<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br />
Dimensions:<br />
Thermowell Inmersion length (U): 50 mm<br />
Thermowell Bulb diameter: 7 mm

<strong>Industrial Resistance Thermometers acc. DIN<br />
Model: MWD-B-6-N15-C-3-G-A-0<br />
Brand: Kobold (Alemania)</strong><br />
[MWD-B]<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe HL: 130 mm<br />
Electrical connection: M20x1.5<br />
[6] Diameter / length thermowell, 6 mm / 50 mm <br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[G]Terminal head, screw cap with chain, aluminium<br />
[A] Head-mounted transmitter, programable 2 wire <br />
transmitter 4-20 mA model 5334D<br />
[0] Options, without

<strong>Resistance Thermometers Exd<br />
Brand: Kobold (Alemania)<br />
Model: TWL-2-5-3-B-N-DA85-A-2</strong><br />
[TWL-2]:<br />
Version, with nipple union<br />
Thermowell, tapered drilled<br />
Material neckpipe/sensor/thermowell, st.st, 1.4404<br />
Connection head, Form XD with chain, M20x1.5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[5]: Sensor, 1x Pt100, cat. A,  (-30..+550 °C)<br />
[3]: Wiring, 3 wires<br />
[B]: Head-mounted transmitter, Model 5337D<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[DA85]: Connection thermowell, ANSI-flange 1 1/2" 150 lbs<br />
Immersion length (U), 180 mm<br />
[A]: Neckpipe/lagging extension, Standard neckpipe (150 mm) w/o lagging extension<br />
[2]: Options, with LED-display<br /><br />
Inmersion length Thermowell (U) = 180 mm<br />
Length see Thermowell (H) = 60 mm<br />
Length see Thermowell (i) = 7 mm<br />
Bulb diameter Thermometer = 6 mm<br />
Bulb diameter Thermowell (d) = 18 mm<br />
Neck pipe (HL) = 150 mm (Standard for TWL-2)<br />
Inmersion Length Thermometer (EL) = U+H–8 mm = 232 mm<br />
EL = U+H-8 mm for Thermowell type D

Safety Thermometers with Contact DIN EN 13190<br />
Brand: Kobold<br />
Model: TNS-1F-2-46-0CA-M10-Y<br />
[TNS-1F]<br />
Diameter 100 mm<br />
Probe material st.st.<br />
Class 1,0<br />
[2] Housing material: st.st.<br />
[46] Range: -40...60 °C<br />
[0CA] 1/2 NPT fixed nipple<br />
Probe length: 80 mm<br />
[M10] Magn. spring contact: N/O<br />
[Y] Options, probe diameter 8 mm

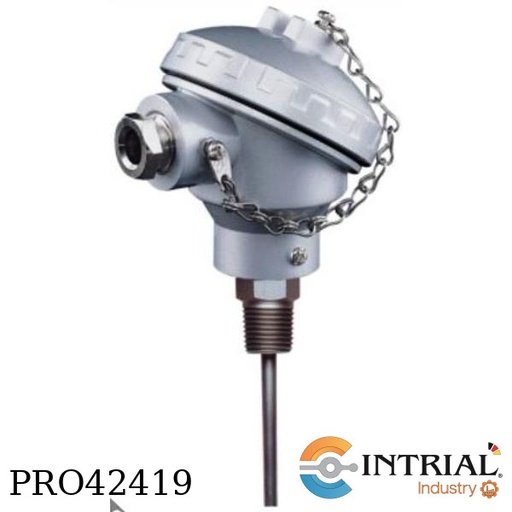

<strong>Industrial Resistance Thermometers acc. DIN<br />
Model: MWD-L-8-N15-C-3-G-0-0<br />
Brand: Kobold (Alemania)</strong><br />
[MWD-L]:<br />
Version: Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material: stainless steel 1.4404<br />
Max. pressure (@ 20°C) : 30 bar<br />
Connection : Fixed connection<br />
Neckpipe: Without<br />
[8]: Diameter/ length thermowell: 8mm/ 100mm<br />
[N15]: Process connection: 1/2"" NPT male<br />
[C]: Sensor: 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring: 3 wires<br />
[G]: Terminal head: Screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options: Without

<strong>Screw-In Resistance Thermometers with cable<br />
Model: MWE-1-6-G08-A-3-P-0 (18 mm)<br />
Brand: Kobold (Alemania)</strong><br />
[MWE-1]:<br />
Version: Immersion tube without filling, not removable<br />
Material immersion tube: St. steel 1.4404 / 316 L<br />
Max. pressure (@ 20°C): 30 bar<br />
Temperature range: -70…+250 °C (depending on cable material)<br />
Connection: fixed<br />
Connection cable: Cable acc. customer specification with bend protection spring<br />
[6]: Diameter / length immersion tube, 6mm, 18 mm<br />
[G08]: Process connection, G 1/4 male<br />
[A]: Sensor type, 1x Pt100, cat. B (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[P]: Cable material, PVC (max. 80°C); Cable length, 6 m<br />
[0]: Options, without

<strong>Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-1-2-C16-3A-6-000</strong><br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[C16]: Measuring Range, 0 ... +160 °C<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT <br />
[6]: Bulb diameter/-length, 6 mm / 150 mm<br />
[000]: Options, without<br />
Dimensions:<br />
Thermometer Inmersion length (S): 150 mm<br />
Thermometer Bulb diameter: 6 mm

Infrared Thermometers for fixed Installation<br />
Brand: Kobold (Alemania)<br />
Model: TIR-FA-V-50<br />
[TIR-FA]<br />
Housing, st.st.<br />
Accuracy, ±1,5% or 2,5 °C<br />
Emittance 95%<br />
Power supply 18...30 VDC<br />
Electron. connection 1 m PVC cable<br />
[V] Output, 10 mV/ °C<br />
[50] Measuring range, 100...+500 °C

Screw-In Resistance Thermometers  with cable<br />
Model: MWE-1-6-G15-A-3-P-0<br />
Brand: Kobold (Alemania)<br />
[MWE-1]:<br />
Version: Immersion tube without filling, not removable<br />
Material immersion tube: St. steel 1.4404 / 316 L<br />
Max. pressure (@ 20°C): 30 bar<br />
Temperature range: -70…+250 °C (depending on cable material)<br />
Connection: fixed<br />
Connection cable: Cable acc. customer specification with bend protection spring<br />
[6]: Diameter / length immersion tube, 6mm, 60 mm<br />
[G15]: Process connection, G 1/2 male<br />
[A]: Sensor type, 1x Pt100, cat. B (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[P]: Cable material, PVC (max. 80°C); Cable length, 6 m<br />
[0]: Options, without

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-G15-A-3-G-0-0</strong><br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm / 145 mm<br />
[G15]: Process connection, G1/2 male<br />
[A]: Sensor, 1x Pt100, cat. B,  (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without
