<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-G15-A-3-G-0-0</strong><br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm / 570 mm<br />
[G15]: Process connection, G1/2 male<br />
[A]: Sensor, 1x Pt100, cat. B,  (-70..+250 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-B-8-A40-C-3-G-A-0<br />
[MWD-B]<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe HL: 130 mm<br />
Electrical connection: M20x1.5<br />
[8] Diameter / length thermowell, 8 mm / 1050 mm <br />
[A40] Process connection, 1 1/2" CL 150 RF<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[G]Terminal head, screw cap with chain, aluminium<br />
[A] Head-mounted transmitter, programable 2 wire <br />
transmitter 4-20 mA model 5334D<br />
[0] Options, without

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-5-N15-C-3-G-0-0</strong><br />
[MWD-L]<br />
Version Protective tube acc. DIN 43772, filled with MgO, <br />
insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[5] Diameter / length thermowell, 5 mm / 70 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[0] Head-mounted transmitter, without transmitter<br />
[0] Options, without

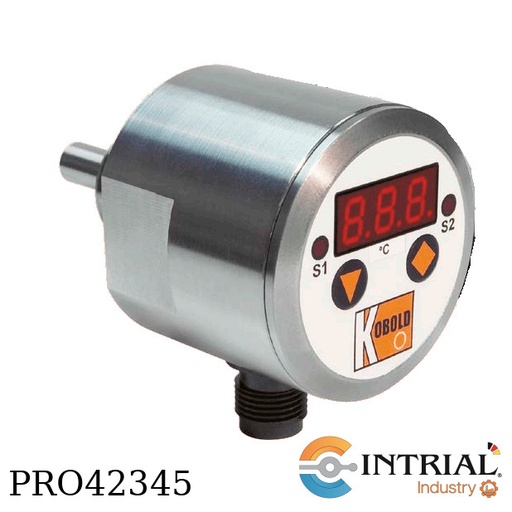

Electronic temperature sensor with 3 digit LED Display<br />
Brand: Kobold (Alemania)<br />
Model: TDA-15H2-N4-1-N-3M<br />
[TDA-15H2]<br />
Housing (mm), st. st.<br />
Output, 0(4)-20 mA (switch output)<br />
max. pressure, 80 bar<br />
max. temperature, 120 °C<br />
Display, 3 digit LED display<br />
Measuring range, -20...+120 °C<br />
Version, compact<br />
[N4] Connection: 1/2 NPT male<br />
[1] Sensor length: 100 mm<br />
[N] Output: 0(4)-20 mA, NPN switch output<br />
[3M] Electrical connection: M12x1 plug connector

<strong>Resistance Thermometers Exd<br />
Model: TWL-2-1-3-B-N-DN5C-A-2<br />
Brand: Kobold (Alemania)</strong><br />
[TWL-2]:<br />
Version, with nipple union<br />
Thermowell, tapered drilled<br />
Material neckpipe/sensor/thermowell, st.st, 1.4404<br />
Connection head, Form XD with chain, M20x1.5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[1]: Sensor, 1xPt100, class B, (-30...+550°C)<br />
[3]: Wiring, 3 wires<br />
[B]: Head-mounted transmitter, Model 5337D<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[DN5C]: Connection thermowell, 3/4" NPT male, PN 250<br />
Immersion length (U), 50 mm<br />
[A]: Neckpipe/lagging extension, Standard neckpipe (150 mm) w/o lagging extension<br />
[2]: Options, with LED-display<br /><br />
Inmersion length Thermowell (U) = 50 mm<br />
Length see Thermowell (H) = 46 mm<br />
Length see Thermowell (i) = 7 mm<br />
Bulb diameter Thermometer = 6 mm<br />
Bulb diameter Thermowell (d) = 18 mm<br />
Neck pipe (HL) = 150 mm (Standard for TWL-2)<br />
Inmersion Length Thermometer (EL) = U+H–8 mm = 88 mm<br />
EL = U+H-8 mm for Thermowell type D

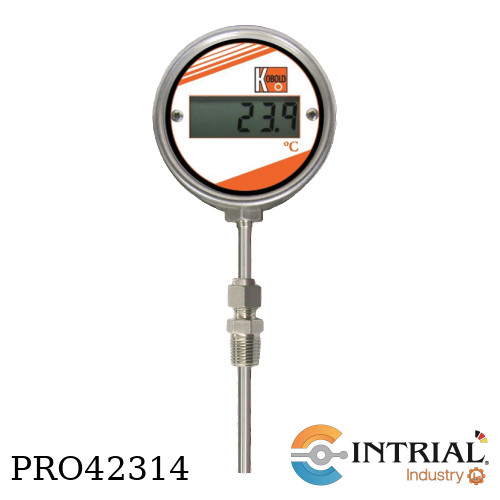

Digital Thermometer Model DTB<br />
Brand: Kobold Usa<br />
Model: DTB-025C<br />
[DTB-025C]<br />
Technical Details<br />
Sensing Element: RTD, Type Pt1000, Class A<br />
Ranges:  -50 °C to 200 °C with 2.5" Probe Length, No Fitting<br />
Accuracy: ±(0.2 + 0.002 x [ T ] ) °C, factory<br />
Refresh Rate: 3 seconds<br />
Display: 4-digit LCD, 1/2" high<br />
RFI Effect: 1% or less typical<br />
Temp. Effect: <0.01% FS/°C<br />
Ambient Temp. Range: 0...50 °C (32...122 °F)<br />
Storage Temp. Range: -20...70 °C (-4...158 °F)<br />
Maximum Pressure: 500 PSIG (on probe)<br />
Housing Material: 316 Stainless Steel<br />
Probe Material: 316 Stainless Steel standard<br />
Weight: 12 oz (350 g)<br />
Protection: NEMA 4X, IP 67<br />
Power: (2) 3.6 V batteries<br />
Battery Life: 5 years typical in continuous mode

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-A-N15-C-3-E-0-0<br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[A] Diameter / length thermowell, 10 mm / 100 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[E] Terminal head, Anschlusskopf<br />
[0] Head-mounted transmitter, without transmitter<br />
[0] Options, without

<p class="MsoNormal" style="margin-bottom:12pt;"><strong>Bimetallic Thermometers TBE (319 mm)<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-2-F21-9A-9-C40 + TWL-0000-N-GA89-0</strong><br />
[TBE-2]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[F21]: Measuring Range, Scale °C, ranges +50....+400 °F<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[9]: Bulb diameter/-length: 9.6 mm / 319 mm<br />
[C40]: Case and ring stainless steel AISI 316<br /><br />
Dimensions:<br />
Inmersion length (S): <span style="background-color:#FFA500;">319 mm</span><br />
Bulb diameter: 9.6 mm<br /><br /><strong>Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GA85-0</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GA85]: Connection thermowell, ANSI-flange 1 1/2" 150 lbs<br />
Immersion length (U), 266 mm<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br />
Dimensions:<br />
Inmersion length (U): <span style="background-color:#FFA500;">266 mm</span><br />
Bulb diameter (d): 18 mm<br />
Length (H): 60 mm<br />
Length (i): 10 mm</p>

<p class="MsoNormal"></p>

<p></p>

<strong>Bimetallic Thermometers TBE (454 mm)<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-2-F14-9A-9-C40 + TWL-0000-N-GA89-0</strong><br />
[TBE-2]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[F14]: Measuring Range, Scale °C, ranges +0....+250 °F<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[9]: Bulb diameter/-length: 9.6 mm / 454 mm<br />
[C40]: Case and ring stainless steel AISI 316<br /><br />
Dimensions:<br />
Inmersion length (S): <span style="background-color:#FFA500;">454 mm</span><br />
Bulb diameter: 9.6 mm<br /><br /><strong>Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GA89-0</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GA89]: Connection thermowell, ANSI-flange 1 1/2" 1500 lbs<br />
Immersion length (U), 401 mm<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br />
Dimensions:<br />
Inmersion length (U): <span style="background-color:#FFA500;">401 mm</span><br />
Bulb diameter (d): 18 mm<br />
Length (H): 60 mm<br />
Length (i): 10 mm

<strong>Bimetallic Thermometers TBE (454 mm)<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-2-F12-9A-9-C40 + TWL-0000-N-GA89-0</strong><br />
[TBE-2]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[F12]: Measuring Range, Scale °C, ranges +0....+200 °F<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[9]: Bulb diameter/-length: 9.6 mm / 454 mm<br />
[C40]: Case and ring stainless steel AISI 316<br /><br />
Dimensions:<br />
Inmersion length (S): <span style="background-color:#FFA500;">454 mm</span><br />
Bulb diameter: 9.6 mm<br /><br /><strong>Include:<br />
Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GA89-0</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GA89]: Connection thermowell, ANSI-flange 1 1/2" 1500 lbs<br />
Immersion length (U), 401 mm<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br />
Dimensions:<br />
Inmersion length (U): <span style="background-color:#FFA500;">401 mm</span><br />
Bulb diameter (d): 18 mm<br />
Length (H): 60 mm<br />
Length (i): 10 mm

<strong>Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GA85-0<br />
Brand: Kobold (Alemania)</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GA85]: Connection thermowell, ANSI-flange 1 1/2" 150 lbs<br />
Immersion length (U), 266 mm<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br />
Dimensions:<br />
Inmersion length (U): 266 mm<br />
Bulb diameter (d): 18 mm<br />
Length (H): 60 mm<br />
Length (i): 10 mm

<strong>Thermowells for Temperature Sensors<br />
Model: TWL-0000-N-GA89-0<br />
Brand: Kobold (Alemania)</strong><br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GA89]: Connection thermowell, ANSI-flange 1 1/2" 1500 lbs<br />
Immersion length (U), 401 mm<br />
[0]: Lagging extension (T), w/o lagging extension<br /><br />
Dimensions:<br />
Inmersion length (U): 401 mm<br />
Bulb diameter (d): 18 mm<br />
Length (H): 60 mm<br />
Length (i): 10 mm

Bimetallic Thermometers TBE (319 mm)<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-2-F21-9A-9-C40<br />
[TBE-2]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[F21]: Measuring Range, Scale °C, ranges +50....+400 °F<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[9]: Bulb diameter/-length: 9.6 mm / 319 mm<br />
[C40]: Case and ring stainless steel AISI 316<br /><br />
Dimensions:<br />
Inmersion length (S): 319 mm<br />
Bulb diameter: 9.6 mm

<strong>Bimetallic Thermometers TBE (454 mm)<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-2-F14-9A-9-C40</strong><br />
[TBE-2]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[F14]: Measuring Range, Scale °C, ranges +0....+250 °F<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[9]: Bulb diameter/-length: 9.6 mm / 454 mm<br />
[C40]: Case and ring stainless steel AISI 316<br /><br />
Dimensions:<br />
Inmersion length (S): 454 mm<br />
Bulb diameter: 9.6 mm

<strong>Bimetallic Thermometers TBE (454 mm)<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-2-F12-9A-9-C40</strong><br />
[TBE-2]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[F12]: Measuring Range, Scale °C, ranges +0....+200 °F<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
[9]: Bulb diameter/-length: 9.6 mm / 454 mm<br />
[C40]: Case and ring stainless steel AISI 316<br /><br />
Dimensions:<br />
Inmersion length (S): 454 mm<br />
Bulb diameter: 9.6 mm

<strong>Digital Thermometer, microprocessor-controled<br />
Brand: Kobold (Alemania)<br />
Model: DTM-S0-80-0-1A-A4G-0-Y/(100 mm)</strong><br />
[DTM-S0]<br />
Housing material: st. st. /Polyamide<br />
Housing diameter 100 mm<br />
Accuracy class 0,5<br />
max. temperature: 200 °C<br />
Power supply: 15...30 VDC<br />
Connection : to bottom.<br />
Diameter bulb: 8mm<br />
Probe Length: 100 mm<br />
[80] Range: 0...80 °C<br />
[0] Cable: whitout<br />
[1A] Probe for all models: 1/2 NPT sl. nut + nipple<br />
[A4G] Output: 4..20 mA, 2 contacts<br />
[0] Options: without<br />
[Y] Options for Stem Thermometers, Test certificate (5 measuring points)

<strong>Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-1-C08-9A-6-C01/(114 mm)</strong><br />
[TBE-2]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom <br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[1]: Diameter, 100mm<br />
[C08]: Measuring Range, Scale °C, ranges acc. data sheet<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT <br />
[6]: Bulb diameter/-length, 6 mm/114 mm<br />
[C01]: Options, Calibration report

Digital Thermometer Model DTB<br />
Brand: Kobold Usa<br />
Model: DTB-060C+FT46FH4BZSS<br />
[DTB-060C]<br />
Technical Details<br />
Sensing Element: RTD, Type Pt1000, Class A<br />
Ranges: -50 °C to 200 °C with 6.0" Probe Length, No Fitting<br />
Accuracy: ±(0.2 + 0.002 x [ T ] ) °C, factory<br />
Refresh Rate: 3 seconds<br />
Display: 4-digit LCD, 1/2" high<br />
RFI Effect: 1% or less typical<br />
Temp. Effect: <0.01% FS/°C<br />
Ambient Temp. Range: 0...50 °C (32...122 °F)<br />
Storage Temp. Range: -20...70 °C (-4...158 °F)<br />
Maximum Pressure: 500 PSIG (on probe)<br />
Housing Material: 316 Stainless Steel<br />
Probe Material: 316 Stainless Steel standard<br />
Weight: 12 oz (350 g)<br />
Protection: NEMA 4X, IP 67<br />
Power: (2) 3.6 V batteries<br />
Battery Life: 5 years typical in continuous mode<br />
[FT46FH4BZSS]<br />
1/4" 316SS Bore Through Compression Fitting x 3/8" NPT Male ('C' = 1.5")

<strong>Insertion Resistance Thermometers compact<br />
Brand: Kobold (Alemania)<br />
Model: MMA-0-03-N15-C-3-M-B-0+ZUB-KAB-12-K002</strong><br />
[MMA-0]:<br />
Probe material st.st. 1.4404<br />
Connection fixed <br />
Design w/o stand-off <br />
Max. temperature - 70...+150°C <br />
[03]: Immersion length / diameter: 25 mm / Ø6<br />
[N15]: Connection, 1/2 NPT <br />
[C]: Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[3]: Wiring, 3-wire<br />
[M]: Electr. Connection, Plug M12x1<br />
[B]: Head Transmitter, 4..20 mA,range acc. customers specification<br />
[0]: Options, without<br /><br /><strong>Include:<br />
Accessories round plug<br />
Model: ZUB-KAB-12-K002</strong><br />
M12x1 box 2 m cable, 4-pin

<strong>Resistance Thermometers acc. to DIN Ex ia<br />
Brand: Kobold (Alemania)<br />
Model: TWL-1F4-50-B-1-3-G-B-0</strong><br />
[TWL-1F4]:<br />
Protective tube material: st.steel, 1.4571<br />
Protective tube dimensions, 15 mm<br />
Form acc. DIN 43 772, 1<br />
with stand-off, no<br />
[50]: Immersion length, 500 mm<br />
[B]: Connection, G 3/4 adjustable, st. steel<br />
[1]: Sensor type, 1x Pt100, cat.B (-80..+600 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Connection head, Form B with chain<br />
[B]: Head transmitter, with HART-protocol, 2-wire, model 5337D<br />
[0]: Option, without
