Infrared Thermometers for fixed Installation<br />
Brand: Kobold (Alemania)<br />
Model: TIR-SN-4-10-G<br />
[TIR-SN]<br />
Housing, st.st.<br />
Accuracy, ±1,5% of full scale<br />
Emittance, 0,4...1<br />
Power supply, 24 VDC ± 25%<br />
Electron. connection, 2 m tightly wired<br />
[4]:Output, 4-20 mA<br />
[10]: Measuring range, 0...+100 °C<br />
[G]: Optic, Optic 300 mm(1:15)<br /><br />
Include:<br />
Accessories for TIR<br />
Brand: Kobold (Alemania)<br />
Model: TIR-ZS100<br />
Adjustable mounting bracket

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-1-C10-3A-8-E65 <br />
[TBE-2]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom <br />
Probe st.st.<br />
Min. order quantity 5 pieces per order<br />
[1]: Diameter, 100mm<br />
[C10]: Measuring Range, 0 ... +100 °C<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[8]:Bulb diameter/-length, 8 mm /100 mm<br />
[E65]: Options, Protection degree IP 65 (without filling)

Resistance Thermometers Exd<br />
Brand: Kobold<br />
Model: TWL-1-1-3-A-N-GN4B-A-2<br />
[TWL-1]:<br />
Version standard<br />
Thermowell cylindrical, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404<br />
Connection head Form XD with chain, M20 x 1,5<br />
Approval ATEX II 2 GD Ex d IIC T6<br />
Immersion length (U), 203 mm (8")<br />
[1]: Sensor, 1x Pt100, cat. B,  (-30..+550 °C)  <br />
[3]: Wiring, 3 wires<br />
[A]: Head-mounted transmitter, Model 5333D*(*only with 3-wire)<br />
[N]: Connection neckpipe, 1/2" NPT male<br />
[GN4B]: Connection thermowell, 1/2" NPT male, PN 100<br />
[A]: Neckpipe/lagging extension (HL/T), Standard neckpipe (130 mm)w/o lagging extension<br />
[2]: Options, with LED-display<br /><br />
Dimensions:<br />
U (Inmersion length Thermowell) =203 mm (8”)<br />
H (Length see Thermowell) = 46 mm <br />
HL (Neckpipe length - Standard for TWL-1) = 130 mm <br />
EL (Inmersion length) =U+H-8 mm = 203 + 46 – 8 = 241 mm

Infrared Thermometers for fixed Installation<br />
Brand: Kobold(Alemania)<br />
Model: TIR-SN-4-10-G<br />
[TIR-SN]<br />
Housing, st.st.<br />
Accuracy, ±1,5% of full scale<br />
Emittance, 0,4...1<br />
Power supply, 24 VDC ± 25%<br />
Electron. connection, 2 m tightly wired<br />
[4]: Output, 4-20 mA<br />
[10]: Measuring range, 0...+100 °C<br />
[G]: Optic, Optic 300 mm(1:15)

Stem Thermometers diam. 100 acc. to DIN EN 13190<br />
Model: TNS-0F-2-12-0CA-M12-Y<br />
Brand: Kobold<br />
[TNS-OF]<br />
Diameter, 100 mm<br />
Probe material, st.st.<br />
Class, 1,0<br />
Longitud de bulbo= 160 mm<br />
[2]: Housing material, st.st.<br />
[12]: Range, 0...120 °C<br />
[0CA]: Probe, 1/2 NPT fixed nipple<br />
[M12]: Magn. spring contact, 1st N/O, 2nd N/C<br />
[Y]: Probe diameter 9 mm

Thermocouple Measuring Probe Type K<br />
Brand: Kobold<br />
Model: HND-TF34<br />
Surface Probe for Solid Surfaces

Precision Hand-Held Thermometers<br />
Brand: Kobold<br />
Model: HND-T110<br />
[HND-T110]:<br />
Measuring Input, Thermocouple ype J,K,N,S,T<br />
Measuring Range, -220 °C...+1768 °C <br />
Resolution, 0,1°C resp. 1°C<br />
Display, 2 x 4-digit, LCD<br />
Accuracy, ±0,03 °C / ±0,1 °C <br />
Functional Range, Storage Min.-/Max.-Values, Holdfunction, Zero Point Adjustment, Auto-Off<br />
Interface, 0-1 V, Free Scalable / Serial*<br />
Power-supply, 9 V Battery / optional Mains Adapter<br />
*Via Interface Converter, See Accessories

Rod Thermostats general application<br />
Model: TEA-S21-06-M-A<br />
Brand: Kobold (Alemania)<br /><br />
[TEA-S21]<br />
Probe, copper<br />
Housing, plastic<br />
Switching difference, 2...20 K<br />
Thermostat version, single-level<br />
Contact, change over switch<br />
[06]: Range, 0...60 °C<br />
[M]: Thermowell, brass<br />
[A]: Option, internal adjustment

Screw-In and Welded Resistance Thermometers acc. to DIN<br />
Model: TWD-L94-10-2-1-3-T-YV<br />
Brand: Koblod (Alemania)<br />
[TWD-L94]:<br />
Protective tube material, st.st.<br />
Protective tube dimensions, 9 x 7 mm<br />
Form, B<br />
with stand-off, no<br />
Sensor, Pt 100, Class B<br />
[10] Immersion length, 100 mm<br />
[2]: Connection, G 1/2 AG<br />
[1]: Sensor type, 1x Pt100 (-30..+550 °C)<br />
[3]: Wiring, 3 wires<br />
[T]: Connection head, c/w head-mounted transmitter TUM-KW for<br />
head-form B or larger <br />
*Producto descontinuado lista de precios 2015

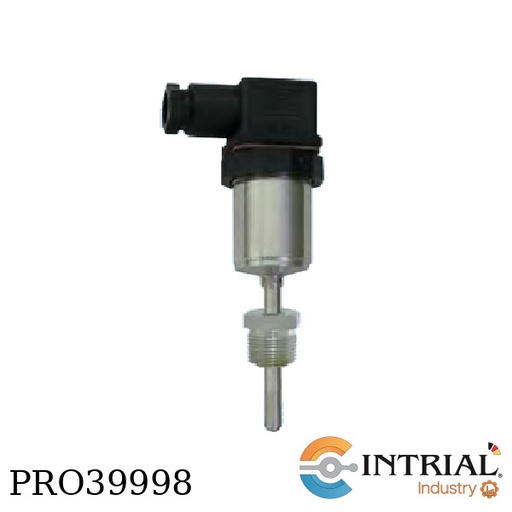

<strong>Temperature Transmitter<br />
Brand: Kobold (USA)<br />
Model: TMA-S2512A040-05</strong><br />
[S2512A040] :<br />
Temperature Specifications <br />
Temperature: -200 to +600 °C<br />
Ambient Operating, -40 °C to +70 °C <br />
Sensing Element:  Pt100 Class B <br />
per DIN 43670  <br />
Max. Pressure: 1450 PSIG <br />
Wetted Parts:  316 SS <br />
Fittings: 1/2” NPT ,Welded or adjustable <br />
U Dim.: 4"<br />
Connector: Hirschmann plug per (DIN 43650)<br />
Output: 4-20 mA, 2-wire  <br />
Environmental: NEMA 4X/IP65 <br />
[05]:Temperature Range, 0 to 50 ?C (32 F/122 F)

Thermowells for Stem and Capillary Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TSH-2-F32-10<br /><br />
[TSH-2]:<br />
Material st.st. 1.4571<br />
Protection sleeve for screw-in<br />
max. pressure 25 bar<br />
Thermometer connection G 1/2 AG <br />
Suitable for thermometers sleeve nut with G ½<br />
[F32]: Process connection, G 1/2 AG male 12 mm-probe<br />
[10]: Length of sleeve, 100 mm

Capillary Thermometers with Casing<br />
Brand: Kobold (Alemania)<br />
Model: TNF-8G-2-10-E-B1-M11-Y<br /><br />
[TNF-8G]:<br />
Diameter 160 mm<br />
Probe material st.st.<br />
Class 1,0 <br />
[2]: Housing material, st.st.<br />
[10]: Range, 0...100 °C<br />
[E]: Capillary tube, st.st., <br />
Capillary tube Length, 18 meters<br />
Probe Length (L1), 120 mm<br />
[B1]: Probe, G 1/2 sleeve nut<br />
[M11]: Magn. spring contact, 2x N/O<br />
[Y]:Test certificate (5 measuring points)

Bimetallic Thermometers TBE-2<br />
Brand: Kobold (Alemania)<br />
Model: TBE-2-2-C30-3A-7-C40<br />
[TBE-2]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[2]: Diameter, 125 mm<br />
[C30]: Measuring Range, 0 ... +300 °C<br />
[3A]: Probe type/Protect. tube/ immers. tube 1/2 NPT<br />
[7]: Bulb diameter/-length: 6.4 mm / 225 mm (9")<br />
[C40]: Options, Case and ring stainless steel AISI 316

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-B-8-N15-C-3-I-B-0<br />
[MWD-B]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe HL: 130 mm <br />
Electrical connection: M20x1.5 <br />
[8]: Diameter / length thermowell, 8 mm / 225 mm (9")<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[I]:Terminal head, screw cap with chain, st. steel 1.4401<br />
[B]: Head-mounted transmitter, 2 wire transmitter with HART protocol model 5337D<br />
[0]: Options, without

<div>Modelo 1: TMA-06410-1-05-4</div>

<div>•<span> </span>Insertion Resistance Thermometers with Integrated Transmitter</div>

<div>•<span> </span>TMA-064: Design w/o stand-off</div>

<div>•<span> </span>10: Immersion length, 100mm</div>

Stem Thermometers diam. 100 acc. to DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNS-0F-2-20-0SA<br />
[TNS-0F]<br />
Diameter, 100 mm <br />
Probe material, st.st.<br />
Class 1,0<br />
[2]: Housing material, st.st.<br />
[20]: Range, 0...200 °C <br />
[0SA]: Probe, 1/2 NPT diff. screw con.

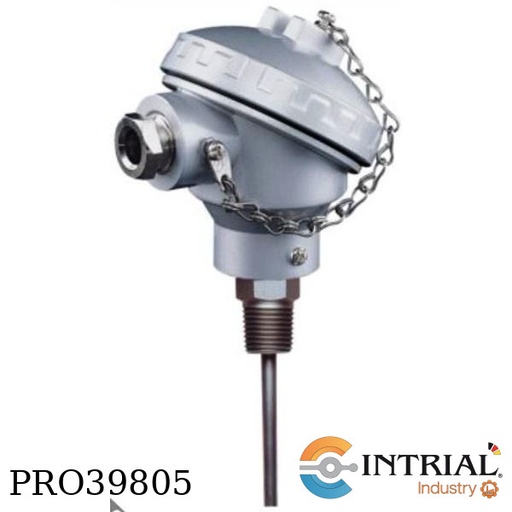

<strong>Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-C-3-G-A-0</strong><br />
[MWD-L]<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6] Diameter / length thermowell, 6 mm / 50 mm<br />
[N15] Process connection, 1/2" NPT male<br />
[C] Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3] Wiring, 3 Wires<br />
[G] Terminal head, screw cap with chain, aluminium<br />
[A] Head-mounted transmitter, <br />
5333D transmit-ter  4-20 mA 2-wire<br />
[0] Options, without

<strong>Temperature Switch For Liquids<br />
Model: TWR-12-090-0<br />
Brand: Kobold (Alemania)</strong><br />
[TWR-12]:<br />
Standard contact <br />
Fitting/housing, st. st.<br />
Seal w/o<br />
Max. temperature 150 °C<br />
Max. pressure PN 64<br />
Tolerance up to 90 °C = +-5 °C<br />
Hysteresis max. 20 °C  <br />
Contact N/C <br />
Connection G 3/4 male<br />
Electron. connection plug acc. DIN 43 650 <br />
[090]: Switch point 90 °C <br />
[0]: Signal lamp, w/o

Resistance Thermometers Exd<br />
Model: TWL-1-5-3-A-N-GN4B-A-D-2<br />
Brand: Kobold<br />
[TWL-1]:<br />
Version standard<br />
Thermowell cylindrical, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6 <br />
[5]: Sensor: 1x Pt100, cat. A,  (-30..+550 °C) <br />
[3]: Wiring: 3 wires<br />
[A*]: Head-mounted transmitter Model 5333D <br />
* only with 3-wire<br />
[N]: Connection neckpipe, 1/2" NPT male <br />
[GN4B]: Connection thermowell 1/2" NPT male, PN 100 <br />
Immersion length (U): 150 mm <br />
[A]: Neckpipe/lagging extension (HL/T),Standard neckpipe (130 mm)w/o lagging extension<br />
[D]: Neckpipe/lagging extension (HL/T),w/o neckpipe w/o lagging extension<br />
[0]: Options,w/o

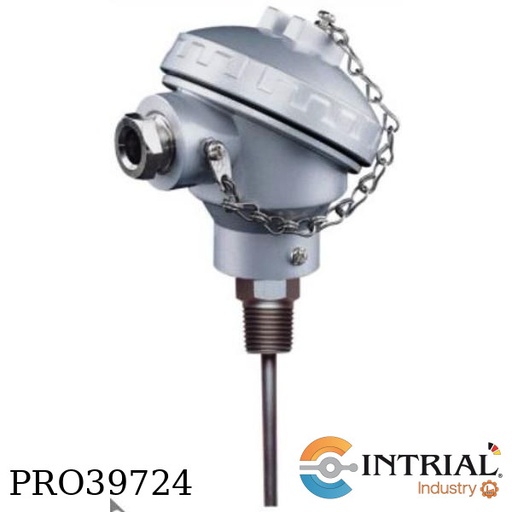

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N15-C-3-G-0-0<br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm / L= 300mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[3]: Wiring, 3 Wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter <br />
[0]: Options, without
