Model: TNF-1G-2-12-F-A0-M12<br />
Capillary Thermometer according to DIN 16205 TNF<br />
Measuring range: -20 ... +40 up to 0 ... 600 °C <br />
Connection: back or bottom <br />
G ½... G1, ½ NPT...1 NPT, TriClamp, and so on <br />
Housing Material: aluminum, st. st., plastic, steel <br />
Diameter of housing: 63, 80, 100,160 or 250 mm <br />
Accuracy class: 1,0 or 1,6 <br />
Option: contacts, gliding pointer, oil filling, and so on<br />
*******************************************************************<br />
TNF-1G-2-12-F-A0-M12<br />
TNF-1G: Capillary Thermometers diam. 160 acc. DIN 16206<br />
2: Housing Material, st.st.<br />
12: Measuring Ranges, 0 to 120°C<br />
F: Capillaries, 316-Ti Stainless Steel Capillary with <br />
Flexible 304 Stainless Steel Armor. Length: 2 m.<br />
A0: Probe/Fitting Style, Smooth bore probe <br />
12 mm diameter standard, Length 165 mm<br />
M12: Switches, Magnetic: 1st N/O, 2nd N/C<br />
Probe material, st.st.<br />
Class, 1.0<br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/t2gb_tnf.pdf

RIGID STEM THERMOMETERS (Glycerine)<br />
MODEL: TNS-1F-2-12-0A0-D-M11-100<br />
BRAND: KOBOLD USA<br />
TNS-<br />
1F: Housing Diameter, 4" (100 mm)<br />
2: Housing Material, Stainless Steel<br />
12: Measuring Ranges, 0 to 120°C<br />
A0: Probe/Fitting Style, Smooth bore probe 12 mm diameter standard<br />
D: Options, Glycerine (or Paraffin w/Switch) Filled Indicator Housing (SS Housings Only)<br />
M11: Switches, Magnetic: Both contacts closed when temperature above setpoint<br />
100: 100 mm probe length<br />
Datasheet:<br />
http://koboldusa.com/sites/default/files/product_files/TNS_datasheet_0.pdf

CAPILLARY THERMOMETERS (Glycerine)<br />
MODEL: TNF-2F-2-12-F-A0-D-M11-250<br />
BRAND: KOBOLD USA<br />
TNF-<br />
2F: Housing Diameter, 4" (100 mm)<br />
2: Housing Material, Stainless Steel<br />
12: Measuring Ranges, 0 to 120°C<br />
F: Capillaries, 316-Ti Stainless Steel Capillary with <br />
Flexible 304 Stainless Steel Armor. Length: 6 m.<br />
A0: Probe/Fitting Style, Smooth bore probe <br />
12 mm diameter standard<br />
D: Options, Glycerine (or Paraffin w/Switch) Filled Indicator Housing (SS Housings Only)<br />
M11: Switches, Magnetic: Both contacts closed when temperature above setpoint<br />
250: 250 mm probe length

CAPILLARY THERMOMETERS<br />
MODEL: TNF-2F-A-12-F-A0-M11-100<br />
BRAND: KOBOLD USA<br />
TNF-<br />
2F: Housing Diameter, 4" (100 mm)<br />
A: Housing Material, Aluminum (for 4” and 6” housing only)<br />
12: Measuring Ranges, 0 to 120°C<br />
F: Capillaries, 316-Ti Stainless Steel Capillary with <br />
Flexible 304 Stainless Steel Armor. Length: 2.9 m.<br />
A0: Probe/Fitting Style, Smooth bore probe <br />
12 mm diameter standard<br />
M11: Switches, Magnetic: Both contacts closed when temperature above setpoint<br />
100: 100 mm probe length<br />
Datasheet:<br />
http://koboldusa.com/sites/default/files/product_files/TNF_datasheet.pdf

CAPILLARY THERMOMETERS (Glycerine)<br />
MODEL: TNF-2F-2-12-F-A0-D-M11-100<br />
BRAND: KOBOLD USA<br />
TNF-<br />
2F: Housing Diameter, 4" (100 mm)<br />
2: Housing Material, Stainless Steel<br />
12: Measuring Ranges, 0 to 120°C<br />
F: Capillaries, 316-Ti Stainless Steel Capillary with <br />
Flexible 304 Stainless Steel Armor. Length: 2.9 m.<br />
A0: Probe/Fitting Style, Smooth bore probe <br />
12 mm diameter standard<br />
D: Options, Glycerine (or Paraffin w/Switch) Filled Indicator Housing (SS Housings Only)<br />
M11: Switches, Magnetic: Both contacts closed when temperature above setpoint<br />
100: 100 mm probe length<br />
Datasheet:<br />
http://koboldusa.com/sites/default/files/product_files/TNF_datasheet.pdf

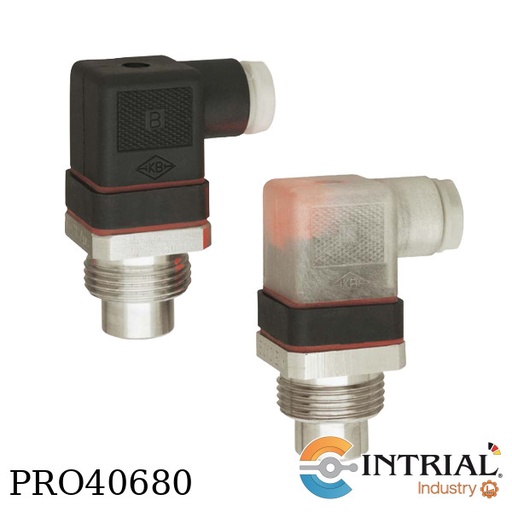

Temperature Switch For Liquids<br />
Brand: Kobold (Alemania)<br />
Model: TWR-12-100-0<br />
[TWR-12]:<br />
Standard contact <br />
Fitting/housing, st. st.<br />
Seal w/o<br />
Max. temperature 150 °C<br />
Max. pressure PN 64<br />
Tolerance, from 100 °C = +-7 °C<br />
Hysteresis max. 20 °C <br />
Contact N/C <br />
Connection G 3/4 male<br />
Electron. connection plug acc. DIN 43 650 <br />
[100]: Switch point 100 °C <br />
[0]: Signal lamp, w/o

Industrial Resistance Thermometers acc. DIN <br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-8-N15-C-4-E-0-0(100 mm)<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[8]: Diameter / length thermowell, 8 mm / 100 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[4]: Wiring, 4 Wires<br />
[E]: Terminal head, screw cap with chain, aluminium head with LCD display and HART transmitter include<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN <br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-8-N15-C-4-E-0-0(150 mm)<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[8]: Diameter / length thermowell, 8 mm / 150 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[4]: Wiring, 4 Wires<br />
[E]: Terminal head, screw cap with chain, aluminium head with LCD display and HART transmitter include<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN <br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-8-N15-C-4-E-0-0(300 mm)<br />
[MWD-L]:<br />
Version Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material st.st. 1.4404<br />
Max. pressure (@ 20°C) 30 bar<br />
Connection fixed connection<br />
Neck pipe without<br />
[8]: Diameter / length thermowell, 8 mm / 300 mm<br />
[N15]: Process connection, 1/2" NPT male<br />
[C]: Sensor, 1x Pt100, cat. A, (-70..+250 °C)<br />
[4]: Wiring, 4 Wires<br />
[E]: Terminal head, screw cap with chain, aluminium head with LCD display and HART transmitter include<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Screw-in Resistance Thermometers <br />
Brand: Kobold (Alemania)<br />
Model: TWL-B94-XX-2-3-3-G-B-0<br />
[TWL-B94]:<br />
Protective tube material: st.steel, 1.4571 <br />
Protective tube dimensions, 8 x 6 mm <br />
Form acc. DIN 43 772 2G <br />
with stand-off yes<br />
[XX]: Immersion length, Special length, 279.40 mm (11”) <br />
[2]: Connection, G 1/2 AG<br />
[3]: Sensor type, 1x Pt100, cta. A (-80..+600 °C)<br />
[3]: Wiring, 3 wires* <br />
* for head transmitters<br />
[G]: Connection head, Form B with chain<br />
[B]: Head transmitter, with HART-protocol, 2-wire, model 5337D**<br />
**specify measuring range <br />
[0]: Option, without

Screw-in Resistance Thermometers <br />
Brand: Kobold (Alemania)<br />
Model: TWL-B94-XX-2-3-3-G-A-0<br />
[TWL-B94]:<br />
Protective tube material: st.steel, 1.4571 <br />
Protective tube dimensions, 8 x 6 mm <br />
Form acc. DIN 43 772 2G <br />
with stand-off yes<br />
[XX]: Immersion length, Special length, 300 mm<br />
[2]: Connection, G 1/2 AG<br />
[3]: Sensor type, 1x Pt100, cta. A (-80..+600 °C)<br />
[3]: Wiring, 3 wires* <br />
* for head transmitters<br />
[G]: Connection head, Form B with chain<br />
[A]: Head transmitter, programmable, 2-wire, model 5333D**<br />
** specify measuring range<br />
[0]: Option, without

Thermowells for Temperature Sensors<br />
Brand: Kobold (Alemania)<br />
Model: TWL-0000-G-GA96-0<br />
[TWL-0000]:<br />
Thermowell, tapered and drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[G]: Connection neckpipe, G1/2 male<br />
[GA96]: Connection thermowell, ANSI-flange 2" 300 lbs<br />
Immersion length (U): 200 mm<br />
[0]: Lagging extension (T), w/o lagging extension<br />
Options, w/o.

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBI-IU-F-16-250-3G<br />
[TBI-IU]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection, to bottom<br />
Probe, G 1/2 male<br />
[F] Diameter, 100 mm<br />
[16] Range, 0...160 °C<br />
[250] Immersion tube length, L1 = 250 mm<br />
[3G] Protect. tube/ immers. Tube, immersion tube, st. st. G 1/2

Capillary Thermometers diam. 100 acc. DIN EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNF-0F-3-25-F-1C-M30-Y-Y1<br />
[TNF-0F]:<br />
Diameter 100 mm<br />
Probe material st.st.<br />
Class 1,0<br />
[3]: Housing material, Aluminum / steel<br />
[25]: Range, 0...250 °C<br />
[F]: Capillary tube, flexible st.st. coiled hose<br />
Capillary tube Length, 1800 mm<br />
Probe Length , 100 mm<br />
[1C]: Probe, 1 NPT sl. nut + 2 nipple<br />
[M30]: Magn. spring contact, SPDT<br />
[Y]: Probe diameter 9 mm<br />
[Y1]: Red gliding mark pointer

V-Form Glass Thermometers for Machines<br />
Brand: Kobold (Alemania)<br />
Model: TGL-11-10-F-100-N<br />
[TGL-11]<br />
Housing (mm), 110x36<br />
Form B, acc. DIN, 16181<br />
Housing material, aluminum<br />
Design, straight<br />
Immersion tube, brass<br />
[10]: Meas. range/scaling, 0...100 °C / 2°<br />
[F] Scale: Dual scale ° C /° F<br />
[100] Imm. Length: 100 mm<br />
[N] Connection: 1/2 NPT male

Resistance Thermometers Exd<br />
Model: TWL-1-5-3-A-N-GA96-D-2<br />
Brand: Kobold<br />
[TWL-1]:<br />
Version standard<br />
Thermowell cylindrical, drilled<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6 <br />
[5]: Sensor: 1x Pt100, cat. A,  (-30..+550 °C) <br />
[3]: Wiring: 3 wires<br />
[A]: Head-mounted transmitter Model 5333D <br />
[N]: Connection neckpipe, 1/2" NPT male <br />
[GA96]: Connection ANSI-flange 2" 300 lbs<br />
Immersion length (U): 100 mm <br />
[D]: Neckpipe/lagging extension (HL/T), w/o neckpipe w/o lagging extension<br />
[2]: Options, with LED-display

Capillary Thermometers diam. 80 acc. DIN  EN 13190<br />
Brand: Kobold (Alemania)<br />
Model: TNF-2E-2-30-E-A0<br />
[TNF-2E]: <br />
Diameter 80 mm<br />
Probe material st.st.<br />
Class 1,6<br />
[2]: Housing Material, st.st.<br />
[30]: Ranges, 0 to 300°C<br />
[E]: Capillary tube, st.st.<br />
Probe Length, 1500 mm<br />
[A0]: Probe/Fitting Style, Smooth probe

Thermocouple Mesuring Probe Type N for HND-T110/115/215<br />
Brand: Kobold (Alemania)<br />
Model: HND-TF23<br />
Probe for High Constant Temperatures, <br />
PL=1000 mm with open cable ends

Thermocouple Mesuring Probe Type N for HND-T110/115/215<br />
Brand: Kobold<br />
Model: HND-TF22<br />
[HND-TF22]:<br />
Probe for High Constant Temperatures, PL=500 mm<br />
with open cable ends

Bimetallic Thermometers<br />
Brand: Kobold<br />
Model: TBE-2-3-C20-9A-6-R10-C01<br />
[TBE-2]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to bottom <br />
Probe st.st.<br />
[3]: Diameter, 150mm<br />
[C20]: Measuring Range, Scale °C, ranges 0-200°C<br />
bulb length (280 mm),<br />
[9A]: Probe type/Process connection, sliding male and swivel nut 1/2 NPT <br />
[6]:Bulb diameter/-length, 6 mm <br />
[R10]: Options, Glycerine filling (max. 160 °C) IP 67<br />
[C01]: Options, Calibration report 01 punto
