Thermowells for Temperature Sensors<br />
Brand: Kobold (Alemania)<br />
Model: TWL-0000-N-GN4B-0<br />
[TWL-0000]:<br />
Thermowell, cylindrical drilled<br />
Material neckpipe/sensor/thermowell, st.st. 1.4404<br />
Connection head, Form XD with chain, M20 x 1,5,<br />
Approval, ATEX II 2 GD Ex d IIC T6<br />
[N]: Connection neckpipe,1/2" NPT male<br />
[GN4B]: Connection thermowell,1/2" NPT male, PN 100<br />
Immersion length (U), 50 mm<br />
[0]: Lagging extension (T),w/o lagging extension

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBI-IRE-10-063-3-G<br />
[TBI-IR]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear <br />
Probe, G 1/2 male<br />
[E]: Diameter, 80 mm<br />
[10]: Range, 0...100 °C <br />
[063]: Immersion tube length, L1 = 63 mm<br />
[3G]: Protect. tube/ immers. tube, immersion tube, st. st. G 1/2

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-N8-D-3-E-0-0(100mm)+TMPZO-120 mm<br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6mm/100 mm<br />
[N8]: Process connection, 1/4" NPT male <br />
[D]: Sensor, 2x Pt100, cat. A, (-70..+250 °C) <br />
[3]: Wiring, 3 wires <br />
[E]: Terminal head, Anschlusskopf <br />
[0]: Head-mounted transmitter,without transmitter <br />
[0]: Options, without<br /><br />
[TMPZO-120 mm]<br />
Termopozo roscado recto <br />
Uso: para sensor de temperatura <br />
TMPZO-120 mm - conexión 1/2 npt

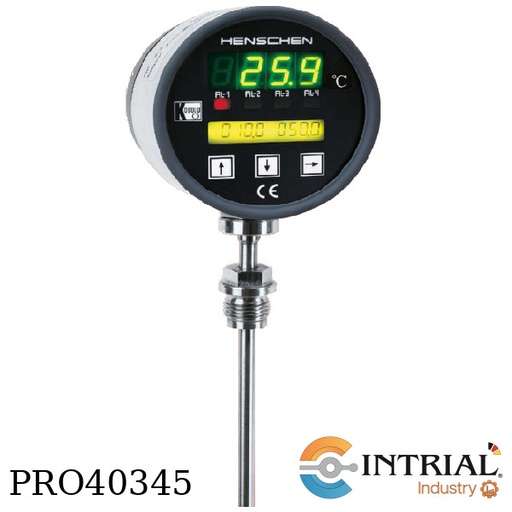

Digital Thermometers, microprocessor-controlled<br />
Brand: Kobold (Alemania)<br />
Model: DTM-F0-16-S-42-A4M-S-Y<br />
[DTM-F0] Digital Thermometers,<br />
Housing material: st. st. /Polyamide<br />
Housing diameter 100 mm<br />
Accuracy class 0,5<br />
max. temperature: 400 °C<br />
Power supply: 15...30 VDC<br />
Connection: wall brack<br />
PT100 sensor; 2 wire<br />
Diameter bulb: Ø8mm<br />
Probe Length: 540 mm <br />
[16] Range: 0...160 °C<br />
[S] Cable: Tubo capilar 6 m<br />
[42] Probe for all models: G 3/4 turnable nipple<br />
[A4M] Output: 4..20 mA, 4 contacts<br />
[S] Options: max. point memory<br />
[Y] Tubo capilar  de Acero Inóx (6 mts); <br />
con manguera flexible reforzada de acero inoxidable

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-D-A-N25-G-3-G-0-0<br />
[MWD-L]:<br />
Version, compact with removable measuring <br />
insert and extension neck pipe<br />
Neck pipe HL: 130 mm <br />
Electrical connection: M20x1.5<br />
Max. pressure, 30 bar<br />
Protective tube: according to DIN 43772<br />
Material: stainless steel 1.4404 (316L)<br />
Measuring insert: filled with magnesium oxide (MgO)<br />
[A]: Diameter / length thermowell, 10 mm / 100 mm<br />
[N25]: Process connection, 1" NPT male<br />
[G]: Sensor, 1x Pt100, cat. A, (-70..+400 °C)<br />
[3]: Wiring, 3 wires<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-G15-F-2-B-0-0<br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm / 200 mm<br />
[G15]: Process connection, G1/2 male<br />
[F]: Sensor, 2x Pt100, cat. B, (-70..+400 °C)<br />
[2]: Wiring, 2 wire<br />
[B]: Terminal head, DIN B, screwd cover, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

Industrial Resistance Thermometers acc. DIN<br />
Brand: Kobold (Alemania)<br />
Model: MWD-L-6-G15-J-2-G-0-0<br />
[MWD-L]:<br />
Version, Protective tube acc. DIN 43772, filled with MgO, insert not removable<br />
Protective tube material, st.st. 1.4404<br />
Max. pressure (@ 20°C), 30 bar<br />
Connection, fixed connection<br />
Neckpipe, without<br />
[6]: Diameter / length thermowell, 6 mm / 100 mm<br />
[G15]: Process connection, G1/2 male<br />
[J]: Sensor, 2x Pt100, cat. B, (-70..+600 °C)<br />
[2]: Wiring, 2 wire<br />
[G]: Terminal head, screw cap with chain, aluminium<br />
[0]: Head-mounted transmitter, without transmitter<br />
[0]: Options, without

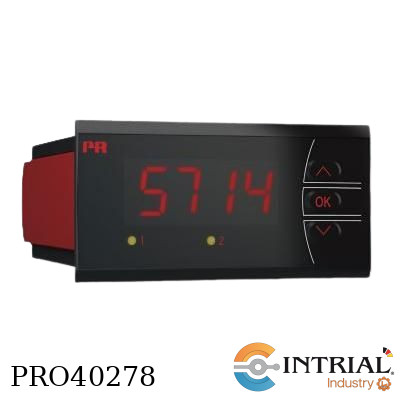

<strong>DISPLAY UNIVERSAL​<br />
Marca: PR Electronics<br />
Model: PR-5714D</strong><br />
[PR-5714D]<br />
Display: 4 digitos., Escalable<br />
Alimentación: 24 - 220 Vac/dc<br />
Entradas disponible: Termocupla, RTD, 4-20mA, 0-10VResistencia Lineal<br />
Salida: 0-20mA, 2 reles<br />
Proteccion: IP65<br />
Dimensiones: 48x96mm

Precision Hand-Held Thermometers<br />
Brand: Kobold<br />
Model: HND-T215<br />
[HND-T215]:<br />
Measuring Input, Thermocouple T ype J,K,N,S,T<br />
Measuring Range, -220 °C...+1750 °C <br />
Resolution, 0,1°C resp. 1°C<br />
Display, 2 x 4-digit, LCD<br />
Accuracy, ±0,03% to ±0,2% MV <br />
Functional Range, Storage Min.-/Max.-Values, Holdfunction, Differential Measurement, Zero Point Adjustment<br />
Additional Functions, Min.-/Max.-Alarm, Loggerfunction, Real-Time Clock<br />
Interface, Serial*<br />
Power-supply, 9 V Battery / optional Mains Adapter<br />
*Via Interface Converter, See Accessories<br /><br />
Include:<br />
Thermocouple Measuring Probe Type K<br />
Brand: Kobold<br />
Model: HND-TF38<br />
Immersion Probe for Highest Temperatures, Bendable<br />
Sheath Thermocouple

Thermocouple Measuring Probe Type K<br />
Brand: Kobold<br />
Model: HND-TF38<br />
Immersion Probe for Highest Temperatures, Bendable<br />
Sheath Thermocouple

Precision Hand-Held Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: HND-T215<br />
[HND-T215]:<br />
Measuring Input, Thermocouple T ype J,K,N,S,T<br />
Measuring Range, -220 °C...+1750 °C <br />
Resolution, 0,1°C resp. 1°C<br />
Display, 2 x 4-digit, LCD<br />
Accuracy, ±0,03% to ±0,2% MV <br />
Functional Range: Storage Min.-/Max.-Values, Holdfunction, <br />
Differential Measurement, Zero Point Adjustment<br />
Additional Functions: Min.-/Max.-Alarm, Loggerfunction, Real-Time Clock<br />
Interface, Serial*<br />
Power-supply, 9 V Battery / optional Mains Adapter<br />
*Via Interface Converter, See Accessories<br /><br />
Include:<br />
Thermocouple Measuring Probe Type S für HND-T110/215<br />
Brand: Kobold (Alemania)<br />
Model: HND-TF13<br />
Probe for Bunsen-BurnersTer

Accessories (Head Mounted Temperature Transmitters)<br />
Brand: Kobold (Alemania)<br />
Model: HARTCOMM<br />
Software with USB-HART® / U-Pro Modem<br />
(include configuration KM-Soft)<br />
Hart Modem

KAS-3152<br />
Pressure Switches<br />
Range: 6....18 bar<br />
Hysteresis (bar) (Adjustable): 0.3<br />
Maximum Pressure (bar): 27<br />
Media Temperature Range*: -40...212 °F<br />
* For Water and Sea Water: Max. Temperature of 175 °F<br />
Ambient Temperature Range: -40...160 °F

<br />
<strong>Temperature Switch For Liquids<br />
Brand: Kobold (Alemania)<br />
Model: TWR-21-050-0</strong><br />
[TWR-21]<br />
Standard contact<br />
Fitting/housing, brass<br />
Seal, w/o <br />
Max. temperature, 150 °C<br />
Max. pressure, PN 64<br />
Tolerance, up to 90 °C = +-5 °C<br />
Hysteresis, max. 20 °C<br />
Contact, N/O<br />
Connection, G 3/4 male<br />
Electron. connection, plug acc. DIN 43 650<br />
[050] Switch point, 50°C<br />
[0] Signal lamp, w/o

Termopozo<br />
Uso: Termómetro bimetálico, diam. 6mmX100mm,1/2”NPT<br />
Termopozo Roscado: Fabricado de barra solida<br />
Material del Termopozo: Acero Inox. AISI 316<br />
Cuerpo o Vástago: Forma Cilíndrico Ø 12.7mm.<br />
Diámetro Interno del Termopozo: Ø 7mm (Para sensor de Ø 6mm).<br />
Longitud de Inserción del Termopozo: De 80mm. (Incluida la rosca)<br />
Conexión al Sensor: Rosca hembra de 1/2’’NPT<br />
Conexión a Proceso: Rosca macho de 1/2’’NPT<br />
Presión de Trabajo: 70 PSI

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-3-1-C06-3A-6-000<br />
[TBE-3]:<br />
Housing material st.st.<br />
Accuracy (DIN 16203) class 1<br />
Connection to, bottom<br />
Probe st.st.<br />
[1]: Diameter, 100 mm<br />
[C06]: Measuring Range, 0-60°C<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 6 mm / 137 mm<br />
[000]: Options, without

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-3-3-C08-9B-6-000 (26")<br />
[TBE-3]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
[3]: Diameter, 150 mm<br />
[C08]: Measuring Range, Scale °C, ranges acc. data sheet (0+80 °C)<br />
[9B]: Probe type/Process connection, sliding male and swivel nut 3/4 NPT<br />
[6]: Bulb diameter/-length, 6mm / 26"<br />
[000]: Options: w/o

Bimetallic Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TBE-1-1-C16-3A-6-000<br />
[TBE-1]:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, rear<br />
Probe, st.st.<br />
[1]: Diameter, 100 mm<br />
[C16]: Measuring Range, Scale °C, ranges acc. data sheet (0-60°C)<br />
[3A]: Probe type/Process connection, Protect. tube/ immers. tube 1/2 NPT<br />
[6]: Bulb diameter/-length, 6mm / 24"<br />
[000]: Options: w/o

Thermocouples Exd<br />
Brand: Kobold<br />
Model: TTL-1-1-2-L-N-0000-G-J-1<br />
[TTL-1]:<br />
Version standard<br />
Thermowell cylindrical, w/o<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6<br />
[1]: Sensor, 1x Fe-CuNi (type J), cat. 2<br />
[2]: Wiring: 2 wires<br />
[L]: Head-mounted transmitter, without transmitter<br />
[N]: Connection neckpipe, 1/2" NPT male <br />
[000]: Connection thermowell 1/2" NPT-M<br />
Immersion length (U), for sensor w/o thermowell: 100 mm <br />
[G]: Neckpipe/lagging extension (HL/T), Standard neckpipe (130 mm) w/o thermowell<br />
[J]: w/o neckpipe and w/o thermowell<br />
[1]: Options: with LCD-display

Thermocouples Exd<br />
Brand: Kobold<br />
Model: TTL-1-1-2-L-N-0000-G-J-0<br />
[TTL-1]:<br />
Version standard<br />
Thermowell cylindrical, w/o<br />
Material neckpipe/sensor/thermowell st.st. 1.4404 <br />
Connection head Form XD with chain, M20 x 1,5 <br />
Approval ATEX II 2 GD Ex d IIC T6<br />
[1]: Sensor, 1x Fe-CuNi (type J), cat. 2<br />
[2]: Wiring: 2 wires<br />
[L]: Head-mounted transmitter, without transmitter<br />
[N]: Connection neckpipe, 1/2" NPT male <br />
[000]: Connection thermowell 1/2" NPT-M<br />
Immersion length (U), for sensor w/o thermowell: 100 mm <br />
[G]: Neckpipe/lagging extension (HL/T), Standard neckpipe (130 mm) w/o thermowell<br />
[J]: w/o neckpipe and w/o thermowell<br />
[0]: Options: without
