Screw-In Resistance Thermometers<br />
Brand: Kobold (Alemania)<br />
Model: TWE-164-40-2-1-2-M<br />
[TWE-164]:<br />
Protective tube st.st. 1.4571<br />
Sensor element class B Pt 100<br />
Temperature range, -20...+600 °C<br />
Connection, G 1/2 male fixed<br />
Connection head, form MA<br />
Connection cable, w/o<br />
[40]: Immersion length, 305 mm<br />
[2]: Connection, G 1/2 male fixed<br />
[1]: Sensor type, 1 x Pt 100<br />
[2]: Wiring, 2 wires<br />
[M]: Connection cable, Head form MA<br />
*****************************************************************************************<br />
Datasheet: http://www.kobold.com/uploads/files/twe-1-2-3-gb-temperature.pdf

Insertion Resistance Thermometers compact<br />
Brand: Kobold (Alemania)<br />
Model: MMA-005-N08-C-2-D-A-0<br />
[MMA-0]:<br />
Probe material st.st. 1.4404<br />
Connection fixed <br />
Design w/o stand-off<br />
Max. temperature - 70...+150°C<br />
[05]: Immersion length / diameter, 50 mm / Ø6<br />
[N08]: Connection, 1/4 NPT<br />
[C]: Sensor Type/Category, 1x Pt100, class A (-70..+250°C)<br />
[2]: Wiring, 2-wire<br />
[D]: Electr. Connection, plug acc. to DIN 43650<br />
[A]: Head Transmitter, 4..20 mA, range 0 bis 100 °C<br />
[0]: Options, without<br />
************************************************************************************<br />
Datasheet: http://www.kobold.com/uploads/files/mma-gb-temperature.pdf

<strong>Digital Thermometer, microprocessor-controlled<br />
Brand: Kobold (Alemania)<br />
Model: DTM-S0-16-0-1A-A4G-0</strong><br />
[DTM-S0] Digital Thermometers,<br />
Housing material: st. st. /Polyamide<br />
Housing diameter 100 mm<br />
Accuracy class 0,5<br />
max. temperature: 200 °C<br />
Power supply: 15...30 VDC<br />
Connection: to bottom.<br />
Diameter bulb: 8mm<br />
Probe Length: 200 mm <br />
[16] Range: 0...160 °C<br />
[0] Cable: whitout<br />
[1A] Probe for all models: 1/2 NPT sl. nut + nipple<br />
[A4G] Output: 4..20 mA, 2 contacts<br />
[0] Options: without

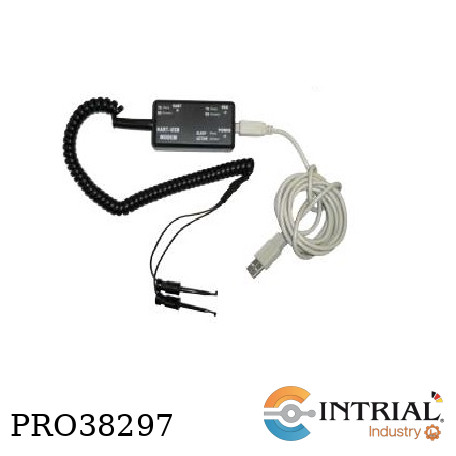

<strong>Accessories (Head Mounted Temperature Transmitters)<br />
Brand: Kobold (Alemania)<br />
Model: HARTCOMM</strong><br />
Software with USB-HART® / U-Pro Modem<br />
(include Software configuration KM-Soft)<br />
Hart Modem

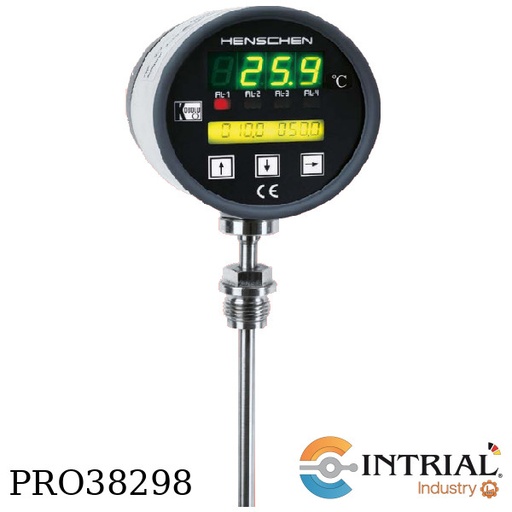

Digital Thermometer, microprocessor-controled<br />
Brand: Kobold (Alemania)<br />
Model: DTM-S0-10-0-1A-A4G-0<br />
[DTM-S0] <br />
Housing material: st. st. /Polyamide<br />
Housing diameter 100 mm<br />
Accuracy class 0,5<br />
max. temperature: 200 °C<br />
Power supply: 15...30 VDC<br />
Connection : to bottom.<br />
Diameter bulb: 8mm<br />
Probe Length: 127mm <br />
[10] Range: 0...100 °C<br />
[0] Cable: whitout<br />
[1A] Probe for all models: 1/2 NPT sl. nut + nipple<br />
[A4G] Output: 4..20 mA, 2 contacts<br />
[0] Options: without

Bimetallic Thermometers TBE-3<br />
Brand: Kobold (Alemania)<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
2: Diameter, 125 mm<br />
C35: Measuring Range, Scale °C, ranges acc. datasheet (-30...50°C)<br />
9A: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
7: Bulb diameter/-length: 6.4 mm<br />
000: Without<br />
Datasheet:<br />
http://www.kobold.com/uploads/files/t2gb_tbe.pdf

Bimetallic Thermometers TBE-2<br />
Brand: Kobold (Alemania)<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
2: Diameter, 125 mm<br />
C55: Measuring Range, Scale °C, ranges acc. datasheet (-50...50°C)<br />
9A: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
7: Bulb diameter/-length: 6.4 mm<br />
000: Without

Bimetallic Thermometers TBE-2<br />
Brand: Kobold (Alemania)<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
2: Diameter, 125 mm<br />
C24: Measuring Range, Scale °C, ranges acc. datasheet (-20...40°C)<br />
9A: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
7: Bulb diameter/-length: 6.4 mm<br />
000: Without<br />
Datasheet:<br />
http://www.kobold.com/uploads/files/t2gb_tbe.pdf

Bimetallic Thermometers TBE-2<br />
Brand: Kobold (Alemania)<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
2: Diameter, 125 mm<br />
C08: Measuring Range, Scale °C, ranges acc. datasheet (0...80°C)<br />
9A: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
7: Bulb diameter/-length: 6.4 mm<br />
000: Without

Bimetallic Thermometers TBE-2<br />
Brand: Kobold (Alemania)<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
2: Diameter, 125 mm<br />
C14: Measuring Range, Scale °C, ranges acc. datasheet (-20...120°C)<br />
9A: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
7: Bulb diameter/-length: 6.4 mm<br />
000: Without<br />
Datasheet:<br />
http://www.kobold.com/uploads/files/t2gb_tbe.pdf

TERMOPOZO: De Acero Inoxidable AISI 316 – <br />
con vástago recto Ø 15mm x 102mm. de longitud <br />
con diámetro del orificio interior de 7mm. y <br />
rosca interior de 1/2” NPTpara conexión a instrumento <br />
y rosca de 1/2” NPT al proceso.

Bimetallic Thermometers<br />
MODEL: TBE-2-3-C16-9A-6-C40-R10-C01-T32<br />
BRAND: KOBOLD<br />
TBE-2:<br />
Housing material, st.st.<br />
Accuracy (DIN 16203), class 1<br />
Connection to, bottom<br />
Probe, st.st.<br />
3: Diameter, 150 mm<br />
C16: Measuring Range, Scale °C, ranges acc. data sheet (0-160°C)<br />
9A: Probe type/Process connection, sliding male and swivel nut 1/2 NPT<br />
6: Bulb diameter/-length, 6 mm / 118.6 mm<br />
Options:<br />
C40: Case and ring stainless steel AISI 316<br />
R10: Glycerine filling (max. 160 °C) IP 67<br />
C01: Calibration report<br />
T32: Safety double stratified glass

Model: TWE-K0302-1-1-2-S<br />
Screw-In Resistance Thermometer<br />
TWE-K03:<br />
Protective tube material, st.st. 1.4301<br />
Sensor element class B, Pt 100<br />
Temperature range, -20...+150 °C<br />
Connection cable, 2 m<br />
02: Immersion length, 23 mm<br />
1: Connection, Mounting l. 23mm: G 1/4 male<br />
1: Type of sensor, 1x Pt100<br />
2: Wiring, 2 wires<br />
S: Connection cable, Silicone

Model: TWE-K0302-N-1-2-S-Y<br />
Screw-In Resistance Thermometer<br />
TWE-K03:<br />
Protective tube material, st.st. 1.4301<br />
Sensor element class B, Pt 100<br />
Temperature range, -20...+150 °C<br />
Connection cable, 3 m<br />
02: Immersion length, 23 mm<br />
N: Connection, Mounting l. 23mm: M 12x1<br />
1: Type of sensor, 1x Pt100<br />
2: Wiring, 2 wires<br />
S: Connection cable, Silicone<br />
Datasheet: http://www.kobold.com/uploads/files/t2gb_twe-1-2-3-1.pdf

TERMOPOZO BRIDADO: FABRICADO DE BARRA SOLIDA<br />
MATERIAL DEL TERMOPOZO: Acero Inoxidable SS304<br />
CUERPO O VASTAGO: Forma Cilíndrico Ø 5/8”<br />
DIAMETRO INTERNO DEL TERMOPOZO: Ø 6.5 mm (Para sensor de Ø 6mm).<br />
LONGITUD DE INSERCION DELTERMOPOZO: De 60mm. de longitud Aprox.<br />
CONEXION AL SENSOR: Rosca hembra de 1/2’’NPT<br />
CONEXION A PROCESO: Brida tipo disco de 2" - 150 Lbs. NORMA ANSI

Capillary Thermometers diam. 100 acc. DIN 16206<br />
Model: TNF-2F-A-10-P-8B-M11<br />
TNF-2F: <br />
Diameter, 100 mm<br />
Probe material, st.st.<br />
Class, 1,0<br />
A: Housing Material, st.st.<br />
10: Measuring Ranges, 0...100 °C (Scale °C)<br />
P: Capillary tube, Steel with PVC, Length: 2000 mm.<br />
Probe length: 84 mm, diameter 16 mm<br />
8B: Probe; 3/4 NPT<br />
M11: Magn. spring contact, 2x N/O<br />
Options for Capillary Thermometers<br />
Y: Test certificate (5 measuring points)<br />
Y: Safety glass diam. 100<br />
Y: Red gliding mark pointer (not at diam. 250)<br />
Y: Oil filling diam. 100, with contact<br />
Y: Cable connection socket 6-pin, side (with front ring, at back)<br />
Electric connector on the side <br />
Datasheet:<br />
http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/t2gb_tnf.pdf

HND-TF06Y:<br />
Immersion Probe for Liquids / Gases, 4-Wire<br />
Temperature: -50...+400°C<br />
Cable length: 1.5 meters

HND-TF01Y:<br />
Immersion Probe für Liquids / Gases, 4-Wire<br />
Temperature: -50...+400°C<br />
Cable length: 1.5 meters

Model: TWL-1-1-3-B-G-BN4A-A-2<br />
Resistance Thermometers Exd<br />
TWL-1:<br />
Version: standard<br />
Thermowell: cylindrical (welded)<br />
Material neckpipe/sensor/thermowell: st.st. 1.4404<br />
Connection head: Form XD with chain, M20 x 1,5<br />
Approval: ATEX II 2 GD Ex d IIC T6<br />
1: Sensor, 1x Pt100, cat. B, (-30..+550 °C)<br />
3: Wiring, 3 wires<br />
B: Head-mounted transmitter, Model 5337D<br />
G: Connection neckpipe, G1/2 male<br />
BN4A: Connection thermowell, 1/2" NPT male, PN 25<br />
Inmersion length (U): 60 mm<br />
A: Neckpipe/lagging extension (HL/T), Standard neckpipe (130 mm)w/o lagging extension<br />
2: Options, with LED-display<br />
Data sheet: http://www.koboldmessring.com/fileadmin/koboldfiles/pdf/gb/t2gb_twl.pdf

Infrared Thermometers for fixed Installation<br />
Brand: Kobold (Alemania)<br />
Model: TIR-SN-4-50-G<br />
[TIR-SN]:<br />
Housing, st.st.<br />
Accuracy, ±1,5% of full scale<br />
Emittance, 0,4...1<br />
Power supply, 24 VDC ± 25%<br />
Electron. connection, 2 m tightly wired<br />
[4]: Output, 4-20 mA<br />
[50]: Measuring range, 0...+500 °C<br />
[G]: Optic, Optic 300 mm(1:15)
