MARCA: AW FLOW METERS<br />
LP-60CG LOCATING PIN

MARCA: AW FLOW METERS<br />
LP-CG LOCATING PIN

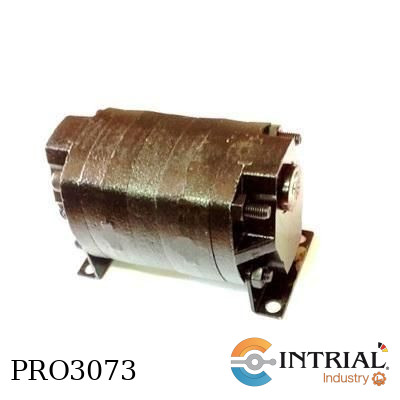

PR 315 S<br />
Marca : POWER HYDRAULIK<br />
GEAR WHEEL - FLOW SPLITTER<br />
Modelo:    PR315 S<br />
•    Geared flow dividers by POWER-HYDRAULIK Series 300<br />
•    PR: series up to max. 210 bar continuous pressure<br />
•    315: Chamber sizes: Standard 2-section<br />
•    S = designed for higher pressure<br />
•    Max inlet: 170 dm3/min (170 l/min)<br />
•    Displacement per section: 24,4 cm3/rev<br />
•    Max pressure continuous, Version S, 210 bar<br />
•    Max pressure intermittent, Version S, 320 bar<br />
•    Max pressure diferrence between, section, Version S, 110 bar<br />
•    Max Speed: 3500 rpm<br />
•    Dimension:  161x180x174,2 mm

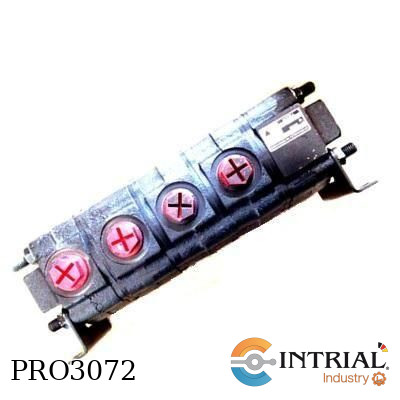

Modelo: H304-59-K<br />
High Pressure Geared flow dividers by POWER-HYDRAULIK Series 300-H<br />
H:  series up to max. 240 bar continuous pressure<br />
300: without integrated pressure relief<br />
59:  4- section flow divider.<br />
K: with adapter for inductive sensor<br />
Max inlet per section: 24 l/min  ( 4 sections)<br />
Max intel flow: 96 l/min,<br />
Displacement per section: 6,8 cm3/rev<br />
Max pressure continuous, , 240 bar<br />
Max pressure intermittent, , 420 bar<br />
Max pressure diferrence between, section,, 210 bar<br />
Max Speed: 3500 rpm.

<div>FLUJOMETRO TIPO VORTEX</div>

<div>•<span> </span>AVF7000: AVF7000 Series</div>

<div>•<span> </span>F: Conexion:Tipo Brida</div>

<div>•<span> </span>015: Medida: 15 mm (1/2”)</div>

<div>•<span> </span>6: Material: Stainless Steel 316</div>

<div>•<span> </span>A: Conexión a proceso:(ANSI 150 #)</div>

<div>•<span> </span>1: Funcion: Display </div>

<div>•<span> </span>A: Salida: 4-20 mA (2 Wire)</div>

<div>•<span> </span>1: Max Temperature: -40 to +280 °C</div>

<div>•<span> </span>N: Intrinsecamente seguro, Eex ia IIC T4 </div>

<div>•<span> </span>N: Instalacion: Compacta</div>

<div>•<span> </span>N: Opcion: Ninguna </div>

<div>•<span> </span>Precisión: Gas y Vapor:  ±1.0 % valor de la lectura</div>

<div>•<span> </span>Presión: 78 kg/cm2 (Max)</div>

<div>•<span> </span>Cable entry: Standard: M20</div>

<div>•<span> </span>Power supply: 12-36 VDC</div>

<div>Remote Transmitter <br />
Modelo: TCE-8011-W-ADSB<br />
TCE Series 8000 Remote Transmitter </div>

<div>•<span> </span>***Part Number Description*** </div>

<div>•<span> </span>TCE: Tricor Coriolis Electronics </div>

<div>•<span> </span>8011: High Power Electronics </div>

<div>•<span> </span>W: Remote/ Wall-Mount Housing </div>

<div>•<span> </span>A: Hart, RS485 Interface </div>

<div>•<span> </span>D: 24 VDC Power Supply </div>

<div>•<span> </span>S: Standard Version Electronics </div>

<div>•<span> </span>B: 6 Meter Remote Cable </div>

<div>•<span> </span>***Standard Features*** </div>

<div>•<span> </span>Outputs: Qty 2, 4-20mA </div>

<div>•<span> </span>Qty 1, Frequency</div>

<div><span lang="en-us" style="font-size:13.5pt;line-height:19.26px;" xml:lang="en-us">MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS<br />
MODELO: </span>TCM-230K-XX-SGSS-AZZS<br />
TRICOR CORIOLIS METER </div>

<div>•<span> </span>*** Part Number Code Description*** </div>

<div>•<span> </span>TCM: Tricor Coriolis Mass Meter </div>

<div>•<span> </span>230K: Flow Range: up to 230K kg/hr </div>

<div>•<span> </span>XX: DN150 PN 40 EN 1092-1 Form B1 </div>

<div>•<span> </span>S: Media Temperature Range -40 to 100°C </div>

<div>•<span> </span>G: Tube Pressure Range 100 bar, w/ rupture disk </div>

<div>•<span> </span>S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability </div>

<div>•<span> </span>Density Accuracy: 0.0005% </div>

<div>•<span> </span>S: Standard flange to flange length (36.0”) </div>

<div>•<span> </span>A: Meter Mounted Blind Junction Box </div>

<div>•<span> </span>Z: not used </div>

<div>•<span> </span>Z: not used </div>

<div>•<span> </span>S: Standard (remote electronics) </div>

<div>•<span> </span>***Standard Features*** </div>

<div>•<span> </span>Tube Material: 316L SS </div>

<div>•<span> </span>Flow Splitter Mat’l: 316 SS</div>

<div><span lang="en-us" style="font-size:13.5pt;line-height:19.26px;" xml:lang="en-us">MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS<br />
MODELO: </span>TCM-230K-DL-SGSS-AZZS<br />
TRICOR CORIOLIS METER </div>

<div>•<span> </span>*** Part Number Code Description*** </div>

<div>•<span> </span>TCM: Tricor Coriolis Mass Meter </div>

<div>•<span> </span>230K: Flow Range: up to 65K kg/hr </div>

<div>•<span> </span>DL: DN100 PN 40 EN 1092-1 Form B1 </div>

<div>•<span> </span>S: Media Temperature Range -40 to 100°C </div>

<div>•<span> </span>G: Tube Pressure Range 100 bar, w/ rupture disk </div>

<div>•<span> </span>S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability </div>

<div>•<span> </span>Density Accuracy: 0.0005% </div>

<div>•<span> </span>S: Standard flange to flange length (36.0”) </div>

<div>•<span> </span>A: Meter Mounted Blind Junction Box </div>

<div>•<span> </span>Z: not used </div>

<div>•<span> </span>Z: not used </div>

<div>•<span> </span>S: Standard (remote electronics) </div>

<div>•<span> </span>***Standard Features*** </div>

<div>•<span> </span>Tube Material: 316L SS </div>

<div>•<span> </span>Flow Splitter Mat’l: 316 SS</div>

<div>FLUJOMETRO DE AREA VARIABLE</div>

<div>Marca: LAKE MONITORS </div>

<div>Modelo: B3A6HB01</div>

<div>•<span> </span>[B]:Estilo: Básico en línea para líquidos</div>

<div>•<span> </span>[3]:Puerto / línea Rango de tamaños: 1/4"- 1/2”</div>

<div>•<span> </span>[A]:Material: Aluminio</div>

<div>•<span> </span>[6]:Rango de Presión Max: 3500 PSIG</div>

<div>•<span> </span>[H]: Medio fluido: Aceite y 0.873 Gravedad especifica.</div>

<div>•<span> </span>[B]:Tipo de Rosca: 1/2” NPTF</div>

<div>•<span> </span>[01]:Rango de Flujo: 0.1-1 GPM(0.37 a 3.78 LPM)</div>

<span lang="en-us" style="font-size:13.5pt;line-height:19.26px;" xml:lang="en-us">MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS<br />
MODELO: </span>TCM-65K-DL-SGSS-CSDS_DN50<br />
Tricor Coriolis Meter<br />
*** Part Number Code Description***<br />
TCM: Tricor Coriolis Mass Meter<br />
65K: Flow Range: up to 65K kg/hr<br />
DG: DN50 PN 40 EN 1092-1 Form B1<br />
S: Media Temperature Range -40 to 100°C<br />
G: Tube Pressure Range 100 bar, w/ rupture disk<br />
S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability<br />
Density Accuracy: 0.0005%<br />
S: Standard flange to flange length (32.8”)<br />
C: Meter Mount / Local display<br />
S: RS485, Modbus Interface<br />
D: 24 VDC supply voltage<br />
S: Standard (integral electronics)<br />
***Standard Features***<br />
Tube Material: 316L SS<br />
Flow Splitter Mat’l: 316 SS<br />
Electronics: 8000 Series<br />
Outputs: Qty 2 4-20mA<br />
Qty 1 Frequency

<span lang="en-us" style="font-size:13.5pt;line-height:19.26px;" xml:lang="en-us">MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS<br />
MODELO: </span>TCM-65K-DL-SGSS-CSDS_DN100<br />
Tricor Coriolis Meter<br />
*** Part Number Code Description***<br />
TCM: Tricor Coriolis Mass Meter<br />
65K: Flow Range: up to 28K kg/hr<br />
DL: DN100 PN 40 EN 1092-1 Form B1<br />
S: Media Temperature Range -40 to 100°C<br />
G: Tube Pressure Range 100 bar, w/ rupture disk<br />
S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability<br />
Density Accuracy: 0.0005%<br />
S: Standard flange to flange length (32.8”)<br />
C: Meter Mount / Local display<br />
S: RS485, Modbus Interface<br />
D: 24 VDC supply voltage<br />
S: Standard (integral electronics)<br />
***Standard Features***<br />
Tube Material: 316L SS<br />
Flow Splitter Mat’l: 316 SS<br />
Electronics: 8000 Series<br />
Outputs: Qty 2 4-20mA<br />
Qty 1 Frequency

<div>TRANSMISOR DE FLUJO</div>

<div>•<span> </span>Marca: LAKE MONITORS<br />
Modelo: R4A6WD15</div>

<div>•<span> </span>[R]:Estilo: Transmisor de Flujo (salida 4 a 20 mA)</div>

<div>•<span> </span>[4]:Puerto / línea Rango de tamaños: 3/4"- 1”</div>

<div>•<span> </span>[A]:Material: Aluminio</div>

<div>•<span> </span>[6]:Rango de Presión Max:3500 PSIG</div>

<div>•<span> </span>[W]: Medio fluido: Agua y 1.0 Gravedad especifica.</div>

<div>•<span> </span>[D]:Tipo de Rosca: 1” NPTF</div>

<div>•<span> </span>[15]:Rango de Flujo: 1-15 GPM</div>

METAL TUBE VARIABLE AREA FLOWMETER<br />
• Brand: ALIA<br />
• AVF250 Series<br />
• 050:Size: 50 mm (2”) Flange<br />
• 25: measure pipe size<br />
• S4: Material: Stainless Steel 304<br />
• A: Process Connection: ANSI 150#<br />
• BT: Flow Direction: Bottom Top<br />
• B: Function: Local Indication + Rate 4 digit/ Totalizer 8 digit + 4-20 mA<br />
• NN: Protection Class: IP65<br />
• P1: Pulse/Alarm output*1( with function B only)<br />
• D: Option: Damper (For Steam & Gas Application)<br />
Application:<br />
• Flow Rate: 20~200 Nm3/h<br />
• Fluid:N2<br />
• Pressure: 100 psi<br />
• Density: 1.25 kg/m3<br />
• Temp: 24 deg.C

MEDIDOR DE FLUJO TIPO TURBINA PARA LIQUIDOS (AGUA,ACEITE Y COMBUSTIBLES) <br />
• MARCA:(AW) FLOW METERS(USA) <br />
TRG-11.750<br />
• Versión completamente en acero inoxidable para alta duración y TRABAJO forzado <br />
• Aplicación para medir aceites <br />
• RANGO de TRABAJO de Conexión 1.6 a 16.0 GPM <br />
• Precisión:0.5% 1''NPT <br />
• Max presión:285 psi/220C

<div>FLUJOMETRO TIPO TURBINA<br />
TRG-11.875</div>

<div>•<span> </span>Marca: AW LAKE</div>

<div>•<span> </span>Rango de Flujo: 3.2 – 32 GPM</div>

<div>•<span> </span>K-Factor *(Pulsos/ gal): 1,450 </div>

<div>•<span> </span>Conexión: 1” NPT macho </div>

<div>•<span> </span>Filtración (micras): 300</div>

<div>•<span> </span>Rango de Presión (psi): 5000</div>

<div>•<span> </span>Material del cuerpo: 316SS</div>

 ELECTROMAGNETIC FLOWMETER MODEL AMF900 SERIES<br />
AMF900-A-0100-S-A-N-8-0-NNN-N <br />
• AMF900: AMF900 Series<br />
• A: Linner: PFA (6 ~ 300mm, 1/4" ~ 12")<br />
• 0100: Pipe diameter, 100mm (4”)- Flanged<br />
• S: Electrodo material: Stainless Steel 316L<br />
• A: Process connectIon(ANSI 150 #)<br />
• N: Grounding Electrode: None<br />
• 8: Protection class(Junction box IP67, Body IP68)<br />
• 0: Flange and Housing(Carbon steel - Standard)<br />
• NNN: Insertion and cable length(Compact Version)<br />
• N: Option(None)<br /><br />
AMC3100-AC-CP-NN-NN-NN<br />
AMC3100: DISPLAY Y CONTROLADOR DIGITAL PARA TRABAJAR JUNTO A AMF9000<br />
• AC: Power supply(90-260 VAC, 50/60 Hz)<br />
• CP:Mouting(Compact with Sensor)<br />
• NN: Protection class: IP67<br />
• NN: RS 485 (Modbus Protocol)<br />
• NN: Option: None<br />
• Output: 4-20 mA

AMF900-P0080-CAN89-020-PT <br />
• Electromagnetic Flowmeter Model AMF900 Series<br />
• Brand: ALIA <br />
• AMF900: AMF900 Series<br />
• P: Linner: PTFE (25 ~ 800mm, 1" ~ 32")<br />
• 0080: Pipe diameter, 80mm (3”)- Flanged<br />
• C: Electrodo material: Hastelloy C<br />
• A: Process connectIon(ANSI 150 #)<br />
• N: Grounding None<br />
• 8: Protection class(Junction box IP67, Body IP68)<br />
• 9: Flange and Housing(Stainless steel 316)<br />
• 020: Insertion and cable length(Separate Version, cable 20 m)<br />
• PT: Cable entry ½” NPTF<br /><br />
AMC3100-AC-SW-NN-NN-PT <br />
AMC3100: DISPLAY Y CONTROLADOR DIGITAL PARA TRABAJAR JUNTO A AMF9000<br />
• Brand: ALIA <br />
• AC: Power supply(90-260 VAC, 50/60 Hz)<br />
• SW:Mounting (Separate Wall Mounting)<br />
• NN: Protection class: IP67<br />
• NN: Communication (RS485 (MODBUS Protocol)<br />
• PT: Cable Entry 1/2" NPTF<br />
• Output: 4-20 Ma

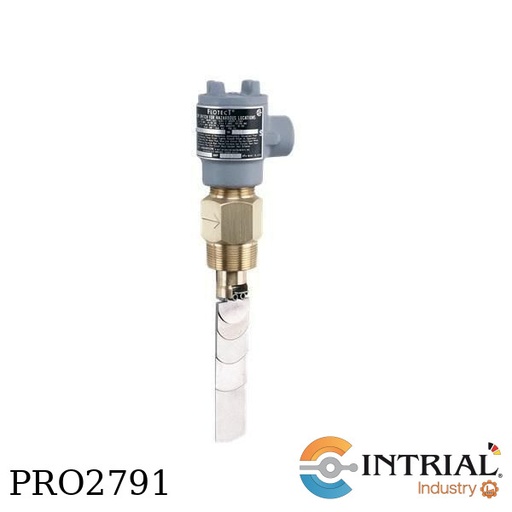

VANE OPERATED FLOW SWITCH<br />
Brand: DWYER INSTRUMENTS<br />
Service: Gases or liquids compatible, with wetted materials.<br />
Vane: 316 SS;<br />
Body: 316 SS standard<br />
Magnet Keeper:316 SS optional<br />
Temperature Limit: -4 to 275°F (-20 to135°C) ,standard, MT high temperature option 400°F ,(205°C) [MT option not UL, ,CSA, ATEX or IECEx] ATEX and IECEx options, ,ambient temperature -4 to 163°F (-20 to 73°C)<br />
Process temperature -4 to 163°F (-20 to 73°C)<br />
Pressure Limit: 316 SS body 2000 psig ,(138 bar), available with 316 SS body and SPDT ,switch only<br />
Switch Type: SPDT snap switch standard, <br />
Electrical Connections: UL and CSA <br />
models: 16 AWG,6" (152 mm) long. <br />
ATEX and IECEx unit: Terminal block.<br />
Conduit Connection: 3/4" female NPT.<br />
Process Connection: 1-1/2" male NPT.<br />
Mounting Orientation: Within 5° of vertical ,for proper operation.<br />
Units for horizontal ,installation  (vertical pipe with up flow) ,available.<br />
Set Point Adjustment: For universal vane:<br />
five vane combinations.<br />
Agency Approvals: ATEX, CE, CSA, FM,, IECEx,

POSITIVE DISPLACEMENT SPUR GEAR FLOW METER<br />
JVM-80KL<br /><br />
•         Marca: AW GEAR METER<br />
•         Flow range (GPM): 0.5-60.0<br />
•         Impulses/Gallon: 1,600<br />
•         Impulses/cc: 0.42<br />
•         Diameter (in): 8,4”<br />
•         Height (in): 5,5”<br />
•         Ports: 1 1/4” NPT<br />
•         Filtrations: 200<br />
•         Pressure rating: 5,000 PSI<br />
•         Material: Stainless Steel 303<br /><br />
RT-30-SD-S-02<br />
FLOW TRANSMITTER<br />
•         Enclosure style: Single access<br />
•         Sensor: HUB-40SD1-S5-H2<br />
•         Power Requirement: 9-24 VDC / 200mA (customer supplied) Class 2<br />
•         Analog Output 4-20mA:<br />
•         PWM converter<br />
•         3- or 2-wire plus separate supply<br />
•         Max load impedance 500 ohm<br />
•         Frequency Output<br />
•         Three Opto-Isolated Open-Collector<br />
•         Outputs:<br />
•         Programmable for frequency or limit outputs<br />
•         5-30 VDC rating<br />
•         40 mA max (min. load impedance required 600 Ohm @ 30 VDC)<br />
•         Built in 30 point Linearizer<br />
•         Sensor / Monitor Frequency Range:0-4,500 Hz<br />
•         Temperature Rating: -20 to 60°C (-4 to 140°F)<br />
•         Connection: 3/4” female NPT conduit provisions<br />
•         One Opto-Isolated Input: 9-24 VDC remote res

JVM-60KG<br />
POSITIVE DISPLACEMENT SPUR GEAR FLOW METER<br />
•         Marca: AW-LAKE  GEAR METER<br />
•         Flow range (GPM): 0.05-20.0<br />
•         Impulses/Gallon: 1,800<br />
•         Impulses/cc: 0.47<br />
•         Diameter (in): 4,9”<br />
•         Height (in): 4,25”<br />
•         Ports: 3/4” NPT<br />
•         Filtrations: 30<br />
•         Pressure rating: 5,000 PSI<br />
•         Material: Stainless Steel 303<br /><br />
RT-30-SD-S-02<br />
FLOW TRANSMITTER<br />
•         Enclosure style: Single access<br />
•         Sensor: HUB-40SD1-S5-H2<br />
•         Power Requirement: 9-24 VDC / 200mA (customer supplied) Class 2<br />
•         Analog Output 4-20mA:<br />
•         PWM converter<br />
•         3- or 2-wire plus separate supply<br />
•         Max load impedance 500 ohm<br />
•         Frequency Output<br />
•         Three Opto-Isolated Open-Collector<br />
•         Outputs:<br />
•         Programmable for frequency or limit outputs<br />
•         5-30 VDC rating<br />
•         40 mA max (min. load impedance required 600 Ohm @ 30 VDC)<br />
•         Built in 30 point Linearizer<br />
•         Sensor / Monitor Frequency Range:0-4,500 Hz<br />
•         Temperature Rating: -20 to 60°C (-4 to 140°F)<br />
•         Connection: 3/4” female NPT conduit provisions<br />
•         One Opto-Isolated Input: 9-24 VDC remote reset
