Modelo: IF2709+ HNV-SSS36B + Tubing<br />

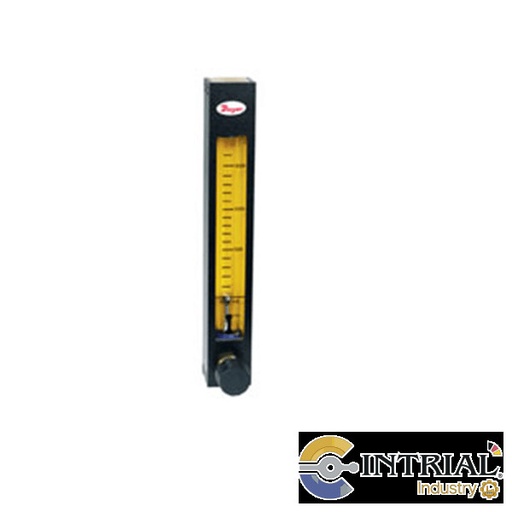

IF2709<br />
Industrial Direct Reading Flowmeter<br />
Marca: DWYER(USA)<br />
Air/Water Direct Reading Scale, 304 SS Protective Shield, ±3% Accuracy<br />
SPECIFICATIONS<br />
Service: Liquids or gases.<br />
Wetted Materials:<br />
Flowtube: Borosilicate glass; float,<br />
guide rods, float stops, end;<br />
Fittings: 316 SS;<br />
O-Rings: Fluoroelastomer.<br />
Temperature Limit: 200°F (93°C).<br />
Pressure Limit: 200 psi (13.8 bar);<br />
125 psi for tube size 5 & 6.<br />
Accuracy: ±3% of full-scale.<br />
Repeatability: ±0.5% of full-scale.<br />
Turndown Ratio: 10:1.<br />
Scale: Dual scale GPM and SCFM.<br />
Process Connection: See table.<br />
Mounting: Vertical.<br />
Front Shield: Polycarbonate.<br />
Side Panels: 304 SS. <br /><br />
HNV-SSS36B<br />
Needle Valve 1-Valve Block Manifold<br />
Marca: DWYER(USA)<br />
For Use with Gas and Liquids, Pressures Up to 6000 psi<br />
SPECIFICATIONS<br />
Service: Gases and liquids compatible with wetted materials.<br />
End Connections: NPT.<br />
Wetted Materials: 316 SS and PTFE packing.<br />
Pressure Limits: 6000 psi (431 bar) @ 200°F (93°C). 4000 psi (276 bar) @ 464°F<br />
(240°C).<br />
Temperature Limits: 464°F (240°C).<br />
Other Materials: Handle: 316 SS.<br />
Female X Female<br />
Connextion 1” NPT<br /><br />
Tubing<br />
Tubing en acero Inoxdable de 1” NPT<br />
Para unir romametro Valvula aguja <br />
10 cm de longitud

Visor Tipo Transparente<br />
Marca : Klinger<br />
Modelo : 7BL<br />
Dimensiones : (280mmx34mm)

TRANSMISOR  DE CAUDAL POR DESPLAZAMIENTO POSITIVO<br />
MODELO: RT-30EX-D01<br />
HAZARDOUS AREA RATED FLOW TRANSMITTER<br />
Brand: AW LAKE<br />
DUAL ACC. ENCL.<br />
HUB-40<br />
CSA CERT.<br />
cCSAus:<br />
Class I, Div. 1, Groups C, D<br />
Class II, Div. 1, Groups E, F, G<br />
Class III, T6, Type 4X

<div>POSITIVE DISPLACEMENT SPUR GEAR FLOW METER</div>

<div>JVM-10CG-EX-25-NPT</div>

<div>•<span> </span>Brand: AW LAKE</div>

<div>•<span> </span>Flow Range: 0.003-0.5 GPM </div>

<div>•<span> </span>Body Material: 303 STAINLESS STEEL </div>

<div>•<span> </span>Ports: ¼” NPT </div>

<div>•<span> </span>Pressure Rating: 5000 PSI </div>

<div>•<span> </span>Filtration Recommended: 120 MICRON</div>

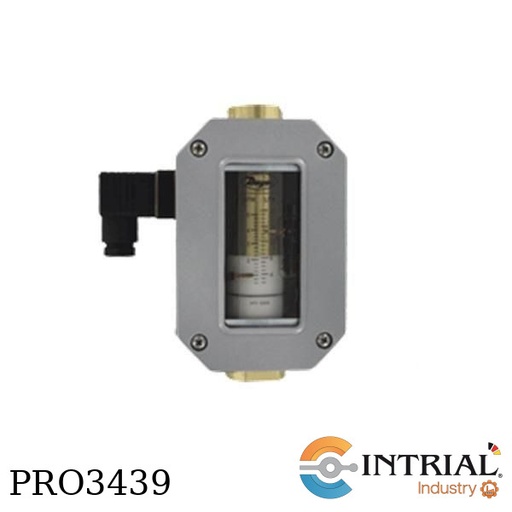

VANE OPERATED FLOW SWITCH<br />
Brand: DWYER INSTRUMENTS<br />
Service: Gases or liquids compatible,with wetted materials.,Vane: 316 SS<br />
Body: 316 SS standard<br />
Magnet Keeper:316 SS optional<br />
Temperature Limit: -4 to 275°F (-20 to135°C) ,standard, MT high temperature option 400°F ,(205°C) [MT option not UL, ,CSA, ATEX or IECEx] ATEX and IECEx options, ,ambient temperature -4 to 163°F (-20 to 73°C)<br />
Process temperature -4 to 163°F (-20 to 73°C).<br />
Pressure Limit: 316 SS body 2000 psig ,(138 bar), available with 316 SS body and SPDT ,switch only<br />
Switch Type: SPDT snap switch standard, <br />
Electrical Connections: UL and CSA ,models: 16 AWG,6" (152 mm) long. ,ATEX and IECEx unit: Terminal block.<br />
Conduit Connection: 3/4" female NPT.<br />
Process Connection: 1-1/2" male NPT.<br />
Mounting Orientation: Within 5° of vertical ,for proper operation. Units for horizontal ,installation  (vertical pipe with up flow) ,available.<br />
Set Point Adjustment: For universal vane: ,five vane combinations<br />
Agency Approvals: ATEX, CE, CSA, FM,, IECEx,

<div><span lang="en-us" style="font-size:13.5pt;line-height:19.26px;" xml:lang="en-us">MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS<br />
MODELO: </span>TCM-3100-AF-HGSP-CADS-EX<br />
*** Part Number Code Description*** </div>

<div>•<span> </span>TCM: Tricor Coriolis Mass Meter </div>

<div>•<span> </span>3100: Flow Range: up to 27.5 GPM </div>

<div>•<span> </span>AF: 1” ANSI CL 300# RF flange connections </div>

<div>•<span> </span>H: Media Temperature Range -40 to 150°C </div>

<div>•<span> </span>G: 200 bar tube pressure rating </div>

<div>•<span> </span>5 bar housing rupture disk </div>

<div>•<span> </span>S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability </div>

<div>•<span> </span>Density Accuracy: 0.001 gr/cc </div>

<div>•<span> </span>P: Flange to Flange Length (454 mm) </div>

<div>•<span> </span>C: Meter Mount / Local display </div>

<div>•<span> </span>A: HART, RS485, Modbus Interface </div>

<div>•<span> </span>D: 24 VDC supply voltage </div>

<div>•<span> </span>S: Standard (integral electronics) </div>

<div>•<span> </span>EX: ATEX + IEcEx Zone1: Group IIC or IIB, T4 </div>

<div>•<span> </span>***Standard Features*** </div>

<div>•<span> </span>Tube Material: 316L SS </div>

<div>•<span> </span>Flow Splitter Mat’l: 316 SS</div>

<div>•       Outputs: (2) 4-20 mA outputs.</div>

<div><span lang="en-us" style="font-size:13.5pt;line-height:19.26px;" xml:lang="en-us">MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS<br />
MODELO: </span>TCM-3100-AF-HGSP-CADS<br />
*** Part Number Code Description*** </div>

<div>•<span> </span>TCM: Tricor Coriolis Mass Meter </div>

<div>•<span> </span>3100: Flow Range: up to 27.5 GPM </div>

<div>•<span> </span>AF: 1” ANSI CL 300# RF flange connections </div>

<div>•<span> </span>H: Media Temperature Range -40 to 150°C </div>

<div>•<span> </span>G: 5 Bar Case Rupture disk </div>

<div>•<span> </span>S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability </div>

<div>•<span> </span>Density Accuracy: 0.001 gr/cc </div>

<div>•<span> </span>P: Flange to Flange Length (454 mm) </div>

<div>•<span> </span>C: Meter Mounted / Local Display </div>

<div>•<span> </span>A: HART, RS485, Modbus Interface </div>

<div>•<span> </span>D: 24 VDC supply voltage </div>

<div>•<span> </span>S: Standard (Intregral electronics) </div>

<div>•<span> </span>***Standard Features*** </div>

<div>•<span> </span>Tube Material: 316L SS </div>

<div>•<span> </span>Flow Splitter Mat’l: 316 SS</div>

<div>•<span> </span>Outputs: (2) 4-20 mA outputs.</div>

Remote Open Channel Flow Transmitter<br />
* Housing: Standard polycarbonate electronics housing<br />
* Power Supply: 90-260VAC and 12-30VDC<br />
* Output: 4-20mA analogue with HART Isolated 4 wire (AWR234 only)<br />
* Relays: 5 relays, SPDT contacts, rated 0.5A at 240 Vac

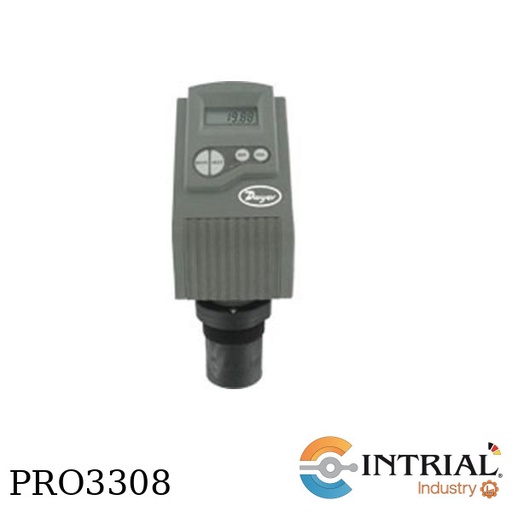

Transmisor de flujo ultrasonico<br />
Marca: Dwyer<br />
Modelo: ULF<br /><br />
Servicio: Líquidos compatibles.<br />
Materiales mojados: Sensor: polipropileno; Ventana acústica: ECTFE<br />
Rangos: ULF-X1-XXX: 0.25 a 5 m (0.82 a 16.4 pies). ULF-X2-XXX: 10.6 a 15 m (96 a 49.2 pies).<br />
Exactitud: 0.25% del rango máximo (a 20°C [68°F]).<br />
Resolución: 1 mm (0.04").<br />
Zona ciega: ULF-X1-XXX: 0.25 m (0.8 pies); ULF-X2-XXX: 0.6 m (1.96 pies).<br />
Ángulo de haz: 5° a 3 db punto.<br />
Límites de temperatura: -40 a 70 °C (-40 a 158 °F).<br />
Compensación de temperatura: Automático.<br />
Límites de presión: 0.9 a 2 bar (13.5 a 30 psi).<br />
Requisito de alimentación eléctrica: 18 a 28 VCC.<br />
Señal de Salida: 4 a 20 mA.<br />
Resistencia de bucle: Max. 727Ω @ 28 VDC.<br />
Conexiones eléctricas: Terminal de tornillo.<br />
Conexión de conducto: NPT de 12.7 mm (1/2"), prensaestopas (opcional).<br />
Conexión de proceso: NPT de 50.8 mm (2"), BSP de 12.7 mm (1/2") (opcional).<br />
Gabinete armado estándar: Gabinete plástico: ABS y cuerpo con protección UV.<br />
Clasificación del gabinete: NEMA 4 (IP 65).<br />
Orientación de montaje: Vertical.<br />
A prueba de fallas: Retardo de 3 minutos antes de transmitir una señal de error.<br />
Memoria: No volátil.<br />
Pantalla: LCD de 4 caracteres.<br />
Unidades: pies, m (opcional).<br />
Programación: 4 botones.

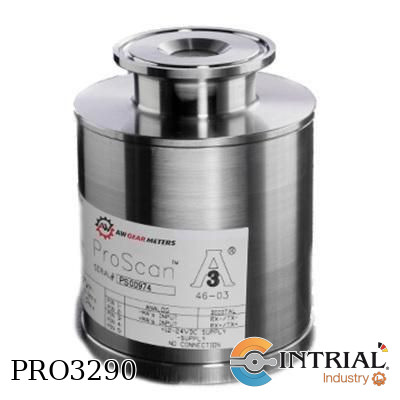

SENSOR DE FLUIDO EN LÍNEA<br />
Marca: AW LAKE <br />
ProScan 2.5<br />
Salida: 4-20 mA<br />
Alimentación: 15-24 VDC<br />
NEMA6/IP67<br />
Conexión a proceso: 2-1/2”<br />
Material: SS

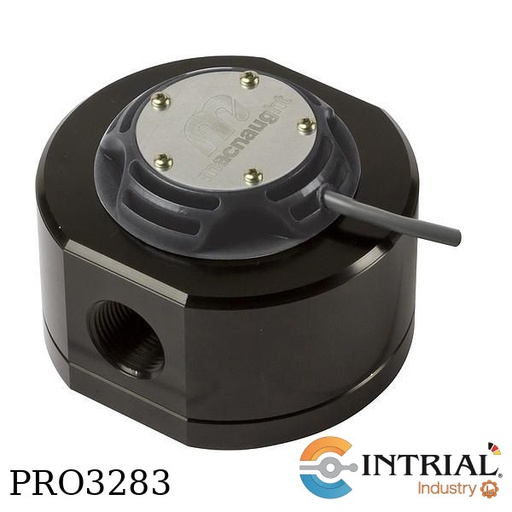

FLUJOMETRO DE DESPLAZAMIENTO POSITIVO<br />
Marca : MACNAUGHT<br />
Tipo de rotores : Para fluidos con viscosidad<br />
hasta 1000CP<br />
Razon de flujo<br />
Para Viscodidades menores a 5 CP: 2.6 a 26<br />
GPM (10 a 100 LPM)<br />
Para Viscodidades mayores a 5 CP y<br />
menores a 1000CP: 1.6 a 32GPM(6 a 120LPM)<br />
Rango de temperatura : -40 a 80°C<br />
Presion maxima : 2000 PSI<br />
Materiales:<br />
Cuerpo del medidor : Aluminio<br />
Rotor : PPS<br />
O’ring :FKM(Viton)<br />
Conexión al Proceso : 1” NPT <br />
Tipo de salida de pulsos : (1) Hall Effect<br />
Sensor + (1) Salida Reed Switch

INSERTION ELECTROMAGNETIC FLOW TRANSMITTER<br />
Brand: DWYER<br />
Service: Compatible clean or dirty non coating, conductive liquids<br />
Series IEF <br />
Range: 0 to 20 ft/s (0 to 6 m/s).*<br />
T: Accuracy: High accuracy 10˝ (250 mm) pipe; 1% of reading<br />
N: Process Connection:1˝ male NPT<br />
CND: Housing Electrical Connection:1/2˝ female NPT <br />
conduit connection without cable<br />
LCD: Options: Integral LCD display<br />
Temperature Limits:<br />
Ambient: -20 to 160°F (-29 to 71°C)<br />
Process: 15 to 250°F (-9 to 121°C) <br />
Storage: -40 to 185°F (-40 to 85°C)<br />
Pressure Limits: 400 psi (27.6 bar) @ <br />
100º F (37.8°C).<br />
Pressure Drop: < 0.1 psi at 12 ft/s in 4˝ <br />
(101.6 mm) and larger pipe.<br />
Outputs: <br />
(1) Analog: 4-20 mA, 0-5 V, 0-10 V or <br />
2-10 V (display selectable); <br />
(1) Pulse/Frequency: 0-15 V peak pulse, <br />
0 to 500 Hz or scalable pulse output <br />
(display selectable); <br />
(2) Alarm: (1) Empty pipe detection or <br />
minimum/maximum velocity, (display <br />
selectable); (1) Reverse flow output <br />
indication.<br />
Power Requirements: 12-42.4 VDC<br />
.25 A @ 24 VDC; 12-36 VAC.

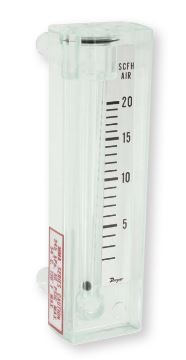

Modelo : MMA-20<br />
Flujometro Mini Master para AIRE <br />
Marca : Dwyer<br />
Fluido : Aire
<div>
<div class="gtx-trans-icon"></div>
</div>

<strong>Flujometro Con brida 2 pulg. Ansi 150 RF,15m3/H brain 75G,2 bar.<br />
Modelo : KD/Z3</strong><br />
Medición de Estructura de Tubo : Tubo de vidrio borosilicatado<br />
Conecciones : Con brida 2” ANSI 150 RF<br />
Material : Polipropileno<br />
Fluido : Salmuera<br />
Rango de Flujo : 15 M3/h<br />
Temperatura : 75ºC<br />
Presión : 2 bar

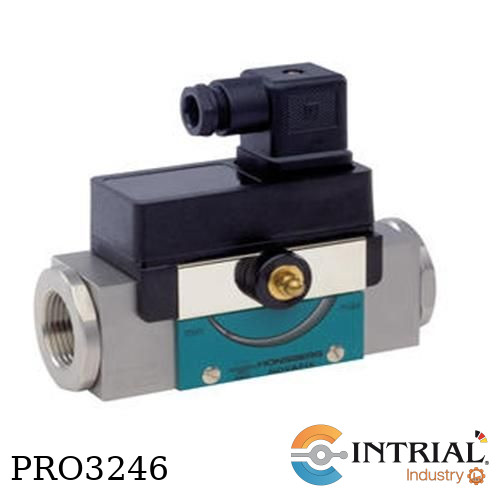

<div>VOLUMETRIC FLOW METER<br />
Brand: HONSBERG<br />
Model: HD2K-Z-025-G-M-025<br />
[HD2K]: Version, Brass<br />
[Z]: Indicator Options, With frontal measurement display Z<br />
[025]: Nominal Diameter, DN 25 - G 1<br />
[G]: Connection Type, Female Thread G 1<br />
[M]: Connection Material, Brass CW614N nickel-plated<br />
[025]: Switching Range Oil, 2.5...25 l/min oil 30...330mm2/s</div>

<strong>Flujometro de Lectura directa</strong><br />
Material: PVC<br />
Conección: con Brida 1" ANSI 150 RF<br />
Junta: NBR<br />
Fluido: Agua<br />
Rango de Flujo: 4 m3/h<br />
Temperatura: 20ºC<br />
Prsión: 60 psi<br />
Caracteristicas: Flotador AISI 316

<div><span lang="en-us" style="font-size:13.5pt;line-height:19.26px;" xml:lang="en-us">MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS<br />
MODELO: </span>TCM-28K-FO-SGSS-CBMS<br />
TRICOR CORIOLIS MASS METER</div>

<div>•<span> </span>Brand: TRICOR</div>

<div>*** Part Number Code Description*** </div>

<div>TCM: Tricor Coriolis Mass Meter </div>

<div>3100: Flow Range: up to 3100 kg/hr (51,67 lpm)</div>

<div>FM: 1” female NPT process connections </div>

<div>S: Media Temperature Range -40 to 100°C </div>

<div>G: 5 bar case rupture disk </div>

<div>S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability </div>

<div>Density Accuracy: 0.001 gr/cc </div>

<div>S: Standard flange to flange length </div>

<div>C: Meter Mount / Local display </div>

<div>B: Foundation Fieldbus, RS485, Modbus Interface </div>

<div>M: 90 – 264 VAC supply voltage </div>

<div>S: Standard (integral electronics) </div>

<div>***Standard Features*** </div>

<div>Tube Material: 316L SS </div>

<div>Flow Splitter Mat’l: 316 SS </div>

<div>Electronics: 8000 Series </div>

<div>Outputs: Qty 2 4-20mA </div>

<div>Qty 1 Frequency</div>

<div><span lang="en-us" style="font-size:13.5pt;line-height:19.26px;" xml:lang="en-us">MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS<br />
MODELO: </span>TCM-28K-FO-SGSS-CBMS<br />
TRICOR CORIOLIS MASS METER</div>

<div>•<span> </span>Brand: TRICOR</div>

<div>•<span> </span>*** Part Number Code Description*** </div>

<div>•<span> </span>TCM: Tricor Coriolis Mass Meter </div>

<div>•<span> </span>28K: Flow Range: up to 28K kg/hr (466.67 lpm)</div>

<div>•<span> </span>FO: 1.5” female NPT process connections </div>

<div>•<span> </span>S: Media Temperature Range -40 to 100°C </div>

<div>•<span> </span>G: 5 bar case rupture disk </div>

<div>•<span> </span>S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability </div>

<div>•<span> </span>Density Accuracy: 0.001 gr/cc </div>

<div>•<span> </span>S: Standard flange to flange length </div>

<div>•<span> </span>C: Meter Mount / Local display </div>

<div>•<span> </span>B: Foundation Fieldbus, RS485, Modbus Interface </div>

<div>•<span> </span>M: 90 – 264 VAC supply voltage </div>

<div>•<span> </span>S: Standard (integral electronics) </div>

<div>•<span> </span>***Standard Features*** </div>

<div>•<span> </span>Tube Material: 316L SS </div>

<div>•<span> </span>Flow Splitter Mat’l: 316 SS </div>

<div>•<span> </span>Electronics: 8000 Series </div>

<div>•<span> </span>Outputs: Qty 2 4-20mA </div>

<div>•<span> </span>Qty 1 Frequency</div>

<div><span lang="en-us" style="font-size:13.5pt;line-height:19.26px;" xml:lang="en-us">MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS<br />
MODELO: </span>TCM-7900-FM-SGSS-CBMS<br />
TRICOR CORIOLIS MASS METER</div>

<div>•<span> </span>Brand: TRICOR</div>

<div>•<span> </span>*** Part Number Code Description*** </div>

<div>•<span> </span>TCM: Tricor Coriolis Mass Meter </div>

<div>•<span> </span>7900: Flow Range: up to 7900 kg/hr (131,67 lpm)</div>

<div>•<span> </span>FM: 1” female NPT process connections </div>

<div>•<span> </span>S: Media Temperature Range -40 to 100°C </div>

<div>•<span> </span>G: 5 bar case rupture disk </div>

<div>•<span> </span>S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability </div>

<div>•<span> </span>Density Accuracy: 0.001 gr/cc </div>

<div>•<span> </span>S: Standard flange to flange length </div>

<div>•<span> </span>C: Meter Mount / Local display </div>

<div>•<span> </span>B: Foundation Fieldbus, RS485, Modbus Interface </div>

<div>•<span> </span>M: 90 – 264 VAC supply voltage </div>

<div>•<span> </span>S: Standard (integral electronics) </div>

<div>•<span> </span>***Standard Features*** </div>

<div>•<span> </span>Tube Material: 316L SS </div>

<div>•<span> </span>Flow Splitter Mat’l: 316 SS </div>

<div>•<span> </span>Electronics: 8000 Series </div>

<div>•<span> </span>Outputs: Qty 2 4-20mA </div>

<div>•<span> </span>Qty 1 Frequency</div>

<div><span lang="en-us" style="font-size:13.5pt;line-height:19.26px;" xml:lang="en-us">MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS<br />
MODELO: </span>TCM-65K-FO-SGSS-CBMS<br />
TRICOR CORIOLIS MASS METER</div>

<div>•<span> </span>Brand: TRICOR</div>

<div>•<span> </span>*** Part Number Code Description*** </div>

<div>•<span> </span>TCM: Tricor Coriolis Mass Meter </div>

<div>•<span> </span>65K: Flow Range: up to 65K kg/hr (1083,33 lpm)</div>

<div>•<span> </span>FO: 1.5” female NPT process connections </div>

<div>•<span> </span>S: Media Temperature Range -40 to 100°C </div>

<div>•<span> </span>G: 5 bar case rupture disk </div>

<div>•<span> </span>S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability </div>

<div>•<span> </span>Density Accuracy: 0.001 gr/cc </div>

<div>•<span> </span>S: Standard flange to flange length </div>

<div>•<span> </span>C: Meter Mount / Local display </div>

<div>•<span> </span>B: Foundation Fieldbus, RS485, Modbus Interface </div>

<div>•<span> </span>M: 90 – 264 VAC supply voltage </div>

<div>•<span> </span>S: Standard (integral electronics) </div>

<div>•<span> </span>***Standard Features*** </div>

<div>•<span> </span>Tube Material: 316L SS </div>

<div>•<span> </span>Flow Splitter Mat’l: 316 SS </div>

<div>•<span> </span>Electronics: 8000 Series </div>

<div>•<span> </span>Outputs: Qty 2 4-20mA </div>

<div>•<span> </span>Qty 1 Frequency</div>
