MEDIDOR DE CAUDAL  MÁSICO TIPO CORIOLIS<br />
Brand: TRICOR,<br />
Modelo: TCM-65K-AO-SHSS-CAMS-EX-1<br />
Fluid Media: Oxygen ,<br />
Max Flow Rate: 500 m³/hr ,<br />
Fluid Viscosity: 0.0204 centipoise ,<br />
System Pressure: 20 bar ,Fluid Temp: 25° C ,<br />
Min Flow Rate: 50 m³/hr ,<br />
Fluid Density: 27.138 kg/m³ ,<br />
Conection: Ansi Flange 2” CL300,<br />
Temperature range: 40 a 100°C,<br />
Pressure range: 345 bar(500psi) with rupture disc,<br />
Integral field mount electronics,Interface: hart + RS 485,<br />
Modbus,Supply voltage: 90-264 VAC,<br />
Ex Proteccion: CSA/Cus Clas I Div 1

ELECTROMAGNETIC FLOWMETER –SENSOR,(Threaded),AMF300 Series,32: Size:32mm,A: Material electrodos: Tantalo,NNN:Isntallation & cable length: Compact version,N:Option: None

<strong>CONVERTIDOR PARA EL CAUDALÍMETRO ELECTROMAGNÉTICO AC</strong><br />
AMC2100<br />
Power Supply: 90-260 VAC, 50/60 Hz<br />
CP: Mounting: Compact with Sensor<br />
NN: Comunication:RS 485(MODBUS Protocol)

ELECTROMAGNETIC FLOWMETER–SENSOR,(Threaded),AMF300 Series,6: Size:6mm,A: Material electrodos: Tantalo,NNN:Isntallation & cable length: Compact version,N:Option: None,Brand: ALIA

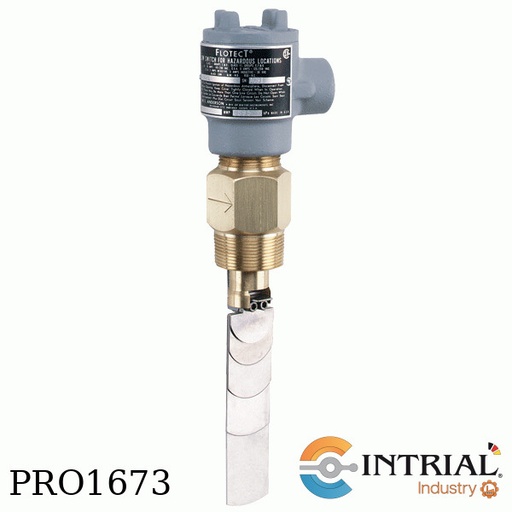

VANE OPERATED FLOW SWITCH<br />
Brand: Dywer<br />
Service: Gases or liquids compatible with wetted materials.<br />
Vane: 316 SS;<br />
Body: 316 SS standard;<br />
Magnet Keeper:316 SS optional;<br />
Temperature Limit: -4 to 275°F (-20 to135°C) standard,<br />
MT high temperature option 400°F (205°C)<br />
[MT option not UL, CSA, ATEX or IECEx]<br />
ATEX and IECEx options,<br />
Ambient temperature -4 to 163°F (-20 to 73°C);<br />
Process temperature -4 to 163°F (-20 to 73°C).<br />
Pressure Limit: 316 SS body 2000 psig (138 bar),<br />
available with 316 SS body and SPDT switch only.<br />
Switch Type: SPDT snap switch standard,<br />
Electrical Connections: UL and CSA models: 16AWG,<br />
6" (152 mm) long. ATEX and IECEx unit:Terminal block.<br />
Conduit Connection: 3/4" female NPT.<br />
Process Connection: 1 1/2" male NPT.<br />
Mounting Orientation: Within 5° of vertical for proper operation.<br />
Units for horizontal installation (vertical pipe with up flow) available.<br />
Set Point Adjustment: For universal vane: five vane combinations.<br />
Agency Approvals: ATEX, CE, CSA, FM, IECEx, UL<br />
Electrical Rating: UL, FM, ATEX and IECEx models 10A @ 125/250 VAC

QUICK DISCONNECT CABLE<br />
MARCA: DWYER
<div>
<div class="gtx-trans-icon"></div>
</div>

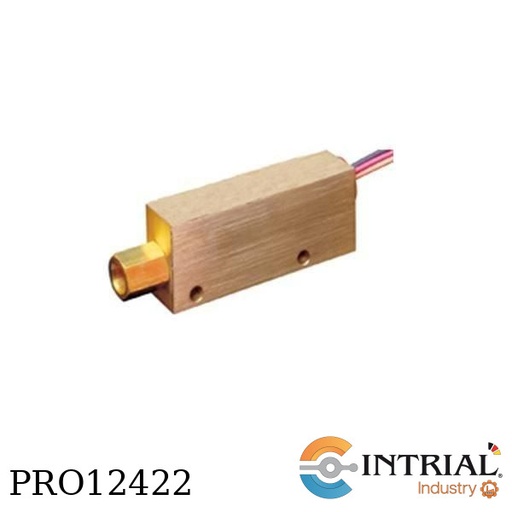

VALVE POSITION TARGET<br />
MARCA: DWYER
<div>
<div class="gtx-trans-icon"></div>
</div>

VALVE POSITION SENSOR<br />
MARCA: DWYER
<div>
<div class="gtx-trans-icon"></div>
</div>

<div>TRANSMISOR DE FUJO  DE AREA VARIABLE</div>

<div>•<span> </span>Marca: AW LAKE MONITORS <br />
MODELO: R3A-6WS-02</div>

<div>•<span> </span>[R]:Estilo: Transmisor de Flujo</div>

<div>•<span> </span>[3]:Puerto / línea Rango de tamaños: 1/4" - 1/2"</div>

<div>•<span> </span>[A]:Material: Aluminio</div>

<div>•<span> </span>[6]:Rango de Presión Max:3500 PSIG</div>

<div>•<span> </span>[W]:Fluid Media: Agua y 1.0 Gravedad específica.</div>

<div>•<span> </span>[S]:Tipo de Rosca: 1/4" NPTF</div>

<div>•<span> </span>[02]:Rango de Flujo: 0.2 a 2 GPM</div>

<div>•<span> </span>Salida:4-20 mA</div>

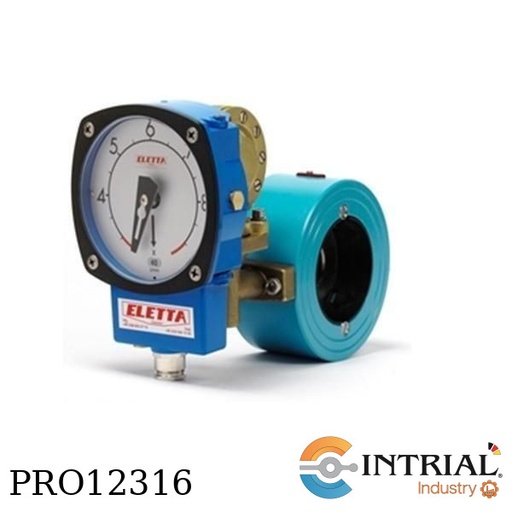

INTERRUPTOR DE FLUJO<br />
Marca: ELETTA FLOW AB<br />
Temperatura: 0 A 90° C<br />
Presión máxima: 16 Bar

<div>•<span> </span>AW DVV DISPENSE VOLUME VERIF. </div>

<div>•<span> </span>MX-9000 Process Controller </div>

<div>•<span> </span>110 – 240 VAC Supply Voltage </div>

<div>•<span> </span>6 ft Power Cable </div>

<div>•<span> </span>Audible Alarm </div>

<div>•<span> </span>Multi-colored Stack Lights</div>

SOURCING SENSOR<br />
DH-B<br />
Brand: AW-LAKE

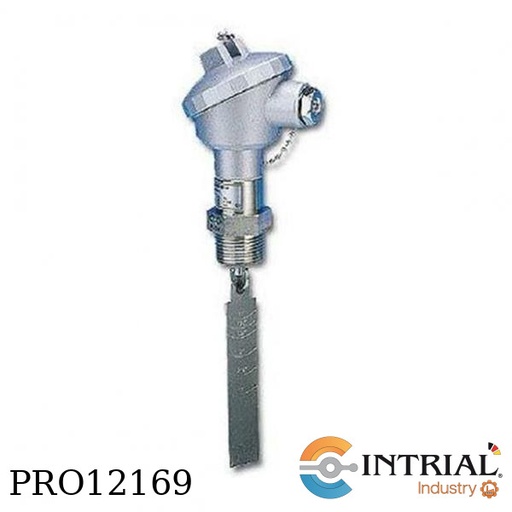

PADDLE TYPE FLOW SWITCH<br />
Brand: FINETEK<br />
Housing: Al. (IP65)<br />
Operating Temperature: -30~150’C<br />
Contact: SPDT<br />
Connection: 1"PT; SUS304

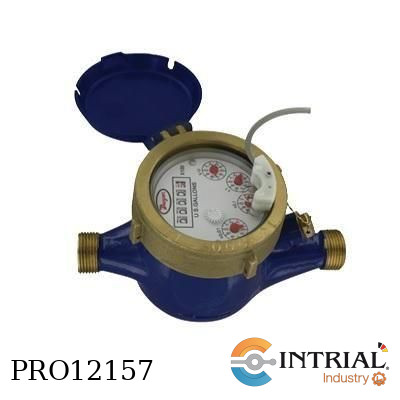

MULTI-JET WATER METER WITH PULSED OUTPUT<br />
Brand: DWYER <br />
Serie WMT <br />
Connection: 2” NPT<br />
Max Flow: 160 GPM<br />
Nominal Flow Range: 80 a 160<br />
Pulse output (REED SWICHT).  <br />
Electrical Rating: 0.01 A @ 24 VAC/DC.<br />
Mounting Orientation: Horizontal with the register face pointing up<br />
Temperature Limit: 104°F (40°C).<br />
Pressure Limit: 232 psi (16 bar).<br />
Electrical Connections: Color-coded lead wires, 4.5´ (1.5 m) long.<br />
Mounting Orientation: Horizontal with the register face pointing up<br />

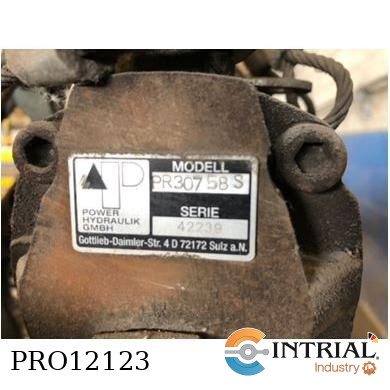

<strong>Flow Divider <br />
Brand: Power-Hydraulik<br />
Model: PR307-58-S</strong><br />
- Country of Origin: USA<br />
- 5-section flow divider<br />
- max. inlet flow: 200 l / min<br />
- max. working pressure continuous: 210 bar<br />
- incl. mounting brackets<br />
- net weight: 14,2 kg/ a piece

Model:  PR 304-58-S<br />
•    Article number: 113045100<br />
•    Stromteiler PR 304-58-S<br />
•    5-section flow divider<br />
•    max. inlet flow:  120 l/min                                 <br />
•    max. working pressure continuous: 210 bar<br />
•    incl. mounting brackets net weight: 15,4 kg/Piece

<strong>Model :  PR 307-60-S</strong><br />
•    Article number: 113073100<br />
•    Stromteiler PR 307-60-S<br />
•    3-section flow divider<br />
•    max. inlet flow: 120 l/min                                          <br />
•    max. working pressure continuous: 210 bar<br />
•    incl. mounting brackets net weight: 10,8 kg/Piece

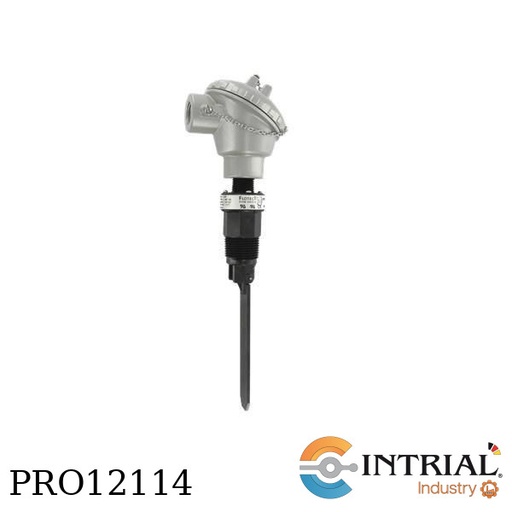

FLOTECT® VANE OPERATED FLOW SWITCH<br />
Field Adjustable – 1 to 6 Inch Pipe<br />
Leak Proof Body, Chemical Resistance<br />
Brand: DWYER<br />
Service: Compatible gases or liquids.<br />
Wetted Materials: Vane and body: Polyphenylene Sulfide (PPS)<br />
Pin and spring: 316 SS or Inconel®; Magnet: Ceramic 8.<br />
Temperature Limit: 212°F (100°C).<br />
Pressure Limit: 150 psig (10.34 bar).<br />
Enclosure Rating: General purpose, WP/WP2 option is weatherproof.<br />
Switch Type: SPDT snap switch.<br />
Electrical Rating: 5 A @ 125/250 VAC, 5 A resistive, 3 A inductive @ 30 VDC;<br />
MV option: 1 A @ 125 VAC, 1 A resistive, 0.5 A inductive @ 30 VDC.<br />
Electrical Connections: 18 AWG, 18" (460 mm) long.<br />
Conduit Connection: 1/2" male NPT, 1/2" female NPT on WP and WP2.<br />
Process Connection: 1" male NPT.<br />
Mounting Orientation: Actuation/deactuation flow rates are based on horizontal<br />
pipe runs and are nominal values. Unit cannot be used with vertical down flow.<br />
Set Point Adjustment: Vane is trimmable.<br />
Agency Approvals: CE, cURus.<br />
Option.- -WP2.- Optional housing is aluminum and provides weatherproof<br />
protection for electrical wiring; not UL approved

<div>FLOW ALARM </div>

<div>•<span> </span>Brand: LAKE MONITORS<br />
MODEL: M4B-6HD-20</div>

<div>•<span> </span>[M]: Style: Flow Alarm  - 1 Switch</div>

<div>•<span> </span>[4]: Port / Line Size Range: 3/4 "- 1"</div>

<div>•<span> </span>[B]: Material: Brass</div>

<div>•<span> </span>[6]: Range Max Pressure: 3500 PSIG</div>

<div>•<span> </span>[H]: Fluid Media: Oil @ 0.873 specific gravity </div>

<div>•<span> </span>[D]: Thread type: 1" NPTF</div>

<div>•<span> </span>[20]: Flow Range: 2 - 20 GPM</div>

<div>FLOW ALARM </div>

<div>•<span> </span>Brand: LAKE MONITORS<br />
MODEL: M4S-7HD-20</div>

<div>•<span> </span>[M]: Style: Flow Alarm  - 1 Switch</div>

<div>•<span> </span>[4]: Port / Line Size Range: 3/4 "- 1"</div>

<div>•<span> </span>[S]: Material: Staniless Steel</div>

<div>•<span> </span>[7]: Range Max Pressure: 6000 PSIG</div>

<div>•<span> </span>[H]: Fluid Media: Oil @ 0.873 specific gravity </div>

<div>•<span> </span>[D]: Thread type: 1" NPTF</div>

<div>•<span> </span>[20]: Flow Range: 2 - 20 GPM</div>
