<div>FLUJOMETRO TIPO TURBINA<br />
TRG-11.875</div>

<div>•<span> </span>Marca: AW LAKE</div>

<div>•<span> </span>Rango de Flujo: 3.2 – 32 GPM</div>

<div>•<span> </span>K-Factor *(Pulsos/ gal): 1,450 </div>

<div>•<span> </span>Conexión: 1” NPT macho </div>

<div>•<span> </span>Filtración (micras): 300</div>

<div>•<span> </span>Rango de Presión (psi): 5000</div>

<div>•<span> </span>Material del cuerpo: 316SS </div>

<div></div>

<div>MAG-PB</div>

<div>•<span> </span>Salida de Pulsos (MAG Hall Effect Pickup)</div>

<div>•<span> </span>Marca: AW LAKE</div>

<div>TCE SERIES 8000 REMOTE TRANSMITTER <br />
Model: TCE-8011-W-SMSC</div>

<div>•<span> </span>***Part Number Description Code*** </div>

<div>•<span> </span>S: Wall Mounted Housing </div>

<div>•<span> </span>M: 90-264 VAC Power Supply </div>

<div>•<span> </span>S: Standard Version Electronics </div>

<div>•<span> </span>C: 10 Meter Cable Included </div>

<div>•<span> </span>***Standard Features*** </div>

<div>•<span> </span>Modbus, RS-485 Interface </div>

<div>•<span> </span>Outputs: Qty 2, 4-20mA </div>

<div>•<span> </span>Qty 1, Frequency</div>

<div><span lang="en-us" style="font-size:13.5pt;line-height:19.26px;" xml:lang="en-us">MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS<br />
MODELO: </span>TCM-28K-DG-SGSS-AZZS<br />
TRICOR CORIOLIS METER</div>

<div>•<span> </span>Brand: TRICOR </div>

<div>•<span> </span>*** Part Number Code Description*** </div>

<div>•<span> </span>TCM: Tricor Coriolis Mass Meter </div>

<div>•<span> </span>28K: Flow Range: up to 28K kg/hr </div>

<div>•<span> </span>DG: DN50 PN40, EN 1092-1 Form B1 Flanges </div>

<div>•<span> </span>S: Temperature Range -20 to 150°C </div>

<div>•<span> </span>G: Pressure Range 100 bar, w/ rupture disk </div>

<div>•<span> </span>S: Accuracy: 0.10% ±0.01% Zero Stability </div>

<div>•<span> </span>S: Standard flange to flange length </div>

<div>•<span> </span>A: Meter Mounted Blind Junction Box </div>

<div>•<span> </span>Z: not used </div>

<div>•<span> </span>Z: not used </div>

<div>•<span> </span>S: Standard (remote electronics) </div>

<div>•<span> </span>***Standard Features*** </div>

<div>•<span> </span>Tube Material: 316L SS </div>

<div>•<span> </span>Flow Splitter Mat’l: 316 SS </div>

<div>•<span> </span>Electronics: 8000 Series </div>

<div>•<span> </span>Outputs: Qty 2 4-20mA </div>

<div>•<span> </span>Qty 1 Frequency</div>

<div>METAL TUBE VARIABLE AREA FLOWMETER</div>

<div>•<span> </span>Brand: ALIA</div>

<div>•<span> </span>AVF250 Series</div>

<div>•<span> </span>50:Size: 50 mm (2”) Flange</div>

<div>•<span> </span>6P: Material: Stainless Steel 316 + PTFE liner</div>

<div>•<span> </span>A: Process Connection: ANSI 150#</div>

<div>•<span> </span>BT: Flow Direction: Bottom Top</div>

<div>•<span> </span>B: Function: Local Indication + Rate 4 digit/ Totalizer 8 digit + 4-20 mA</div>

<div>•<span> </span>NN: Protection Class: IP65</div>

<div>•<span> </span>N: Option: None</div>

<div>•<span> </span>Range: 630 – 6300 l/h</div>

<div>*****INCLUYE CERTIFICADO DE CALIBRACIÓN DE FABRICA*****</div>

<div>METAL TUBE VARIABLE AREA FLOWMETER</div>

<div>•<span> </span>Brand: ALIA</div>

<div>•<span> </span>AVF250 Series</div>

<div>•<span> </span>25:Size: 25 mm (1”) Flange</div>

<div>•<span> </span>6P: Material: Stainless Steel 316 + PTFE liner</div>

<div>•<span> </span>A: Process Connection: ANSI 150#</div>

<div>•<span> </span>BT: Flow Direction: Bottom Top</div>

<div>•<span> </span>B: Function: Local Indication + Rate 4 digit/ Totalizer 8 digit + 4-20 mA</div>

<div>•<span> </span>NN: Protection Class: IP65</div>

<div>•<span> </span>N: Option: None</div>

<div>•<span> </span>Range: 200 – 2000 l/h</div>

<div>*****INCLUYE CERTIFICADO DE CALIBRACIÓN DE FABRICA*****</div>

<div>
<p class="MsoNormal"><span lang="en-us" style="font-size:16pt;line-height:107%;color:#000000;" xml:lang="en-us">TURBINE FLOWMETER</span><span style="font-size:14pt;line-height:107%;"></span></p><p></p>
TR-1130-NPT </div>

<div>METER TYPE: TURBINE </div>

<div>•<span> </span>Brand: AW LAKE</div>

<div>•<span> </span>Flow Range: 60 – 600 GPM (13-136 m3/hr) </div>

<div>•<span> </span>Body Material: 316SS </div>

<div>•<span> </span>Ports: 3” NPT (Incluye acople de 4")</div>

<div>•<span> </span>Pressure Rating: 800 psi</div>

<div></div>

<div>RT-30SD-D41 </div>

<div>METER MOUNTED TRANSMITTER </div>

<div>•<span> </span>Brand: AW LAKE</div>

<div>•<span> </span>Local display – rate and total </div>

<div>•<span> </span>24VDC powered </div>

<div>•<span> </span>4-20mA output </div>

<div>•<span> </span>2 x programmable limits </div>

<div>•<span> </span>NEMA 4X enclosure</div>

<div>HM 2 ½”/40-71-FAB0150-TC-01-G</div>

<div>•<span> </span>Meter Type: turbine </div>

<div>•<span> </span>Flow Range: 13.2 to 198 GPM </div>

<div>•<span> </span>Body Material: 316 stainless steel </div>

<div>•<span> </span>Ports: 2 ½” ANSI flange </div>

<div>•<span> </span>Pressure Rating: 285 psig per flange </div>

<div>•<span> </span>Filtration Recommended: 300 microns</div>

<div>RT-30SD-D02</div>

<div>•<span> </span>AW RT-30SD-D02 </div>

<div>•<span> </span>Meter mounted transmitter </div>

<div>•<span> </span>Local display </div>

<div>•<span> </span>Rate and total </div>

<div>•<span> </span>24VDC powered </div>

<div>•<span> </span>4-20mA output</div>

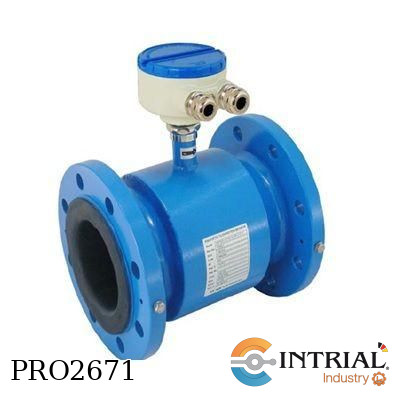

<div>AMF900-0-0350-C-A-E-8-0-NNN-N </div>

<div>•<span> </span>Electromagnetic Flowmeter Model AMF900 Series</div>

<div>•<span> </span>AMF900: AMF900 Series</div>

<div>•<span> </span>0: Linner: Polyurethane rubber (25 ~ 600mm, 1" ~ 24")</div>

<div>•<span> </span>0350: Pipe diameter, 350mm (14”)- Flanged</div>

<div>•<span> </span>C: Electrodo material(Hastelloy C276)</div>

<div>•<span> </span>A: Process connectIon(ANSI 150 #)</div>

<div>•<span> </span>E: Grounding Electrode :Single</div>

<div>•<span> </span>8: Protection class(Junction box IP67, Body IP68)</div>

<div>•<span> </span>0: Flange and Housing(Carbon steel - Standard)</div>

<div>•<span> </span>NNN: Insertion and cable length(Compact Version)</div>

<div>•<span> </span>N: Option(None)</div>

<div>.</div>

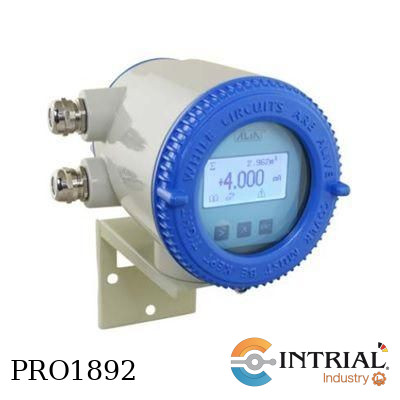

<div>AMC3100-AC-CP-NN-HT-PT</div>

<div>•<span> </span>AMC3100: DISPLAY Y CONTROLADOR DIGITAL PARA TRABAJAR JUNTO A AMF9000</div>

<div>•<span> </span>AC: Power supply(90-260 VAC, 50/60 Hz)</div>

<div>•<span> </span>CP:Mouting(Compact with Sensor)</div>

<div>•<span> </span>NN: Protection class: IP67</div>

<div>•<span> </span>HT: Communication(HART Signal)</div>

<div>•<span> </span>PT: Cable Entry 1/2" NPTF</div>

<div>•<span> </span>Output: 4-20 mA</div>

<div>AMF900-0-080-C-A-E-8-0-NNN-N </div>

<div>•<span> </span>Electromagnetic Flowmeter Model AMF900 Series</div>

<div>•<span> </span>AMF900: AMF900 Series</div>

<div>•<span> </span>0: Linner: Polyurethane rubber (25 ~ 600mm, 1" ~ 24") </div>

<div>•<span> </span>080: Pipe diameter, 80mm (3”)- Flanged</div>

<div>•<span> </span>C: Electrodo material(Hastelloy C276)</div>

<div>•<span> </span>A: Process connectIon(ANSI 150 #)</div>

<div>•<span> </span>E: Grounding Electrode :Single</div>

<div>•<span> </span>8: Protection class(Junction box IP67, Body IP68)</div>

<div>•<span> </span>0: Flange and Housing(Carbon steel - Standard)</div>

<div>•<span> </span>NNN: Insertion and cable length(Compact Version)</div>

<div>•<span> </span>N: Option(None)</div>

<div>.</div>

<div>AMC3100-AC-CP-NN-HT-PT</div>

<div>•<span> </span>AMC3100: DISPLAY Y CONTROLADOR DIGITAL PARA TRABAJAR JUNTO A AMF9000</div>

<div>•<span> </span>AC: Power supply(90-260 VAC, 50/60 Hz)</div>

<div>•<span> </span>CP:Mouting(Compact with Sensor)</div>

<div>•<span> </span>NN: Protection class: IP67</div>

<div>•<span> </span>HT: Communication(HART Signal)</div>

<div>•<span> </span>PT: Cable Entry 1/2" NPTF</div>

<div>•<span> </span>Output: 4-20 mA</div>

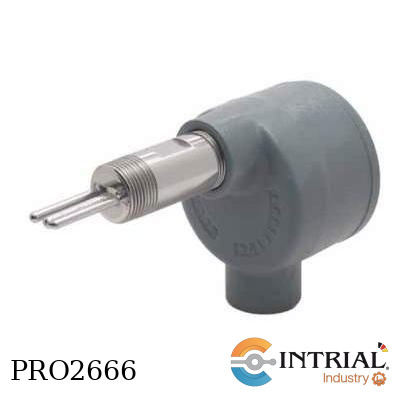

<strong>ELECTRONIC FLOW SWITCHES<br />
Brand: AMERITROL</strong><br />
PROCESS CONNECTION: 1” MNPT<br />
INSERTION LENGTH: 1.8” STANDARD<br />
POWER INPUT: 117 VAC (90-132VAC)<br />
PROCESS TEMPERATURE:  -50F TO +350F<br />
RELAY OUTPUTS: SPDT 3 AMP RESISTIVE
<div>
<div class="gtx-trans-icon"></div>
</div>

<div>•<span> </span>FLUJOMETRO TIPO TURBINA<br />
•<span> </span>Marca: AW-LAKE  FLOW METERS(USA)</div>

<div>TRG-11.250-5</div>

<div>•<span> </span>Materiales de construcción:</div>

<div>•<span> </span>Cuerpo: 316 Stainless Steel</div>

<div>•<span> </span>Rotor: Stainless Steel</div>

<div>•<span> </span>Rotor Shaft: Tungsten Carbide</div>

<div>•<span> </span>Rotor Support: 316 Stainless Steel</div>

<div>•<span> </span>Presicion: 1% of actual Reading</div>

<div>•<span> </span>Turn Down Ratio: 10:1</div>

<div>•<span> </span>Repetibilidad: ± 0.1%</div>

<div>•<span> </span>Temperatura: -150° F to 450° F</div>

<div>•<span> </span>Rango Flujo – GPM: 0.08 to 0.4 GPM</div>

<div>•<span> </span>K-Factor Pulsos por Galon: 125000</div>

<div>•<span> </span>Conexión final: 1/2” Male (NPT)</div>

<div>•<span> </span>Filtración (Microns) : 100</div>

<div>•<span> </span>Presión de servicio (PSI): 5,000</div>

<div></div>

<div>MAG-PB</div>

<div>•<span> </span>Salida de Pulsos (MAG Hall Effect Pickup)</div>

<div>•<span> </span>SN-ASB10GM-6-700-V1.0-A1NR-C-2D</div>

<div>•<span> </span>SWITCH DE SENSOR FLUJO DE ACEITE </div>

<div>•<span> </span>CON CONTACOS NC Y NO 220V. </div>

<div>•<span> </span>MARCA UNIVERSAL FLOW MONITORS</div>

<strong>Flujómetro electromagnético</strong><br />
Sensor,Linner:PFA,Size<br />
150mm,Electrode:, Tantalum,ALIA<br />
Connetion:ANSI 150<br />
Groun,ding:Grounding Ring-SS316L<br />
Protection:IP68 ,-Flange Material:SS304<br />
Housing Material:SS,304<br />
Installation:Compact version<br />
Option:,Explosion proof,Exd(ib)ibqIIBT 5<br />
Suggest flowrate:15.9-318.1 m3/h

<div>AMC3100 ELECTROMAGNETIC FLOWMETER – CONVERTER</div>

<div>•<span> </span>Brand: ALIA</div>

<div>•<span> </span>AC:Power Supply:90 -260 Vac, 50/60 Hz</div>

<div>•<span> </span>CP:Mounting: Compact with sensor</div>

<div>•<span> </span>NN:Enclosure: IP67</div>

<div>•<span> </span>HT:Communication: HART Signal</div>

<div>•<span> </span>Cable Entry: 1/2 NPT</div>

ELECTROMAGNETIC FLOWMETER<br />
•    AMF900 Series, Flange Version<br />
•    A: liner PFA (6 – 300mm, ¼” – 12”)<br />
•    0250: CONNECTION DIAMETER 10”<br />
•    Flange Connection<br />
•    S: Electrodes: Acero Inox 316L<br />
•    A: Brida ANSI 150<br />
•    N: Grounding Electrode(without)<br />
•    8: Proteccion P68<br />
•    0: Flange & Housing :S.S.Carbon Steel (Standard)<br />
•    NNN: Compact version<br />
•    N: Option: None

CORIOLIS METER,Brand: TRICOR,[TCM]: CORIOLIS METER,[650]: Traditional Meter Size 1/8” ,(2.1 to 210.0 Kg/h),, with pressure drop of 0.164 bar., ,Maximun flow u to 600 Kg/H,[AJ]: Process Connection: ANSI Flange 1.5" CL 150,,Mechanical Options,[S]:Temperature range: -40° to 100°C,[G]:Pressure range: 100 bar (1450 psi) ,withrupture disc,[S]:Accuracy: standard,[S]:Lenght: standard,Electronics / Terminal ,(4 digits),[C]:Integral field mount electronics,[B]:Interface: Foundation™ Fieldbus & RS 485,[D]:Supply voltage: 24 VDC,[S]:Cable lengths: (for panel mount & wall ,mount units): 3 meter cable length

<span lang="en-us" style="font-size:13.5pt;line-height:19.26px;" xml:lang="en-us">MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS<br />
MODELO: </span>TCM-7900-AJ-SGSS-CBDS<br />
Brand: TRICOR,<br />
[TCM]: CORIOLIS METER,<br />
[7900]: Traditional Meter Size 1/2”,with pressure drop of 0.253 bar,, (11.4 to 1140 Kg/h),Maximun flow up to 7900 Kg/H,<br />
[AJ]: Process Connection: ANSI Flange 1.5" ,CL 150,Mechanical Options,<br />
[S]:Temperature range: -40° to 100°C,<br />
[G]:Pressure range: 100 bar (1450 psi) ,withrupture disc,<br />
[S]:Accuracy: standard,[S]:Lenght: standard,Electronics / ,Terminal (4 digits),<br />
[C]:Integral field mount electronics,<br />
[B]:Interface: Foundation™ Fieldbus & RS 485,<br />
[D]:Supply voltage: 24 VDC,<br />
[S]:Cable lengths: (for panel mount & ,wall mount units): 3 meter cable length

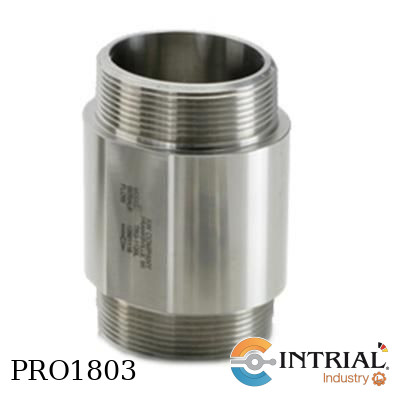

MEDIDOR DE FLUJO TIPO TURBINA PARA LIQUIDOS<br />
(Agua,aceite y combustibles)<br />
Marca:AW FLOW METERS(USA)<br />
​TRG-11.500-5<br />
Versión completamente en acero inoxidable<br />
para alta duración y trabajo forzado<br />
Aplicación para medir aceites<br />
Rango de trabajo de 0.9 a 9 GPM<br />
Precisión:0.5%<br />
Conexión 1/2 NPT

AMF900 A 0150 A AZ 8 8 NNN X,ELECTROMAGNETIC FLOWMETER ,Brand: ALIA,Sensor, Linner: PFA,Size150mm (6”),Electrode: Tantalum,Connection: ANSI 150,Grounding: Grounding Ring-SS316L,Protection: IP68,Flange Material: SS304,Housing Material: SS304,Installation: Compact version,Option: Explosion proof, Exd (ib)ibqIIBT 5,.,AMC3100 AC CP EX HT (CONTROLADOR),ELECTROMAGNETIC FLOWMETER – CONVERTER,Brand: ALIA,Power Supply:90 -260 Vac, 50/60 Hz,Mounting: Compact with sensor,Enclosure: Explosion Proof, Exd (iob) ibqIIBT5,Communication: with HARD signal,Cable Entry: 1/2 NPT,3 Central Bank Charge

AMF900 A 0200 S AN 8 0 NNN N,ELECTROMAGNETIC FLOWMETER ,AMF900 Series, Flange Version,A: liner PFA (6 – 300mm, ¼” – 12”),0200: CONNECTION DIAMETER 8”,Flange Connection,S: Electrodes: Acero Inox 316L,A: Brida ANSI 150 ,N: Grounding Electrode(without),8: Proteccion P68,0: Flange & Housing :S.S.Carbon Steel (Standard),NNN: Compact version,N: Option: None,.,AMC3100 AC CP NN HT (CONTROLADOR),AMC3100 ELECTROMAGNETIC FLOWMETER – CONVERTER,Brand: ALIA,AC:Power Supply:90 -260 Vac, 50/60 Hz,CP:Mounting: Compact with sensor,NN:Enclosure: IP67,HT:Communication: HART Signal,Cable Entry: 1/2 NPT
