Flujometro Mini Master para AIRE<br />
Marca : Dwyer<br />
Modelo : MMA-20<br />
Fluido : Aire
<div>
<div class="gtx-trans-icon"></div>
</div>

<strong>Flujometro </strong><br />
flange 2" ANSI 150 RF,<br />
15m3/h<br />
brain 75G,<br />
2 bar.

Medidor de flujo rango:1 a 10 GPM / 5 a 35 LPM,1 contacto electrico 200vdc,1.5 A,24 VDC,0.5 A,120 VAC,presión maxima 3500 psi/ 240 bar,serial:57289

AMF900A0150AAZ88NNNX<br />
Electromagnetic Flowmeter<br />
Sensor<br />
Linner:PFA<br />
Size,-150mm<br />
Electrode:, Tantalum<br />
ALIA<br />
Connetion:ANSI 150<br />
Grounding:Grounding Ring-SS316L<br />
Protection:IP68 <br />
Flange Material:SS304<br />
Housing Material:SS,304<br />
Installation:Compact version<br />
Option:,Explosion proof,Exd(ib)ibqIIBT 5<br />
Suggest flo,wrate:15.9-318.1 m3/h

<div>Measuring tube Borosilicate glass</div>

<div>BRAND: METER</div>

<div>Connections Flanged 4” ANSI 150 RF</div>

<div>Body structure Polypropylene</div>

<div>Gaskets PTFE</div>

<div>Float PTFE + INOX</div>

<div>Fluid BRINE</div>

<div>Flow rate 20 ÷ 150 M3/h</div>

<div>Temperature 75 °C</div>

<div>Pressure 2 bar</div>

<div>Accuracy +/- 5 % E.O.S.</div>

<div>Flow direction Upwards</div>

<div>Features Diaphragm milled in the structure, without by pass</div>

<div>neddle valve, Pressure drop at EOS: 0,6 bar</div>

<div>FLOW CONVERTER</div>

<div>Brand: Krohne</div>

<div>Mounting Configuration: Integral mount 45° </div>

<div>(for horizontal pipes)</div>

<div>Power Supply: 12-24 VDC</div>

<div>Outputs: Current (incl. HART®), pulse, frequency,</div>

<div>status output and/or limit</div>

<div>
<div class="gtx-trans-icon"></div>
</div>

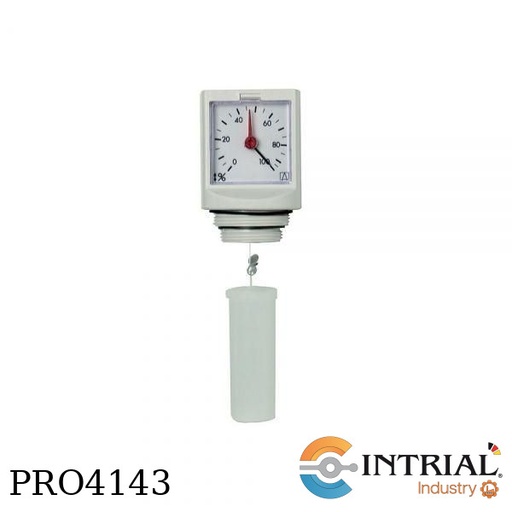

MECHANICAL LEVEL INDICATORS<br />
Brand: AFRISO (Germany)<br />
Measuring range (tank height)<br />
0/900 to 0/2,000 mm<br />
Displayed values<br />
0/100 % liquid level<br />
Connection thread<br />
G1½ and G2<br />
Housing/fl oat<br />
Display: ABS, impact-resistant<br />
Window: SAN<br />
Float: PE-HD

FLOW CONTROL<br />
•    Marca: VICKERS

CONTROLADOR / INDICADOR DE FLUJO DE LA SERIE S2<br />
•    Marca: ELETTA<br />
•    Cuerpo de acero inoxidable<br />
•    Instalación entre la brida (Sandwich) DN65<br />
•    Rango de medición 50 ... 100% (1: 2)<br />
•    Grado de protección: IP43 (IP65 opcional)<br />
•    Presión máxima de 16 bar<br />
•    Temperatura máxima de 90 ° C (otros a petición)<br />
•    Indicación local de 130 mm de diámetro de línea<br />
•    2 SPDT Contactos ajustables 10A escala completa / 250Vac<br />
•    Repetibilidad <2% del valor medido<br />
•    Flujo: 240...480 l/min<br />
******** Especificar Fluido y Dirección del flujo*******

CONTROLADOR / INDICADOR DE FLUJO DE LA SERIE S2<br />
•    Marca: ELETTA<br />
•    Cuerpo de acero inoxidable<br />
•    Instalación entre la brida (Sandwich) DN65<br />
•    Rango de medición 50 ... 100% (1: 2)<br />
•    Grado de protección: IP43 (IP65 opcional)<br />
•    Presión máxima de 16 bar<br />
•    Temperatura máxima de 90 ° C (otros a petición)<br />
•    Indicación local de 130 mm de diámetro de línea<br />
•    2 SPDT Contactos ajustables 10A escala completa / 250Vac<br />
•    Repetibilidad <2% del valor medido<br />
•    Flujo: 160...320 l/min<br />
******** Especificar Fluido y Dirección del flujo*******

<div>MEDIDOR DE TIEMPO</div>

<div>•<span> </span>Marca: KESTREL METER</div>

<div>•<span> </span>Grey</div>

<div>MODEL: <span> </span>MAS-5100</div>

<div>ACCESSORIES FOR MAS MODELS, Output, 12 VDC, 230 VAC</div>

<div>BRAND: HIRSCHMANN</div>

<div>•<span> </span>Accessories for MAS Models</div>

<div>•<span> </span>MAS-5100</div>

<div>•<span> </span>Power Adapter</div>

<div>•<span> </span>Power supply unit, 230 VAC</div>

<div>•<span> </span>Output, 12 VDC</div>

FLOWMETER<br />
Brand: HEINRICHS<br />
H: Hard-rubber, standard 3 stainless steel electrodes, 0°C...80°C<br />
350B: Process 8" DN200 PN16 Form B1 DIN EN 1092-1, Max flow 1188 m³/h, Installation length 350 mm<br />
1: Material flanges steel (painted)<br />
HH: Material electrodes Hastelloy C-4 incl. grounding electrode<br />
1: Integrated transmitter, IP67<br />
0: Approvals without<br />
Transmitter<br />
UMF2-A: Integrated transmitter IP67 standard, ½" NPT (f)<br />
1: Display and control unit, integrated<br />
1: Power supply, 230V AC (+10%, -15%), 50/60Hz<br />
G: Output, current output 1: 4 - 20mA with HART-protocol, pulse output: passive Um=24VDC, status output: passive Um=24VDC<br />
0BH: Design, Heinrichs

<div>Modelo: AMF900-F0015-SAN80-030-N + AMC2100-AC-SW-NN-NN</div>

<div>AMF900-F0015-SAN80-030-N </div>

<div>ELECTROMAGNETIC FLOWMETER MODEL AMF900 SERIES</div>

<div>•<span> </span>AMF900: AMF900 Series</div>

<div>•<span> </span>F: Linner: FEP(6 ~ 300mm, 1/4" ~ 12")</div>

<div>•<span> </span>0015: Pipe diameter, 15mm (1/2”)- Flanged</div>

<div>•<span> </span>S: Electrodo material: Acero Inoxidable 316L</div>

<div>•<span> </span>A: Process connectIon(ANSI 150 #)</div>

<div>•<span> </span>N: Grounding Electrode: None</div>

<div>•<span> </span>8: Protection class(Junction box IP67, Body IP68)</div>

<div>•<span> </span>0: Flange & Housing: Carbon Steel (Standard)</div>

<div>•<span> </span>030: Separate Version – 30 m cable</div>

<div>•<span> </span>N: Option(None)</div>

<div></div>

<div>AMC2100-AC-SW-NN-NN </div>

<div>AMC2100: DISPLAY Y CONTROLADOR DIGITAL PARA TRABAJAR JUNTO A AMF9000</div>

<div>•<span> </span>AC: Power supply(90-260 VAC, 50/60 Hz)</div>

<div>•<span> </span>SW:Mouting(Separate Wall mounting)</div>

<div>•<span> </span>NN: Comunication: RS485(Modbus protocol)</div>

<div>•<span> </span>NN: Option: None</div>

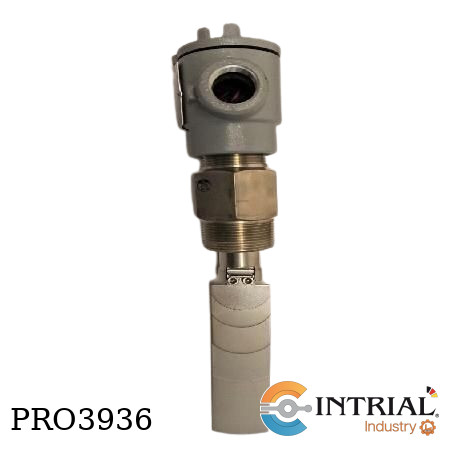

VANE OPERATED FLOW SWITCH<br />
Brand: Dywer<br />
Service: Gases or liquids compatible with wetted materials<br />
Vane: 316 SS<br />
Body: 316 SS standard<br />
Magnet Keeper:316 SS optional<br />
Temperature Limit: -4 to 275°F (-20 to135°C) standard<br />
Ambient temperature -4 to 163°F (-20 to 73°C)<br />
Process temperature -4 to 163°F (-20 to 73°C)<br />
Pressure Limit: 316 SS body 2000 psig (138 bar)<br />
available with 316 SS body and SPDT switch only<br />
Switch Type: DPDT contact<br />
Electrical Connections: UL and CSA models: 16AWG<br />
6” (152 mm) long. ATEX and IECEx unit:Terminal block<br />
Conduit Connection: ¾” female NPT<br />
Process Connection: 1 ½” male NPT<br />
Mounting Orientation: Within 5° of vertical for proper operation<br />
Units for horizontal installation (vertical pipe with up flow) available<br />
Set Point Adjustment: For universal vane: five vane combinations<br />
Agency Approvals: ATEX, CE, CSA, FM

<div>•<span> </span>AW NPT-JVM-90 </div>

<div>•<span> </span>90DEGREE NPTF</div>

<div>FLUJOMETRO TIPO TURBINA</div>

<div>•<span> </span>Marca: AW LAKE<br />
MODELO: TRG-1110+MAG-PB+RT-Ex15A<br />
• TAG-No. 135-FQI-052<br />
TRG-1110</div>

<div>•<span> </span>Rango de Flujo: 5.3 – 53 GPM</div>

<div>•<span> </span>K-Factor *(Pulsos/ gal): 800 </div>

<div>•<span> </span>Conexión: 1 1/2” NPT macho </div>

<div>•<span> </span>Filtración (micras): 300</div>

<div>•<span> </span>Rango de Presión (psi): 5000</div>

<div>•<span> </span>Material del cuerpo: 316SS </div>

<div>•<span> </span>Accuracy: +- 0.5%</div>

<div></div>

<div>MAG-PB</div>

<div>•<span> </span>Salida de Pulsos (MAG Hall Effect Pickup)</div>

<div>•<span> </span>Marca: AW LAKE</div>

<div></div>

<div>RT-Ex15A </div>

<div>MONITOR DE FLUJO CON PROTOCOLO DE COMUNICACIÓN HART</div>

<div>•<span> </span>Marca:AW FLOW METERS(USA)</div>

<div>•<span> </span>Flow rate / total screens</div>

<div>•<span> </span>4-20mA rate output and scaled pulse output</div>

<div>•<span> </span>Gate time function</div>

<div>•<span> </span>HART communication protocol</div>

<div>•<span> </span>Test Point for external frequency input</div>

<div>•<span> </span>Programmable outputs</div>

<div>•<span> </span>Magnetically select any key functions</div>

<div>•<span> </span>Power Requirement:15-24 VDC/150mA(customer supplied)</div>

<div>•<span> </span>Analog Output 4-20 mA:16-bit D/A Converter ,3 wire or 2 wire plus seperate supply</div>

<div>•<span> </span>Max. Load Impedance: 500 ohm.</div>

<div>•<span> </span>Enclosure Certifications:</div>

<div>•<span> </span>Class I,Groups A,B,C,D NEMA 4X</div>

<div>•<span> </span>Class II,Groups E,F,G FM Class No. 3615</div>

<div>•<span> </span>Class III FM y CSA approval pending</div>

<div>•<span> </span>Atex:EEx d IIC,IP68 Copper Free Standards</div>

<div>•<span> </span>Sensor/Monitor Frequency Range:0-4000 Hz</div>

<div>•<span> </span>Temperature Ratings:-20 to 60°C(-4 to 140°F Ambient</div>

<div>•<span> </span>Connection:3/4''NPT Conduit Provisions</div>

<div>•<span> </span>Two Opto-Isolated Open-Collector Outputs:</div>

<div>•<span> </span>5-30 VDC Rating,50 mA Max.(Minimum Load</div>

<div>•<span> </span>Impedance Required,600 Ohm 30 VDC) </div>

<div>•<span> </span>Opto-Isolated Reset Input:5-30 VDC Input,3.3Kohm Impedance</div>

<div>•<span> </span>Meter Compatability:TR and TRG Turbine FlowMeters</div>

Modelo AFR2-1<br />
Fluido :Aire<br />
Cuerpo: de aluminio<br />
Filtro: polietileno; <br />
Diafragma y tapón de válvula de asiento: elastómero de nitrilo. <br />
Presión máx. de suministro: 17.2 bar (250 psi). <br />
Límites de temperatura: -20 a 70 °C (-4 a 158 °F). <br />
Tamaño mínimo de filtrado: 5 micras.
<div>
<div class="gtx-trans-icon"></div>
</div>

THERMAL DISPERSION FLOW TRANSMITTER <br />
Brand: SITRON<br />
Power Supply: 125Vdc<br />
Output: 4...20mA & Transistor (PNP/NPN)<br />
Process Connection: 1/2" NPT– 316 SS<br />
Insertion Length: L=2” (50mm) - 316 SS<br />
Enclosure: Aluminum, G1<br />
Electrical Connection: 3/4" BSP

THERMAL DISPERSION FLOW TRANSMITTER <br />
Power Supply: 125Vdc<br />
Output: 4...20mA & Transistor (PNP/NPN)<br />
Process Connection: 1/2" NPT– 316 SS<br />
Insertion Length: L=1 3/8” (35mm) - 316 SS<br />
Enclosure: Aluminum, G1<br />
Electrical Connection: 3/4" BSP
