Modelo: IF2709+ HNV-SSS36B + Tubing
IF2709
Industrial Direct Reading Flowmeter
Marca: DWYER(USA)
Air/Water Direct Reading Scale, 304 SS Protective Shield, ±3% Accuracy
SPECIFICATIONS
Service: Liquids or gases.
Wetted Materials:
Flowtube: Borosilicate glass; float,
guide rods, float stops, end;
Fittings: 316 SS;
O-Rings: Fluoroelastomer.
Temperature Limit: 200°F (93°C).
Pressure Limit: 200 psi (13.8 bar);
125 psi for tube size 5 & 6.
Accuracy: ±3% of full-scale.
Repeatability: ±0.5% of full-scale.
Turndown Ratio: 10:1.
Scale: Dual scale GPM and SCFM.
Process Connection: See table.
Mounting: Vertical.
Front Shield: Polycarbonate.
Side Panels: 304 SS.
HNV-SSS36B
Needle Valve 1-Valve Block Manifold
Marca: DWYER(USA)
For Use with Gas and Liquids, Pressures Up to 6000 psi
SPECIFICATIONS
Service: Gases and liquids compatible with wetted materials.
End Connections: NPT.
Wetted Materials: 316 SS and PTFE packing.
Pressure Limits: 6000 psi (431 bar) @ 200°F (93°C). 4000 psi (276 bar) @ 464°F
(240°C).
Temperature Limits: 464°F (240°C).
Other Materials: Handle: 316 SS.
Female X Female
Connextion 1” NPT
Tubing
Tubing en acero Inoxdable de 1” NPT
Para unir romametro Valvula aguja
10 cm de longitud

Visor Tipo Transparente
Marca : Klinger
Modelo : 7BL
Dimensiones : (280mmx34mm)

TRANSMISOR  DE CAUDAL POR DESPLAZAMIENTO POSITIVO
MODELO: RT-30EX-D01
HAZARDOUS AREA RATED FLOW TRANSMITTER
Brand: AW LAKE
DUAL ACC. ENCL.
HUB-40
CSA CERT.
cCSAus:
Class I, Div. 1, Groups C, D
Class II, Div. 1, Groups E, F, G
Class III, T6, Type 4X

POSITIVE DISPLACEMENT SPUR GEAR FLOW METER

JVM-10CG-EX-25-NPT

• Brand: AW LAKE

• Flow Range: 0.003-0.5 GPM

• Body Material: 303 STAINLESS STEEL

• Ports: ¼” NPT

• Pressure Rating: 5000 PSI

• Filtration Recommended: 120 MICRON

VANE OPERATED FLOW SWITCH
Brand: DWYER INSTRUMENTS
Service: Gases or liquids compatible,with wetted materials.,Vane: 316 SS
Body: 316 SS standard
Magnet Keeper:316 SS optional
Temperature Limit: -4 to 275°F (-20 to135°C) ,standard, MT high temperature option 400°F ,(205°C) [MT option not UL, ,CSA, ATEX or IECEx] ATEX and IECEx options, ,ambient temperature -4 to 163°F (-20 to 73°C)
Process temperature -4 to 163°F (-20 to 73°C).
Pressure Limit: 316 SS body 2000 psig ,(138 bar), available with 316 SS body and SPDT ,switch only
Switch Type: SPDT snap switch standard,
Electrical Connections: UL and CSA ,models: 16 AWG,6" (152 mm) long. ,ATEX and IECEx unit: Terminal block.
Conduit Connection: 3/4" female NPT.
Process Connection: 1-1/2" male NPT.
Mounting Orientation: Within 5° of vertical ,for proper operation. Units for horizontal ,installation  (vertical pipe with up flow) ,available.
Set Point Adjustment: For universal vane: ,five vane combinations
Agency Approvals: ATEX, CE, CSA, FM,, IECEx,

MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS
MODELO: TCM-3100-AF-HGSP-CADS-EX
*** Part Number Code Description***

• TCM: Tricor Coriolis Mass Meter

• 3100: Flow Range: up to 27.5 GPM

• AF: 1” ANSI CL 300# RF flange connections

• H: Media Temperature Range -40 to 150°C

• G: 200 bar tube pressure rating

• 5 bar housing rupture disk

• S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability

• Density Accuracy: 0.001 gr/cc

• P: Flange to Flange Length (454 mm)

• C: Meter Mount / Local display

• A: HART, RS485, Modbus Interface

• D: 24 VDC supply voltage

• S: Standard (integral electronics)

• EX: ATEX + IEcEx Zone1: Group IIC or IIB, T4

• ***Standard Features***

• Tube Material: 316L SS

• Flow Splitter Mat’l: 316 SS

•       Outputs: (2) 4-20 mA outputs.

MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS
MODELO: TCM-3100-AF-HGSP-CADS
*** Part Number Code Description***

• TCM: Tricor Coriolis Mass Meter

• 3100: Flow Range: up to 27.5 GPM

• AF: 1” ANSI CL 300# RF flange connections

• H: Media Temperature Range -40 to 150°C

• G: 5 Bar Case Rupture disk

• S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability

• Density Accuracy: 0.001 gr/cc

• P: Flange to Flange Length (454 mm)

• C: Meter Mounted / Local Display

• A: HART, RS485, Modbus Interface

• D: 24 VDC supply voltage

• S: Standard (Intregral electronics)

• ***Standard Features***

• Tube Material: 316L SS

• Flow Splitter Mat’l: 316 SS

• Outputs: (2) 4-20 mA outputs.

Remote Open Channel Flow Transmitter
* Housing: Standard polycarbonate electronics housing
* Power Supply: 90-260VAC and 12-30VDC
* Output: 4-20mA analogue with HART Isolated 4 wire (AWR234 only)
* Relays: 5 relays, SPDT contacts, rated 0.5A at 240 Vac

Transmisor de flujo ultrasonico
Marca: Dwyer
Modelo: ULF
Servicio: Líquidos compatibles.
Materiales mojados: Sensor: polipropileno; Ventana acústica: ECTFE
Rangos: ULF-X1-XXX: 0.25 a 5 m (0.82 a 16.4 pies). ULF-X2-XXX: 10.6 a 15 m (96 a 49.2 pies).
Exactitud: 0.25% del rango máximo (a 20°C [68°F]).
Resolución: 1 mm (0.04").
Zona ciega: ULF-X1-XXX: 0.25 m (0.8 pies); ULF-X2-XXX: 0.6 m (1.96 pies).
Ángulo de haz: 5° a 3 db punto.
Límites de temperatura: -40 a 70 °C (-40 a 158 °F).
Compensación de temperatura: Automático.
Límites de presión: 0.9 a 2 bar (13.5 a 30 psi).
Requisito de alimentación eléctrica: 18 a 28 VCC.
Señal de Salida: 4 a 20 mA.
Resistencia de bucle: Max. 727Ω @ 28 VDC.
Conexiones eléctricas: Terminal de tornillo.
Conexión de conducto: NPT de 12.7 mm (1/2"), prensaestopas (opcional).
Conexión de proceso: NPT de 50.8 mm (2"), BSP de 12.7 mm (1/2") (opcional).
Gabinete armado estándar: Gabinete plástico: ABS y cuerpo con protección UV.
Clasificación del gabinete: NEMA 4 (IP 65).
Orientación de montaje: Vertical.
A prueba de fallas: Retardo de 3 minutos antes de transmitir una señal de error.
Memoria: No volátil.
Pantalla: LCD de 4 caracteres.
Unidades: pies, m (opcional).
Programación: 4 botones.

SENSOR DE FLUIDO EN LÍNEA
Marca: AW LAKE
ProScan 2.5
Salida: 4-20 mA
Alimentación: 15-24 VDC
NEMA6/IP67
Conexión a proceso: 2-1/2”
Material: SS

FLUJOMETRO DE DESPLAZAMIENTO POSITIVO
Marca : MACNAUGHT
Tipo de rotores : Para fluidos con viscosidad
hasta 1000CP
Razon de flujo
Para Viscodidades menores a 5 CP: 2.6 a 26
GPM (10 a 100 LPM)
Para Viscodidades mayores a 5 CP y
menores a 1000CP: 1.6 a 32GPM(6 a 120LPM)
Rango de temperatura : -40 a 80°C
Presion maxima : 2000 PSI
Materiales:
Cuerpo del medidor : Aluminio
Rotor : PPS
O’ring :FKM(Viton)
Conexión al Proceso : 1” NPT
Tipo de salida de pulsos : (1) Hall Effect
Sensor + (1) Salida Reed Switch

INSERTION ELECTROMAGNETIC FLOW TRANSMITTER
Brand: DWYER
Service: Compatible clean or dirty non coating, conductive liquids
Series IEF
Range: 0 to 20 ft/s (0 to 6 m/s).*
T: Accuracy: High accuracy 10˝ (250 mm) pipe; 1% of reading
N: Process Connection:1˝ male NPT
CND: Housing Electrical Connection:1/2˝ female NPT
conduit connection without cable
LCD: Options: Integral LCD display
Temperature Limits:
Ambient: -20 to 160°F (-29 to 71°C)
Process: 15 to 250°F (-9 to 121°C)
Storage: -40 to 185°F (-40 to 85°C)
Pressure Limits: 400 psi (27.6 bar) @
100º F (37.8°C).
Pressure Drop: < 0.1 psi at 12 ft/s in 4˝
(101.6 mm) and larger pipe.
Outputs:
(1) Analog: 4-20 mA, 0-5 V, 0-10 V or
2-10 V (display selectable);
(1) Pulse/Frequency: 0-15 V peak pulse,
0 to 500 Hz or scalable pulse output
(display selectable);
(2) Alarm: (1) Empty pipe detection or
minimum/maximum velocity, (display
selectable); (1) Reverse flow output
indication.
Power Requirements: 12-42.4 VDC
.25 A @ 24 VDC; 12-36 VAC.

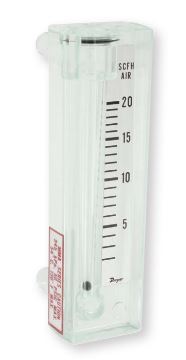

Modelo : MMA-20
Flujometro Mini Master para AIRE
Marca : Dwyer
Fluido : Aire

Flujometro Con brida 2 pulg. Ansi 150 RF,15m3/H brain 75G,2 bar.
Modelo : KD/Z3
Medición de Estructura de Tubo : Tubo de vidrio borosilicatado
Conecciones : Con brida 2” ANSI 150 RF
Material : Polipropileno
Fluido : Salmuera
Rango de Flujo : 15 M3/h
Temperatura : 75ºC
Presión : 2 bar

VOLUMETRIC FLOW METER
Brand: HONSBERG
Model: HD2K-Z-025-G-M-025
[HD2K]: Version, Brass
[Z]: Indicator Options, With frontal measurement display Z
[025]: Nominal Diameter, DN 25 - G 1
[G]: Connection Type, Female Thread G 1
[M]: Connection Material, Brass CW614N nickel-plated
[025]: Switching Range Oil, 2.5...25 l/min oil 30...330mm2/s

Flujometro de Lectura directa
Material: PVC
Conección: con Brida 1" ANSI 150 RF
Junta: NBR
Fluido: Agua
Rango de Flujo: 4 m3/h
Temperatura: 20ºC
Prsión: 60 psi
Caracteristicas: Flotador AISI 316

MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS
MODELO: TCM-28K-FO-SGSS-CBMS
TRICOR CORIOLIS MASS METER

• Brand: TRICOR

*** Part Number Code Description***

TCM: Tricor Coriolis Mass Meter

3100: Flow Range: up to 3100 kg/hr (51,67 lpm)

FM: 1” female NPT process connections

S: Media Temperature Range -40 to 100°C

G: 5 bar case rupture disk

S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability

Density Accuracy: 0.001 gr/cc

S: Standard flange to flange length

C: Meter Mount / Local display

B: Foundation Fieldbus, RS485, Modbus Interface

M: 90 – 264 VAC supply voltage

S: Standard (integral electronics)

***Standard Features***

Tube Material: 316L SS

Flow Splitter Mat’l: 316 SS

Electronics: 8000 Series

Outputs: Qty 2 4-20mA

Qty 1 Frequency

MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS
MODELO: TCM-28K-FO-SGSS-CBMS
TRICOR CORIOLIS MASS METER

• Brand: TRICOR

• *** Part Number Code Description***

• TCM: Tricor Coriolis Mass Meter

• 28K: Flow Range: up to 28K kg/hr (466.67 lpm)

• FO: 1.5” female NPT process connections

• S: Media Temperature Range -40 to 100°C

• G: 5 bar case rupture disk

• S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability

• Density Accuracy: 0.001 gr/cc

• S: Standard flange to flange length

• C: Meter Mount / Local display

• B: Foundation Fieldbus, RS485, Modbus Interface

• M: 90 – 264 VAC supply voltage

• S: Standard (integral electronics)

• ***Standard Features***

• Tube Material: 316L SS

• Flow Splitter Mat’l: 316 SS

• Electronics: 8000 Series

• Outputs: Qty 2 4-20mA

• Qty 1 Frequency

MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS
MODELO: TCM-7900-FM-SGSS-CBMS
TRICOR CORIOLIS MASS METER

• Brand: TRICOR

• *** Part Number Code Description***

• TCM: Tricor Coriolis Mass Meter

• 7900: Flow Range: up to 7900 kg/hr (131,67 lpm)

• FM: 1” female NPT process connections

• S: Media Temperature Range -40 to 100°C

• G: 5 bar case rupture disk

• S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability

• Density Accuracy: 0.001 gr/cc

• S: Standard flange to flange length

• C: Meter Mount / Local display

• B: Foundation Fieldbus, RS485, Modbus Interface

• M: 90 – 264 VAC supply voltage

• S: Standard (integral electronics)

• ***Standard Features***

• Tube Material: 316L SS

• Flow Splitter Mat’l: 316 SS

• Electronics: 8000 Series

• Outputs: Qty 2 4-20mA

• Qty 1 Frequency

MEDIDOR DE FLUJO MÁSICO TIPO CORIOLIS
MODELO: TCM-65K-FO-SGSS-CBMS
TRICOR CORIOLIS MASS METER

• Brand: TRICOR

• *** Part Number Code Description***

• TCM: Tricor Coriolis Mass Meter

• 65K: Flow Range: up to 65K kg/hr (1083,33 lpm)

• FO: 1.5” female NPT process connections

• S: Media Temperature Range -40 to 100°C

• G: 5 bar case rupture disk

• S: Mass Flow Accuracy: 0.10% ±0.01% Zero Stability

• Density Accuracy: 0.001 gr/cc

• S: Standard flange to flange length

• C: Meter Mount / Local display

• B: Foundation Fieldbus, RS485, Modbus Interface

• M: 90 – 264 VAC supply voltage

• S: Standard (integral electronics)

• ***Standard Features***

• Tube Material: 316L SS

• Flow Splitter Mat’l: 316 SS

• Electronics: 8000 Series

• Outputs: Qty 2 4-20mA

• Qty 1 Frequency
