CI-MD-G10180-2-3-0-0<br />
• Model CI-MD Cosasco Multiple Disc Coupon<br />
* To be use on: RETRACTIL Coupon Holder Model 621301<br />
* To be Mounted on MIDDLE Position<br />
* Multiple Disc Coupon, 1-1/4" Diameter, 1/8" Thickness.<br />
• GLASS BEAD BLAST Surface Finish, Pre-weighed.

CI-MD-G10180-0-3-0-0<br />
• Model CI-MD Cosasco Multiple Disc Coupon<br />
* To be use on: RETRACTIL Coupon Holder Model 621301<br />
* To be Mounted on TOP and BOTTOM Position<br />
* Multiple Disc Coupon, 1-1/4" Diameter, 1/8" Thickness.<br />
• GROUND Surface Finish, Pre-weighed.

ATEX Certificate for:<br />
* MWT-3905 Wireless Transmitter

620301-X14<br />
Coupon Holder Retractable system for a MULTI DISK.<br />
• With Stuffing Box Assy.<br />
• To be mounted in 6" Pipe SCH80<br />
* 03 disk Coupons to be located in position 6, 3 and 12<br />
---- Position 12 O Clock: Coupon Model CI-MD-G10180-0-3-0-0 (Top)<br />
---- Position 03 O Clock: Coupon Model CI-MD-G10180-2-3-0-0 (Middle)<br />
---- Position 06 O Clock: Coupon Model CI-MD-G10180-0-3-0-0 (Bottom)<br />
• Mounting 1” NPT<br />
• Pressure Rating 1500 Psi, Temperature rating 260C<br />
• Safety Clamp Included

620301-X13<br />
Coupon Holder Retractable system for a MULTI DISK.<br />
• With Stuffing Box Assy.<br />
• To be mounted in 6" Pipe SCH40<br />
* 03 disk Coupons to be located in position 6, 3 and 12<br />
---- Position 12 O Clock: Coupon Model CI-MD-G10180-0-3-0-0 (Top)<br />
---- Position 03 O Clock: Coupon Model CI-MD-G10180-2-3-0-0 (Middle)<br />
---- Position 06 O Clock: Coupon Model CI-MD-G10180-0-3-0-0 (Bottom)<br />
• Mounting 1” NPT<br />
• Pressure Rating 1500 Psi, Temperature rating 260C<br />
• Safety Clamp Included

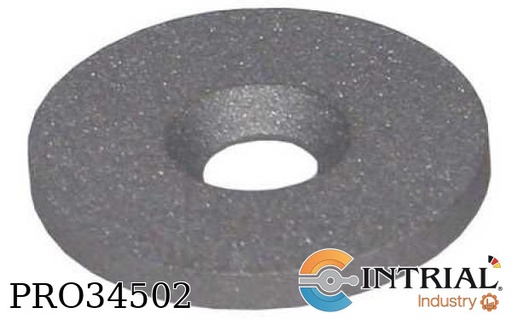

Corrosion Coupon Flush Disk Carbon Steel<br />
Dimensions: 1.25" Dia; 0.125" Thickness (1.1/4x1/8"); Mounting hole ID 0.312”<br />
Exposed surface area 2.5 sq. in. (16.1 sq. cm.)<br />
Ground Surface Finish, Pre-weighed.<br />
Material: G10180 (1018 mild Steel)<br />
Include Standard Nylon insulator<br />
Brand: COSASCO
<div>
<div class="gtx-trans-icon"></div>
</div>

COSASCO High Pressure Two Inch Access Fitting Assembly w/PLUG Included<br />
BRAND: COSASCO<br />
12" Sch 100
<div>
<div class="gtx-trans-icon"></div>
</div>

SONDA TIPO FLUSH. MODELO 2705; FORMA DE ELEMENTO S8; MONTAJE 3/4"<br />
MARCA: COSASCO<br />
NPT;PARA TUBERIA 6" & 4"; 4000 PSI///<br />
PROBE FLUSH TYPE. MODEL 2705; ELEMENT FORM S8; MOUNTING 3/4" NPT; FOR<br />
6" & 4" PIPE; 4000 PSI//

Corrosometer Probe Replacement Insert Model 3001<br />
*Temp. rating + 500 F/ 260C<br />
*Pressure Rating 1000PSI/6.9 Mpa<br />
*Element Type W80 (20 mil useful life)<br />
*Element Alloy: K03005 (Carbon Steel)<br />
*Lenght of Probe: 24"<br />
*Brand: COSASCO
<div>
<div class="gtx-trans-icon"></div>
</div>

Corrosometer probe Loop Element,-<br />
Brand: COSASCO<br />
Replacement El,ement with a 1''mounting,Temp rating 260C,Pressu,re rating 1000Psi,Element seal TEFLON with a Cera,mic as a Fill material.,-Probe Body Material St,ainless Steel 304 for wetted parts.,-Wire loop ,80mil diameter,-Carbon Steel as Element Alloy ,-18 inches length,-Standard Shield and not sa,fety clamp

EQUIPO MEDIDOR DE VELOCIDAD DE CORROSIÓN<br />
MARCA: COSASCO<br />
KIT DATA LOGGER/TRANSFER

GLAND, CABLE - 1in NPT<br />
JUNCTION BOX ASSY<br />
Brand: COSASCO<br />
MODEL: 9716

INTELLIGENT INTERFACE UNIT, MICROCOR<br />
NEMA 4X ENCLOSURE, SINGLE RS485 INPUTS FOR UP TO 32 TRANSMITTERS<br />
MODBUS SLAVE OUTPUT ON RS232, RS422, RS485 OR TCP/IP TO PLC, DCS. OR<br />
SCADA. NEED SUPPLY VOLTAGE FOR TEH PC AND LOOPS FOR MICROCOR TR<br />
ANSMITTERS AND RS232 TO 485 CONVERTER SINGLE MIRCOCOR LOOP C/W 1 M32 CABLE GLAND,1 M20 CABLE GLAND <<br />
(>&<)> 4 M20 STOPPING PLUGS<br />
MODEL: 748302 17<br />
Brand: COSASCO

FLUSH DISC 6.00 -316<br />
Brand: COSASCO<br />
​2in C/H ASSY<br />
A/F is on the TOL (Top of line) and the coupon at<br />
the BOL (Bottom of Line).<br />
MODEL: 6202-25.75

KIT, 2" SERVICE VALVE 3600#<br />
NACE, DOUBLE BLOCK AND BLEED VALVE<br />
Brand: COSASCO<br />
MODEL: 601040

STAINLESS STEEL ETCHED BLANK<br />
Marca: COSASCO<br />
MODEL: TAGGING

Field Cable with Gray PVC Jacket over Aluminum Interlocked Armor<br />
* 2x14 AWG Pairs (300V) shielded, and overall shielded.<br />
* CSA Certified for temperature range -40°C to +90°C<br />
Units: FOOT

JUNCTION BOX ASSY,<br />
EXPLOSIONPROOF- MICROCOR<br />
MALLEABLE IRON<br />
MODEL: 702181-2

Transmitter Connection cable: <br />
Flexible Ex-proof connection (USA/CSA)<br />
Brand: COSASCO<br />
For Microcor Transmitter <br />
Length: 30 Feet

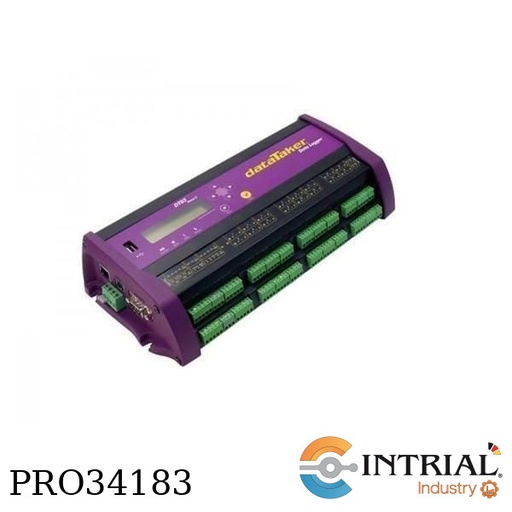

DATA LOGGER DATATAKER <br />
MODELO: DT85 SERIES 2 DATA LOGGER<br />
MARCA: DATATAKER <br />
(± 30V) SENSOR INPUTS EXPANDABLE TO 960<br />
ANALOG INPUTS 8 FLEXIBLE DIGITAL<br />
CHANNELS MODBUS FOR SCADA CONNECTION<br />
SDI-12 (MULTIPLE NETWORKS) USB MEMORY<br />
FOR EASY DATA AND PROGRAM
