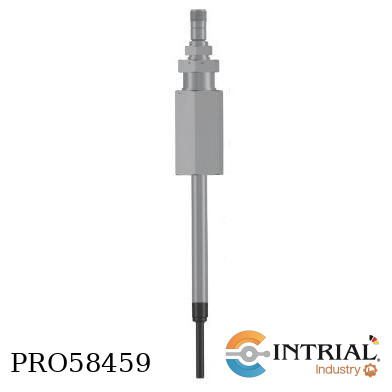

Microcor CYLINDRICAL Retractable Probe<br />
* Cylindrical Element<br />
* Mounting — 1" Full Port Valve Minimum<br />
* Temp. Rating for Model M3500 — 425°F 218°C<br />
* Pressure Rating for Model M3500 — 1500 PSI/10.3 MPa<br />
* Element Seal Material — All Welded<br />
* Element Type: T20 (10 mils probe span)<br />
* Element Alloy: K03005 (Carbon Steel)<br />
* Length: 30" Nominal<br />
* Safety Clamp Included<br />
* Coupon HOLDER SHILED Included  (liquids 25 ft./sec, gases 75 ft./sec)

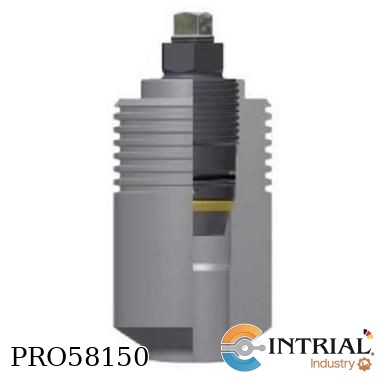

COSASCO High Pressure Two Inch Access Fitting Assembly w/PLUG Included<br />
* 2" ASME (ANSI) Flange RF for mating with standad flanges, no welding<br />
• Pressure Rating: 150#<br />
• Standard Temperature Rating with Viton O-Ring Teflon Primary Packing (-26 C to 204 C)<br />
• Size tee, 1/2” INCLUDED<br />
* Meets NACE MR0175 and MR0103<br />
• Body Material: S31600 (AISI 316 Stainless Steel)<br />
• INCLUDE:  SOLID Plug Assembly in 316L<br />
* INCLUDE: Polycarbonate Cover Without Hole.

COSASCO High Pressure Two Inch Access Fitting Assembly w/PLUG Included<br />
* 2" ASME (ANSI) B16.5 Flange RJ for mating with standad flanges, no welding<br />
• Pressure Rating: 9/1500# RJ<br />
• Standard Temperature Rating with Viton O-Ring Teflon Primary Packing (-26 C to 204 C)<br />
• Size tee, 1/2” INCLUDED<br />
* Meets NACE MR0175 and MR0103<br />
• Body Material: S31600 (AISI 316 Stainless Steel)<br />
• INCLUDE:  SOLID Plug Assembly in 316L<br />
* INCLUDE: Polycarbonate Cover Without Hole.

748497-2-13<br />

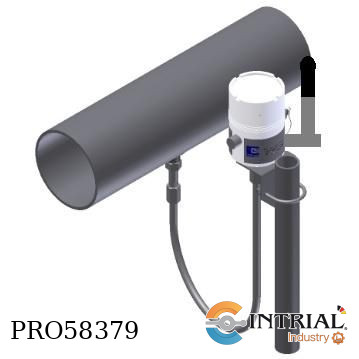

MWT Remote Mounting Kit            <br />
For Retractable MICROCOR Wireless Transmitter<br />
* Cable lenght: 13 FT. (3.96 mts) Max. Distance<br />
* All-In-One Probe Adapter Cable Assembly and Mounting Bracket

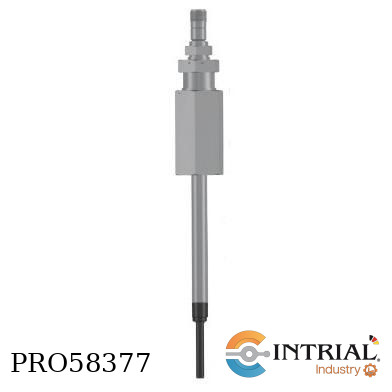

<p class="MsoNormal"><span lang="en-us" xml:lang="en-us">Microcor CYLINDRICAL Retractable Probe<br />
* Cylindrical Element<br />
* Mounting — 1" Full Port Valve Minimum<br />
* Temp. Rating for Model M3500 — 425°F 218°C<br />
* Pressure Rating for Model M3500 — 1500 PSI/10.3 MPa<br />
* Element Seal Material — All Welded<br />
* Element Type: T20 (10 mils probe span)<br />
* Element Alloy: K03005 (Carbon Steel)<br />
* Length: 36" Nominal<br />
* Safety Clamp Included<br />
* Special Coupon Holder Shield included (liquids up to 25ft/2, Gases 75 ft/2)</span></p>

CORROSOMETER PROBE Flush Element<br />
* Complete Probe Assembly-Fixed<br />
* Mounting: COSASCO 2" system<br />
* Probe Body Material: 316L SS<br />
* Element Form: Flush Element, 10 mil Thickness (5 mil span)<br />
* Alloy: K03005 (Carbon Steel)<br />
* Probe Length: 1.5"<br />
* Connector Type: “S” Type with shrouded pins

CI-RS-S30400-0000<br />
Retractable Strip Coupon Model CI COSASCO<br />
•Alloy: 304 Stainless Steel<br />
•Dimensions: 3”LG x 1/2”W x 1/16"TH<br />
•Grid Blast Finish, Standard Nylon insulator, Preweighed

COSASCO High Pressure Two Inch Access Fitting Assembly w/PLUG Included<br />
•    Non-tee, FLARWELD Mounting with integral Branch Reinforcement per ASME B31.3<br />
•    Standard Temperature Rating with Viton O-Ring /Teflon Primary Packing (-26C to 204 C)<br />
•    Pressure Rating: 6000 Psi<br />
•    INCLUDE:  HOLLOW Plug Assembly in 316L<br />
•    Pipe Size: 6”<br />
•    Body Material: ASTM A105 Carbon Steel

Replacement Probe Insert for CYLINDRICAL Microcor Probe<br />
•    For Cylindrical Probe Model M3500<br />
•    Probe Body Stainless Steel<br />
•    Element Probe: K03005<br />
•    Element T10 (5 mils Probe Span)<br />
•    Length: 18"

Material Test Certificates<br />
==================<br />
Certificates for the following parts:<br />
--- Access Fitting Assembly Modelo 50<br />
--- Hollow Plug<br />
--- Probeta Modelo 4700<br />
--- Valvula de Servicio Modelo 3600C<br />
--- Herramienta Retriever Modelo RSL-2500-25

748497-2-13<br />
Remote Mounting Cable            <br />
For MICROCOR Wireless Transmitter<br />
Retractable (ARMORED)<br />
Cable lenght: 13 FT. (3.96 mts)<br />
Probe adaptor Cable and Mounting Bracket<br />
(For Retractable M3500 Probes)

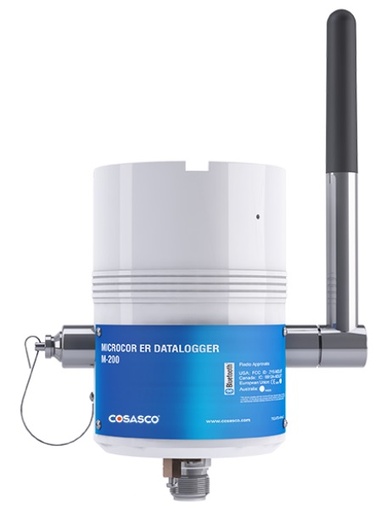

Microcor ER BLUETOOTH DATALOGER M-200<br />
* Model: M-200-0-NB<br />
* Microcor Data-Logger enclosure (Aluminium)<br />
* Probe Compatibility: All Microcor Probes<br />
* Battery Life: 3 years at 1 hour measurement Interval<br />
* DO NOT INCLUDE Lithium Baterry<br />
* Hazardous Area Certified for use in Class 1, Zone 1<br />
• Nema 4X IP66 Rate Enclosur<br />
* Wireless Range up to 32 ft (10m)<br />
* REPLACE Dataloger MWT-3905-MDL<br />
COSASCO

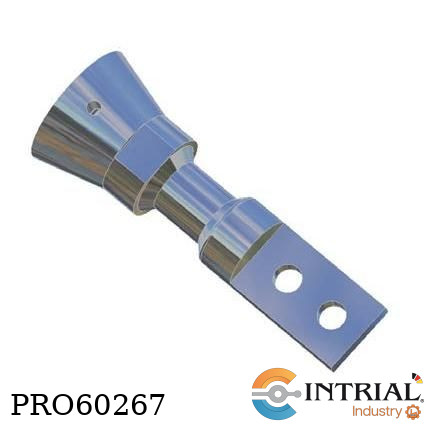

Strip Coupon Holder in AISI 316 Stailess Steel Lenght: 10"

Replacement Probe Insert for CYLINDRICAL Probe<br />
•    For Cylindrical Probe Model 3500<br />
•    Probe Body Stainless Steel<br />
•    Element Probe: K03005<br />
•    Element T10 (5 mils Probe Span)<br />
•    Length: 18"

ER Probe Reader,<br />
* BT wireless device<br />
* Standard aluminum connector.<br />
COSASCO

Transfer Unit TU-500 Bluetooth COSASCO<br />
Model: TU-500<br />
* Easy Data Transfer via Wireless Bluetooth<br />
* Wireless range up to 12m line of sight (No more cables required)<br />
* Certified for use in Class I, Zone 1<br />
* IP 20 rate enclosure<br />
* Replace Checkmate, Aquamate and Checkmate DL with respective Adaptors<br />
* COSASCO

CORROSOMETER PROBE Flush Element<br />
* Complete Probe Assembly-Fixed<br />
* Mounting: COSASCO 2" system<br />
* Probe Body Material: 316L SS<br />
* Element Form S20: Flush Element, 20 mil Thickness (10 mil span)<br />
* Alloy: K03005 (Carbon Steel)<br />
* Probe Length: 1.5"<br />
* Connector Type: “S” Type with shrouded pins

CORROSOMETER PROBE Flush Element<br />
* Complete Probe Assembly-Fixed<br />
* Mounting: COSASCO 2" system<br />
* Probe Body Material: 316L SS<br />
* Element Form S20: Flush Element, 20 mil Thickness (10 mil span)<br />
* Alloy: K03005 (Carbon Steel)<br />
* Probe Length: 1.62"<br />
* Connector Type: “S” Type with shrouded pins

CORROSOMETER PROBE Flush Element<br />
* Complete Probe Assembly-Fixed<br />
* Mounting: COSASCO 2" system<br />
* Probe Body Material: 316L SS<br />
* Element Form S20: Flush Element, 20 mil Thickness (10 mil span)<br />
* Alloy: K03005 (Carbon Steel)<br />
* Probe Length: 1.37"<br />
* Connector Type: “S” Type with shrouded pins

Drag Force /Strength Calculation<br />
Vibration calculations for 03 retractable Flush Coupon Holder Models:<br />
1.- MultiDisk Coupon Holder Model: 620301-X13 (ITEM 70)<br />
---- Insertion length: As calculated for ITEM 70<br />
---- Pipe Diameter 6” - SCH 40<br />
---- Fluid Type: Water<br />
---- Flow: 7.15 f/s<br />
<br />
2.- MultiDisk Coupon Holder Model: 620301-X14 (ITEM 80)<br />
---- Insertion length: As calculated for ITEM 80<br />
---- Pipe Diameter 6” - SCH 80<br />
---- Fluid Type: Crude with 5% water<br />
---- Flow Speed: 3.44 f/s<br />
<br />
3.- Coupon Holder Model: 621202-18 (ITEM 60)<br />
---- Insertion length: 6"<br />
---- Pipe Diameter 6” - SCH 80<br />
---- Fluid Type: Biphasic<br />
---- Flow Speed: 3.87 f/s
