STRIP Coupon Model CI COSASCO Two-Inch High Pressure System<br />
• 3" Strip Coupon<br />
• Measuring 2-7/8''x 7/8''x1/8" (Expose surface area 5.2 sq. in)<br />
• Material: G10180 (Carbon Steel)<br />
• Surface finish:Glass Bead Blast<br />
* Standard Nylon Insulator<br />
* Pre-weighed

Corrosometer Probe Cylindrical Element<br />
•    Model 3500 complete probe Assembly with Stuffing Box<br />
•    Mounting 1” Full Port Valve Minimum<br />
•    Element Seal Material ALL WELDED<br />
•    Element Form T10: 10 mil thickness (05 mil useful probe life)<br />
•    Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
•    Order Length: 18 Inches<br />
•    Safety Clamp INCLUDED<br />
•    Shield Protector: NOT Included

Corrosometer Probe Cylindrical Element<br />
•    Model 3500 complete probe Assembly with Stuffing Box<br />
•    Mounting 1” Full Port Valve Minimum<br />
•    Element Seal Material ALL WELDED<br />
•    Element Form T20: 20 mil thickness (10 mil useful probe life)<br />
•    Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
•    Order Length: 18 Inches<br />
•    Safety Clamp INCLUDED<br />
•    Shield Protector: NOT Included

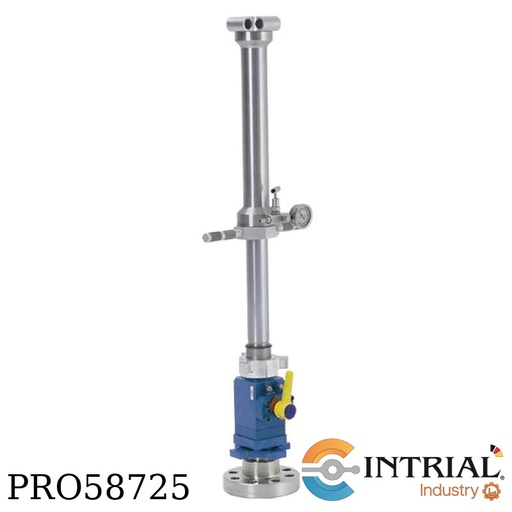

COSASCO Two-Inch ,System Retriever Kit<br />
* Pressure Rating: 2500 Psi<br />
* Temperature Rating: 232 C<br />
* Stroke length: 37 in<br />
Meets NACE MR 0175 and MR0103

COSASCO High Pressure Two Inch Access Fitting Assembly w/PLUG Included<br />
* 2" ASME (ANSI) Flange RF for mating with standad flanges, no welding<br />
• Pressure Rating: 150#<br />
• Standard Temperature Rating with Viton O-Ring Teflon Primary Packing (-26 C to 204 C)<br />
• Size tee, 1/2” INCLUDED<br />
* Meets NACE MR0175 and MR0103<br />
• Body Material: S31600 (AISI 316 Stainless Steel)<br />
• INCLUDE:  SOLID Plug Assembly in HASTELLOY C-276 (Recommended for S.S. Fitting Bodies - NACE Compliant)<br />
* INCLUDE: Polycarbonate Cover Without Hole.

COSASCO High Pressure Two Inch Access Fitting Assembly w/PLUG Included<br />
* 2" ASME (ANSI) B16.5 Flange RJ for mating with standad flanges, no welding<br />
• Pressure Rating: 9/1500# RJ<br />
• Standard Temperature Rating with Viton O-Ring Teflon Primary Packing (-26 C to 204 C)<br />
• Size tee, 1/2” INCLUDED<br />
* Meets NACE MR0175 and MR0103<br />
• Body Material: S31600 (AISI 316 Stainless Steel)<br />
• INCLUDE:  SOLID Plug Assembly in HASTELLOY C-276 (Recommended for S.S. Fitting Bodies - NACE Compliant)<br />
* INCLUDE: Polycarbonate Cover Without Hole.

LPR Probe Reader<br />
* BT wireless device<br />
* Standard aluminum connector.<br />
COSASCO

COSASCO Data Offline<br />
* Activation Key for 01 PC

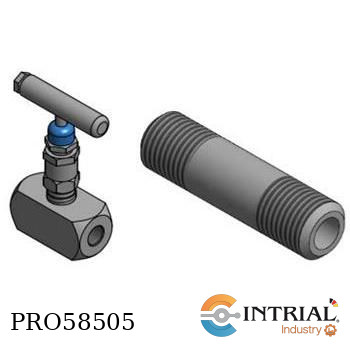

NIPPLE<br />
=====’<br />
•    Nipple Size 1/2" SCH 160<br />
•    Length:  4.00<br />
•    Material: 316 SS.<br />
VALVE<br />
======’<br />
•    Shutoff Needle Valve 1/2" FNPT<br />
•    Material: 316 SS.

2" Injection Tube 1/2 NPT x QUILL<br />
Material:  316 Stainless Steel<br />
lenght: 4.5" Inches<br />
COSASCO

2" Injection Tube 1/2 NPT x QUILL<br />
Material:  316 Stainless Steel<br />
lenght: 6.5" Inches<br />
COSASCO

2" Injection Tube 1/2 NPT x QUILL<br />
Material:  316 Stainless Steel<br />
lenght: 4.25" Inches<br />
COSASCO

2" Injection Tube 1/2 NPT x QUILL<br />
Material:  316 Stainless Steel<br />
lenght: 10.5" Inches<br />
COSASCO

2" Injection Tube 1/2 NPT x QUILL<br />
Material:  316 Stainless Steel<br />
lenght: 9.0" Inches<br />
COSASCO

Injection/Sampling Nut Assembly (1/2” NPT)<br />
•    With Bleed Ports in the side wall above<br />
•    Drilled and tapered with 1/2” NPT thread to enable attachment of diferent size injection/sampling Tube or Nuzzle Assemblies.<br />
•    For Access Fitting Body Height of 7.25”<br />
•    Integral CHECK VALVE Included in 316 SS

Injection/Sampling Nut Assembly (1/2” NPT)<br />
•    With Bleed Ports in the side wall above<br />
•    Drilled and tapered with 1/2” NPT thread to enable attachment of diferent size injection/sampling Tube or Nuzzle Assemblies.<br />
•    For Access Fitting Body Height of 8.25”<br />
•    Integral CHECK VALVE Included in 316 SS

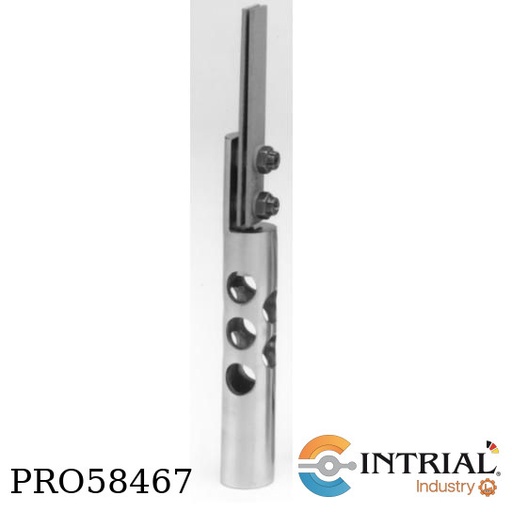

Coupon Holding Shield for probes model M3500<br />
• Probe Types: T10<br />
• Material: K03005 carbon Steel<br />
• Manufacture: COSASCO

Microcor CYLINDRICAL Retractable Probe<br />
Cylindrical Element<br />
Mounting — 1" Full Port Valve Minimum<br />
Temp. Rating for Model M3500 — 425°F 218°C<br />
Pressure Rating for Model M3500 — 1500 PSI/10.3 MPa<br />
Element Seal Material — All Welded<br />
Element Type: T10 (5 mils probe span)<br />
Element Alloy: K03005 (Carbon Steel)<br />
Length: 30" Nominal<br />
Safety Clamp Included<br />
Coupon HOLDER SHIELD included (liquids 25 ft./sec, gases 75 ft./sec)

Microcor CYLINDRICAL Retractable Probe<br />
Cylindrical Element<br />
Mounting — 1" Full Port Valve Minimum<br />
Temp. Rating for Model M3500 — 425°F 218°C<br />
Pressure Rating for Model M3500 — 1500 PSI/10.3 MPa<br />
Element Seal Material — All Welded<br />
Element Type: T10 (5 mils probe span)<br />
Element Alloy: K03005 (Carbon Steel)<br />
Length: 24" Nominal<br />
Safety Clamp Included<br />
Coupon HOLDER SHIELD included (liquids 25 ft./sec, gases 75 ft./sec)

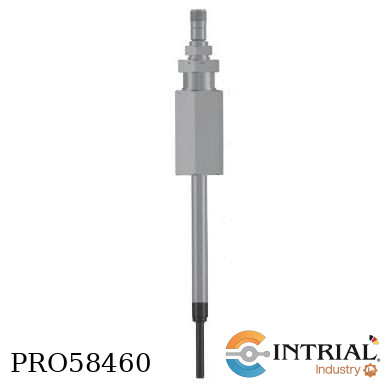

Microcor CYLINDRICAL Retractable Probe<br />
* Cylindrical Element<br />
* Mounting — 1" Full Port Valve Minimum<br />
* Temp. Rating for Model M3500 — 425°F 218°C<br />
* Pressure Rating for Model M3500 — 1500 PSI/10.3 MPa<br />
* Element Seal Material — All Welded<br />
* Element Type: T20 (10 mils probe span)<br />
* Element Alloy: K03005 (Carbon Steel)<br />
* Length: 24" Nominal<br />
* Safety Clamp Included<br />
* Coupon HOLDER SHIELD included (liquids 25 ft./sec, gases 75 ft./sec)
