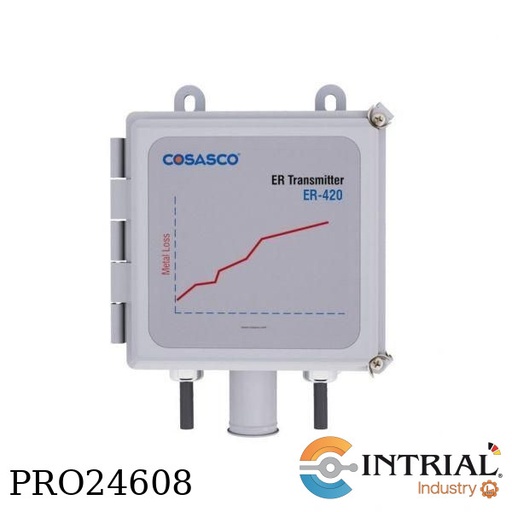

ER Transmitter Model ER-420<br />
•    Model: ER-420-0-B-T-0-5-2<br />
•    Output: 4-20mA<br />
•    Hazardous Area certification: Class I, Zone 2 or Div2<br />
•    Probe Connector Type B for Flush element<br />
•    Scale Range: 100% of probe life / Resolution +/- 0.1% for rapid response<br />
•    Supply Voltage: 10-30 Vdc at 20mA (Loop Powered)<br />
•    Enclosure: Fiberglass Polyester NEMA 4X (Standard)… Available in Stainless Steel on request<br />
•    Intrinsically safe (IECEx/ATEX/CSA)<br />
•    Cable Length: 5 ft













CBL1-1-B-0-0-3<br />
INTERFASE cable for Model CHECKMATE Instrument<br />
3 ft Length<br />
COSASCO<br />


Electrical Resistance (ER) Probe<br />
MODEL 600 Atmospheric<br />
• Mounting: 3/16” Mounting Hole<br />
• Temp. Rating: -40C to 121C<br />
• Element Alloy: Pipe grade Steel<br />
• Span S4:  4 mils Thickness (2 mils useful life)

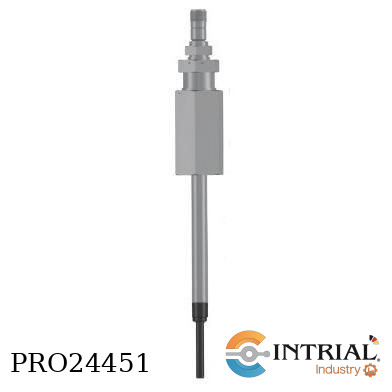

Microcor CYLINDRICAL Retractable Probe<br />
Cylindrical Element<br />
Mounting — 1" Full Port Valve Minimum<br />
Temp. Rating for Model M3500 — 425°F 218°C<br />
Pressure Rating for Model M3500 — 1500 PSI/10.3 MPa<br />
Element Seal Material — All Welded<br />
Element Type: T10 (5 mils probe span)<br />
Element Alloy: K03005 (Carbon Steel)<br />
Length: 18" Nominal<br />
Safety Clamp Included<br />
Standard Shield included (liquids up to 25ft/2, Gases 75 ft/2)

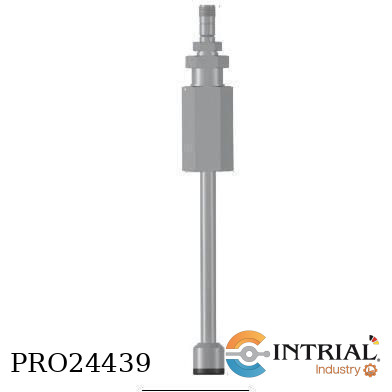

Microcor FLUSH Retractable Probe<br />
* Flush Probe Element<br />
* Diameter Head: 1.25”<br />
* Mounting: Requires 1.5" Full Port Valve plus Swaged nipple connection between valve & stuffing box.<br />
* Temp. Rating for Model M3000 — 425°F 218°C<br />
* Pressure Rating for Model M3000 — 1500 PSI/10.3 MPa<br />
* Element Type: F10 (5 mils probe span)<br />
* Element Alloy: K03005 (Carbon Steel)<br />
* Length: 30"<br />
* Safety Clamp Included

Access Valve Assembly Retractable System<br />
Consisting of:<br />
• TThreadolet for pipe size “LL” (To be defined by customer)<br />
• All thread nipple<br />
• Ball valve 1 ½”<br />
• Reduction Niple 1 ½” to 1”<br />
• Full Valve Provided in Carbon Steel

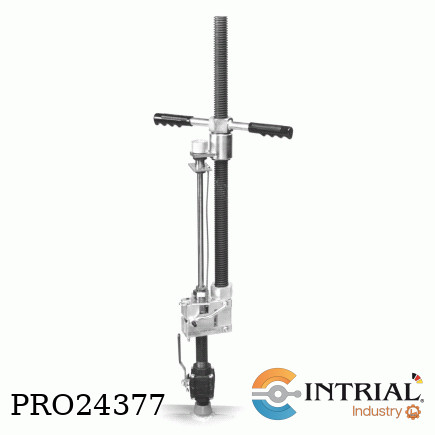

Retractor System Model 60<br />
Brand: COSASCO<br />
Quick Mounting & Release<br />
Lightweight<br />
Working pressure: 1500PSI<br />
Convenient Carrying Case<br />
Compatible with the RSC  Retractable System of access fitting, probes, sensors and injection devices.  It is also, compatible with a standard 1” full port ball valve and nipple assembly<br />
Ordering Length: 48” (Retractor Overall Length 59")<br />
See Datasheet  for more information

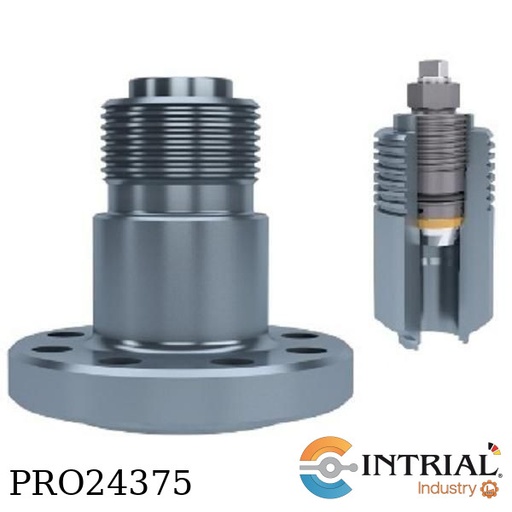

COSASCO High Pressure Two Inch Access Fitting Assembly w/PLUG Included<br />
• Non-tee, 2” ASME (ANSI) B16.5 Flange RJ for mating with standad flanges, no welding<br />
• Standard Temperature Rating with Viton O-Ring /Teflon Primary Packing (-26 C to 204 C)<br />
• Pressure Rating: 9/1500# RJ<br />
* Meets NACE MR0175 and MR0103<br />
• Body Material: ASTM A105 Carbon Steel<br />
• INCLUDE:  SOLID Plug Assembly in 316L<br />
* INCLUDE: Polycarbonate Cover Without Hole.
