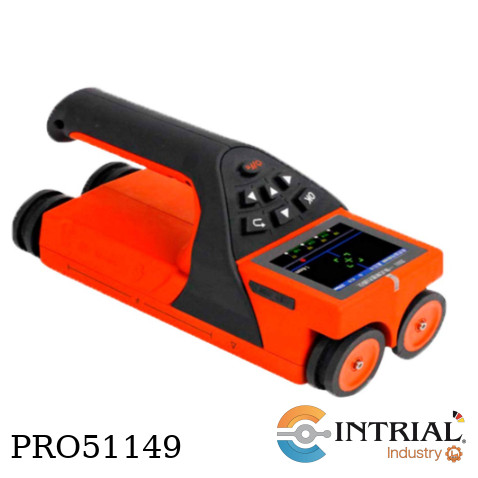

Integrated Rebar Detector <br />
Marca: Tongbao<br />
Modelo: ZD310

Corrosion Coupon Flush Disk Carbon Steel<br />
* Dimensions: 1.25" Dia; 0.125" Thickness (1.1/4x1/8"); Mounting hole ID 0.312”<br />
* Exposed surface area 2.5 sq. in. (16.1 sq. cm.)<br />
* Ground Surface Finish, Pre-weighed.<br />
* Material: A106GRB (Carbon Steel)<br />
Brand: COSASCO
<div>
<div class="gtx-trans-icon"></div>
</div>

Multiple Disk Coupon Holder<br />
•    Simultaneously Monitors (Top, Middle and Bottom of Pipeline)<br />
•    Material 316 SS<br />
•    Length: 9.75”<br />
*  Spacer 1 at AF

MWT-3905-WE<br />
Cosasco Wireless Extender (includes mounting bracket)<br />
* Housing Aluminum<br />
* 2.4 GHz WirelessHART - Integral Antenna<br />
* NOT included Battery

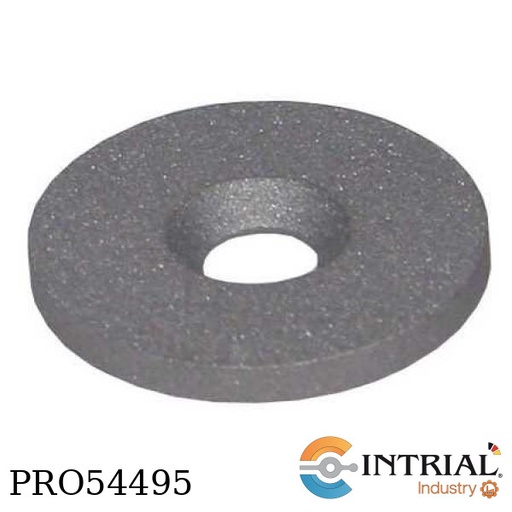

Corrosion Coupon Flush Disk Carbon Steel<br />
Dimensions: 1.25" Dia; 0.125" Thickness; Mounting hole ID 0.312”<br />
Exposed surface area 2.5 sq. in. (16.1 sq. cm.)<br />
Glass Bead Blast Surface Finish, Pre-weighed.<br />
Material: G10180 (1018 mild Steel)<br />
Brand: COSASCO

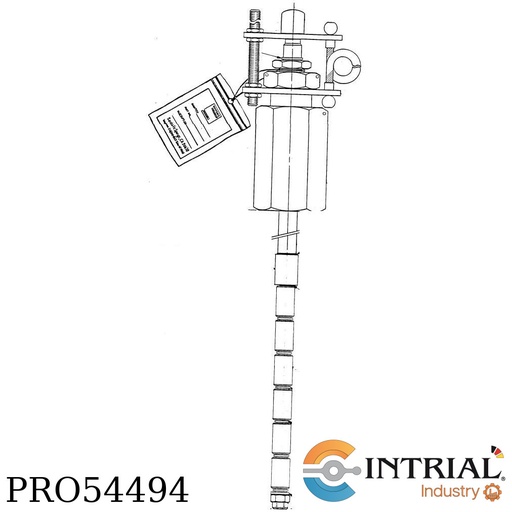

621301-X5<br />
Coupon Holder Retractable system for a MULTI DISK.<br />
• With Stuffing Box Assy.<br />
• To be mounted in 6" Pipe SCH40 & SCH80<br />
* Minimun Ball Valve required: 1.5"<br />
* Total Lenght including coupon holder: 24" Lenght<br />
---- Minimun Lenght of Nipple Required after Ball Valve minimun:  of 6.5" clearance<br />
* Maximun Fluid velocity: 13.57 ft/s<br />
* 03 disk Coupons to be located in position 6, 3 and 12<br />
---- Position 12 O Clock: Coupon Model CI-MD-G10180-0-3-0-0 (Top)<br />
---- Position 03 O Clock: Coupon Model CI-MD-G10180-2-3-0-0 (Middle)<br />
---- Position 06 O Clock: Coupon Model CI-MD-G10180-0-3-0-0 (Bottom)<br />
• Mounting 1” NPT<br />
• Pressure Rating 1500 Psi, Temperature rating 260C<br />
• Safety Clamp Included

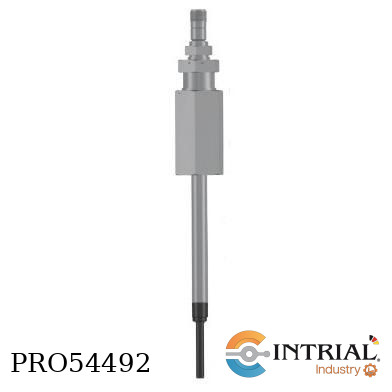

Microcor CYLINDRICAL Retractable Probe<br />
* Cylindrical Element<br />
* Mounting — 1" Full Port Valve Minimum<br />
* Temp. Rating for Model M3500 — 425°F 218°C<br />
* Pressure Rating for Model M3500 — 1500 PSI/10.3 MPa<br />
* Element Seal Material — All Welded<br />
* Element Type: T20 (10 mils probe span)<br />
* Element Alloy: K03005 (Carbon Steel)<br />
* Length: 24" Nominal<br />
* Safety Clamp Included<br />
* Standard Shield NO included (liquids up to 8ft/s, Gases 25 ft/s)

Microcor CYLINDRICAL Retractable Probe<br />
* Cylindrical Element<br />
* Mounting — 1" Full Port Valve Minimum<br />
* Temp. Rating for Model M3500 — 425°F 218°C<br />
* Pressure Rating for Model M3500 — 1500 PSI/10.3 MPa<br />
* Element Seal Material — All Welded<br />
* Element Type: T20 (10 mils probe span)<br />
* Element Alloy: K03005 (Carbon Steel)<br />
* Length: 30" Nominal<br />
* Safety Clamp Included<br />
* Standard Shield NO included (liquids 8ft/s, gases 25ft/s)

748497-2-5<br />
Remote Mounting Cable            <br />
For MICROCOR Wireless Transmitter<br />
Retrievable (ARMORED) 2500 Psi<br />
Cable lenght: 5 FT. (1.5 mts)<br />
Probe adaptor Cable and Mounting Bracket<br />
(For Retrievable Probes)

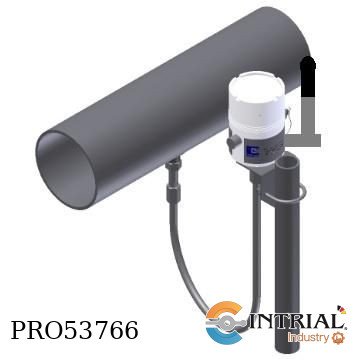

748497-3-15<br />
MWT Remote Mounting Kit            <br />
For Retractable MICROCOR Wireless Transmitter<br />
* Cable lenght: 15 FT. (4.5 mts) Max. Distance<br />
* All-In-One Probe Adapter Cable Assembly and Mounting Bracket

Corrosometer Probe Cylindrical Element 3500<br />
3500-T20-K03005-42-1-1-0<br />
* Model 3500 complete probe Assembly with Stuffing Box<br />
* Mounting 1” Full Port Valve Minimum<br />
* Temp Rating + 218C; Pressure Rating 1500 Psi<br />
* Element Seal Material ALL WELDED<br />
* Element Type: 20 mil thickness (10 mil useful probe life)<br />
* Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
* Length: 42 Inches<br />
* Safety Clamp INCLUDED<br />
* Standard Shield included (liquids up to 25ft/2, Gases 75 ft/2)

Corrosometer Probe Cylindrical Element 3500<br />
3500-T20-K03005-42-1-3-0<br />
* Model 3500 complete probe Assembly with Stuffing Box<br />
* Mounting 1” Full Port Valve Minimum<br />
* Temp Rating + 218C; Pressure Rating 1500 Psi<br />
* Element Seal Material ALL WELDED<br />
* Element Type: 20 mil thickness (10 mil useful probe life)<br />
* Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
* Length: 42 Inches<br />
* Safety Clamp INCLUDED<br />
* Special Coupon Holder Shield included (liquids up to 25ft/2, Gases 75 ft/2)

<p class="MsoNormal"><span lang="en-us" xml:lang="en-us">Corrosometer Probe Cylindrical Element<br />
3500-T20-K03005-30-1-1-0<br />
* Model 3500 complete probe Assembly with Stuffing Box<br />
* Mounting 1” Full Port Valve Minimum<br />
* Temp Rating + 218C; Pressure Rating 1500 Psi<br />
* Element Seal Material ALL WELDED<br />
* Element Form T20: 20 mil thickness (10 mil useful probe life)<br />
* Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
* Order Length: 30 Inches<br />
* Safety Clamp INCLUDED</span><br />
* Standard Shield included (liquids up to 25ft/2, Gases 75 ft/2)<br />
<span lang="en-us" xml:lang="en-us">* Shield Protector: INCLUDED (Liquids 25ft/sec)</span></p>

ER BLUETOOTH DATALOGER COSASCO ER-200<br />
ER-200-0-B-10<br />
* Electrical Resistance BT Data Logger<br />
* Communicates directly with TU-500 and does not require LC-500<br />
* Standard Fiberglass Enclosure<br />
* Probe Connector Type B<br />
* COSASCO

7.2V Lithium Power Module<br />
For MICROCOR Bluetooth dataloger<br />
COSASCO

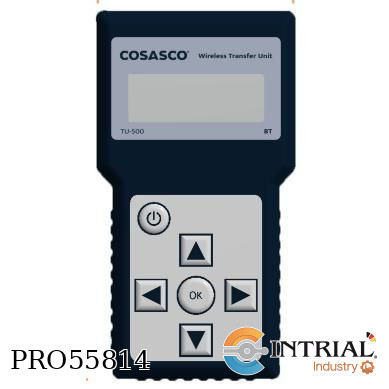

Transfer Unit TU-500 Bluetooth COSASCO<br />
Model: TU-500-1<br />
* Easy Data Transfer via Wireless Bluetooth<br />
* Wireless range up to 12m line of sight (No more cables required)<br />
* Certified for use in Class I, Zone 1<br />
* IP 20 rate enclosure<br />
* Replace Checkmate, Aquamate and Checkmate DL with respective Adaptors<br />
* COSASCO

748497-2-10<br />
Remote Mounting Cable            <br />
For MICROCOR Wireless Transmitter<br />
Retrievable (ARMORED) 2500 Psi<br />
Cable lenght: 10 FT. (3.0 mts)<br />
Probe adaptor Cable and Mounting Bracket<br />
(For Retrievable Probes)

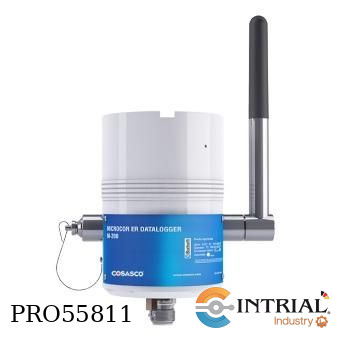

Microcor ER BLUETOOTH DATALOGER M-200<br />
* Model: M-200-1-NB<br />
* Microcor Data-Logger enclosure (Stainless Steel Housing)<br />
* Probe Compatibility: All Microcor Probes<br />
* Battery Life: 3 years at 1 hour measurement Interval<br />
* Do not Include Lithium Baterry<br />
* Hazardous Area Certified for use in Class 1, Zone 1<br />
• Nema 4X IP66 Rate Enclosure

Microcor ER BLUETOOTH DATALOGER M-200<br />
* Model: M-200-1-NB<br />
* Microcor Data-Logger enclosure (Stainless Steel Housing)<br />
* Probe Compatibility: All Microcor Probes<br />
* Battery Life: 3 years at 1 hour measurement Interval<br />
* Do not Include Lithium Baterry<br />
* Hazardous Area Certified for use in Class 1, Zone 1<br />
• Nema 4X IP66 Rate Enclosure

Disc Coupon Holder High Pressure Two Inch System<br />
•    Disc Coupon Holder Assembly Non-Welded<br />
•    Material: 316 SS.<br />
•    Meets NACE MR0175 and MR0103<br />
•    Length: 25.75”<br />
6202N-25.75"
