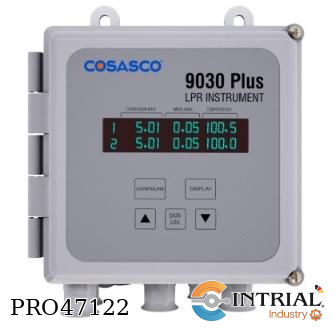

9030 PLUS. Double Channel for two Corrater Probe.<br />
* Corrosion Rate / Imbalance /temperature Monitor measurements<br />
* 02 Channel for corrosion probe<br />
* Six Output 4-20mA<br />
* Power Supply: 230VAC<br />
* Special Cable Lenght 33f  (10mts)<br />
* Include a TEST PROBE<br />
MARCA: ROHRBACK COSASCO

9030 PLUS. Single Channel Transmitter for one Corrater Probe (LPR)<br />
* Transmitter with Local Indicator<br />
* Corrosion Rate / Imbalance /temperature Monitor measurements<br />
* 01 Channel for corrosion probe<br />
* THREE Output 4-20mA (Corrosion rate, Imbalance & temperature)<br />
* Power Supply: 230VAC<br />
* Special Cable Lenght 33f  (10mts)<br />
* Include a TEST PATRON PROBE<br />
MARCA: ROHRBACK COSASCO

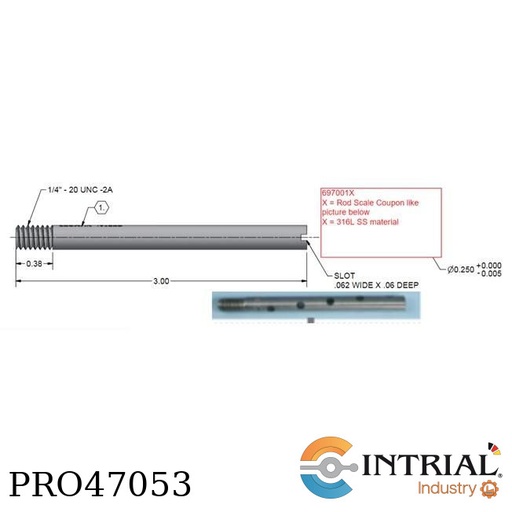

697001X-S31603<br />
Rod Scale Coupon<br />
• Material: 316L SS.SS<br />
• Dimentions as attached picture

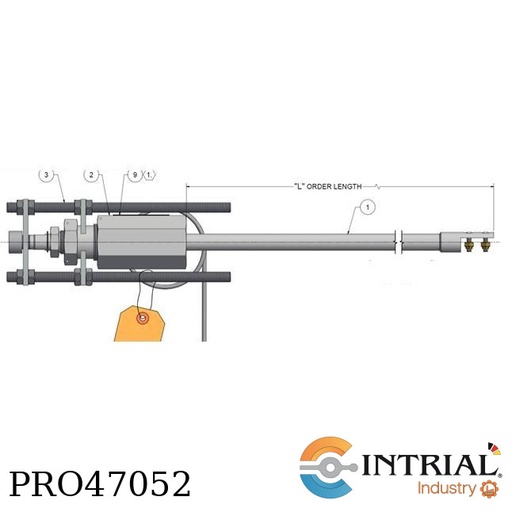

6210X-24-1<br />
Model 6210X Retractable ROD Coupon Holder<br />
• Material 316 S.S.<br />
• Complete Coupon Holder Assembly With 1” NPT Stuffing Box<br />
• Include: SAFETY CLAMP<br />
• Length: 24”<br />
COSASCO

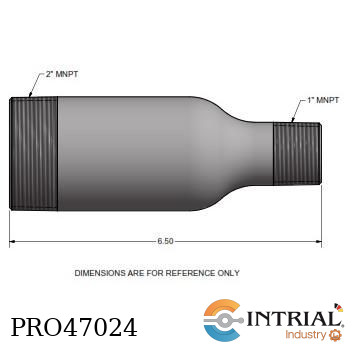

Reducer Concentric<br />
* 2" MNPT x 1" MNPT<br />
* Carbon Steel Schedule 80 Seamless Pipe<br />
COSASCO

NIPPLE<br />
=====’<br />
•    Nipple:  ¼” x ¼” NPT<br />
•    Length:  4.00<br />
•    Material: 316 SS.<br />


CORROSOMETER PROBE Flush Element<br />
* Complete Probe Assembly-Fixed<br />
* Mounting: COSASCO 2" system<br />
* Probe Body Material: 316L SS<br />
* Element Form S20: Flush Element, 20 mil Thickness (10 mil span)<br />
* Alloy: K03005 (Carbon Steel)<br />
* Probe Length: 1.75"<br />
* Connector Type: “S” Type with shrouded pins

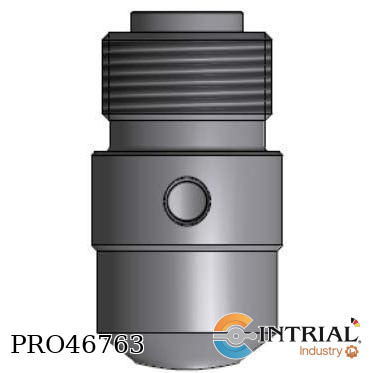

COSASCO Two-Inch System Access Fitting with 1/4" side TEE<br />
•    Flarweld Mounting with integral Branch Reinforcement per ASME B31.3<br />
•    INCLUDE  Side 1/4" TEE<br />
•    INCLUDE:  SOLID Plug Assembly in 316L<br />
•    Standard Temperature Rating with Viton O-Ring /Teflon Primary Packing (-26C to 204 C)<br />
•    Pressure Rating: 6000 Psi<br />
•    Pipe Size: 4”<br />
•    Body Material: ASTM A105 Carbon Steel<br />
•    Include Polycarbonate Cover w/o Hole

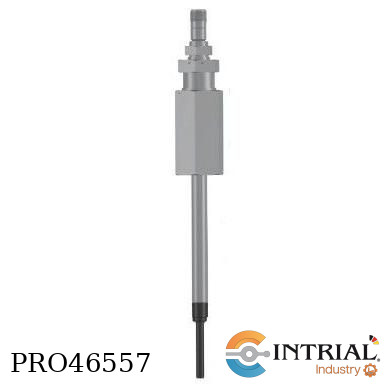

Microcor CYLINDRICAL Retractable Probe<br />
Cylindrical Element<br />
Mounting — 1" Full Port Valve Minimum<br />
Temp. Rating for Model M3500 — 425°F 218°C<br />
Pressure Rating for Model M3500 — 1500 PSI/10.3 MPa<br />
Element Seal Material — All Welded<br />
Element Type: T10 (5 mils probe span)<br />
Element Alloy: K03005 (Carbon Steel)<br />
Length: 18" Nominal<br />
Safety Clamp Included<br />
Standard Shield No included

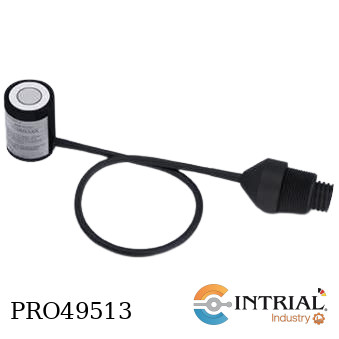

ULTRACORR<br />
High Resolution Pipe Thickness Monitor<br />
• Polyurethane Jacket<br />
• Weatherproof Connector<br />
• Resolution of 0.1 mil (0.0001 inches)<br />
• 10ft. cable length

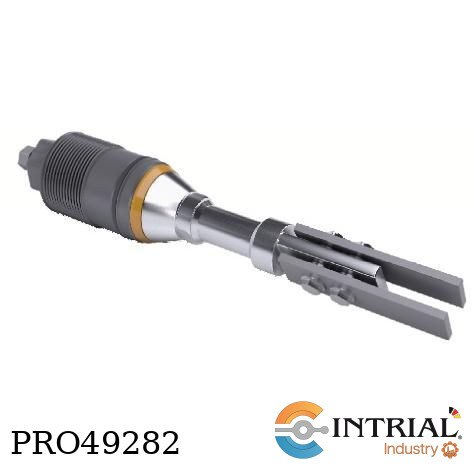

Non Welded Strip Coupon Holder<br />
* AISI 316 Stainless Steel<br />
* Meets NACE MR0175 and MR0103<br />
* Lenght: 24.50"<br />
COSASCO

3506-T20-K03005-18<br />
Replacement Insert for Model 3504<br />
•    Element Form T20: 20 mil thickness (10 mil useful probe life)<br />
•    Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
•    Order length: 18”<br /><br />


3504-T20-K03005-18-1<br />
Electrica Resistance probe (ER)<br />
Model 3504 (Small Diameter)<br />
•    Cylindrical Element<br />
•    Mounting 3/4” NPT Full Port Valve with ½” ID Minimun<br />
•    Temperature Rating: 260C / Pressure Rating: 1000 Psi<br />
•    Element Seal Material: All welded<br />
•    Probe Body Material: AS ELEMENT<br />
•    Complete Probe Assembly with Stuffing Box<br />
•    Element Form T20: 20 mil thickness (10 mil useful probe life)<br />
•    Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
•    Order length: 18”<br />
•    Safety Clamp INCLUDED

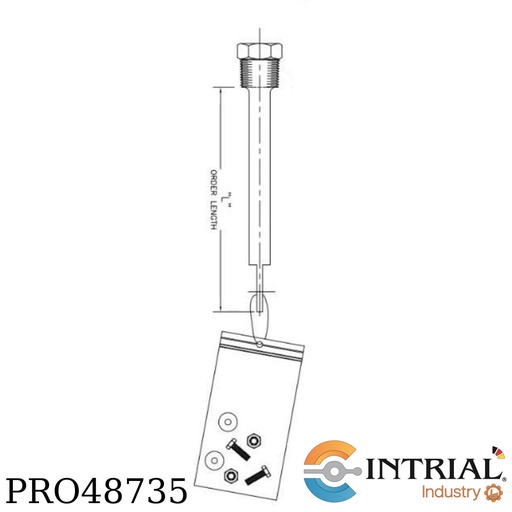

WTC Coupon Holder<br />
• Strip Water System ¾” MNPT<br />
• Lenght: 5.375” and 9/64” Hole (For all WTC Sizes)<br />
• Material: 316 S.S.

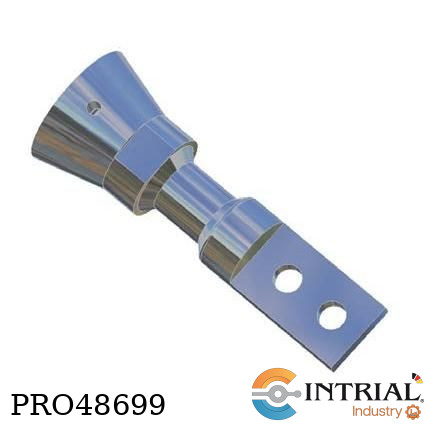

Strip Coupon Holder 6200 Model<br />
• AISI 316 SS<br />
•  Length: 7.0"<br />
• COSASCO

Microcor Retrievable Probe<br />
Cylindrical<br />
* Mounting — COSASCO® 2" System<br />
* Temp. Rating — +400 ? F/+204 ? C<br />
* Pressure Rating up to 6000 PSI<br />
* Element Seal Material — All Welded<br />
* Element Form: T10 Cylindrical (5 mil useful life)<br />
* Element Alloy: K03005<br />
* Order lenght: 3.5 "<br />
* Standard shield included<br />
* Probe Body Material: As Element

Repair and Seal Kit for SINGLE Service Valve Two Inch<br />
Consisting of:<br />
*Stem wiper ring, Molythane<br />
*Stem back-up ring, Teflon<br />
*Stem seal, Polymyte w / Viton O-Ring<br />
*Stem O-Ring, Viton<br />
*Adapter face O-Ring, Viton<br />
*Adapter body O-Ring, Viton<br />
*Ball seat seal ring, Celcon (2)<br />
*Bleed adapter carrier seal, Viton<br />
*Bleed adapter carrier, 17‐4 PH (2)<br />
*Ball, 17‐4 PH<br />
*Bleed valve screw assembly, Viton (2)<br />
*Bleed valve seals, Viton (2)<br />
-Brand: Cosasco

MWT-3905-WE<br />
Cosasco Wireless Extender (includes mounting bracket)<br />
• Housing Aluminum<br />
• 2.4 GHz WirelessHART - Integral Antenna

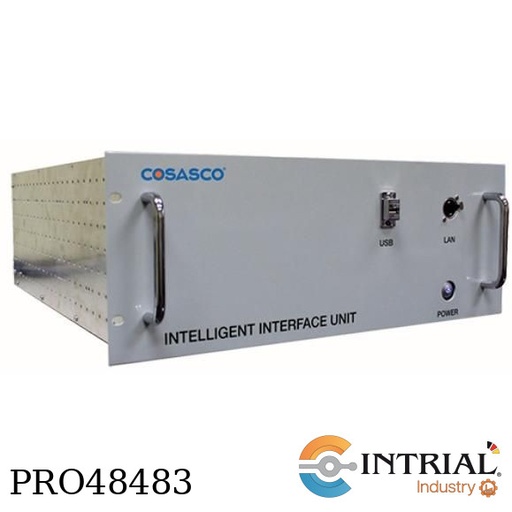

Intelligent Interface Unit for 220 VAC Power Input in a 19 Inch Standard Rack-Mount configuration.  Major internal components consist of:<br />
• Embedded PC Assembly installed with MICROCOR Tools Software and Output Interfaces for SCADA/DCS Systems.<br />
• One 24 VDC (1.3 Amp) Power Supply and Converter, suitable for 115 VAC and 230 VAC.<br />
• Two RS-485 to RS-232 Converters<br />
MODEL: 748302-10<br />
Brand: COSASCO

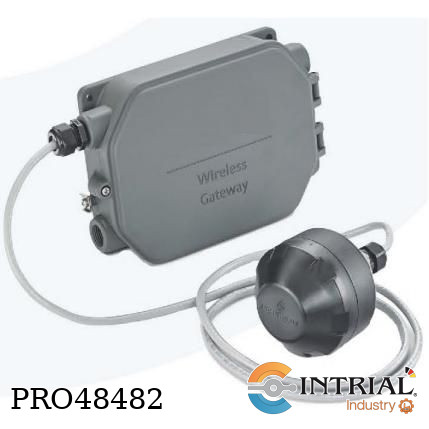

GATEWAY<br />
=======<br />
1410S Wireless Gateway, 2.4 GHz DSSS, web server, AMS ready, HART-IP protocoL<br />
* Outdoor rated housing (aluminum)<br />
* Zone 2/Div 2: Emerson 781S Smart Antenna may be installed in Zone 2 & Class I Div 2<br />
* WirelessHART protocol<br />
* Single Ethernet Connection<br />
* Modbus TCP/IP<br />
* Canada Division 2, Non-incendive<br />
ANTENA<br />
======<br />
* 781S Wireless Smart Antenna<br />
* WirelessHART, user configurable transmit rate, 2.4 Hz DSSS, IEC 62591<br />
* Communication Legacy RS485<br />
* Housing -Engineered polymer<br />
* Prod. Certification -USA & Canada Intrinsically Safe, ATEX Intrinsic Safety<br />
* 25 device WirelessHART network<br />
* Internal Antenna
