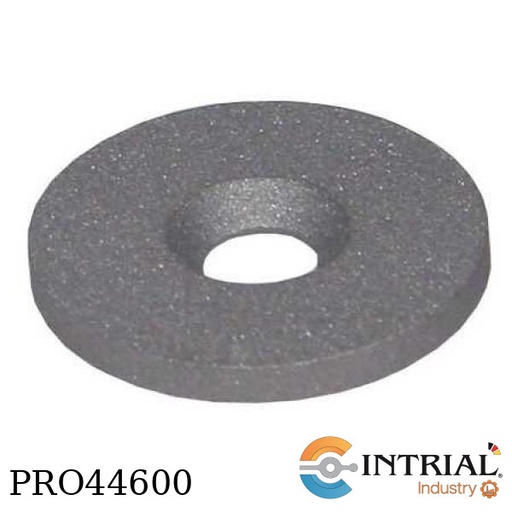

Corrosion Coupon Flush Disk Carbon Steel<br />
Dimensions: 1.25" Dia; 0.125" Thickness; Mounting hole ID 0.312”<br />
Exposed surface area 2.5 sq. in. (16.1 sq. cm.)<br />
Ground Surface Finish, Pre-weighed.<br />
Material: API5LGRB Carbon Steel<br />
Brand: COSASCO

6205-3.25-K03005 (BioProbe)<br />
Used to collect samples of bacteria in oil and gas systems, including refineries, offshore, platforms, pipelines, etc.    <br />
•    Fixed Bio-Probe Assembly<br />
•    Include 5 Sample elements in Carbon Steel for Analysis<br />
•    Body Material 316 S.S.<br />
•    Order Length: 3.25 inches<br />
•    Element Alloy: K03005 (Carbon Steel)

001261<br />

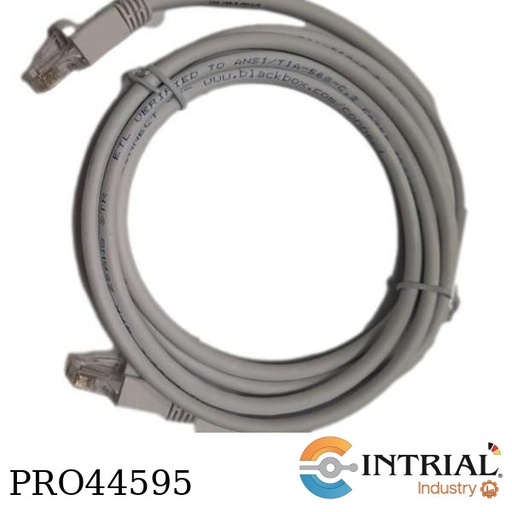

CAT5e CABLE, HIGH SPEED NETWORK 7 ft LONG, WHITE COLOR

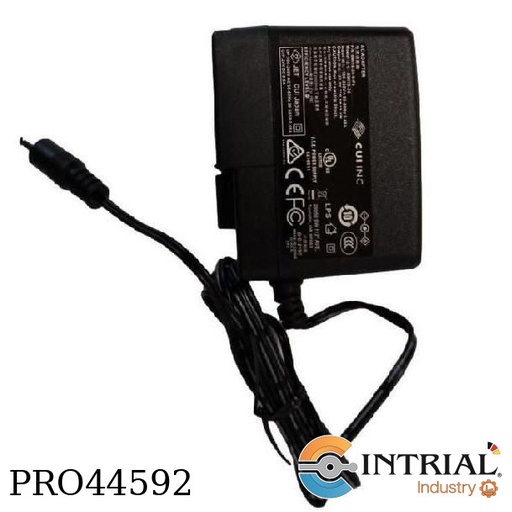

094279<br />
TRANSFORMER,  INPUT: 90-264VAC/47-63Hz OUTPUT: 24VDC, .4A

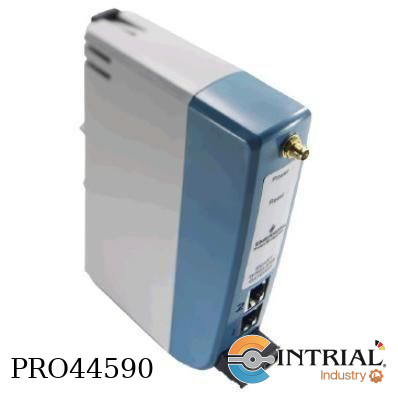

R-1410-A-1-A-D5-WX2-NA<br />
WIRELESS GATEWAY with 24VDC, 500 mA power input, 2.4 GHz DSSS operating frequency, and WirelessHART™ 7 Protocol. FM and CSA Certified only. Supports up to 25 devices<br />
• Power Input Included 24VDC, 500mA<br />
• Ethernet Comm Physical Connection: 01 Ethernet Communication<br />
• Modbus RTU via RS485<br />
• Ethernet Comm and Data protocol: Ethernet/IP, Modbus TCP/IP<br />
• Basic Antena<br />
• NO Approvals Certification

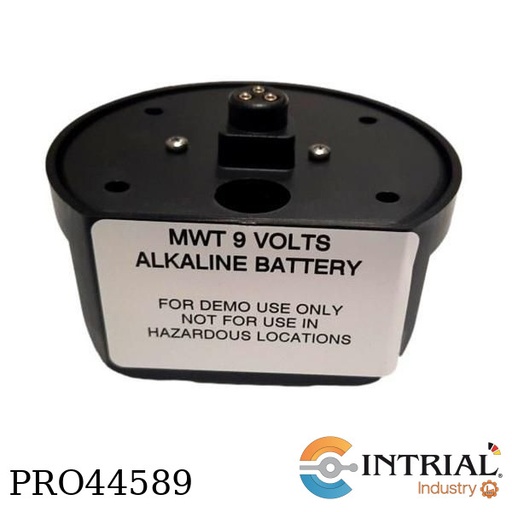

BATTERY, MWT 9 VOLT ALKALINE

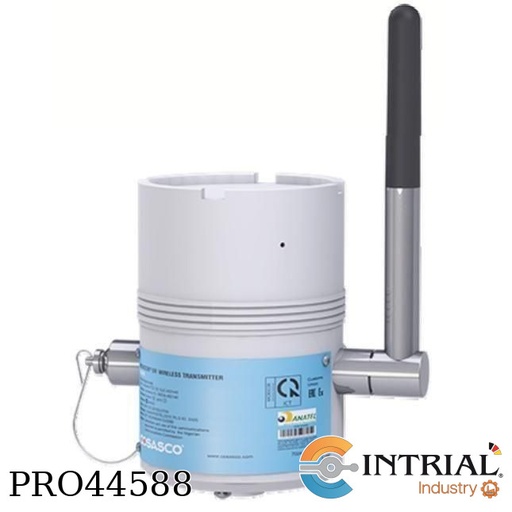

MWT-3905-0-0-NB<br />
Microcor ER Wireless Transmitter<br />
• Wireless HART7 Integral Antenna, Aluminum Housing<br />
• 2.4 GHz Wireless HART7<br />
• NO Battery Included

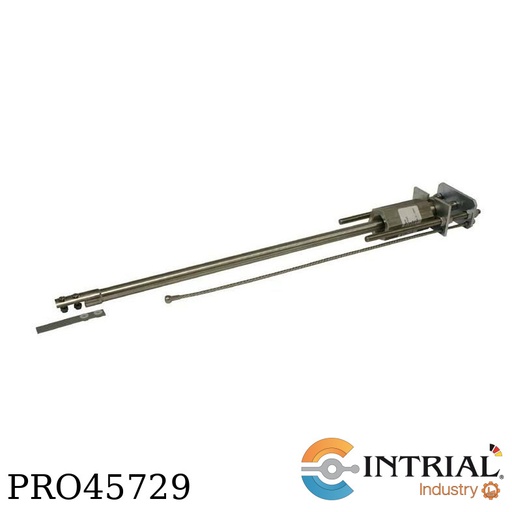

Model 6210 Retractable Coupon Holder for Strip and Scale Coupon<br />
• Pressure Rating: 1500 Psi<br />
• Temperature Rating: 260 C<br />
• Mounting 1” Full Port Valve Minimum (Include reducer Nipple from 2" to 1" in CS)<br />
• Material 316 S.S.<br />
• Complete Coupon Holder Assembly With 1” NPT Stuffing Box<br />
•  Safety Clamp INCLUDED<br />
• Length: 24”

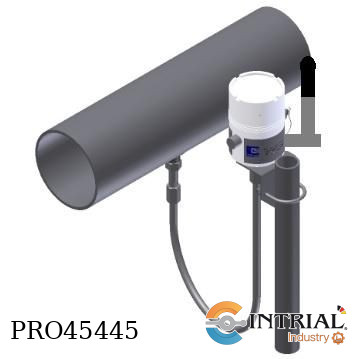

748497-4-15<br />
Remote Mounting Cable            <br />
For MICROCOR Wireless Transmitter<br />
Retrievable (Unarmoured) 2500 Psi<br />
Cable lenght: 15 FT. (4.5 mts)<br />
Probe adaptor Cable and Mounting Bracket<br />
(For Retrievable Probes)

DC-BB-G10180-0-0-0<br />
Downhole BENT-BEAM Coupon<br />
• Element Alloy: 1018 Mild Steel<br />
• Surface Finish: Ground<br />
• Pre-Weighed<br />
• No Special Options

DC-C-G10180-0-0-0<br />
Downhole CYLINDRICAL Coupon<br />
• Element Alloy: 1018 Mild Steel<br />
• Surface Finish: Ground<br />
• Pre-Weighed<br />
• No Special Options

DC-S-G10180-0-0-0<br />
Downhole STRIP Coupon<br />
• Element Alloy: 1018 Mild Steel<br />
• Surface Finish: Ground<br />
• Pre-Weighed<br />
• No Special Options

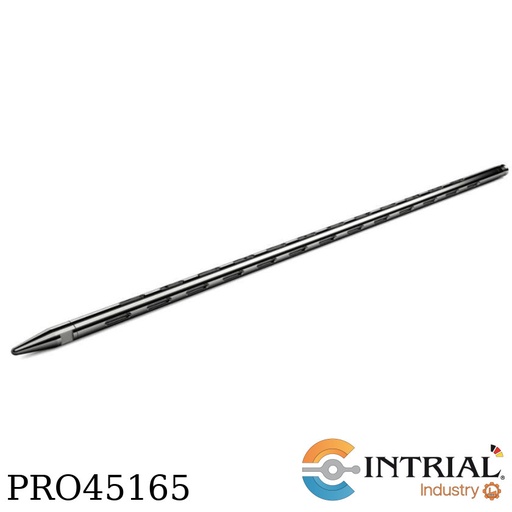

DCHA-9-3-3-3<br />
DOWNHOLE coupon Holder Assembly<br />
Coupon Holder Assembly including slotted tube and<br />
• 3 Strip Coupon Holder Bodies w/2 end caps each<br />
• 3 Cylindrical Coupon Holder Bodies w/ 2 end caps each<br />
• 3 Bent-Beam Test Fixtures<br />
• Sucker Rod Connector, Bullnose Sucker Rod, 5/8" Pin Sucker Rod to 5/8" Box S.R. Adapter and<br />
• Carrying Case.

CI-RS-S31603-0-0-0-0<br />
Retractable Strip Coupon Model CI COSASCO<br />
•Alloy: 316L Stainless Steel<br />
•Dimensions: 3”LG x 1/2”W x 1/16"TH<br />
•Grid Blast Finish, Standard Nylon Insulators, Preweighed<br />
COSASCO

Seal Kit for SINGLE Service Valve Two Inch HI-TEMP<br />
Consisting of:<br />
*Stem wiper ring, Molythane<br />
*Stem back-up ring, Teflon<br />
*Stem seal, Polymyte w / Viton O-Ring<br />
*Stem O-Ring, Viton<br />
*Adapter face O-Ring, Viton<br />
*Adapter body O-Ring, Viton<br />
*Ball seat seal ring, Celcon (2)<br />
*Bleed adapter carrier seal, Viton<br />
*Bleed valve seals, Viton (2)<br />
-Brand: Cosasco

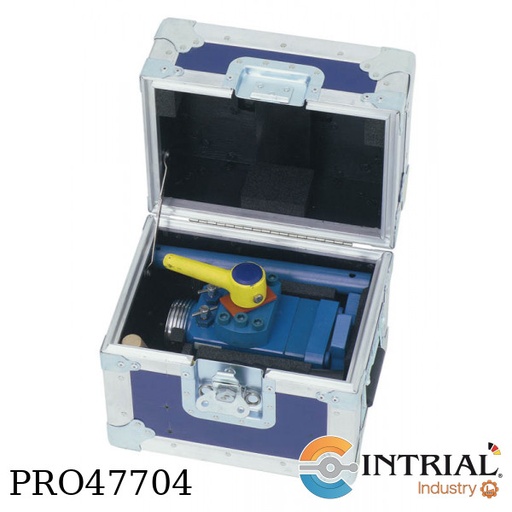

TWO-INCH SYSTEM SERVICE VALVE KIT<br />
Brand: COSASCO<br />
Model: 601011<br />
Pressure Rating 3600 Psi<br />
Hi Temperature Rating (+232 C)<br />
By-Pass Bleed Valve for safe pressurization<br />
Meets Nace MR0175 and MR0103<br />
Compatible with RBS/RBSA/RSL Retrievers<br />
Complies with API 6FA and API 607 as Fire-Safe Unit

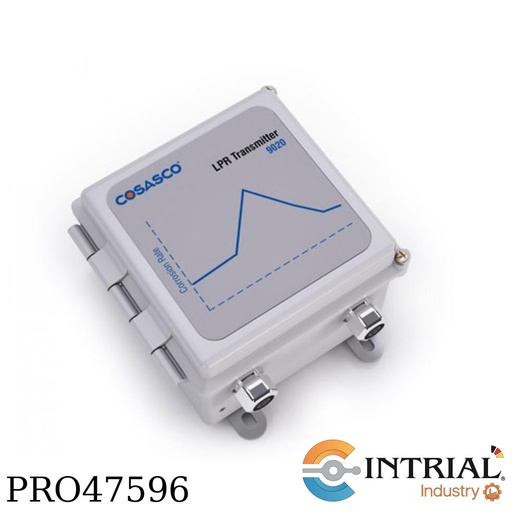

<strong>LPR Corrosion Measurement Kits<br />
Brand: COSASCO<br />
Model: 9020-Kit-01</strong><br />
Include 1:<br />
Linear Polarization Resistance (LPR) TRANSMITTER<br />
• Model: 9020 LPR Transmitter <br />
• Supply Voltage Range: 16-32 VDC at 20mA<br />
• Two Wire Loop Powered 4-20mA<br />
• Second Loop for Balance available<br />
• Corrosion Ranges: 0-2, 0-20 and 0-200 mpy<br />
• Imbalances Ranges: 0-2,0-20 and 0-200 imbalance units<br />
• Enclosure: NEMA 4X, IP66<br />
• Probe Cable: 33 ft (10 mts)<br />
* Quantity 2 unit.<br />
Codigo: 9020-33<br /><br />
Include 2:<br />
Model 8012 Corrater Two-Electrode Probe Assembly<br />
• Mounting 1" Full Port Valve Minimum<br />
• Temp. Rating: 150C<br />
• Pressure Rating: 1500 Psi<br />
• Electrode Seal Material: Glass Reinforced Epoxy/Viton <br />
• Fill Material: Epoxy<br />
• Body Material: Stainless Steel<br />
• Order length: 24” <br />
• Electrode Material: K03005 (Pipe Grade Carbon Steel) <br />
• Safety Clamp: INCLUDED<br />
• Brand: COSASCO<br />
* Quantity 1 unit.<br />
Codigo: 8012-24-K03005-1<br /><br />
Include 3:<br />
Corrater Electrode Kit<br />
Alloy: K03005 Pipe Grade Carbon Steel<br />
Marca: COSASCO<br />
* Quantity 1 unit.<br />
Codigo: 060814-K03005

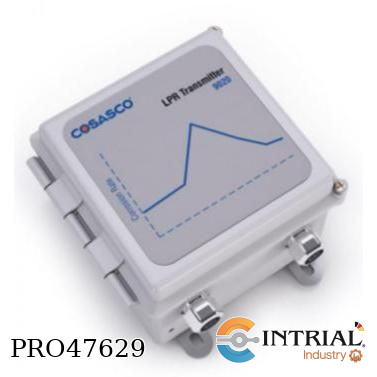

Linear Polarization Resistance (LPR) TRANSMITTER<br />
•    Model: 9020 LPR Transmitter<br />
•    Supply Voltage Range: 16-32 VDC at 20mA<br />
•    Two Wire Loop Powered 4-20mA<br />
•    Second Loop for Balance available<br />
•    Corrosion Ranges: 0-2, 0-20 and 0-200 mpy<br />
•    Imbalances Ranges: 0-2,0-20 and 0-200 imbalance units<br />
•    Enclosure: NEMA 4X, IP66<br />
•    Probe Cable: 33 ft (10 mts)

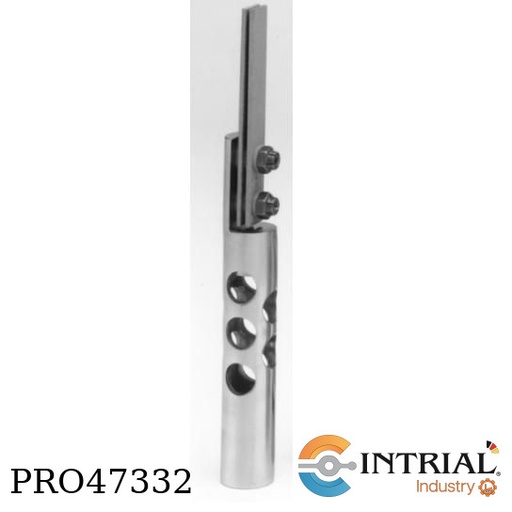

Coupon Holding Shield for probes model M3500<br />
• Probe Types: T20<br />
• Material: K03005 carbon Steel<br />
• Manufacture: COSASCO

RETRACTABLE STRIP SCALE COUPON (PVC)<br />
• Measuring 1/16" TH x 1/2" W x 3" LG (.16 x 1.3 x 7.6 cm)  (Expose surface area 2.85 sq. in.)<br />
• Has drilled holes with sizes 0.031", 0.063", 0.094", 0.125", 0.187", 0.25", and 0.312" to collect scale deposits.<br />
• Material: PVC
