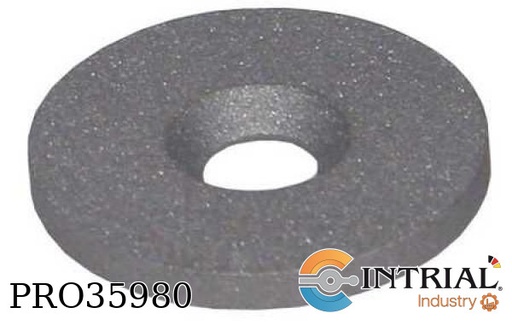

692000-X12 (3/4" Disk Coupon)<br />
* 3/4" Diameter by 1/8" Thickness<br />
* Material: 316 SS<br />
* COSASCO

COSASCO High Pressure Two Inch Access Fitting Assembly w/PLUG Included<br />
•    Non-tee, FLARWELD Mounting with integral Branch Reinforcement per ASME B31.3<br />
•    Standard Temperature Rating with Viton O-Ring /Teflon Primary Packing (-26C to 204 C)<br />
•    Pressure Rating: 6000 Psi<br />
•    INCLUDE:  HOLLOW Plug Assembly in 316L<br />
•    Pipe Size: 08-10”<br />
•    Body Material: ASTM A105 Carbon Steel<br />
•    Include Polycarbonate without Hole

CI-RS-A106GRB-0-3-0-0<br />
Retractable Strip Coupon Model CI COSASCO<br />
•Alloy: ASTM A106 Gr. B Carbon Steel<br />
•Dimensions: 3”LG x 1/2”W x 1/16"TH<br />
•Grid Blast Finish, with no insulator, Preweighed<br />
Before (CI-RS-K03006-0-3-0-0)

CI-RS-S31603-0-3-0-0<br />
Retractable Strip Coupon Model CI COSASCO<br />
•Alloy: 316L Stainless Steel<br />
•Dimensions: 3”LG x 1/2”W x 1/16"TH<br />
•Grid Blast Finish, with no insulator, Preweighed

RETRACTABLE STRIP SCALE COUPON<br />
• Measuring 1/16" TH x 1/2" W x 3" LG (.16 x 1.3 x 7.6 cm)  (Expose surface area 2.85 sq. in.)<br />
* Has drilled holes with sizes 0.031", 0.063", 0.094", 0.125", 0.187", 0.25", and 0.312" to collect scale deposits.<br />
• Material: G10200 (Carbon Steel)<br />
• Surface finish (Grit-Blast), Standard Nylon Insulators

Modelo: CI-RS-G10200-0-0-0-0<br />
Retractable Strip Coupon,<br />
•Alloy G10200 Carbon Steel,<br />
•Dimensions: 1/16" TH x 1/2" W x 3" LG,<br />
•Grid Blast, Standard Nylon Insulators (250F),<br />
•Preweighed<br />
•Brand: COSASCO

Modelo: CI-RS-C44300-0-0-0-0<br />
Retractable Strip Coupon,<br />
•Alloy: Arsenical Admiralty Brass<br />
•Dimensions: 1/16" TH x 1/2" W x 3" LG,<br />
•Grid Blast, Standard Nylon Insulators (250F),<br />
•Preweighed<br />
•Brand: COSASCO

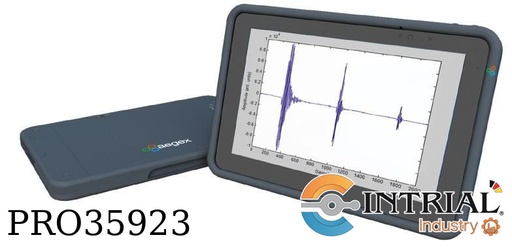

Portable Data Logger EX (PDL)<br />
Windows based tablet with Full PipeView software.<br />
Power and operates SWARM stations over USB or communicate with Field Data Loggers over Bluetooth or USB.<br />
AEGEX, including PipeView

Disc Coupon Insulation Washer, .665” OD, .25” ID, .198” thick ‐ Teflon<br />
COSASCO

Washer - Teflon with Screw SS<br />
(Part of Disc Coupon Holder Insulation, set)<br />
COSASCO

Pole Mounting Kit<br />
For SWARM Systems<br />
COSASCO

Replacement probe Insert for model 3700<br />
•    Probe Body Stainless Steel<br />
•    Strip Flush Element S8 (4 mil useful probe life)<br />
•    Lenght: 36"

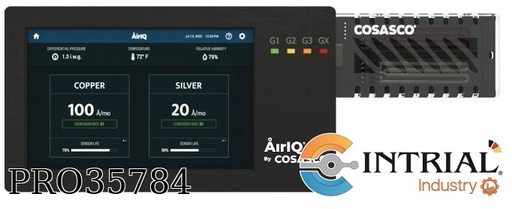

Corrosion Environment to Critical Assets ER Technology (AIRLQ)<br />
• Sensor Life: 5000A<br />
• Relative humidity reading: 10% to 95% range<br />
• Temperature reading: 0°C to +50°C<br />
• Difference Pressure reading:  0 to 0.5 i.w.g.<br />
• Local Display: 5” Color Display with 4 LED Sensors<br />
• Communication: Ethernet, 4-20mA<br />
• Power Supply: <24Vdc, terminal block connection

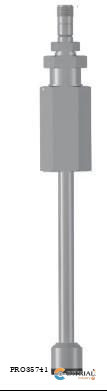

Microcor FLUSH Retractable Probe<br />
* Flush Probe Element<br />
* Diameter Head: 1.25”<br />
* Mounting: Requires 1.5" Full Port Valve plus Swaged nipple connection between valve & stuffing box.<br />
* Temp. Rating for Model M3000 — 425°F 218°C<br />
* Pressure Rating for Model M3000 — 1500 PSI/10.3 MPa<br />
* Element Type: F10 (5 mils probe span)<br />
* Element Alloy: K03005 (Carbon Steel)<br />
* Length: 36"<br />
* Safety Clamp Included

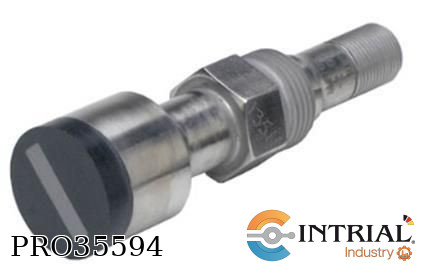

HIGH SPEED “MICROCOR” ER probes<br />
COSASCO 2" Flush Probe<br />
• Flush Element Probe F10: 10 mils thickness (5 mils probe span)<br />
• Probe element Alloy: K03005 (Carbon Steel)<br />
• Length: 2.25"

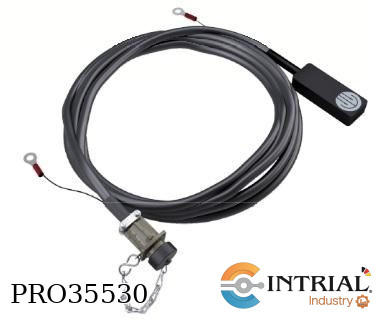

620HD-2-S10-K03005-25<br />
CORROSOMETER Underground ER Probes<br />
Service conditions: Heavy Duty<br />
Probe Construction: Injection Molded/Epoxy<br />
Cable Connection: Heavy Duty Length: 25 Feet<br />
Flush Strip Element, 5 mil Span (Useful probe life)<br />
Element Alloy: Carbon Steel Alloy

3700-S8-K03005-30-1<br />
COSASCO Corrosometer Probe Flush Element<br />
• Mounting Port 1 ½’ valve minimum<br />
• Temperature Rating: 260 C<br />
• Pressure Rating: 1500 Psi<br />
• Body: Stainless Steel<br />
• Element Seal Material: RYTON<br />
• Element Form: Flush Strip, 8 mil thickness (4 mil useful probe life)<br />
• Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
• Order Length: 30 Inches<br />
• Safety Clamp: INCLUDED

<p class="MsoNormal"><span lang="en-us" xml:lang="en-us">Corrosometer Probe Cylindrical Element<br />
3500-T10-K03005-30-1-1-0<br />
•    Model 3500 complete probe Assembly with Stuffing Box<br />
•    Mounting 1” Full Port Valve Minimum<br />
•    Temp Rating + 218C; Pressure Rating 1500 Psi<br />
•    Element Seal Material ALL WELDED<br />
•    Element Form T10: 10 mil thickness (5 mil useful probe life)<br />
•    Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
•    Order Length: 30 Inches<br />
•    Safety Clamp INCLUDED<br />
•    Shield Protector: INCLUDED Standard Shield Protector (Liquids 25ft/sec)</span></p>

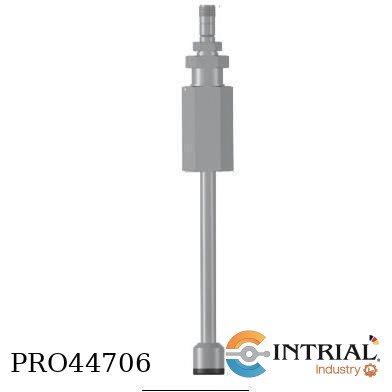

Microcor FLUSH Retractable Probe<br />
* Flush Probe Element<br />
* Diameter Head: 1.25”<br />
* Mounting: Requires 1.5" Full Port Valve plus Swaged nipple connection between valve & stuffing box.<br />
* Temp. Rating for Model M3000 — 425°F 218°C<br />
* Pressure Rating for Model M3000 — 1500 PSI/10.3 MPa<br />
* Element Type: F20 (10 mils probe span)<br />
* Element Alloy: K03005 (Carbon Steel)<br />
* Length: 30" Nominal<br />
* Safety Clamp Included

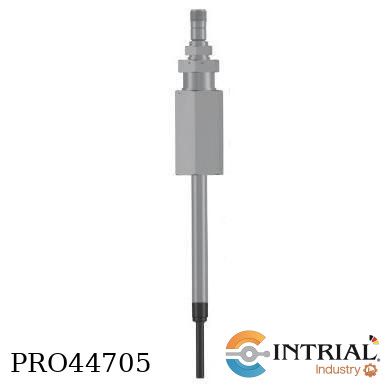

Microcor CYLINDRICAL Retractable Probe<br />
* Cylindrical Element<br />
* Mounting — 1" Full Port Valve Minimum<br />
* Temp. Rating for Model M3500 — 425°F 218°C<br />
* Pressure Rating for Model M3500 — 1500 PSI/10.3 MPa<br />
* Element Seal Material — All Welded<br />
* Element Type: T20 (10 mils probe span)<br />
* Element Alloy: K03005 (Carbon Steel)<br />
* Length: 30" Nominal<br />
* Safety Clamp Included<br />
* Standard Shield included (liquids up to 25ft/2, Gases 75 ft/2)
