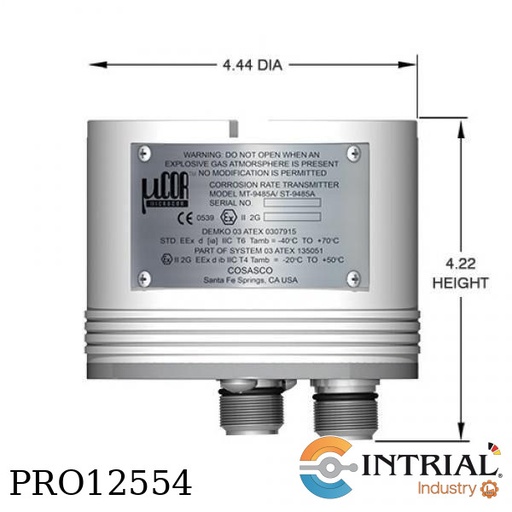

MT-9485A High Resolution Microcor Transmitter<br />
High Resolution Corrosion Measurement<br />
Communication: RS 485 two wire<br />
Power Supply: 10-32 VDC<br />
Rapid Response, Resolution 18 bit<br />
Current Consumption: at 24VDC typical 17 mA<br />
Communication: RS-485 two wire<br />
Enclosure: NEMA 7 and IP 66/ NEMA 4X<br />
Hazardous area Certifications:  Europe (CE/ATEX/EMC)<br />
Class I, Zone 1, AEx d IIC T6/EX d IIC T6

Transmitter Connection cable: <br />
Flexible Ex-proof connection (USA/CSA)<br />
For Microcor Transmitter <br />
Length: 10 Feet (3 mts)

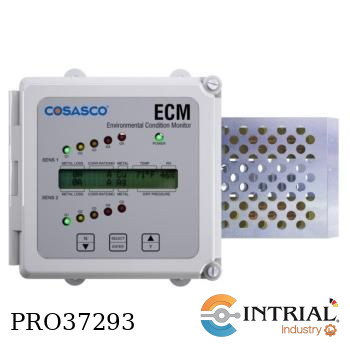

ECM Enviromental Condition Monitor<br />
• Include one Copper and one Silver sensor<br />
• Without differential pressure transmitter<br />
• Include data logger software<br />
• With 230-volt wall transformer

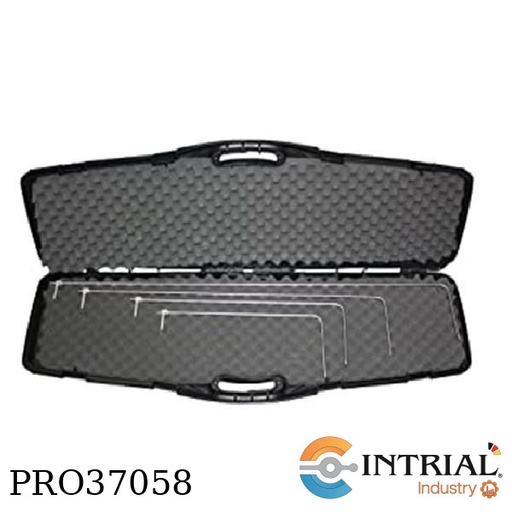

160-KIT<br />
KIT STAINLESS STEEL PITOT TUBE<br />
Brand: DWYER<br />
KIT CONTAINING:<br />
160-18: Insertion Length, 18-5/8˝<br />
160-24: Insertion Length ,24-5/8˝<br />
160-36: Insertion Length , 36-5/8˝<br />
160-48: Insertion Length , 48-5/8˝<br />
<br />
A-160-CASE<br />
Carrying case

COSASCO Angled-Flush Retractable QUICKSAND<br />
• Probe Assembly with 1" NPT Stuffing Box<br />
• Temperature Rating: 260 C / Pressure Rating: 1500 Psi<br />
• Element Form: Angled. 40 mil thickness (20 mil life)<br />
• Element Alloy: S31603 (316L Stainless Steel)<br />
• Order Length: 18 Inches<br />
• Safety Clamp: INCLUDED

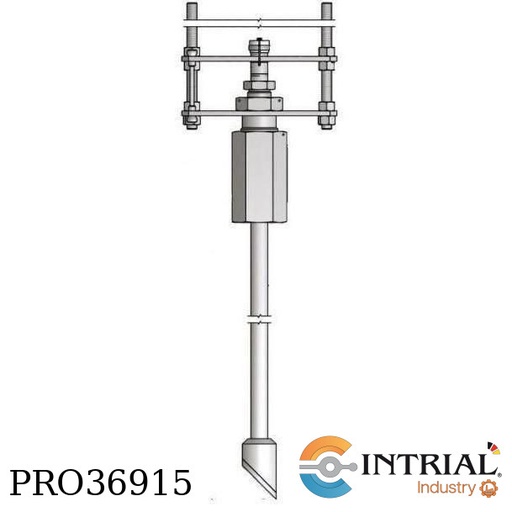

COSASCO Angled-Flush Retractable QUICKSAND<br />
• Probe Assembly with 1" NPT Stuffing Box<br />
• Temperature Rating: 260 C / Pressure Rating: 1500 Psi<br />
• Element Form: Angled. 20 mil thickness (10 mil life)<br />
• Element Alloy: S31603 (316L Stainless Steel)<br />
• Order Length: 18 Inches<br />
• Safety Clamp: INCLUDED

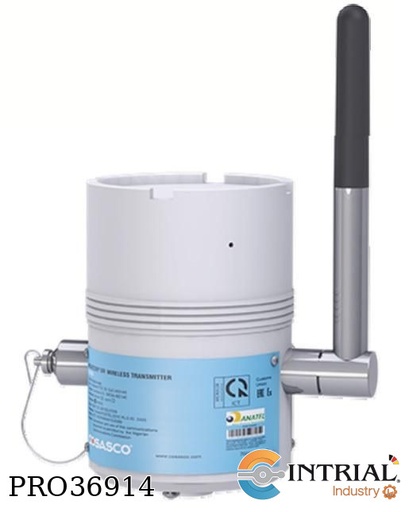

MWT-3905-0-0<br />
Microcor ER Wireless Transmitter<br />
• Wireless HART7 Integral Antenna, Aluminum Housing<br />
• 2.4 GHz Wireless HART7

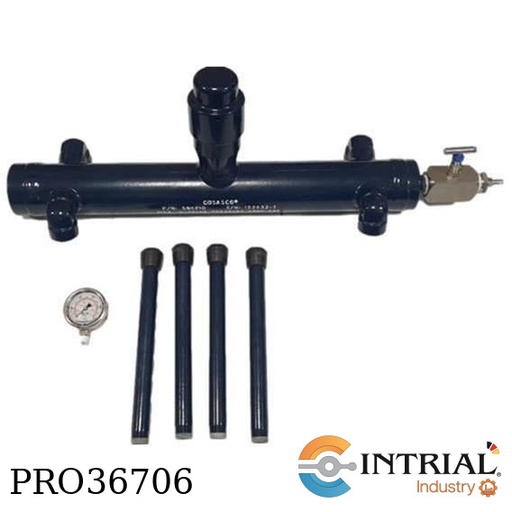

Pressure Test Stand<br />
Pressure Test Stand with Valve and Pressure gauge, Carbon Steel<br />
Maximum Working Pressure: 6000 Psi<br />
COSASCO

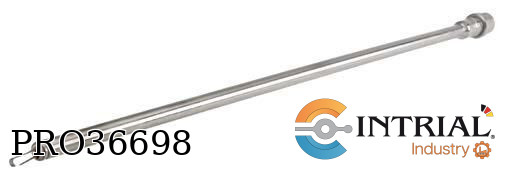

Replacement Probe Insert for CYLINDRICAL Probe<br />
•    For Cylindrical Probe Model 3500<br />
•    Probe Body Stainless Steel<br />
•    Element Probe: K03005<br />
•    Element T20 (10 mils Probe Span)<br />
•    Length: 24"<br />
•    Include: Standard Protective Shield

CORROSOMETER Probe to Instrument factory assembled interconnecting cable assembly.<br />
• Probe End Termination: Type B Connector, Instrument End Termination:<br />
• Type B Male Connector<br />
• Cable Type: Standard Duty CORROSOMETER<br />
• Length: 20 Feet

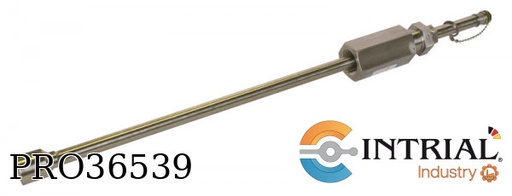

COSASCO Corrosometer Probe Flush Element<br />
• Mounting Port 1" valve minimum (Model 3705)<br />
• Temperature Rating: 260 C<br />
• Pressure Rating: 1500 Psi<br />
• Body: Stainless Steel<br />
• Element Form: Strip Flush 8 mil thickness (4 mil useful probe life)<br />
• Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
• Order Length: 18 Inches<br />
• Safety Clamp: INCLUDED

<p class="MsoNormal">100192-03<br />
Battery Pack box, DC plug, 15 V, 16 Ah, Battery, dry, not restricted as per specification, Permit A123<br />
Item CN8 codes .....90319085</p>

<p class="MsoNormal">102173-00<br />
ICL MasterLink Pack (Conn./Conn.) NA<br />
RMU not included<br />
Item CN8 codes ..... 90309085<br />
 </p>

Model 8012 Corrater Two-Electrode Probe Assembly<br />
•Mounting 1" Full Port Valve Minimum<br />
•Temp. Rating: 150C<br />
•Pressure Rating: 1500 Psi<br />
•Electrode Seal Material: Glass Reinforced Epoxy/Viton <br />
•Fill Material: Epoxy<br />
•Body Material: Stainless Steel<br />
•Order length: 36” <br />
•Electrode Material: K03005 (Pipe Grade Carbon Steel) <br />
•Safety Clamp: INCLUDED<br />
•Brand: COSASCO

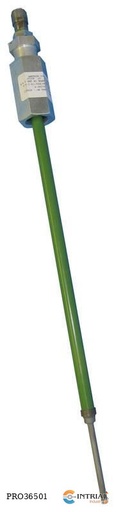

Corrosometer Probe Cylindrical Element<br />
3500-T20-K03005-36-1-1-0<br />
•    Model 3500 complete probe Assembly with Stuffing Box<br />
•    Mounting 1” Full Port Valve Minimum<br />
•    Temp Rating + 218C; Pressure Rating 1500 Psi<br />
•    Element Seal Material ALL WELDED<br />
•    Element Form T20: 20 mil thickness (10 mil useful probe life)<br />
•    Element Alloy: K03005 (Pipe Grade Carbon Steel)<br />
•    Order Length: 36 Inches<br />
•    Safety Clamp INCLUDED<br />
•    Shield Protector: INCLUDED Standard Shield Protector (Liquids 25ft/sec)
