Rotating Vane Flow Meter<br />
Brand: Kobold (Alemania)<br />
Modelo: DRG-15-10-N2-F300<br />
[DRG-15]<br />
Operating principle: Rotating Vane<br />
Mounting position / flow direction: in all directions/ in direction of the arrow<br />
Accuracy: +/-3%<br />
Protection: IP 65<br />
Max. temperature: 80 °C<br />
Max. pressure: 40 bar<br />
Material of housing: 1.3955<br />
Material housing cover: 1.4404<br />
[10] Measuring range, 0,5-25 L/min<br />
[N2] Mech. connection, 1/4 NPT female<br />
[F300] Electronic, Frequency output, plug M12x1<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

<strong>Rotating Vane Flow Meter<br />
Brand: Kobold (Alemania)<br />
Model: DRS-9-2-50-N5-F300-0</strong><br />
[DRS-9]<br />
Operating principle, Rotating vane<br />
Mounting position, all directions<br />
Flow direction, in direction of the arrow<br />
max. temperature, 80 °C<br />
max. pressure, 200/16 bar<br />
Accuracy, +/-1,5%<br />
Protection, IP 65<br />
[2]: Material, st. st.<br />
[50]: Measuring range, 2-40 L/min<br />
[N5]: Mech. connection, 3/4 NPT male<br />
[F300]: Evaluating Electronic, Frequency output, plug M12x1, PNP<br />
[0]: Options,w/o<br /><br />
Include:<br />
Accessories round plug<br />
Brand: Kobold (Alemania)<br />
Model: ZUB-KAB-12-K002<br />
M12x1 box 2 m cable, 4-pin

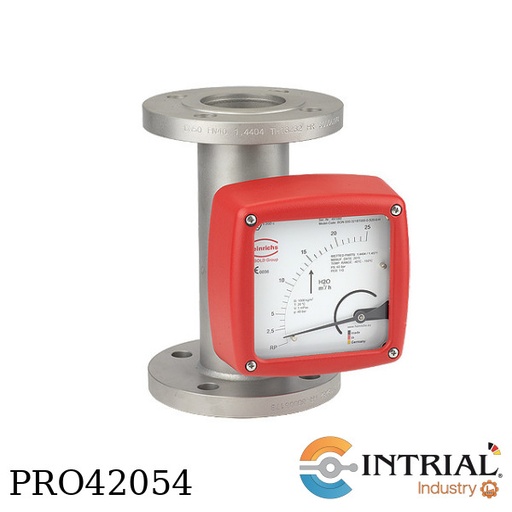

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Heinrichs (Kobold Group)<br />
Model: BGN-S25-6030-M-0-F-0-0-S-2-6-0-H</strong><br />
[BGN]: Model<br />
[S25]: Stainless Steel, process temperature ≤ 350°C<br />
[6030]: Thread connections, 1/2" NPT(f), 300 mm float not removable<br />
[M]: Range (water 20°C, 1 mPas), 1.67 – 16.67 L/min<br />
[0]: Heating/cooling, without heating / Cooling<br />
[F]: Damping/spring stop, with liquid damping<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display<br />
Standard display housing,<br />
Process temperature ≤ 150°C for electrical output,<br />
Process temperature ≤ 200°C for local indication<br />
[2]: Scale, Measuring range-Scale (Water)<br />
[6]: Switches, Transmitter ES with HART-protocol, 4-20 mA, EEx ia<br />
Ambient temperature, -40 ºC to +70ºC<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Kobold – Heinrichs (Alemania)<br />
Model: BGN-S25-309B-N-0-G-0-0-S-5-2-0-H</strong><br /><br />
[BGN]: Model<br />
[S25]: Model, Stainless Steel, process temperature  = 350°C<br />
[309B]: Connection, size; DN25 PN40 Form B1 DIN EN 1092-1 <br />
[N]: Range (water 20°C, 1mPas): STEAM: 8.03-80.28 Kg/h<br />
[0]: Heating / cooling, without heating / Cooling<br />
[G]: Damping / spring stop, Gas damping <br />
[0]: Self draining, without<br />
[0]: Certificates, without  <br />
[S]: Display,<br />
Standard display housing,<br />
Process temperature = 150°C for electrical output,<br />
Process temperature = 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media) <br />
[2]: Switches, 2 x inductive switch, Type SJ 3,5 N<br />
Ambient temperature, -25 to 80ºC<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>Plastic Flowmeter/-switch<br />
Brand: Kobold (Alemania)<br />
Model: KSM-2-301-M-P50-R0</strong><br />
[KSM-2]<br />
Operating principle variable area<br />
Mounting position vertical<br />
Flow direction from bottom<br />
Armature material Polysulfone<br />
Accuracy ±4 % FS<br />
Max. temperature 100 °C<br />
Max. pressure 16 bar<br />
[301] Measuring range, 3000...30000 L/h water<br />
[M] either scales for liquid media, L/min water<br />
[P50] Option connection for size >=200, PVC G 2 female<br />
[R0] Option contact, w/o contact

Flap Flow Meter<br />
Model: TSK-P-213R-J2-L-6-F-1-0-S-5-C-0-K<br />
Brand: Kobold<br />
[TSK-P]:<br />
Wetted materials, Armature: Armature: PTFE<br />
Built-in parts: Hastelloy C-22<br />
Pressure rating: 10 bar<br />
Process temperature: -20° to +125°C<br />
[213R] Process connection, for 8" Class 150 RF ASME B16.5-2003<br />
[J2] Range, Water: 50 - 275 m³/h<br />
[L] Flow direction, Left to right<br />
[6] Temperature class, max. 80°C<br />
Contains: enclosure of magnet PVDF<br />
[F] Sealing, FEP, Process temperature: max. 200°C<br />
[1] Protection against particle-penetration into transmission chamber, with (Viton)<br />
Process temperature, max. 150°C<br />
[0] Certificates, without<br />
[S] Indicating part, Standard indicating housing (aluminum)<br />
[5] Product scale, Measuring range-Scale (Media)<br />
[C] Electrical output, 1 x microswitch<br />
Ambient temperature: -40° to +65°C<br />
[0] Accessory, without<br />
[K] Design, Kobold

Paddle Wheel Flow Sensor<br />
Model: DRH-1590-N3-F300+807-037<br />
Brand: Kobold (USA)<br />
[DRH-1590-N3]<br />
Specifications<br />
Housing, 316L SS<br />
Accuracy: ±2.5% of Full Scale<br />
Max. Temperature 176 °F<br />
Max. Pressure, 580 PSIG<br />
Frequency: PNP, 25 mA max.14-28 VDC<br />
Flow Range (GPM): 0.26...6.8<br />
Fitting (NPT) 3/8"<br />
[F300]:<br />
Frequency Output<br />
Power Supply: 12-28 VDC<br />
Power Consumption: 10 mA<br />
Pulse Output:PNP, Open Collector, Max. 25 mA<br />
Electrical Connection: Plug Connector M12 x 1<br /><br />
Include:<br />
Accessories:<br />
[807.037]: (Cable: M12 4-PIN, 6 Feet)

<strong>Flow indicator with Flange Connection <br />
Brand: Kobold (Alemania)<br />
Model: DAT-2-2-05H-A-40-B</strong><br />
[DAT-2]<br />
Operating principle Drip tube<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
max. temperature 150 °C (Option B: 280 °C)<br />
max. pressure 16 bar (Option 25 or 40 bar)<br />
[2]: Housing, st.st <br />
[05H]: Nom. Diameter, 40<br />
[A]: Flanges, ANSI-flange<br />
[40]: Connection*, DN 40 / 1 1/2"<br />
[B]: Option, DN 25..40 borosilicate glass

<strong>Flow indicator with Flange Connection <br />
Brand: Kobold (Alemania)<br />
Model: DAT-2-2-08H-A-80-B</strong><br /><br />
[DAT-2]:<br />
Operating principle Drip tube<br />
Mounting position all directions<br />
Flow direction in direction of the arrow<br />
max. temperature 150 °C (Option B: 280 °C)<br />
max. pressure 16 bar (Option 25 or 40 bar)<br />
[2]: Housing, st.st <br />
[08H]: Nom. Diameter, 80<br />
[A]: Flanges, ANSI-flange<br />
[80]: Connection*, DN 80 / 3"<br />
[B]: Option, DN 65..80 borosilicate glass

<strong>Micro Variable Area Flowmeter BGK<br />
Brand: Heinrichs (Alemania)<br />
Model: BGK-201R-K-0-5-0-0</strong><br /><br />
[BGK-201R]: Overall length 250 mm<br />
Accuracy 3% of URV; Temp. min. -40 °C, max. 130 °C <br />
Flange connection, ½" Class 150 RF ASME B16.5-2003<br />
[K]: Range, H2O: 20 - 200 l/h<br />
Range Air 1,013 bar abs, 20 °C, Air 600-6000 Nl/h <br />
[0]: Certificates, without<br />
[5]: Scale, Measuring Range-Scale (Media)<br />
Approval, w/o ATEX<br />
[0]: Switches, without<br />
Process temperature,  -40°C - +130 °C<br />
[0]: Accessories, without

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Heinrichs (Alemania)<br />
Model: BGN-S15-6030-J-0-0-0-0-S-5-0-0-H</strong><br />
[BGN-S15]: <br />
Stainless Steel, process temperature ≤ 350°C<br />
[6030]: Thread connections, 1/2" NPT(f); 300 mm; float not removable<br />
[I]: Range (water 20°C, 1 mPas), H2O: 33 - 250 l/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing, <br />
Process temperature ≤ 150°C for electrical output, <br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without<br />
Ambient temperature, -40° to +80°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

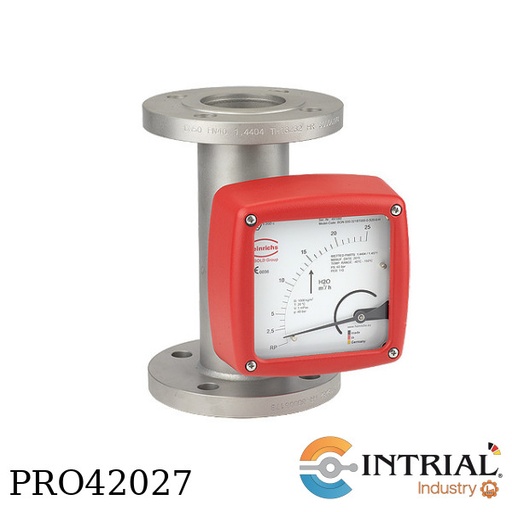

<strong>All-Metal Variable Area Flowmeter BGN<br />
Brand: Heinrichs (Alemania)<br />
Model: BGN-S15-6030-J-0-0-0-0-S-5-0-0-H</strong><br />
[BGN-S15]: <br />
Model, Stainless Steel, process temperature ≤ 350°C<br />
[6030]: Thread connections, 1/2" NPT(f); 300 mm; float not removable<br />
[J]: Range (water 20°C, 1 mPas), H2O: 28 - 230 l/h<br />
[0]: Heating/cooling, without heating / Cooling<br />
[0]: Damping/spring stop, without<br />
[0]: Self-draining, without<br />
[0]: Certificates, without<br />
[S]: Display, Standard display housing, <br />
Process temperature ≤ 150°C for electrical output, <br />
Process temperature ≤ 200°C for local indication<br />
[5]: Scale, Measuring range-Scale (Media)<br />
[0]: Switches, without<br />
Ambient temperature, -40° to +80°C<br />
[0]: Accessories, without<br />
[H]: Design, Heinrichs

<strong>Low Volume Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: KFR-2212</strong><br /><br />
[KFR-22]: <br />
Operating principle, variable area<br />
Mounting position,vertical<br />
Flow direction, from bottom<br />
Total length, 102 mm<br />
Accuracy, ±5 % FS<br />
Max. temperature, 65 °C<br />
Max. pressure, 6,5 bar<br />
Housing, Acryl<br />
Connection material, st.st.<br />
Connection size, 1/8" NPT female on rear ( or 1/4" NPT female*)<br />
Seal, FPM<br />
[12]: Measuring range, 0,04...0,5 L/min air

<strong>Screw-Spindle Flowmeter<br />
Brand: Kobold (Alemania)<br />
Model: OMG-Y</strong><br />
 <br />
Screw Type Volumetric Flowmeter<br />
Replacement unit for OMG-20.010134<br />
According to Serial Number C897V<br />
Technical data:-<br />
Connection: DN20 PN16/40, temp. Range -20…+200ºC<br />
Measuring range: 0.3-45 L/m (18-2700 L/h)<br />
Nominal flow: 30 L/min (1800 L/h)<br />
Resolution: 2560 pulses/liter, (0,391 ml/p)<br />
Accuracy: +/- 0.1% of measured value (in range 1:10)<br />
Housing material: Ductline graphite<br />
Sealing material: FKM O-ring<br />
Bearing material: Hybrid bearing<br />
1x pulse generator: PNP, magnetic, 1 meter cable<br />
1x amplifier: for pulse generator with PNP output<br />
fmax.= 2 KHz<br />
*with calibration certificate*<br />
*All relevant parts are included*

<strong>Thermal Mass Flow Meter for Gas<br />
Model: KES-3-015-K-D-3-4-B-K<br />
Brand: Kobold (Alemania)</strong><br /><br />
[KES-3]<br />
function principle Direct thermal flow<br />
Mounting position all directions<br />
version inserting version <br />
Output Analogue/contact <br />
max. temperature 175 °C<br />
max. pressure 8 bar <br />
sensor material St.st. (316SS)<br />
[015]: mounting length/connection 15 cm <br />
[K]: electronic version Compact version <br />
[D]: Display LCD-display, backlight, 2x12 digit <br />
[3]: Power supply 18-30 VDC<br />
[4]: Analogue output 4-20 mA <br />
[B]: Calibration: real gas: Digester gas*, Methane, Propane<br />
[K]: Correlation (calibration with air): Digester gas*, Methane, Oygen, Propane

<div class="MsoNormal" style="margin-bottom:.0001pt;"><strong>EPS Electromagnetic Flow Meter<br />
Brand: Heinrich (Alemania)<br />
Model: EPS-E-350B-1-H-H-2-0+UMF2-C-1-4-G-0BH/2</strong><br /><br />
[EPS-E]: Sensor<br />
Material Lining, EPDM<br />
Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,<br />
Process-Temperature, -10...+70°C<br />
[350B]: Process connection, DN200 PN16 Form B1 DIN EN 1092-1<br />
Max. measuring range, 1110 m³/h, Installation length, 350 mm.<br />
[1]: Material Process connection, Flange steel painted<br />
[H]: Material electrodes, Hastelloy C276<br />
[H]: Earthing electrode, Hastelloy<br />
[2]: Transmitter mounting, Remote Transmitter<br />
Protection class, IP 67 terminal conn.box via M 20 x 1,5;<br />
cable > 10m add. term.conn.box on transmitter<br />
[0]: Certificates, w/o<br /><br />
[UMF2]: Transmitter<br />
[C]: Mounting, Remote transmitter; IP 67 standard<br />
Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket<br />
Thread - electrical connection, cable > 10m add. term.conn.box on transmitter, ½" NPT (f)<br />
[1]: Display and control unit, integrated<br />
[4]: Power supply, 24V DC (±15%)<br />
[G]: Output Signal:<br />
current output: 1x 0/4-20 mA c/w HART protocoll<br />
pulse output: passive Um=24 VDC<br />
status output: passive Um=24 VDC<br />
[0BH]: Design, Heinrichs<br />
[2]: Longer cable, 10m IP67; breakout cable</div>

<div class="MsoNormal" style="margin-bottom:.0001pt;">
<p></p>
</div>

<div class="MsoNormal" style="margin-bottom:.0001pt;"><b><u>EPS Electromagnetic Flow Meter</u><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">Brand: Heinrich (Alemania)</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">Model: EPS-E-356B-1-H-H-2-0+UMF2-C-1-4-G-0BH/2</span></b>
<p></p>
</div>

<div class="MsoNormal" style="margin-bottom:.0001pt;"><br /><span style="float:none;word-spacing:0px;">[EPS-E]: Sensor</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">Material Lining, EPDM</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">Electrodes, Standard 2x Measuring- + 2x Groundelectrodes,</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">Process-Temperature, -10...+70°C</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">[356B]: Process connection, DN250 PN16 Form B1 DIN EN 1092-1<br /><span style="float:none;word-spacing:0px;">Max. measuring range, 1786 m³/h, Installation length, 450 mm.</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">[1]: Material Process connection, Flange steel painted</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">[H]: Material electrodes, Hastelloy C276</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">[H]: Earthing electrode, Hastelloy</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">[2]: Transmitter mounting, Remote Transmitter<br /><span style="float:none;word-spacing:0px;">Protection class, IP 67 terminal conn.box via M 20 x 1,5; </span></span></span>

<p></p>
</div>

<div class="MsoNormal" style="margin-bottom:.0001pt;">cable > 10m add. term.conn.box on transmitter<br /><span style="float:none;word-spacing:0px;">[0]: Certificates, w/o</span><br style="word-spacing:0px;" /><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">[UMF2]: Transmitter</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">[C]: Mounting, Remote transmitter; IP 67 standard</span>

<p></p>
</div>

<div class="MsoNormal" style="margin-bottom:.0001pt;">Connection to sensor, incl 2,5 m cable, c/w pipe-/wall mounting bracket<br /><span style="float:none;word-spacing:0px;">Thread - electrical connection, cable > 10m add. term.conn.box on transmitter, ½" NPT (f)<br /><span style="float:none;word-spacing:0px;">[1]: Display and control unit, integrated</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">[4]: Power supply, 24V DC (±15%)</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">[G]: Output Signal:</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">current output: 1x 0/4-20 mA c/w HART protocoll</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">pulse output: passive Um=24 VDC</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">status output: passive Um=24 VDC</span><br style="word-spacing:0px;" /><span style="float:none;word-spacing:0px;">[0BH]: Design, Heinrichs</span></span>

<p></p>
</div>

<div class="MsoNormal" style="margin-bottom:.0001pt;">[2]: Longer cable, 10m IP67; breakout cable
<p></p>
</div>

Paddle Type Flow Switch<br />
Brand: Kobold (Alemania)<br />
Model: PSR-11-258-R-25-R-1<br />
[PSR-11]<br />
Operating principle: paddle<br />
Mounting position: all directions<br />
incl. fitting: brass<br />
Body material: brass<br />
max. presure 100bar<br />
[258]: Measuring range/paddle; 7.4-18.2 L/min paddle: 8<br />
[R]: Connection; G-thread<br />
[25]: Connection; 1" (for PSR-xx25...)<br />
[R]: Contact version; N/O<br />
[1]: Connecting cable; PVC-cable 1.5 m (standard)

Thermal Mass Flow Meter for Gas<br />
Brand: Kobold (Alemania)<br />
Model: KEC-1-M-030-1-E-S-E-0<br />
[KEC-1]:<br />
Function principle, direct thermal flow<br />
Mounting position all directions<br />
version inserting versión<br />
Output Modbus RTU, 2x4-20 mA (°C/Nm³/h), Modbus TCP, puls, alarm<br />
Counter 1 total counters (resettable)<br />
max. temperature -40…+180 °C<br />
max. pressure 50 (100) bar<br />
Accuracy, ±1,5% of meas. value, ±0,3% of F.S.<br />
Option: ±1,0% of meas. value, ±0,3% of F.S.<br />
sensor material, st. st. 1.4571 /glass<br />
[M]: Measuring range, Max. Version 185 m/s<br />
[030]: Connection / sensor-length, 300 mm/ G1/2<br />
[1]: Display, 2" TFT-display, backlight<br />
[E]: Gas type, hydrogen, helium, propane CH4+CO2 (60/40 or 50/50)<br />
[S]: max. pressure, 50 bar (standard)<br />
[E]: Calibration, real gas calibration<br />
[0]: Option, w/o<br /><br />
Include:<br />
Accessories for KEC<br />
Model: KEC-SOFT<br />
Service software incl. PC-connection

<strong>Thermal Mass Flow Meter for Gas<br />
Model: KES-3-033-K-D-3-4-B-K<br />
Brand: Kobold (Alemania)</strong><br />
[KES-3]<br />
function principle Direct thermal flow<br />
Mounting position all directions<br />
version inserting version<br />
Output Analogue/contact<br />
max. temperature 175 °C<br />
max. pressure 8 bar<br />
sensor material St.st. (316SS)<br />
[033] mounting length/connection 33 cm<br />
[K] electronic version Compact version<br />
[D] Display LCD-display, backlight, 2x12 digit<br />
[3] Power supply 18-30 VDC<br />
[4] Analogue output 4-20 mA<br />
[B] Calibration, real gas: Digester gas*, Methane, Propane<br />
[K] Calibration, Correlation (calibration with air): <br />
Digester gas*, Methane, Oygen, Propane
